由于OLED有很多显示函数所以我想用一个handler集合所有的函数,这样就可以方便看有哪些函数可以使用

i2c

其中的SYS_CLK是时钟频率

.h

#ifndef __I2C_C_H__
#define __I2C_C_H__
#include "delay.h"

#define SYS_CLK 72
#define I2C_WRITE 0
#define I2C_READ 1
#define I2C_ACK 0
#define I2C_NACK 1

typedef struct
{
    GPIO_TypeDef *SCL_Port;
    uint16_t SCL_Pin;
    GPIO_TypeDef *SDA_Port;
    uint16_t SDA_Pin;
} i2c_gpio_pin_t;

typedef struct
{
    i2c_gpio_pin_t *i2c_gpio_pin;
    void (*Init)(i2c_gpio_pin_t *i2c_gpio_pin);
    void (*DeInit)(i2c_gpio_pin_t *i2c_gpio_pin);
    void (*Start)(i2c_gpio_pin_t *i2c_gpio_pin);
    void (*Stop)(i2c_gpio_pin_t *i2c_gpio_pin);
    uint8_t (*WaitAck)(i2c_gpio_pin_t *i2c_gpio_pin);
    void (*SendByte)(i2c_gpio_pin_t *i2c_gpio_pins, uint8_t Data);
    uint8_t (*ReadByte)(i2c_gpio_pin_t *i2c_gpio_pin, uint8_t ack);
} i2c_driver_interface_t;

void I2C_Init(i2c_gpio_pin_t *gpio_pin);
void I2C_Start(i2c_gpio_pin_t *gpio_pin);
void I2C_Stop(i2c_gpio_pin_t *gpio_pin);
void I2C_SendByte(i2c_gpio_pin_t *gpio_pin, uint8_t data);
uint8_t I2C_ReadByte(i2c_gpio_pin_t *gpio_pin, uint8_t ack);
uint8_t I2C_WaitAck(i2c_gpio_pin_t *gpio_pin);
void I2C_Ack(i2c_gpio_pin_t *gpio_pin);
void I2C_Nack(i2c_gpio_pin_t *gpio_pin);

#endif /* __I2C_C_H */

.c

#include "i2c_c.h"

/**
 * @brief: enable the clock of the specified GPIO port
 * @param {GPIO_TypeDef} *GPIOx
 * @return {*}
 */
void Enable_GPIO_Clock(GPIO_TypeDef *GPIOx)
{
    if (GPIOx == GPIOA)
    {
        __HAL_RCC_GPIOA_CLK_ENABLE();
    }
    else if (GPIOx == GPIOB)
    {
        __HAL_RCC_GPIOB_CLK_ENABLE();
    }
    else if (GPIOx == GPIOC)
    {
        __HAL_RCC_GPIOC_CLK_ENABLE();
    }
    else if (GPIOx == GPIOD)
    {
        __HAL_RCC_GPIOD_CLK_ENABLE();
    }
    else if (GPIOx == GPIOE)
    {
        __HAL_RCC_GPIOE_CLK_ENABLE();
    }
}
// #define I2C_W_SCL(x) HAL_GPIO_WritePin(I2C_GPIO_Port, I2C_SCL_Pin, (x) ? GPIO_PIN_SET : GPIO_PIN_RESET)
// #define I2C_W_SDA(x) HAL_GPIO_WritePin(I2C_GPIO_Port, I2C_SDA_Pin, (x) ? GPIO_PIN_SET : GPIO_PIN_RESET)

void I2C_W_SCL(i2c_gpio_pin_t *gpio_pin, uint8_t state)
{

    state ? HAL_GPIO_WritePin(gpio_pin->SCL_Port, gpio_pin->SCL_Pin, GPIO_PIN_SET)
          : HAL_GPIO_WritePin(gpio_pin->SCL_Port, gpio_pin->SCL_Pin, GPIO_PIN_RESET);
}
void I2C_W_SDA(i2c_gpio_pin_t *gpio_pin, uint8_t state)
{
    state ? HAL_GPIO_WritePin(gpio_pin->SDA_Port, gpio_pin->SDA_Pin, GPIO_PIN_SET)
          : HAL_GPIO_WritePin(gpio_pin->SDA_Port, gpio_pin->SDA_Pin, GPIO_PIN_RESET);
}
void I2C_Init(i2c_gpio_pin_t *gpio_pin)
{
    Enable_GPIO_Clock(gpio_pin->SCL_Port);
    Enable_GPIO_Clock(gpio_pin->SDA_Port);
    GPIO_InitTypeDef GPIO_InitStructure;
    GPIO_InitStructure.Pin = gpio_pin->SCL_Pin | gpio_pin->SDA_Pin;
    GPIO_InitStructure.Mode = GPIO_MODE_OUTPUT_OD;
    GPIO_InitStructure.Speed = GPIO_SPEED_MEDIUM;
    HAL_GPIO_Init(gpio_pin->SCL_Port, &GPIO_InitStructure);
    HAL_GPIO_Init(gpio_pin->SDA_Port, &GPIO_InitStructure);

    delay_init(SYS_CLK);

    I2C_W_SCL(gpio_pin, 1);
    I2C_W_SDA(gpio_pin, 1);
}

void I2C_Start(i2c_gpio_pin_t *gpio_pin)
{

    I2C_W_SDA(gpio_pin, 1);
    I2C_W_SCL(gpio_pin, 1);
    delay_us(2);
    I2C_W_SDA(gpio_pin, 0);
    delay_us(2);
    I2C_W_SCL(gpio_pin, 0);
}

void I2C_Stop(i2c_gpio_pin_t *gpio_pin)
{
    I2C_W_SDA(gpio_pin, 0);
    delay_us(2);
    I2C_W_SCL(gpio_pin, 1);
    delay_us(2);
    I2C_W_SDA(gpio_pin, 1);
}

void I2C_SendByte(i2c_gpio_pin_t *gpio_pin, uint8_t data)
{
    uint8_t i;
    for (i = 0; i < 8; i++)
    {
        I2C_W_SDA(gpio_pin, (data & 0x80) >> 7);
        delay_us(2);
        I2C_W_SCL(gpio_pin, 1);
        delay_us(2);
        I2C_W_SCL(gpio_pin, 0);
        data <<= 1;
    }
    I2C_W_SDA(gpio_pin, 1);
}

uint8_t I2C_ReadByte(i2c_gpio_pin_t *gpio_pin, uint8_t ack)
{
    uint8_t i, data = 0;
    for (i = 0; i < 8; i++)
    {
        data <<= 1;
        I2C_W_SCL(gpio_pin, 1);
        delay_us(2);
        if (GPIO_PIN_SET == HAL_GPIO_ReadPin(gpio_pin->SDA_Port, gpio_pin->SDA_Pin))
        {
            data++;
        }
        I2C_W_SCL(gpio_pin, 0);
        delay_us(1);
    }
    if (I2C_ACK == ack)
    {
        I2C_Ack(gpio_pin);
    }
    else
    {
        I2C_Nack(gpio_pin);
    }
    return data;
}

/**
 * @brief :
 * @param {i2c_gpio_pin_t} *gpio_pin
 * @return uint8_t  1:nack 0:ack
 */
uint8_t I2C_WaitAck(i2c_gpio_pin_t *gpio_pin)
{
    uint8_t ack = 0;
    I2C_W_SDA(gpio_pin, 1);
    delay_us(2);
    I2C_W_SCL(gpio_pin, 1);
    delay_us(2);
    if (GPIO_PIN_SET == HAL_GPIO_ReadPin(gpio_pin->SDA_Port, gpio_pin->SDA_Pin))
    {
        ack = 1;
    }
    I2C_W_SCL(gpio_pin, 0);
    delay_us(2);
    return ack;
}

/**
 * @brief : i2c master send ack
 * @param {i2c_gpio_pin_t} *gpio_pin
 * @return {*}
 */
void I2C_Ack(i2c_gpio_pin_t *gpio_pin)
{
    I2C_W_SDA(gpio_pin, 0);
    I2C_W_SCL(gpio_pin, 1);
    delay_us(2);
    I2C_W_SCL(gpio_pin, 0);
    I2C_W_SDA(gpio_pin, 1);
    delay_us(2);
}

/**
 * @brief : i2c master send nack
 * @param {i2c_gpio_pin_t} *gpio_pin
 * @return {*}
 */
void I2C_Nack(i2c_gpio_pin_t *gpio_pin)
{
    I2C_W_SDA(gpio_pin, 1);
    I2C_W_SCL(gpio_pin, 1);
    delay_us(2);
    I2C_W_SCL(gpio_pin, 0);
    delay_us(2);
}

OLED

.h

#ifndef __OLED_H__
#define __OLED_H__
#include "i2c_c.h"

#define OLED_SLAVE_ADDR 0x3C // OLED原始地址

typedef struct oledHandleTypeDef oledHandleTypeDef;
struct oledHandleTypeDef
{
  i2c_driver_interface_t *i2c_driver_interface;
  void (*Clear)(oledHandleTypeDef *oled_handle);
  /**
   * @brief oled清除指定行
   * @param {oledHandleTypeDef} *oled_handle
   * @param {uint8_t} line  1~4
   * @return {*}
   */
  void (*ClearLine)(oledHandleTypeDef *oled_handle, uint8_t line);
  /**
   * @brief oled清除指定位置
   * @param {oledHandleTypeDef} *oled_handle
   * @param {uint8_t} line  1~4
   * @param {uint8_t} column  1~16
   * @return {*}
   */
  void (*ClearPoint)(oledHandleTypeDef *oled_handle, uint8_t line, uint8_t column);
  void (*ShowChar)(oledHandleTypeDef *oled_handle, uint8_t Line, uint8_t Column, char Char);
  void (*ShowString)(oledHandleTypeDef *oled_handle, uint8_t Line, uint8_t Column, char *String);
  void (*ShowNum)(oledHandleTypeDef *oled_handle, uint8_t Line, uint8_t Column, uint32_t Number, uint8_t Length);
  void (*ShowSignedNum)(oledHandleTypeDef *oled_handle, uint8_t Line, uint8_t Column, int32_t Number, uint8_t Length);
  void (*ShowHexNum)(oledHandleTypeDef *oled_handle, uint8_t Line, uint8_t Column, uint32_t Number, uint8_t Length);
  void (*ShowBinNum)(oledHandleTypeDef *oled_handle, uint8_t Line, uint8_t Column, uint32_t Number, uint8_t Length);
};

uint8_t OLED_Init(oledHandleTypeDef *oled_handle,
                  i2c_driver_interface_t *i2c_driver_interface);

/*how to use----------------------------------------*/
/*
oledHandleTypeDef oled_handle;
i2c_driver_interface_t i2c_driver = {
    .i2c_gpio_pin = &(i2c_gpio_pin_t){.SCL_Pin = GPIO_PIN_8,
                                      .SCL_Port = GPIOB,
                                      .SDA_Pin = GPIO_PIN_9,
                                      .SDA_Port = GPIOB},
    .Init = I2C_Init,
    .Start = I2C_Start,
    .Stop = I2C_Stop,
    .WaitAck = I2C_WaitAck,
    .SendByte = I2C_SendByte};

  OLED_Init(&oled_handle, &i2c_driver);
*/
#endif

.c

#include "OLED_Font.h"
#include "OLED.h"

static void Init(oledHandleTypeDef *oled_handle);
static void Clear(oledHandleTypeDef *oled_handle);
static void ClearLine(oledHandleTypeDef *oled_handle, uint8_t line);
static void ClearPoint(oledHandleTypeDef *oled_handle, uint8_t line, uint8_t column);
static void ShowChar(oledHandleTypeDef *oled_handle, uint8_t Line, uint8_t Column, char Char);
static void ShowString(oledHandleTypeDef *oled_handle, uint8_t Line, uint8_t Column, char *String);
static void ShowNum(oledHandleTypeDef *oled_handle, uint8_t Line, uint8_t Column, uint32_t Number, uint8_t Length);
static void ShowSignedNum(oledHandleTypeDef *oled_handle, uint8_t Line, uint8_t Column, int32_t Number, uint8_t Length);
static void ShowHexNum(oledHandleTypeDef *oled_handle, uint8_t Line, uint8_t Column, uint32_t Number, uint8_t Length);
static void ShowBinNum(oledHandleTypeDef *oled_handle, uint8_t Line, uint8_t Column, uint32_t Number, uint8_t Length);

/**
 * @brief :oled 写命令
 * @param {oledHandleTypeDef} *oled_handle
 * @param {uint8_t} Command
 * @return {*}
 */
void OLED_WriteCommand(oledHandleTypeDef *oled_handle, uint8_t Command)
{

	oled_handle->i2c_driver_interface->Start(oled_handle->i2c_driver_interface->i2c_gpio_pin);

	oled_handle->i2c_driver_interface->SendByte(oled_handle->i2c_driver_interface->i2c_gpio_pin, OLED_SLAVE_ADDR << 1 | I2C_WRITE);

	oled_handle->i2c_driver_interface->WaitAck(oled_handle->i2c_driver_interface->i2c_gpio_pin);

	oled_handle->i2c_driver_interface->SendByte(oled_handle->i2c_driver_interface->i2c_gpio_pin, 0x00);
	oled_handle->i2c_driver_interface->WaitAck(oled_handle->i2c_driver_interface->i2c_gpio_pin);

	oled_handle->i2c_driver_interface->SendByte(oled_handle->i2c_driver_interface->i2c_gpio_pin, Command);
	oled_handle->i2c_driver_interface->WaitAck(oled_handle->i2c_driver_interface->i2c_gpio_pin);
	oled_handle->i2c_driver_interface->Stop(oled_handle->i2c_driver_interface->i2c_gpio_pin);
}

/**
 * @brief  OLED写数据
 * @param  Data 要写入的数据
 * @retval 无
 */
void OLED_WriteData(oledHandleTypeDef *oled_handle, uint8_t Data)
{

	oled_handle->i2c_driver_interface->Start(oled_handle->i2c_driver_interface->i2c_gpio_pin);

	oled_handle->i2c_driver_interface->SendByte(oled_handle->i2c_driver_interface->i2c_gpio_pin, OLED_SLAVE_ADDR << 1 | I2C_WRITE); // 从机地址
	oled_handle->i2c_driver_interface->WaitAck(oled_handle->i2c_driver_interface->i2c_gpio_pin);

	oled_handle->i2c_driver_interface->SendByte(oled_handle->i2c_driver_interface->i2c_gpio_pin, 0x40); // 写数据
	oled_handle->i2c_driver_interface->WaitAck(oled_handle->i2c_driver_interface->i2c_gpio_pin);

	oled_handle->i2c_driver_interface->SendByte(oled_handle->i2c_driver_interface->i2c_gpio_pin, Data);
	oled_handle->i2c_driver_interface->WaitAck(oled_handle->i2c_driver_interface->i2c_gpio_pin);

	oled_handle->i2c_driver_interface->Stop(oled_handle->i2c_driver_interface->i2c_gpio_pin);
}

/**
 * @brief  OLED设置光标位置
 * @param  Y 以左上角为原点，向下方向的坐标，范围：0~7
 * @param  X 以左上角为原点，向右方向的坐标，范围：0~127
 * @retval 无
 */
void OLED_SetCursor(oledHandleTypeDef *oled_handle, uint8_t Y, uint8_t X)
{
	OLED_WriteCommand(oled_handle, 0xB0 | Y);				  // 设置Y位置
	OLED_WriteCommand(oled_handle, 0x10 | ((X & 0xF0) >> 4)); // 设置X位置高4位
	OLED_WriteCommand(oled_handle, 0x00 | (X & 0x0F));		  // 设置X位置低4位
}

/**
 * @brief  OLED清屏
 * @param  无
 * @retval 无
 */
static void Clear(oledHandleTypeDef *oled_handle)
{

	uint8_t i, j;
	for (j = 0; j < 8; j++)
	{
		OLED_SetCursor(oled_handle, j, 0);
		for (i = 0; i < 128; i++)
		{
			OLED_WriteData(oled_handle, 0x00);
		}
	}
}
/**
 * @brief oled清除指定行
 * @param {oledHandleTypeDef} *oled_handle
 * @param {uint8_t} line  1~4
 * @return {*}
 */
static void ClearLine(oledHandleTypeDef *oled_handle, uint8_t line)
{
	uint8_t i, j;
	uint8_t startPage = (line - 1) * 2; // Calculate the starting page based on the line number

	for (j = 0; j < 2; j++)
	{
		OLED_SetCursor(oled_handle, startPage + j, 0); // Move to the correct page
		for (i = 0; i < 128; i++)
		{
			OLED_WriteData(oled_handle, 0x00); // Clear the entire row
		}
	}
}

/**
 * @brief oled清除指定点
 * @param {oledHandleTypeDef} *oled_handle
 * @param {uint8_t} line 1~4
 * @param {uint8_t} column 列位置，范围：1~16
 * @return {*}
 */
static void ClearPoint(oledHandleTypeDef *oled_handle, uint8_t line, uint8_t column)
{
	uint8_t page = (line - 1) * 2;
	uint8_t pos = (column - 1) * 8;
	for (uint8_t i = 0; i < 2; i++)
	{
		OLED_SetCursor(oled_handle, page + i, pos);
		for (uint8_t j = 0; j < 8; j++)
		{
			OLED_WriteData(oled_handle, 0x00);
		}
	}
}
/**
 * @brief  OLED显示一个字符
 * @param  Line 行位置，范围：1~4
 * @param  Column 列位置，范围：1~16
 * @param  Char 要显示的一个字符，范围：ASCII可见字符
 * @retval 无
 */
static void ShowChar(oledHandleTypeDef *oled_handle, uint8_t Line, uint8_t Column, char Char)
{

	uint8_t i;
	OLED_SetCursor(oled_handle, (Line - 1) * 2, (Column - 1) * 8); // 设置光标位置在上半部分
	for (i = 0; i < 8; i++)
	{
		OLED_WriteData(oled_handle, OLED_F8x16[Char - ' '][i]); // 显示上半部分内容
	}
	OLED_SetCursor(oled_handle, (Line - 1) * 2 + 1, (Column - 1) * 8); // 设置光标位置在下半部分
	for (i = 0; i < 8; i++)
	{
		OLED_WriteData(oled_handle, OLED_F8x16[Char - ' '][i + 8]); // 显示下半部分内容
	}
}

/**
 * @brief  OLED显示字符串
 * @param  Line 起始行位置，范围：1~4
 * @param  Column 起始列位置，范围：1~16
 * @param  String 要显示的字符串，范围：ASCII可见字符
 * @retval 无
 */
static void ShowString(oledHandleTypeDef *oled_handle, uint8_t Line, uint8_t Column, char *String)
{

	uint8_t i;
	for (i = 0; String[i] != '\0'; i++)
	{
		ShowChar(oled_handle, Line, Column + i, String[i]);
	}
}

/**
 * @brief  OLED次方函数
 * @retval 返回值等于X的Y次方
 */
uint32_t OLED_Pow(uint32_t X, uint32_t Y)
{
	uint32_t Result = 1;
	while (Y--)
	{
		Result *= X;
	}
	return Result;
}

/**
 * @brief  OLED显示数字（十进制，正数）
 * @param  Line 起始行位置，范围：1~4
 * @param  Column 起始列位置，范围：1~16
 * @param  Number 要显示的数字，范围：0~4294967295
 * @param  Length 要显示数字的长度，范围：1~10
 * @retval 无
 */
static void ShowNum(oledHandleTypeDef *oled_handle, uint8_t Line, uint8_t Column, uint32_t Number, uint8_t Length)
{

	uint8_t i;
	for (i = 0; i < Length; i++)
	{
		ShowChar(oled_handle, Line, Column + i, Number / OLED_Pow(10, Length - i - 1) % 10 + '0');
	}
}

/**
 * @brief  OLED显示数字（十进制，带符号数）
 * @param  Line 起始行位置，范围：1~4
 * @param  Column 起始列位置，范围：1~16
 * @param  Number 要显示的数字，范围：-2147483648~2147483647
 * @param  Length 要显示数字的长度，范围：1~10
 * @retval 无
 */
static void ShowSignedNum(oledHandleTypeDef *oled_handle, uint8_t Line, uint8_t Column, int32_t Number, uint8_t Length)
{

	uint8_t i;
	uint32_t Number1;
	if (Number >= 0)
	{
		ShowChar(oled_handle, Line, Column, '+');
		Number1 = Number;
	}
	else
	{
		ShowChar(oled_handle, Line, Column, '-');
		Number1 = -Number;
	}
	for (i = 0; i < Length; i++)
	{
		ShowChar(oled_handle, Line, Column + i + 1, Number1 / OLED_Pow(10, Length - i - 1) % 10 + '0');
	}
}

/**
 * @brief  OLED显示数字（十六进制，正数）
 * @param  Line 起始行位置，范围：1~4
 * @param  Column 起始列位置，范围：1~16
 * @param  Number 要显示的数字，范围：0~0xFFFFFFFF
 * @param  Length 要显示数字的长度，范围：1~8
 * @retval 无
 */
static void ShowHexNum(oledHandleTypeDef *oled_handle, uint8_t Line, uint8_t Column, uint32_t Number, uint8_t Length)
{

	uint8_t i, SingleNumber;
	for (i = 0; i < Length; i++)
	{
		SingleNumber = Number / OLED_Pow(16, Length - i - 1) % 16;
		if (SingleNumber < 10)
		{
			ShowChar(oled_handle, Line, Column + i, SingleNumber + '0');
		}
		else
		{
			ShowChar(oled_handle, Line, Column + i, SingleNumber - 10 + 'A');
		}
	}
}

/**
 * @brief  OLED显示数字（二进制，正数）
 * @param  Line 起始行位置，范围：1~4
 * @param  Column 起始列位置，范围：1~16
 * @param  Number 要显示的数字，范围：0~1111 1111 1111 1111
 * @param  Length 要显示数字的长度，范围：1~16
 * @retval 无
 */
static void ShowBinNum(oledHandleTypeDef *oled_handle, uint8_t Line, uint8_t Column, uint32_t Number, uint8_t Length)
{

	uint8_t i;
	for (i = 0; i < Length; i++)
	{
		ShowChar(oled_handle, Line, Column + i, Number / OLED_Pow(2, Length - i - 1) % 2 + '0');
	}
}

/**
 * @brief  OLED初始化
 * @param  无
 * @retval 无
 */
static void Init(oledHandleTypeDef *oled_handle)
{
	uint32_t i, j;

	for (i = 0; i < 1000; i++) // 上电延时
	{
		for (j = 0; j < 1000; j++)
			;
	}

	oled_handle->i2c_driver_interface->Init(oled_handle->i2c_driver_interface->i2c_gpio_pin);
	OLED_WriteCommand(oled_handle, 0xAE); // 关闭显示

	OLED_WriteCommand(oled_handle, 0xD5); // 设置显示时钟分频比/振荡器频率

	OLED_WriteCommand(oled_handle, 0x80);

	OLED_WriteCommand(oled_handle, 0xA8); // 设置多路复用率
	OLED_WriteCommand(oled_handle, 0x3F);

	OLED_WriteCommand(oled_handle, 0xD3); // 设置显示偏移
	OLED_WriteCommand(oled_handle, 0x00);

	OLED_WriteCommand(oled_handle, 0x40); // 设置显示开始行

	OLED_WriteCommand(oled_handle, 0xA1); // 设置左右方向，0xA1正常 0xA0左右反置

	OLED_WriteCommand(oled_handle, 0xC8); // 设置上下方向，0xC8正常 0xC0上下反置

	OLED_WriteCommand(oled_handle, 0xDA); // 设置COM引脚硬件配置
	OLED_WriteCommand(oled_handle, 0x12);

	OLED_WriteCommand(oled_handle, 0x81); // 设置对比度控制
	OLED_WriteCommand(oled_handle, 0xCF);

	OLED_WriteCommand(oled_handle, 0xD9); // 设置预充电周期
	OLED_WriteCommand(oled_handle, 0xF1);

	OLED_WriteCommand(oled_handle, 0xDB); // 设置VCOMH取消选择级别
	OLED_WriteCommand(oled_handle, 0x30);

	OLED_WriteCommand(oled_handle, 0xA4); // 设置整个显示打开/关闭

	OLED_WriteCommand(oled_handle, 0xA6); // 设置正常/倒转显示

	OLED_WriteCommand(oled_handle, 0x8D); // 设置充电泵
	OLED_WriteCommand(oled_handle, 0x14);

	OLED_WriteCommand(oled_handle, 0xAF); // 开启显示

	Clear(oled_handle); // OLED清屏
}

/**
 * @brief :
 * @param {oledHandleTypeDef} *oled_handle
 * @param {i2c_driver_interface_t} *i2c_driver_interface
 * @return {*}
 */
uint8_t OLED_Init(oledHandleTypeDef *oled_handle,
				  i2c_driver_interface_t *i2c_driver_interface)
{

	oled_handle->i2c_driver_interface = i2c_driver_interface;
	oled_handle->Clear = Clear;
	oled_handle->ClearLine = ClearLine;
	oled_handle->ClearPoint = ClearPoint;
	oled_handle->ShowChar = ShowChar;
	oled_handle->ShowString = ShowString;
	oled_handle->ShowNum = ShowNum;
	oled_handle->ShowSignedNum = ShowSignedNum;
	oled_handle->ShowHexNum = ShowHexNum;
	oled_handle->ShowBinNum = ShowBinNum;
	Init(oled_handle); // OLED内部初始化
	return 0;
}

font.h

#ifndef __OLED_FONT_H
#define __OLED_FONT_H
#include "stm32f1xx_hal.h"
/*OLED字模库，宽8像素，高16像素*/
const uint8_t OLED_F8x16[][16]=
{
	0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
	0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,//  0

	0x00,0x00,0x00,0xF8,0x00,0x00,0x00,0x00,
	0x00,0x00,0x00,0x33,0x30,0x00,0x00,0x00,//! 1

	0x00,0x10,0x0C,0x06,0x10,0x0C,0x06,0x00,
	0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,//" 2

	0x40,0xC0,0x78,0x40,0xC0,0x78,0x40,0x00,
	0x04,0x3F,0x04,0x04,0x3F,0x04,0x04,0x00,//# 3

	0x00,0x70,0x88,0xFC,0x08,0x30,0x00,0x00,
	0x00,0x18,0x20,0xFF,0x21,0x1E,0x00,0x00,//$ 4

	0xF0,0x08,0xF0,0x00,0xE0,0x18,0x00,0x00,
	0x00,0x21,0x1C,0x03,0x1E,0x21,0x1E,0x00,//% 5

	0x00,0xF0,0x08,0x88,0x70,0x00,0x00,0x00,
	0x1E,0x21,0x23,0x24,0x19,0x27,0x21,0x10,//& 6

	0x10,0x16,0x0E,0x00,0x00,0x00,0x00,0x00,
	0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,//' 7

	0x00,0x00,0x00,0xE0,0x18,0x04,0x02,0x00,
	0x00,0x00,0x00,0x07,0x18,0x20,0x40,0x00,//( 8

	0x00,0x02,0x04,0x18,0xE0,0x00,0x00,0x00,
	0x00,0x40,0x20,0x18,0x07,0x00,0x00,0x00,//) 9

	0x40,0x40,0x80,0xF0,0x80,0x40,0x40,0x00,
	0x02,0x02,0x01,0x0F,0x01,0x02,0x02,0x00,//* 10

	0x00,0x00,0x00,0xF0,0x00,0x00,0x00,0x00,
	0x01,0x01,0x01,0x1F,0x01,0x01,0x01,0x00,//+ 11

	0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
	0x80,0xB0,0x70,0x00,0x00,0x00,0x00,0x00,//, 12

	0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
	0x00,0x01,0x01,0x01,0x01,0x01,0x01,0x01,//- 13

	0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
	0x00,0x30,0x30,0x00,0x00,0x00,0x00,0x00,//. 14

	0x00,0x00,0x00,0x00,0x80,0x60,0x18,0x04,
	0x00,0x60,0x18,0x06,0x01,0x00,0x00,0x00,/// 15

	0x00,0xE0,0x10,0x08,0x08,0x10,0xE0,0x00,
	0x00,0x0F,0x10,0x20,0x20,0x10,0x0F,0x00,//0 16

	0x00,0x10,0x10,0xF8,0x00,0x00,0x00,0x00,
	0x00,0x20,0x20,0x3F,0x20,0x20,0x00,0x00,//1 17

	0x00,0x70,0x08,0x08,0x08,0x88,0x70,0x00,
	0x00,0x30,0x28,0x24,0x22,0x21,0x30,0x00,//2 18

	0x00,0x30,0x08,0x88,0x88,0x48,0x30,0x00,
	0x00,0x18,0x20,0x20,0x20,0x11,0x0E,0x00,//3 19

	0x00,0x00,0xC0,0x20,0x10,0xF8,0x00,0x00,
	0x00,0x07,0x04,0x24,0x24,0x3F,0x24,0x00,//4 20

	0x00,0xF8,0x08,0x88,0x88,0x08,0x08,0x00,
	0x00,0x19,0x21,0x20,0x20,0x11,0x0E,0x00,//5 21

	0x00,0xE0,0x10,0x88,0x88,0x18,0x00,0x00,
	0x00,0x0F,0x11,0x20,0x20,0x11,0x0E,0x00,//6 22

	0x00,0x38,0x08,0x08,0xC8,0x38,0x08,0x00,
	0x00,0x00,0x00,0x3F,0x00,0x00,0x00,0x00,//7 23

	0x00,0x70,0x88,0x08,0x08,0x88,0x70,0x00,
	0x00,0x1C,0x22,0x21,0x21,0x22,0x1C,0x00,//8 24

	0x00,0xE0,0x10,0x08,0x08,0x10,0xE0,0x00,
	0x00,0x00,0x31,0x22,0x22,0x11,0x0F,0x00,//9 25

	0x00,0x00,0x00,0xC0,0xC0,0x00,0x00,0x00,
	0x00,0x00,0x00,0x30,0x30,0x00,0x00,0x00,//: 26

	0x00,0x00,0x00,0x80,0x00,0x00,0x00,0x00,
	0x00,0x00,0x80,0x60,0x00,0x00,0x00,0x00,//; 27

	0x00,0x00,0x80,0x40,0x20,0x10,0x08,0x00,
	0x00,0x01,0x02,0x04,0x08,0x10,0x20,0x00,//< 28

	0x40,0x40,0x40,0x40,0x40,0x40,0x40,0x00,
	0x04,0x04,0x04,0x04,0x04,0x04,0x04,0x00,//= 29

	0x00,0x08,0x10,0x20,0x40,0x80,0x00,0x00,
	0x00,0x20,0x10,0x08,0x04,0x02,0x01,0x00,//> 30

	0x00,0x70,0x48,0x08,0x08,0x08,0xF0,0x00,
	0x00,0x00,0x00,0x30,0x36,0x01,0x00,0x00,//? 31

	0xC0,0x30,0xC8,0x28,0xE8,0x10,0xE0,0x00,
	0x07,0x18,0x27,0x24,0x23,0x14,0x0B,0x00,//@ 32

	0x00,0x00,0xC0,0x38,0xE0,0x00,0x00,0x00,
	0x20,0x3C,0x23,0x02,0x02,0x27,0x38,0x20,//A 33

	0x08,0xF8,0x88,0x88,0x88,0x70,0x00,0x00,
	0x20,0x3F,0x20,0x20,0x20,0x11,0x0E,0x00,//B 34

	0xC0,0x30,0x08,0x08,0x08,0x08,0x38,0x00,
	0x07,0x18,0x20,0x20,0x20,0x10,0x08,0x00,//C 35

	0x08,0xF8,0x08,0x08,0x08,0x10,0xE0,0x00,
	0x20,0x3F,0x20,0x20,0x20,0x10,0x0F,0x00,//D 36

	0x08,0xF8,0x88,0x88,0xE8,0x08,0x10,0x00,
	0x20,0x3F,0x20,0x20,0x23,0x20,0x18,0x00,//E 37

	0x08,0xF8,0x88,0x88,0xE8,0x08,0x10,0x00,
	0x20,0x3F,0x20,0x00,0x03,0x00,0x00,0x00,//F 38

	0xC0,0x30,0x08,0x08,0x08,0x38,0x00,0x00,
	0x07,0x18,0x20,0x20,0x22,0x1E,0x02,0x00,//G 39

	0x08,0xF8,0x08,0x00,0x00,0x08,0xF8,0x08,
	0x20,0x3F,0x21,0x01,0x01,0x21,0x3F,0x20,//H 40

	0x00,0x08,0x08,0xF8,0x08,0x08,0x00,0x00,
	0x00,0x20,0x20,0x3F,0x20,0x20,0x00,0x00,//I 41

	0x00,0x00,0x08,0x08,0xF8,0x08,0x08,0x00,
	0xC0,0x80,0x80,0x80,0x7F,0x00,0x00,0x00,//J 42

	0x08,0xF8,0x88,0xC0,0x28,0x18,0x08,0x00,
	0x20,0x3F,0x20,0x01,0x26,0x38,0x20,0x00,//K 43

	0x08,0xF8,0x08,0x00,0x00,0x00,0x00,0x00,
	0x20,0x3F,0x20,0x20,0x20,0x20,0x30,0x00,//L 44

	0x08,0xF8,0xF8,0x00,0xF8,0xF8,0x08,0x00,
	0x20,0x3F,0x00,0x3F,0x00,0x3F,0x20,0x00,//M 45

	0x08,0xF8,0x30,0xC0,0x00,0x08,0xF8,0x08,
	0x20,0x3F,0x20,0x00,0x07,0x18,0x3F,0x00,//N 46

	0xE0,0x10,0x08,0x08,0x08,0x10,0xE0,0x00,
	0x0F,0x10,0x20,0x20,0x20,0x10,0x0F,0x00,//O 47

	0x08,0xF8,0x08,0x08,0x08,0x08,0xF0,0x00,
	0x20,0x3F,0x21,0x01,0x01,0x01,0x00,0x00,//P 48

	0xE0,0x10,0x08,0x08,0x08,0x10,0xE0,0x00,
	0x0F,0x18,0x24,0x24,0x38,0x50,0x4F,0x00,//Q 49

	0x08,0xF8,0x88,0x88,0x88,0x88,0x70,0x00,
	0x20,0x3F,0x20,0x00,0x03,0x0C,0x30,0x20,//R 50

	0x00,0x70,0x88,0x08,0x08,0x08,0x38,0x00,
	0x00,0x38,0x20,0x21,0x21,0x22,0x1C,0x00,//S 51

	0x18,0x08,0x08,0xF8,0x08,0x08,0x18,0x00,
	0x00,0x00,0x20,0x3F,0x20,0x00,0x00,0x00,//T 52

	0x08,0xF8,0x08,0x00,0x00,0x08,0xF8,0x08,
	0x00,0x1F,0x20,0x20,0x20,0x20,0x1F,0x00,//U 53

	0x08,0x78,0x88,0x00,0x00,0xC8,0x38,0x08,
	0x00,0x00,0x07,0x38,0x0E,0x01,0x00,0x00,//V 54

	0xF8,0x08,0x00,0xF8,0x00,0x08,0xF8,0x00,
	0x03,0x3C,0x07,0x00,0x07,0x3C,0x03,0x00,//W 55

	0x08,0x18,0x68,0x80,0x80,0x68,0x18,0x08,
	0x20,0x30,0x2C,0x03,0x03,0x2C,0x30,0x20,//X 56

	0x08,0x38,0xC8,0x00,0xC8,0x38,0x08,0x00,
	0x00,0x00,0x20,0x3F,0x20,0x00,0x00,0x00,//Y 57

	0x10,0x08,0x08,0x08,0xC8,0x38,0x08,0x00,
	0x20,0x38,0x26,0x21,0x20,0x20,0x18,0x00,//Z 58

	0x00,0x00,0x00,0xFE,0x02,0x02,0x02,0x00,
	0x00,0x00,0x00,0x7F,0x40,0x40,0x40,0x00,//[ 59

	0x00,0x0C,0x30,0xC0,0x00,0x00,0x00,0x00,
	0x00,0x00,0x00,0x01,0x06,0x38,0xC0,0x00,//\ 60

	0x00,0x02,0x02,0x02,0xFE,0x00,0x00,0x00,
	0x00,0x40,0x40,0x40,0x7F,0x00,0x00,0x00,//] 61

	0x00,0x00,0x04,0x02,0x02,0x02,0x04,0x00,
	0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,//^ 62

	0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
	0x80,0x80,0x80,0x80,0x80,0x80,0x80,0x80,//_ 63

	0x00,0x02,0x02,0x04,0x00,0x00,0x00,0x00,
	0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,//` 64

	0x00,0x00,0x80,0x80,0x80,0x80,0x00,0x00,
	0x00,0x19,0x24,0x22,0x22,0x22,0x3F,0x20,//a 65

	0x08,0xF8,0x00,0x80,0x80,0x00,0x00,0x00,
	0x00,0x3F,0x11,0x20,0x20,0x11,0x0E,0x00,//b 66

	0x00,0x00,0x00,0x80,0x80,0x80,0x00,0x00,
	0x00,0x0E,0x11,0x20,0x20,0x20,0x11,0x00,//c 67

	0x00,0x00,0x00,0x80,0x80,0x88,0xF8,0x00,
	0x00,0x0E,0x11,0x20,0x20,0x10,0x3F,0x20,//d 68

	0x00,0x00,0x80,0x80,0x80,0x80,0x00,0x00,
	0x00,0x1F,0x22,0x22,0x22,0x22,0x13,0x00,//e 69

	0x00,0x80,0x80,0xF0,0x88,0x88,0x88,0x18,
	0x00,0x20,0x20,0x3F,0x20,0x20,0x00,0x00,//f 70

	0x00,0x00,0x80,0x80,0x80,0x80,0x80,0x00,
	0x00,0x6B,0x94,0x94,0x94,0x93,0x60,0x00,//g 71

	0x08,0xF8,0x00,0x80,0x80,0x80,0x00,0x00,
	0x20,0x3F,0x21,0x00,0x00,0x20,0x3F,0x20,//h 72

	0x00,0x80,0x98,0x98,0x00,0x00,0x00,0x00,
	0x00,0x20,0x20,0x3F,0x20,0x20,0x00,0x00,//i 73

	0x00,0x00,0x00,0x80,0x98,0x98,0x00,0x00,
	0x00,0xC0,0x80,0x80,0x80,0x7F,0x00,0x00,//j 74

	0x08,0xF8,0x00,0x00,0x80,0x80,0x80,0x00,
	0x20,0x3F,0x24,0x02,0x2D,0x30,0x20,0x00,//k 75

	0x00,0x08,0x08,0xF8,0x00,0x00,0x00,0x00,
	0x00,0x20,0x20,0x3F,0x20,0x20,0x00,0x00,//l 76

	0x80,0x80,0x80,0x80,0x80,0x80,0x80,0x00,
	0x20,0x3F,0x20,0x00,0x3F,0x20,0x00,0x3F,//m 77

	0x80,0x80,0x00,0x80,0x80,0x80,0x00,0x00,
	0x20,0x3F,0x21,0x00,0x00,0x20,0x3F,0x20,//n 78

	0x00,0x00,0x80,0x80,0x80,0x80,0x00,0x00,
	0x00,0x1F,0x20,0x20,0x20,0x20,0x1F,0x00,//o 79

	0x80,0x80,0x00,0x80,0x80,0x00,0x00,0x00,
	0x80,0xFF,0xA1,0x20,0x20,0x11,0x0E,0x00,//p 80

	0x00,0x00,0x00,0x80,0x80,0x80,0x80,0x00,
	0x00,0x0E,0x11,0x20,0x20,0xA0,0xFF,0x80,//q 81

	0x80,0x80,0x80,0x00,0x80,0x80,0x80,0x00,
	0x20,0x20,0x3F,0x21,0x20,0x00,0x01,0x00,//r 82

	0x00,0x00,0x80,0x80,0x80,0x80,0x80,0x00,
	0x00,0x33,0x24,0x24,0x24,0x24,0x19,0x00,//s 83

	0x00,0x80,0x80,0xE0,0x80,0x80,0x00,0x00,
	0x00,0x00,0x00,0x1F,0x20,0x20,0x00,0x00,//t 84

	0x80,0x80,0x00,0x00,0x00,0x80,0x80,0x00,
	0x00,0x1F,0x20,0x20,0x20,0x10,0x3F,0x20,//u 85

	0x80,0x80,0x80,0x00,0x00,0x80,0x80,0x80,
	0x00,0x01,0x0E,0x30,0x08,0x06,0x01,0x00,//v 86

	0x80,0x80,0x00,0x80,0x00,0x80,0x80,0x80,
	0x0F,0x30,0x0C,0x03,0x0C,0x30,0x0F,0x00,//w 87

	0x00,0x80,0x80,0x00,0x80,0x80,0x80,0x00,
	0x00,0x20,0x31,0x2E,0x0E,0x31,0x20,0x00,//x 88

	0x80,0x80,0x80,0x00,0x00,0x80,0x80,0x80,
	0x80,0x81,0x8E,0x70,0x18,0x06,0x01,0x00,//y 89

	0x00,0x80,0x80,0x80,0x80,0x80,0x80,0x00,
	0x00,0x21,0x30,0x2C,0x22,0x21,0x30,0x00,//z 90

	0x00,0x00,0x00,0x00,0x80,0x7C,0x02,0x02,
	0x00,0x00,0x00,0x00,0x00,0x3F,0x40,0x40,//{ 91

	0x00,0x00,0x00,0x00,0xFF,0x00,0x00,0x00,
	0x00,0x00,0x00,0x00,0xFF,0x00,0x00,0x00,//| 92

	0x00,0x02,0x02,0x7C,0x80,0x00,0x00,0x00,
	0x00,0x40,0x40,0x3F,0x00,0x00,0x00,0x00,//} 93

	0x00,0x06,0x01,0x01,0x02,0x02,0x04,0x04,
	0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,//~ 94
};

#endif

使用

oledHandleTypeDef oled_handle;
i2c_driver_interface_t i2c_driver = {
    .i2c_gpio_pin = &(i2c_gpio_pin_t){.SCL_Pin = GPIO_PIN_8,
                                      .SCL_Port = GPIOB,
                                      .SDA_Pin = GPIO_PIN_9,
                                      .SDA_Port = GPIOB},
    .Init = I2C_Init,
    .Start = I2C_Start,
    .Stop = I2C_Stop,
    .WaitAck = I2C_WaitAck,
    .SendByte = I2C_SendByte};


OLED_Init(&oled_handle, &i2c_driver);

void StartTask03(void const *argument)
{
  for (;;)
  {
    // oled_display(&oled_page);
    oled_handle.Clear(&oled_handle);
    oled_handle.ShowString(&oled_handle, 1, 1, "Hello World!");
    oled_handle.ShowChar(&oled_handle, 2, 1, 'H');
    oled_handle.ShowSignedNum(&oled_handle, 3, 1, -123, 4);
    oled_handle.ShowNum(&oled_handle, 4, 1, 123456789, 9);
    osDelay(4000);
  }
}

STM32F103 OLED(i2c)

i2c

.h

.c

OLED

.h

.c

font.h

使用

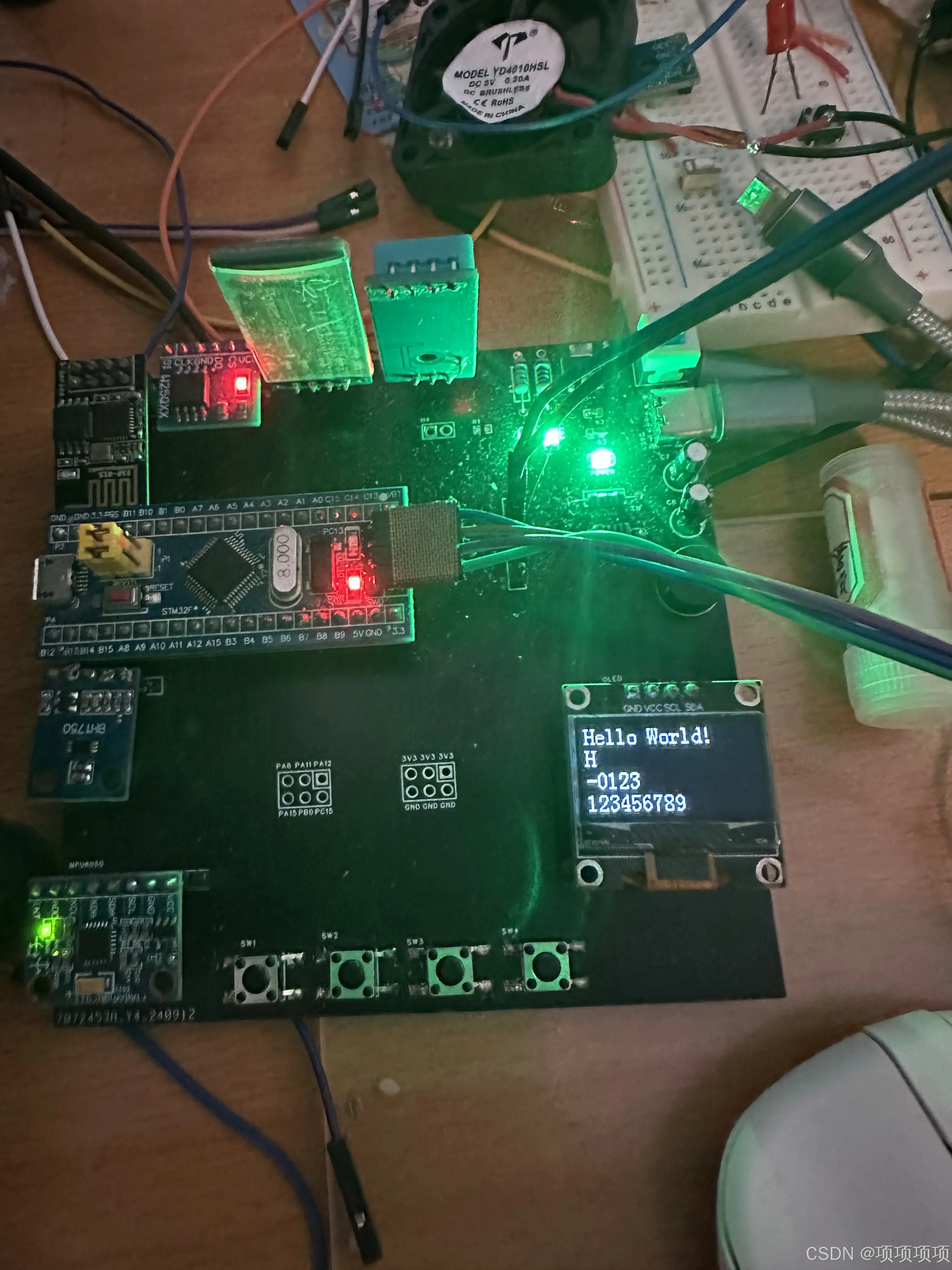

结果
