会议/台架预约 Vue-scheduler-gannt 调度器

本文链接：https://blog.csdn.net/weixin_63443983/article/details/127450861
项目场景：

甘特图，先介绍下核心功能：（1）横轴、纵轴拖拽；（2）左侧列表信息，右侧时间轴表示任务；（3）每个任务可以订制样式，并且可以动态修改样式；（4）自定义时间粒度显示（小时、天、星期、月、年）；（5）支持大批量数据渲染；（6）支持同行多节点渲染；（7）支持选中，以及批量选中；（8）支持下载png pdf 等操作。等等还有其他的一些功能。

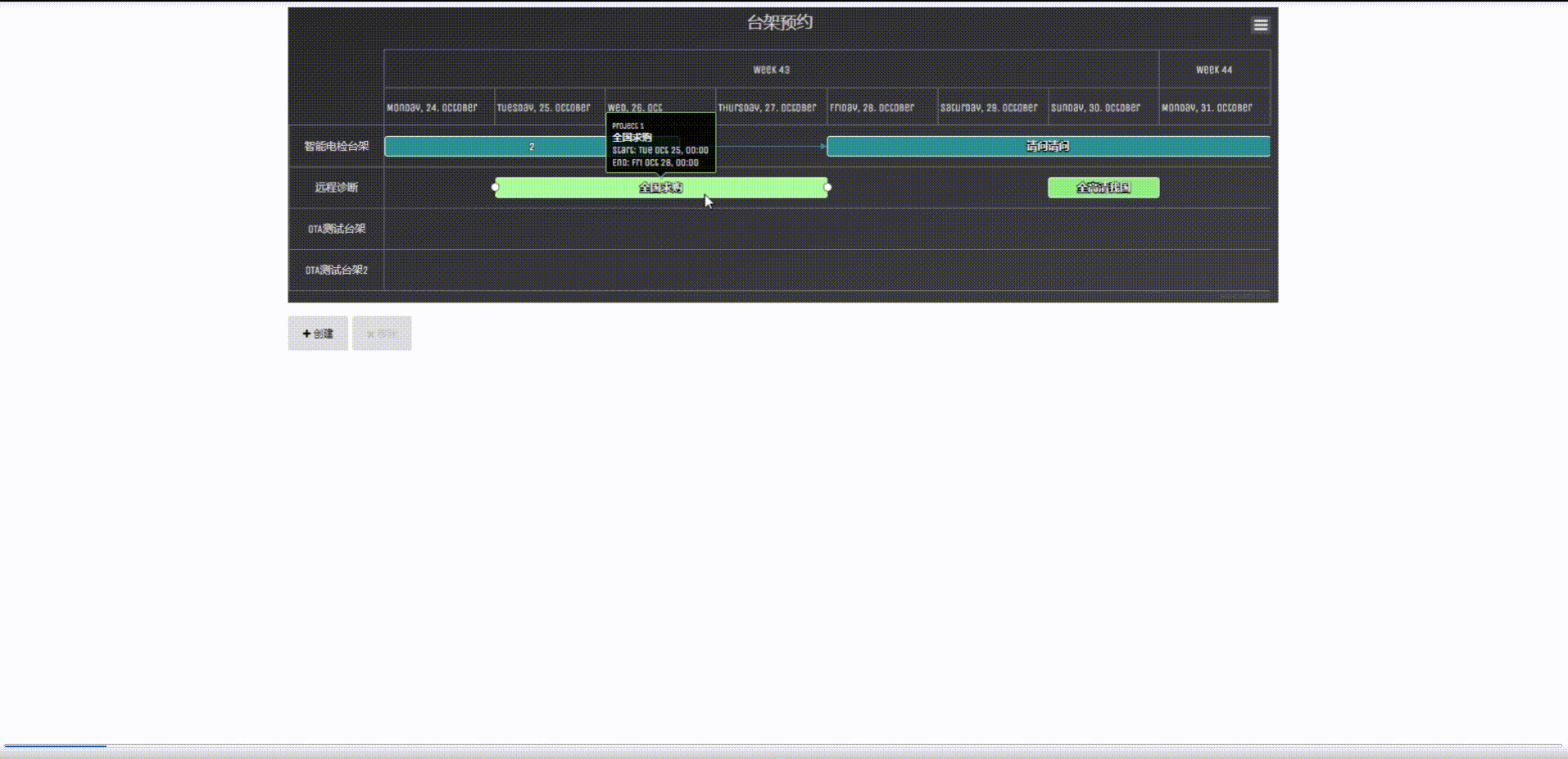

效果预览

解决方案：

话不多说：开撸

参考：Gantt 演示 | Highcharts
<html>
    <head>
        <meta charset="utf-8">	<meta name="viewport" content="width=device-width, initial-scale=1">
        <meta http-equiv="x-ua-compatible" content="ie=edge">
        <link rel="icon" href="https://static.jianshukeji.com/hcode/images/favicon.ico">
        <link rel="stylesheet" type="text/css" href="https://code.highcharts.com.cn/libs/font-awesome/css/font-awesome.min.css"/>
        <style>
            #container, #buttonGroup {
        max-width: 1200px;
        min-width: 320px;
        margin: 1em auto;
    }
    .hidden {
        display: none;
    }
    .main-container button {
        font-size: 12px;
        border-radius: 2px;
        border: 0;
        background-color: #ddd;
        padding: 13px 18px;
    }
    .main-container button[disabled] {
        color: silver;
    }
    .button-row button {
        display: inline-block;
        margin: 0;
    }
    .overlay {
        position: fixed;
        top: 0;
        bottom: 0;
        left: 0;
        right: 0;
        background: rgba(0, 0, 0, 0.3);
        transition: opacity 500ms;
    }
    .popup {
        margin: 70px auto;
        padding: 20px;
        background: #fff;
        border-radius: 5px;
        width: 300px;
        position: relative;
    }
    .popup input, .popup select {
        width: 100%;
        margin: 5px 0 15px;
    }
    .popup button {
        float: right;
        margin-left: 0.2em;
    }
    .popup .clear {
        height: 50px;
    }
    .popup input[type=text], .popup select {
        height: 2em;
        font-size: 16px;
    }
        </style>
        <script src="https://cdn.highcharts.com.cn/gantt/highcharts-gantt.js"></script>
        <script src="https://cdn.highcharts.com.cn/highcharts/modules/draggable-points.js"></script>
        <script src="https://cdn.highcharts.com.cn/highcharts/modules/exporting.js"></script>
        <script src="https://cdn.highcharts.com.cn/highcharts/themes/dark-unica.js"></script>
    </head>
    <body>
        <div class="main-container">
            <div id="container"></div>
            <div id="buttonGroup" class="button-row">
                <button id="btnShowDialog">
                    <i class="fa fa-plus"></i>
                     创建
                </button>
                <button id="btnRemoveSelected" disabled="disabled">
                    <i class="fa fa-remove"></i>
                     移除
                </button>
            </div>
            <div id="addTaskDialog" class="hidden overlay">
                <div class="popup">
                    <h3>创建</h3>
                    <label>描述 <input id="inputName" type="text" /></label>
                    <label>台架
                        <select id="selectDepartment">
                            <option value="0">智能电检台架</option>
                            <option value="1">远程挣断</option>
                            <option value="2">OTA测试台架</option>
                            <option value="2">OTA测试台架2</option>
                        </select>
                    </label>
                    <div class="button-row">
                        <button id="btnAddTask">Add</button>
                        <button id="btnCancelAddTask">Cancel</button>
                    </div>
                    <div class="clear"></div>
                </div>
            </div>
        </div>
        <script>
            var today = new Date(),
        day = 1000 * 60 * 60 * 24,
        each = Highcharts.each,
        reduce = Highcharts.reduce,
        btnShowDialog = document.getElementById('btnShowDialog'),
        btnRemoveTask = document.getElementById('btnRemoveSelected'),
        btnAddTask = document.getElementById('btnAddTask'),
        btnCancelAddTask = document.getElementById('btnCancelAddTask'),
        addTaskDialog = document.getElementById('addTaskDialog'),
        inputName = document.getElementById('inputName'),
        selectDepartment = document.getElementById('selectDepartment'),
        // selectDependency = document.getElementById('selectDependency'),
        // chkMilestone = document.getElementById('chkMilestone'),
        isAddingTask = false;
    // Set to 00:00:00:000 today
    today.setUTCHours(0);
    today.setUTCMinutes(0);
    today.setUTCSeconds(0);
    today.setUTCMilliseconds(0);
    today = today.getTime();
    // Update disabled status of the remove button, depending on whether or not we
    // have any selected points.
    function updateRemoveButtonStatus() {
        var chart = this.series.chart;
        // Run in a timeout to allow the select to update
        setTimeout(function () {
            btnRemoveTask.disabled = !chart.getSelectedPoints().length ||
                isAddingTask;
        }, 10);
    }
    // Create the chart
    var chart = Highcharts.ganttChart('container', {
        chart: {
            spacingLeft: 1
        },
        title: {
            text: '台架预约'
        },
        subtitle: {
            // text: '系统'
        },
        plotOptions: {
            series: {
                animation: false, // Do not animate dependency connectors
                dragDrop: {
                    draggableX: true,
                    draggableY: true,
                    dragMinY: 0,
                    dragMaxY: 2,
                    dragPrecisionX: day / 3 // Snap to eight hours
                },
                dataLabels: {
                    enabled: true,
                    format: '{point.name}',
                    style: {
                        cursor: 'default',
                        pointerEvents: 'none'
                    }
                },
                allowPointSelect: true,
                point: {
                    events: {
                        select: updateRemoveButtonStatus,
                        unselect: updateRemoveButtonStatus,
                        remove: updateRemoveButtonStatus
                    }
                }
            }
        },
        yAxis: {
            type: 'category',
            categories: ['智能电检台架', '远程诊断', 'OTA测试台架','OTA测试台架2'],
            min: 0,
            max: 3
        },
        xAxis: {
            currentDateIndicator: true
        },
        tooltip: {
            xDateFormat: '%a %b %d, %H:%M'
        },
        series: [{
            name: 'Project 1',
            data: [{
                start: today + 2 * day,
                end: today + day * 5,
                name: '2',
                id: 'prototype',
                y: 0
            },  {
                start: today + day * 6,
                name: '请问',
                dependency: 'prototype',
                id: 'proto_done',
                y: 0
            }, {
                start: today + day * 7,
                end: today + day * 11,
                name: '请问请问',
                dependency: 'proto_done',
                y: 0
            }, {
                start: today + day * 5,
                end: today + day * 8,
                name: '全国求购',
                y: 1
            }, {
                start: today + day * 9,
                end: today + day * 10,
                name: '全高清我国',
                y: 1
            }]
        }]
    });
    /* Add button handlers for add/remove tasks */
    btnRemoveTask.onclick = function () {
        var points = chart.getSelectedPoints();
        each(points, function (point) {
            point.remove();
        });
    };
    btnShowDialog.onclick = function () {
        // Update dependency list
        var depInnerHTML = '<option value=""></option>';
        each(chart.series[0].points, function (point) {
            depInnerHTML += '<option value="' + point.id + '">' + point.name +
                ' </option>';
        });
        // selectDependency.innerHTML = depInnerHTML;
        // Show dialog by removing "hidden" class
        addTaskDialog.className = 'overlay';
        isAddingTask = true;
        // Focus name field
        inputName.value = '';
        inputName.focus();
    };
    btnAddTask.onclick = function () {
        // Get values from dialog
        var series = chart.series[0],
            name = inputName.value,
            undef,
            // dependency = chart.get(
            //     selectDependency.options[selectDependency.selectedIndex].value
            // ),
            y = parseInt(
                selectDepartment.options[selectDepartment.selectedIndex].value,
                10
            ),
            maxEnd = reduce(series.points, function (acc, point) {
                return point.y === y && point.end ? Math.max(acc, point.end) : acc;
            }, 0)
        // Empty category
        if (maxEnd === 0) {
            maxEnd = today;
        }
        // Add the point
        series.addPoint({
            start: maxEnd + 0,
            end:  maxEnd + day,
            y: y,
            name: name,
        });
        // Hide dialog
        addTaskDialog.className += ' hidden';
        isAddingTask = false;
    };
    btnCancelAddTask.onclick = function () {
        // Hide dialog
        addTaskDialog.className += ' hidden';
        isAddingTask = false;
    };
        </script>
    </body>
</html>
