实现效果

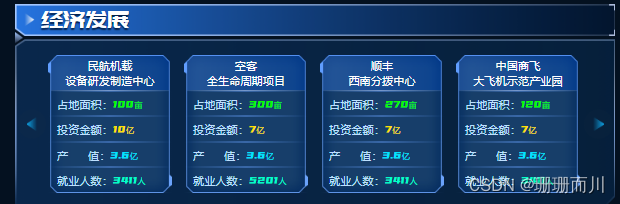

成都大屏——经济发展
代码实现
目录结构

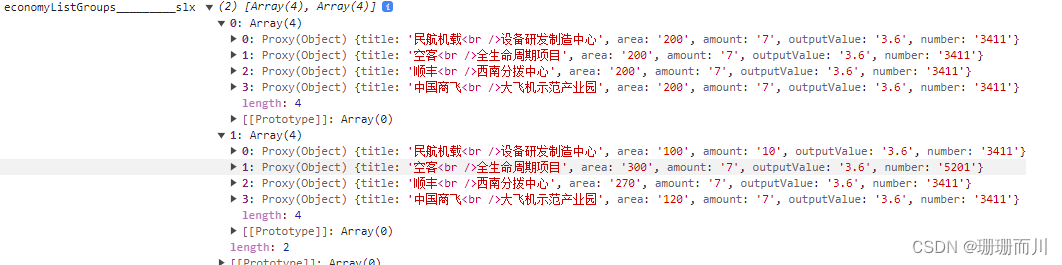

- 数据处理
对于这种张幻灯片包含多个item的,要先对数据进行分组处理
const focusListGroups = computed(() => {
const groups = []
const groupSize = 2 // 每组2个
for (let i = 0; i < state.list.length; i += groupSize) {
groups.push(state.list.slice(i, i + groupSize))
}
return groups
})
slice用于从数组中提取指定的元素,并将这些元素放入一个新的数组中返回
- 遍历渲染
要通过2层循环,来遍历
外层遍历的group
相当于若干幻灯片中的一张
内层的item
相当于一张幻灯片里包含的其中一个元素
所以,只要2层循环
<el-carousel height="172px" arrow="always" indicator-position="none">
<el-carousel-item v-for="(group, index) in economyListGroups" :key="'group' + index">
<div class="groupbox">
<EconomyItem v-for="(item, index) in group" :key="'item' + index" :data="item"></EconomyItem>
</div>
</el-carousel-item>
</el-carousel>
- style
<style scoped>
:deep(.el-carousel__arrow--left) {
left: -10px;
}
:deep(.el-carousel__arrow--right) {
right: -3px;
}
:deep(.el-carousel__arrow--left i) {
width: 13px;
height: 16px;
background-image: url('@/assets/ScreenLeft/arrowIconLeft.png');
}
:deep(.el-carousel__arrow--right i) {
width: 13px;
height: 16px;
background-image: url('@/assets/ScreenLeft/arrowIconRight.png');
}
:deep(.el-icon svg) {
opacity: 0;
}
</style>
- 下面小点点的样式
<style scoped>
:deep(.el-carousel__indicator--horizontal) {
top: 200px;
display: inline-block;
margin-bottom: -10px;
/* background-color: red; */
/* padding: var(--el-carousel-indicator-padding-vertical) var(--el-carousel-indicator-padding-horizontal); */
}
:deep(.el-carousel__button) {
width: 15px;
height: 3px;
background-color: #00bdff;
border-radius: 10px;
}
</style>
