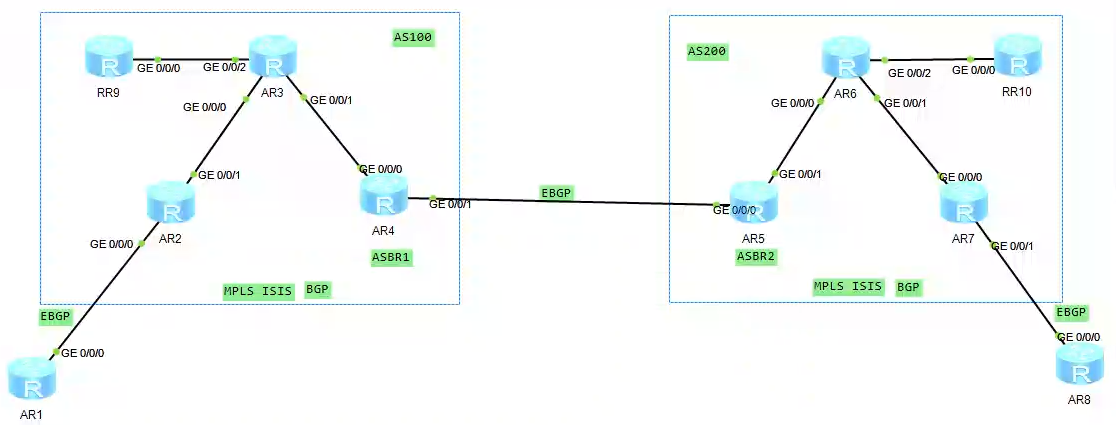

 用OptionC的第一种方式说明：（在OptionC的第一种方式配置基础上做出一些修改）

       在AS100中加入AR9(即反射器RR），mpls和isis底层配置需要补上。

        AR2和AR4之间的邻居断开，让AR9分别和AR2、AR4建立公网邻居。（label-route-capability这个能力同样需要开启）

       在AS200中加入AR10，配置参考AS100。

此时2、9、4、5、10、7构成了一条公网路由 。

       此时AR9与AR10可以建立私网邻居了，同时AR9与AR2、AR10与AR7也建立私网邻居 .

此时2、9、10、7构成了一条私网路由。

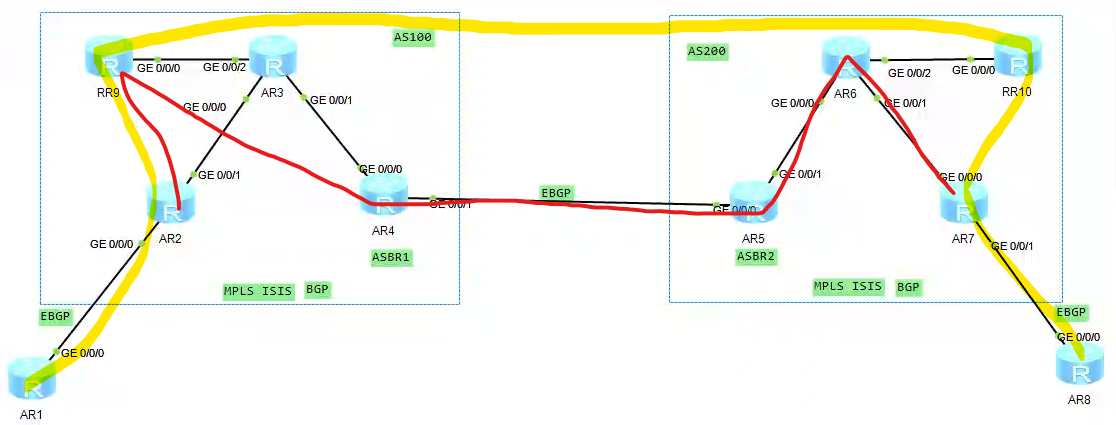

红色笔迹为公网路由，黄色笔迹为私网路由。

在私网路由线路中，配置next-hop-invariable ,不改变路由的下一跳，达到优化路由的目的。

具体配置如下：


[AR2]DIS CU
[V200R003C00]
#
 sysname AR2
#
 snmp-agent local-engineid 800007DB03000000000000
 snmp-agent
#
 clock timezone China-Standard-Time minus 08:00:00
#
portal local-server load flash:/portalpage.zip
#
 drop illegal-mac alarm
#
 wlan ac-global carrier id other ac id 0
#
 set cpu-usage threshold 80 restore 75
#
ip vpn-instance 2
 ipv4-family
  route-distinguisher 2:2
  vpn-target 1:8 export-extcommunity
  vpn-target 8:1 import-extcommunity
#
mpls lsr-id 2.2.2.2
mpls
#
mpls ldp
#
#
aaa
 authentication-scheme default
 authorization-scheme default
 accounting-scheme default
 domain default
 domain default_admin
 local-user admin password cipher %$%$K8m.Nt84DZ}e#<0`8bmE3Uw}%$%$
 local-user admin service-type http
#
isis 1
 is-level level-2
 network-entity 49.0002.0000.0000.0002.00
#
firewall zone Local
 priority 15
#
interface GigabitEthernet0/0/0
 ip binding vpn-instance 2
 ip address 12.1.1.2 255.255.255.0
#
interface GigabitEthernet0/0/1
 ip address 23.1.1.2 255.255.255.0
 isis enable 1
 mpls
 mpls ldp
#
interface GigabitEthernet0/0/2
#
interface NULL0
#
interface LoopBack0
 ip address 2.2.2.2 255.255.255.255
 isis enable 1
#
bgp 100
 router-id 2.2.2.2
 undo default ipv4-unicast
 peer 9.9.9.9 as-number 100
 peer 9.9.9.9 connect-interface LoopBack0
 #
 ipv4-family unicast
  undo synchronization
  peer 9.9.9.9 enable
  peer 9.9.9.9 next-hop-local
  peer 9.9.9.9 label-route-capability
 #
 ipv4-family vpnv4
  policy vpn-target
  peer 9.9.9.9 enable
  peer 9.9.9.9 next-hop-invariable
 #
 ipv4-family vpn-instance 2
  peer 12.1.1.1 as-number 1
#
user-interface con 0
 authentication-mode password
user-interface vty 0 4
user-interface vty 16 20
#
wlan ac
#
return
<AR3>dis cu
[V200R003C00]
#
 sysname AR3
#
 snmp-agent local-engineid 800007DB03000000000000
 snmp-agent
#
 clock timezone China-Standard-Time minus 08:00:00
#
portal local-server load flash:/portalpage.zip
#
 drop illegal-mac alarm
#
 wlan ac-global carrier id other ac id 0
#
 set cpu-usage threshold 80 restore 75
#
mpls lsr-id 3.3.3.3
mpls
#
mpls ldp
#
#
aaa
 authentication-scheme default
 authorization-scheme default
 accounting-scheme default
 domain default
 domain default_admin
 local-user admin password cipher %$%$K8m.Nt84DZ}e#<0`8bmE3Uw}%$%$
 local-user admin service-type http
#
isis 1
 is-level level-2
 network-entity 49.0003.0000.0000.0003.00
#
firewall zone Local
 priority 15
#
interface GigabitEthernet0/0/0
 ip address 23.1.1.3 255.255.255.0
 isis enable 1
 mpls
 mpls ldp
#
interface GigabitEthernet0/0/1
 ip address 34.1.1.3 255.255.255.0
 isis enable 1
 mpls
 mpls ldp
#
interface GigabitEthernet0/0/2
 ip address 39.1.1.3 255.255.255.0
 isis enable 1
 mpls
 mpls ldp
#
interface NULL0
#
interface LoopBack0
 ip address 3.3.3.3 255.255.255.255
 isis enable 1
#
user-interface con 0
 authentication-mode password
user-interface vty 0 4
user-interface vty 16 20
#
wlan ac
#
return



<AR4>dis cu
[V200R003C00]
#
 sysname AR4
#
 snmp-agent local-engineid 800007DB03000000000000
 snmp-agent
#
 clock timezone China-Standard-Time minus 08:00:00
#
portal local-server load flash:/portalpage.zip
#
 drop illegal-mac alarm
#
 wlan ac-global carrier id other ac id 0
#
 set cpu-usage threshold 80 restore 75
#
mpls lsr-id 4.4.4.4
mpls
#
mpls ldp
#
#
aaa
 authentication-scheme default
 authorization-scheme default
 accounting-scheme default
 domain default
 domain default_admin
 local-user admin password cipher %$%$K8m.Nt84DZ}e#<0`8bmE3Uw}%$%$
 local-user admin service-type http
#
isis 1
 is-level level-2
 network-entity 49.0004.0000.0000.0004.00
#
firewall zone Local
 priority 15
#
interface GigabitEthernet0/0/0
 ip address 34.1.1.4 255.255.255.0
 isis enable 1
 mpls
 mpls ldp
#
interface GigabitEthernet0/0/1
 ip address 45.1.1.4 255.255.255.0
 mpls
#
interface GigabitEthernet0/0/2
#
interface NULL0
#
interface LoopBack0
 ip address 4.4.4.4 255.255.255.255
 isis enable 1
#
bgp 100
 router-id 4.4.4.4
 undo default ipv4-unicast
 peer 9.9.9.9 as-number 100
 peer 9.9.9.9 connect-interface LoopBack0
 peer 45.1.1.5 as-number 200
 #
 ipv4-family unicast
  undo synchronization
  network 2.2.2.2 255.255.255.255
  network 9.9.9.9 255.255.255.255
  peer 9.9.9.9 enable
  peer 9.9.9.9 route-policy p2 export
  peer 9.9.9.9 next-hop-local
  peer 9.9.9.9 label-route-capability
  peer 45.1.1.5 enable
  peer 45.1.1.5 route-policy p1 export
  peer 45.1.1.5 label-route-capability
 #
 ipv4-family vpnv4
  undo policy vpn-target
#
route-policy p1 permit node 10
 apply mpls-label
#
route-policy p2 permit node 10
 if-match mpls-label
 apply mpls-label
#
user-interface con 0
 authentication-mode password
user-interface vty 0 4
user-interface vty 16 20
#
wlan ac
#
return



<RR9>dis cu
[V200R003C00]
#
 sysname RR9
#
 snmp-agent local-engineid 800007DB03000000000000
 snmp-agent
#
 clock timezone China-Standard-Time minus 08:00:00
#
portal local-server load flash:/portalpage.zip
#
 drop illegal-mac alarm
#
 wlan ac-global carrier id other ac id 0
#
 set cpu-usage threshold 80 restore 75
#
mpls lsr-id 9.9.9.9
mpls
#
mpls ldp
#
#
aaa
 authentication-scheme default
 authorization-scheme default
 accounting-scheme default
 domain default
 domain default_admin
 local-user admin password cipher %$%$K8m.Nt84DZ}e#<0`8bmE3Uw}%$%$
 local-user admin service-type http
#
isis 1
 is-level level-2
 network-entity 49.0009.0000.0000.0009.00
#
firewall zone Local
 priority 15
#
interface GigabitEthernet0/0/0
 ip address 39.1.1.9 255.255.255.0
 isis enable 1
 mpls
 mpls ldp
#
interface GigabitEthernet0/0/1
#
interface GigabitEthernet0/0/2
#
interface NULL0
#
interface LoopBack0
 ip address 9.9.9.9 255.255.255.255
 isis enable 1
#
bgp 100
 router-id 9.9.9.9
 undo default ipv4-unicast
 peer 2.2.2.2 as-number 100
 peer 2.2.2.2 connect-interface LoopBack0
 peer 4.4.4.4 as-number 100
 peer 4.4.4.4 connect-interface LoopBack0
 peer 10.10.10.10 as-number 200
 peer 10.10.10.10 ebgp-max-hop 255
 peer 10.10.10.10 connect-interface LoopBack0
 #
 ipv4-family unicast
  undo synchronization
  peer 2.2.2.2 enable
  peer 2.2.2.2 reflect-client
  peer 2.2.2.2 label-route-capability
  peer 4.4.4.4 enable
  peer 4.4.4.4 reflect-client
  peer 4.4.4.4 label-route-capability
  undo peer 10.10.10.10 enable
 #
 ipv4-family vpnv4
  undo policy vpn-target
  peer 2.2.2.2 enable
  peer 2.2.2.2 next-hop-invariable
  peer 10.10.10.10 enable
  peer 10.10.10.10 next-hop-invariable
#
user-interface con 0
 authentication-mode password
user-interface vty 0 4
user-interface vty 16 20
#
wlan ac
#
return
