Wallys/Introduction of DR9074 series network card/qcn9074/qcn9072/qcn9024/industrial M.2 card

 DR9074 series network card/qcn9074/qcn9072/qcn9024/industrial M.2 card

This is Tina from Wallys, we are a Mfg of networking devices like cellular routers, NICs, CPE/AP, antennas etc

Our current products portfolio are based on Qualcomm and Mediatek platforms

Hardware customization and software integration is our speciality, OEM/ODM turnkey solution, aslo, we can work with you under JDM mode to develop new products together

By sending this text, i am seeking an potential business opportunity with you

If you are interested or looking for any networking hardwares, feel free to share me your detailed requirements, i can do a proposal accordingly

Thanks for your prompt attention and looking forward to your favorable feedback

Sincerely,,,

Next, I will introduce several hot-selling network cards to you, please refer to the following:

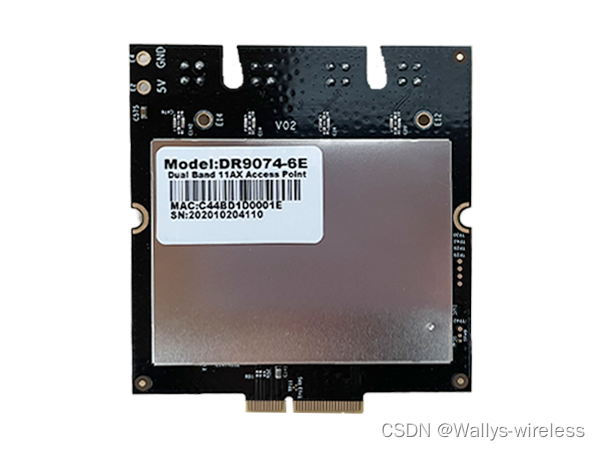

1. DR9074-6e



DR9074-6E  based on IPQ9074 Chipset is an enterprise wireless module integrated
with 4×4 MU-MIMO 6GHz Single Band Wireless Module designed specifically to provide users
with mobile access to high-bandwidth video streaming, voice, and data transmission for office
and challenging RF environment in factories, warehouses establishment

And it  has the following advantages

It use Qualcomm Atheros QCN9074,and it has 6GHz frequency, max 23dBm per chain, up to 4949Mbps, and has Single Band 6GHz 4x4 WiFi 6E (802.11ax)、 4 spatial streams (4SS)， M.2 E Key Interface，PCI Express 3.0 Interface

Hardware Specifications also very importment ,please refer to it .

Hardware Specifications

Symbol	Parameter
Chipset	Qualcomm Atheros QCN9074
WLAN Host Interface	PCI Express 3.0 Interface
System Memory	2Mbit serial I²C bus EEPROM
Standard Operating Voltage	5V
Operating Systems	QSDK
Host Interface	M.2 E Key
Antenna Cable / Port	4 x MMCX Connectors,4T4R
Frequency Range	5.925GHz-7.125GHz
Data Rates for WALN	6GHz, max 23dBm per chain, up to 4949Mbps
Channel Spectrum Widths for WLAN	Support 20/40/80/160MHz at 6GHz
Modulation Techniques	OFDMA: BPSK, QPSK, DBPSK, DQPSK,16-QAM, 64-QAM, 256-QAM,1024-QAM, 4096-QAM
Temperature Range	Operating: -20°C to 70°C, Storage: -40°C to 90°C
Humidity	Operating: 5% to 95% (non-condensing), Storage: Max. 90% (non-condensing)
Certification	TBD
Power Consumption	TBD
Reference Design	PN02.7
Dimensions (WxHxD)	57mm x 63mm x 6mm

In addition to the 6G frequency band, we also have the same series of 2.4G and 5G frequency bands. They use the same chip DR9074, but their frequency bands are different. If you are interested, please visit the following links: http://www.wallystech.com

BY:Wallys Communications (Suzhou ) Co., LTD

EMAIL:​sales3@wallystech.com
