docx.js详细教程:入门到入土,没有之一(持续迭代中....)

第一章 唾手可得——三部曲

第一步:安装docx、file-saver

npm i docx --save
npm i file-saver --save

第二步:引入docx

// 快捷保存函数
import { saveAs } from "file-saver";
// 文档生成器,以及文件流导出
import { Document, Packer} from 'docx';

第三步:导出你的第一个Word

// 此时的导入应该长这样↓
import { Document, Packer, Paragraph} from 'docx';

// 初始化文档
const doc = new Document({
  sections: [
        {
            properties: {},
            children: [
                new Paragraph("hello world"),
            ],
        },
    ],
});

//导出
Packer.toBlob(doc).then(buffer => {
    // 文档名支持模板语法 `${}` ,但注意!!一定要加文件扩展名
    saveAs(buffer, '报告.docx');
});

恭喜你!!!已经掌握------------60%_____了

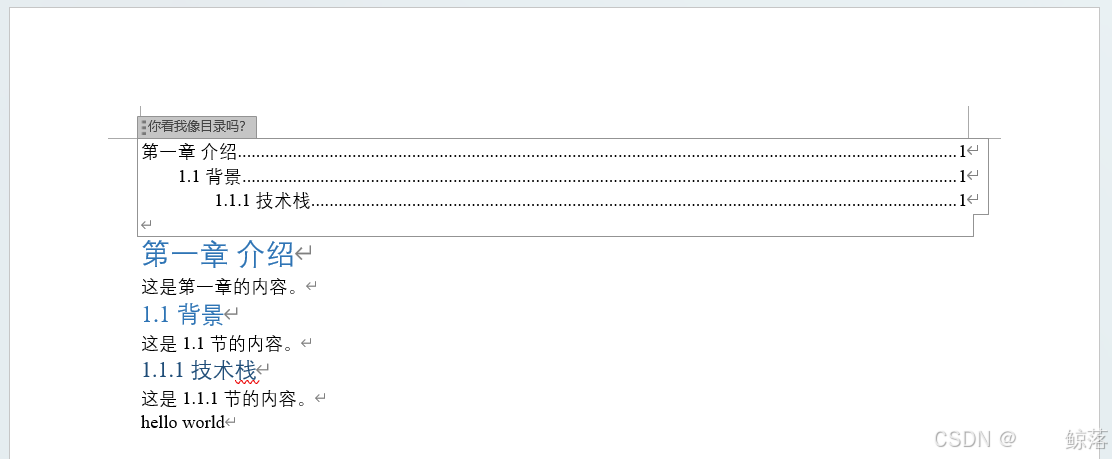

在这里插入图片描述

第二章 描边大师——文档属性

1. new Document( { 里面是什么呢 } )

1.1 新手入门需关注的配置项
declare type IPropertiesOptions = {
    // 文档的各个部分(section)配置
    readonly sections: readonly ISectionOptions[];
    // 文档标题
    readonly title?: string;
    // 文档创建者
    readonly creator?: string;
    // 文档样式配置(目录第四章会详细说明)
    readonly styles?: IStylesOptions;
};
1.2(附) 完整的配置项
declare type IPropertiesOptions = {
    // 文档的各个部分(section)配置
    readonly sections: readonly ISectionOptions[];
    // 文档标题
    readonly title?: string;
    // 文档创建者
    readonly creator?: string;
    // 文档样式配置(目录第四章会详细说明)
    readonly styles?: IStylesOptions;
    // 文档主题
    readonly subject?: string;
    // 文档关键字
    readonly keywords?: string;
    // 文档描述
    readonly description?: string;
    // 最后修改者
    readonly lastModifiedBy?: string;
    // 文档修订版本号
    readonly revision?: number;
    // 外部样式表路径
    readonly externalStyles?: string;
    // 文档编号配置
    readonly numbering?: {
	    readonly config: readonly {
	        readonly levels: [
				{
				    readonly level: number;	 // 几级编号
				    readonly format?: (typeof LevelFormat)[keyof typeof LevelFormat]; // 编号格式
				    readonly text?: string;	// 显示格式
				    readonly alignment?: (typeof AlignmentType)[keyof typeof AlignmentType]; // 对齐方式
				    readonly start?: number;
				    readonly suffix?: (typeof LevelSuffix)[keyof typeof LevelSuffix];
				    readonly isLegalNumberingStyle?: boolean;
				    readonly style?: {
				        readonly run?: IRunStylePropertiesOptions;
				        readonly paragraph?: ILevelParagraphStylePropertiesOptions;
				    }
				}
			],
	        readonly reference: string;
	    }
	};
    // 文档注释配置
    readonly comments?: {
		readonly children:[
			{
			    readonly id: number;	// 注释唯一标记
			    readonly children: readonly FileChild[]; // 注释的内容
			    readonly initials?: string;
			    readonly author?: string;	// 注释作者
			    readonly date?: Date;	// 注释日期
			}
		]
	};
    // 文档脚注配置
    readonly footnotes?: {
		"自定义脚注1":{
		    children: [new Paragraph("这是一个测试脚注")],
		  },
		// ...
	};
    // 文档背景配置
    readonly background?: {
	    readonly color?: string;  // 背景颜色
	    readonly themeColor?: string;  // Word的主题颜色
	    readonly themeShade?: string;  // 主题颜色的阴影效果
	    readonly themeTint?: string;   // 主题颜色的色调效果
	};
    // 文档功能配置
    readonly features?: {
        // 是否启用修订跟踪
        readonly trackRevisions?: boolean;
        // 是否更新字段
        readonly updateFields?: boolean;
    };
    // 兼容模式版本号
    readonly compatabilityModeVersion?: number;
    // 兼容性配置
    // 其选项稍微较多,如需了解可自行去源码第78行
    // https://github.com/dolanmiu/docx/blob/master/src/file/settings/compatibility.ts
    readonly compatibility?: ICompatibilityOptions;
    // 自定义属性配置
    readonly customProperties?: [
		{
		    readonly name: string;
		    readonly value: string;
		},
		// ...
	];
    // 是否启用奇偶页不同的页眉和页脚
    readonly evenAndOddHeaderAndFooters?: boolean;
    // 默认制表符停止位置
    readonly defaultTabStop?: number;
    // 文档字体配置
    readonly fonts?: [
		{
		    readonly name: string;
		    readonly data: Buffer;
		    // 源码  第45行:https://github.com/dolanmiu/docx/blob/master/src/file/fonts/font.ts
		    readonly characterSet?: (typeof CharacterSet)[keyof typeof CharacterSet];
		},
		// ...
	];
    // 断字配置(连字符配置)
    readonly hyphenation?: {
	    readonlyautoHyphenation?: boolean; // 自动断字
	    readonly hyphenationZone?: number;	// 单词长超多少会断
	    readonly consecutiveHyphenLimit?: number; // 最大断字行数
	    readonly doNotHyphenateCaps?: boolean;	// 大写单词断字
	};
};

第三章 分门别类——Sections

1. sections 里有什么?

const doc = new Document({
    sections: [
        {
            properties: {},
            children: [
                // 这里面是什么
            ],
        },
    ],
})
1.1 完整的配置项
declare type ISectionOptions = {
    // **最重要的,决定Word具体内容**
    readonly children: readonly FileChild[];
    // 页面属性
    readonly properties?: {
    	readonly page?: {
	        readonly size?: IPageSizeAttributes; // 页面大小
	        readonly margin?: IPageMarginAttributes; // 页边距
	        readonly pageNumbers?: IPageNumberTypeAttributes; // 页码
	        readonly borders?: IPageBordersOptions; // 页面边框
	        readonly textDirection?: (typeof PageTextDirectionType)[keyof typeof PageTextDirectionType];
        };// 文本方向
	    readonly grid?: IDocGridAttributesProperties; // 文档网格
	    readonly headerWrapperGroup?: IHeaderFooterGroup<HeaderWrapper>; // 页眉组
	    readonly footerWrapperGroup?: IHeaderFooterGroup<FooterWrapper>; // 页脚组
	    readonly lineNumbers?: ILineNumberAttributes; // 行号
	    readonly titlePage?: boolean; // 是否标题页
	    readonly verticalAlign?: (typeof VerticalAlign)[keyof typeof VerticalAlign]; // 垂直对齐
	    readonly column?: IColumnsAttributes; // 分栏
	    readonly type?: (typeof SectionType)[keyof typeof SectionType]; // 部分类型
	};
 	// 文档页眉设置
    readonly headers?: {
        readonly default?: Header;
        readonly first?: Header;
        readonly even?: Header;
    };
   	// 文档页脚设置
    readonly footers?: {
        readonly default?: Footer;
        readonly first?: Footer;
        readonly even?: Footer;
    };
}
1.2 section-chidlren 里允许直接存在的内容

目前我测试了以下类别不需要载体就可直接存在于children中
Paragraph 段落
Table 表格
TableOfContents 目录
Textbox 文本框
TextRun // 有时会导致文件打开报错

名称导入使用
段落import { Paragraph } from 'docx'new Paragraph(<string> or <IParagraphOptions>)
表格import { Table, TableRow, TableCell } from 'docx'new Table(<ITableOptions>)
目录import { TableOfContents } from 'docx'new TableOfContents(<string:别名> , <ITableOfContentsOptions>)
文本框import { Textbox } from 'docx'new Textbox(<ITextboxOptions>)

下面是其基本示例

// 基本包
import { Document, Paragraph, TableOfContents, Table, TableRow, TableCell, Packer, Textbox } from 'docx';
// 标记段落标题的包
import { HeadingLevel } from "docx";

const doc = new Document({
    sections: [
        {
            properties: {},
            children: [
                // 目录
                new TableOfContents("目录", {
                    hyperlink: true, // 目录项带超链接
                    headingStyleRange: "1-3", // 包含 1 到 3 级标题
                }),
                // 段落
                new Paragraph("hello world"),
                // 表格
                new Table({
                    rows: [
                        new TableRow({
                            children: [
                                new TableCell({ children: [new Paragraph("姓名")] }),
                                new TableCell({ children: [new Paragraph("年龄")] }),
                                new TableCell({ children: [new Paragraph("职业")] }),
                            ],
                        }),
                        new TableRow({
                            children: [
                                new TableCell({ children: [new Paragraph("张三")] }),
                                new TableCell({ children: [new Paragraph("30")] }),
                                new TableCell({ children: [new Paragraph("工程师")] }),
                            ],
                        }),
                    ],
                    width: { size: 100, type: "pct" }, // 表格宽度 100%
                }),
                new Textbox({
                    children: [new Paragraph("这是一个文本框")],
                    width: 200, // 宽度
                    height: 100, // 高度
                    border: { color: "000000", size: 2 }, // 边框
                }),
            ],
        },
    ],
});
// 导出文件
Packer.toBlob(doc).then((buffer) => {
    saveAs(buffer, `报告.docx`);
});

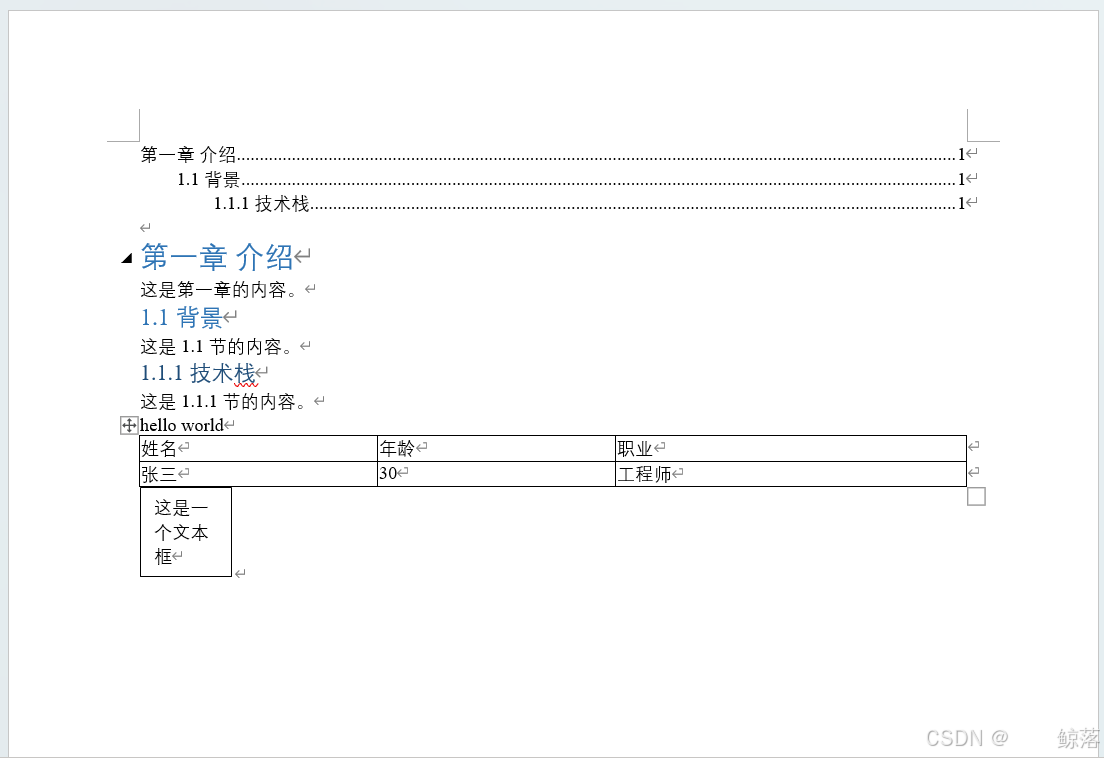

代码运行效果:
在这里插入图片描述

1.3 段落Paragraph的参数 (<string>) 或 (<IParagraphOptions>)
1.3.1 string 直接字符串显示
new Paragraph("这是第一章的内容。")

运行效果
在这里插入图片描述

1.3.2 IParagraphOptions 通过配置项显示

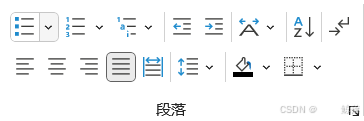

提到这个段落,我们回顾一下标准docx文件都提供了哪些选项:
在这里插入图片描述
(1) 段落对齐 左对齐,右对齐,两端对齐:对应alignment选项
(2) 行距 段前距,段后距:对应spacing选项
(3) 文本底纹:对应shading选项
(4) …

export declare type IParagraphOptions = {
    // 直接设置段落的文本内容
    readonly text?: string;
    // 段落的子元素(如 TextRun、ImageRun 等)
    readonly children?: readonly ParagraphChild[];
    // 设置段落的标题级别(如 Heading1、Heading2 等)
    readonly heading?: (typeof HeadingLevel)[keyof typeof HeadingLevel];
    // 是否启用双向文本支持(用于从右到左的语言,如阿拉伯语)
    readonly bidirectional?: boolean;
    // 是否在段落前插入分页符
    readonly pageBreakBefore?: boolean;
    // 设置制表符(Tab)的位置和样式
    readonly tabStops?: readonly TabStopDefinition[];
    // 设置段落的样式名称
    readonly style?: string;
    // 设置段落的项目符号或编号
    readonly bullet?: {
        readonly level: number; // 项目符号的层级
    };
    // 是否控制段落的孤行(防止段落的第一行或最后一行单独出现在页面上)
    readonly widowControl?: boolean;
    // 设置段落的框架属性(如位置、大小等)
    readonly frame?: IFrameOptions;
    // 是否禁止段落的行号显示
    readonly suppressLineNumbers?: boolean;
    // 是否启用自动换行
    readonly wordWrap?: boolean;
    // 是否允许标点符号溢出边界
    readonly overflowPunctuation?: boolean;
    // 设置段落的缩放比例
    readonly scale?: number;
    // 是否自动调整东亚文本的间距
    readonly autoSpaceEastAsianText?: boolean;
    // 设置段落中文本的运行属性(如字体、颜色、加粗等)
    readonly run?: IRunOptions;
    // 设置段落的边框属性
    readonly border?: IBordersOptions;
    // 设置段落的背景颜色或填充
    readonly shading?: IShadingAttributesProperties;
    // 设置段落的编号(如有序列表、无序列表)
    readonly numbering?: {
        readonly reference: string; // 编号的唯一标识符
        readonly level: number; // 编号的层级
        readonly instance?: number; // 编号的实例
        readonly custom?: boolean; // 是否使用自定义编号
    } | false; // 设置为 false 表示禁用编号
    // 设置段落的对齐方式(如左对齐、居中对齐、右对齐等)
    readonly alignment?: (typeof AlignmentType)[keyof typeof AlignmentType];
    // 是否在段落后添加主题分隔线
    readonly thematicBreak?: boolean;
    // 是否启用上下文间距(用于控制段落之间的间距)
    readonly contextualSpacing?: boolean;
    // 设置段落的右制表符位置
    readonly rightTabStop?: number;
    // 设置段落的左制表符位置
    readonly leftTabStop?: number;
    // 设置段落的缩进属性
    readonly indent?: IIndentAttributesProperties;
    // 设置段落的间距属性(如行距、段前距、段后距等)
    readonly spacing?: ISpacingProperties;
    // 是否将段落与下一段落保持在同一页
    readonly keepNext?: boolean;
    // 是否将段落的所有行保持在同一页
    readonly keepLines?: boolean;
    // 设置段落的大纲级别(用于生成文档结构)
    readonly outlineLevel?: number;
};
// 标题级别
import { HeadingLevel } from "docx";
// 对齐方式
import { AlignmentType } from "docx"
// 边框样式
import { BorderStyle } from "docx"

// 此处只保留了部分关键代码
new Paragraph({
    text: "一个声明了一级标题并被自定义的段落",
    heading: HeadingLevel.HEADING_1, // 一级标题
    alignment: AlignmentType.CENTER, // 文字居中
    children: [
        new TextRun("随便输的,"),
        new TextRun("和段落在一行"),
        // new Paragraph("和段落在一行"), // 嵌套也可以,不过会丢弃父亲的alignment,有兴趣自行尝试
    ],
    border: {
        top: {  // 上边框红色实线
            style: BorderStyle.SINGLE,
            color: "ff0000",
            size: 10
        },
        left: { // 左边框绿色虚线
            style: BorderStyle.DASHED,
            color: "00ff00",
            size: 10
        }
    },
    shading:{
        fill: "cccccc" // 浅灰色背景
    },
})

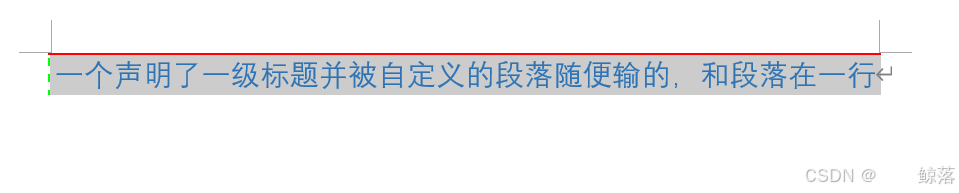

运行效果在这里插入图片描述

1.4 表格Table的参数 (<ITableOptions>)
export declare type ITableOptions = {
    // 表格的行
    readonly rows: readonly TableRow[];
    // 表格的宽度
    readonly width?: {
        readonly size: number | Percentage | UniversalMeasure; // 宽度值
        readonly type?: (typeof WidthType)[keyof typeof WidthType]; // 宽度类型(如百分比、固定值等)
    };
    // 表格的列宽
    readonly columnWidths?: readonly number[];
    // 表格的边距
    readonly margins?: ITableCellMarginOptions;
    // 表格的缩进
    readonly indent?: ITableWidthProperties;
    // 表格的浮动属性(如是否允许表格浮动)
    readonly float?: ITableFloatOptions;
    // 表格的布局类型(如自动布局、固定布局)
    readonly layout?: (typeof TableLayoutType)[keyof typeof TableLayoutType];
    // 表格的样式名称
    readonly style?: string;
    // 表格的边框属性
    readonly borders?: ITableBordersOptions;
    // 表格的对齐方式(如左对齐、居中对齐、右对齐)
    readonly alignment?: (typeof AlignmentType)[keyof typeof AlignmentType];
    // 是否从右到左显示表格(用于从右到左的语言,如阿拉伯语)
    readonly visuallyRightToLeft?: boolean;
};

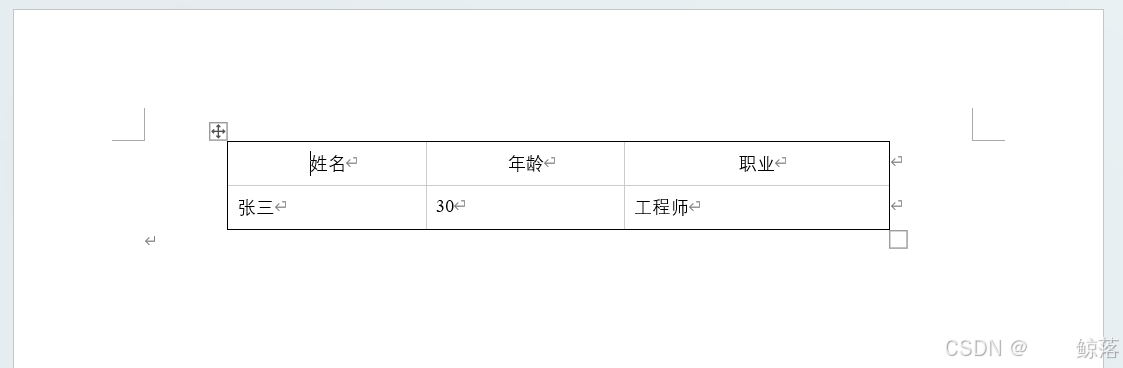

使用示例:

// 基础包
import { Document, Packer } from 'docx';
// 表格包
import { Table, TableRow, TableCell } from 'docx';

// 此处只保留了部分关键代码
new Table({
    rows: [
        new TableRow({
            children: [
                new TableCell({ children: [new Paragraph({ text: "姓名", alignment: 'center', })] }),// 利用Paragraph实现表格内容居中对齐
                new TableCell({ children: [new Paragraph({ text: "年龄", alignment: 'center', })] }),
                new TableCell({ children: [new Paragraph({ text: "职业", alignment: AlignmentType.CENTER, })] }),
            ],
        }),
        new TableRow({
            children: [
                new TableCell({ children: [new Paragraph("张三")] }),
                new TableCell({ children: [new Paragraph("30")] }),
                new TableCell({ children: [new Paragraph("工程师")] }),
            ],
        }),
    ],
    width: {
        size: 80, // 表格宽度为 80% (方便看表格对齐效果)
        type: WidthType.PERCENTAGE, // 宽度类型为百分比
    },
    columnWidths: [1000, 3000, 2000], // 列宽分别为 2000 缇
    margins: {
        top: 100, // 上边距 100 缇
        bottom: 100, // 下边距 100 缇
        left: 100, // 左边距 100 缇
        right: 100, // 右边距 100 缇
    },
    alignment: AlignmentType.CENTER, // 整个表格居中对齐
    borders: {
        top: { style: "single", size: 4, color: "000000" }, // 上边框
        bottom: { style: "single", size: 4, color: "000000" }, // 下边框
        left: { style: "single", size: 4, color: "000000" }, // 左边框
        right: { style: "single", size: 4, color: "000000" }, // 右边框
        insideHorizontal: { style: "single", size: 2, color: "CCCCCC" }, // 内部水平边框
        insideVertical: { style: "single", size: 2, color: "CCCCCC" }, // 内部垂直边框
    },
})

代码效果:在这里插入图片描述

1.5 目录TableOfContents的参数 (<string>,<ITableOfContentsOptions>)

第一个参数是目录的别名,第二个重点介绍:

代码示例:

// 基础包
import { Document, Packer, Paragraph } from 'docx';
// 目录包
import { TableOfContents } from 'docx'
// 标题级别
import { HeadingLevel } from "docx";

// 只展示部分关键代码
children: [
	new TableOfContents("你看我像目录吗?", {
	    hyperlink: true, // 目录项带超链接
	    headingStyleRange: "1-3", // 包含 1 到 3 级标题
	}),
	new Paragraph({
	    text: "第一章 介绍",
	    heading: HeadingLevel.HEADING_1, // 一级标题
	}),
	new Paragraph("这是第一章的内容。"),
	// 标题 2
	new Paragraph({
	    text: "1.1 背景",
	    heading: HeadingLevel.HEADING_2, // 二级标题
	}),
	new Paragraph("这是 1.1 节的内容。"),
	// 标题 3
	new Paragraph({
	    text: "1.1.1 技术栈",
	    heading: HeadingLevel.HEADING_3, // 三级标题
	}),
	new Paragraph("这是 1.1.1 节的内容。"),
	// 普通段落
	new Paragraph("hello world")
]

代码效果:在这里插入图片描述

1.6 文本框Textbox 的参数 (<ITextboxOptions>)
declare type ITextboxOptions = {
    // 文本框的子元素(如 Paragraph、TextRun 等)
    readonly children?: readonly ParagraphChild[];
    // 文本框的样式配置
    readonly style?: {
        // 翻转方式(如水平翻转、垂直翻转)
        readonly flip?: "x" | "y" | "xy" | "yx";
        // 文本框的高度
        readonly height?: LengthUnit;
        // 文本框的左边距
        readonly left?: LengthUnit;
        // 文本框的下边距
        readonly marginBottom?: LengthUnit;
        // 文本框的左边距
        readonly marginLeft?: LengthUnit;
        // 文本框的右边距
        readonly marginRight?: LengthUnit;
        // 文本框的上边距
        readonly marginTop?: LengthUnit;
        // 文本框的水平位置(如绝对位置、左对齐、居中等)
        readonly positionHorizontal?: "absolute" | "left" | "center" | "right" | "inside" | "outside";
        // 文本框水平位置的参考基准(如页边距、页面、文本等)
        readonly positionHorizontalRelative?: "margin" | "page" | "text" | "char";
        // 文本框的垂直位置(如绝对位置、顶部对齐、居中等)
        readonly positionVertical?: "absolute" | "top" | "center" | "bottom" | "inside" | "outside";
        // 文本框垂直位置的参考基准(如页边距、页面、文本等)
        readonly positionVerticalRelative?: "margin" | "page" | "text" | "char";
        // 文本框底部与周围文本的间距
        readonly wrapDistanceBottom?: number;
        // 文本框左侧与周围文本的间距
        readonly wrapDistanceLeft?: number;
        // 文本框右侧与周围文本的间距
        readonly wrapDistanceRight?: number;
        // 文本框顶部与周围文本的间距
        readonly wrapDistanceTop?: number;
        // 是否启用文本框的环绕编辑
        readonly wrapEdited?: boolean;
        // 文本框的环绕样式(如方形环绕、无环绕)
        readonly wrapStyle?: "square" | "none";
        // 文本框的位置类型(如静态、绝对、相对)
        readonly position?: "static" | "absolute" | "relative";
        // 文本框的旋转角度
        readonly rotation?: number;
        // 文本框的顶部位置
        readonly top?: LengthUnit;
        // 文本框的可见性(如隐藏、继承)
        readonly visibility?: "hidden" | "inherit";
        // 文本框的宽度
        readonly width: LengthUnit;
        // 文本框的堆叠顺序(z-index)
        readonly zIndex?: "auto" | number;
    }
}

使用示例:

// 基础包
import { Document, Packer, Paragraph } from 'docx';
// 文本框包
import { Textbox } from 'docx';

// 展示部分关键代码
new Textbox({
    children:[
        new Paragraph('我是文本框')
    ],
    style: {
        width: 200, // 宽度 200 缇
        height: 600, // 高度 600 缇
        border: { color: "000000", size: 2 }, // 边框
        rotation: 30, // 旋转30度
    },
})

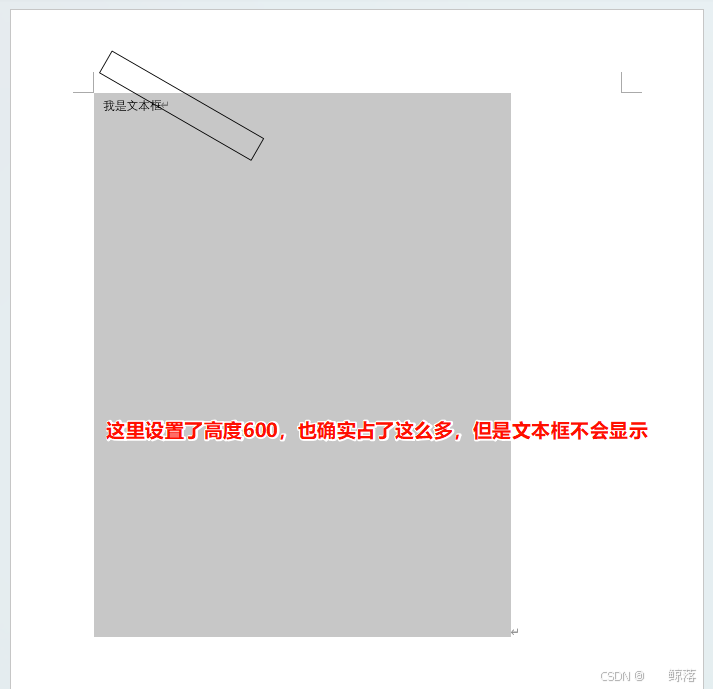

代码效果在这里插入图片描述

第四章 花里胡哨——美颜篇

1. 文档美颜

多查文档doge

评论
添加红包

请填写红包祝福语或标题

红包个数最小为10个

红包金额最低5元

当前余额3.43前往充值 >
需支付:10.00
成就一亿技术人!
领取后你会自动成为博主和红包主的粉丝 规则
hope_wisdom
发出的红包

打赏作者

ℋᙚᵐⁱᒻᵉ鲸落

你的鼓励将是我创作的最大动力

¥1 ¥2 ¥4 ¥6 ¥10 ¥20
扫码支付:¥1
获取中
扫码支付

您的余额不足,请更换扫码支付或充值

打赏作者

实付
使用余额支付
点击重新获取
扫码支付
钱包余额 0

抵扣说明:

1.余额是钱包充值的虚拟货币,按照1:1的比例进行支付金额的抵扣。
2.余额无法直接购买下载,可以购买VIP、付费专栏及课程。

余额充值
