SAE J1850查表法的另一种实现方法，业内通用

一.背景描述

        汽车电子行业使用的CRC8校验通常是SAE J1850算法，通常使用查表法时，SAE J1850和 SAE J1850 ZERO使用的值表是同一个。

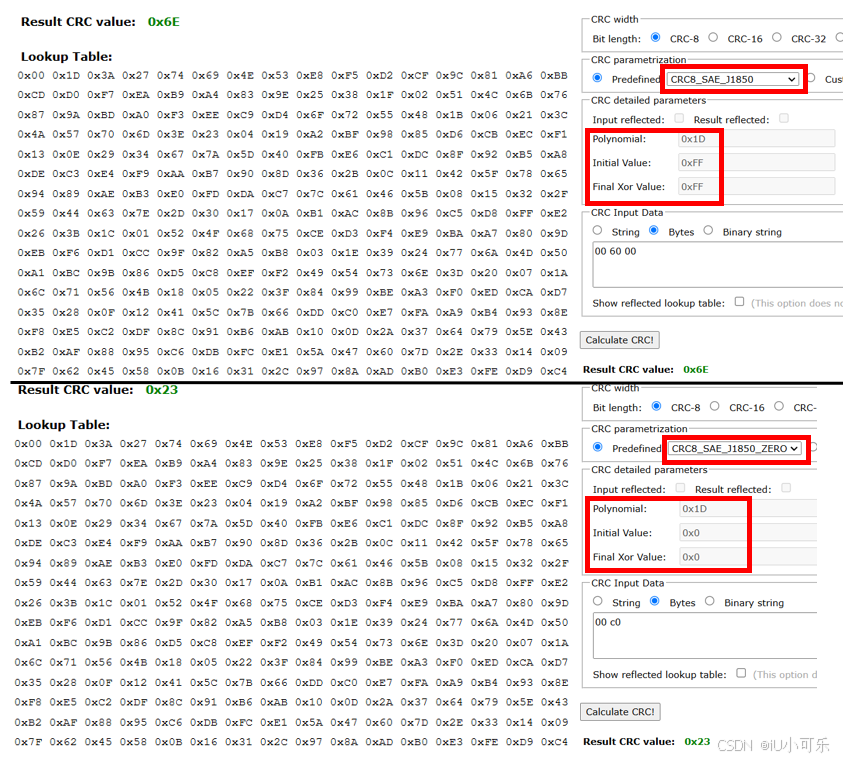

二.值表

三.代码

#include "App_CRC_J1850.h"

#define CRC8_INIT_VALUE          0x00u
#define CRC8_POLY_VALUE          0x1Du
#define CRC8_XOR_VALUE           0x00u

#define SAE_J1850                1u
#define SAE_J1850_ZERO           2u
#define CRC8_STANDAED            SAE_J1850

#define CRC_USE_TABLE            1u             /*使用查表法*/

#if CRC_USE_TABLE
#define BZIP2_TABLE_SIZE         (256u)

#if (CRC8_STANDAED == SAE_J1850_ZERO)
static const uint8_t crc_table[BZIP2_TABLE_SIZE] = {
  0x00,0x1D,0x3A,0x27,0x74,0x69,0x4E,0x53,0xE8,0xF5,0xD2,0xCF,0x9C,0x81,0xA6,0xBB
  ,0xCD,0xD0,0xF7,0xEA,0xB9,0xA4,0x83,0x9E,0x25,0x38,0x1F,0x02,0x51,0x4C,0x6B,0x76
  ,0x87,0x9A,0xBD,0xA0,0xF3,0xEE,0xC9,0xD4,0x6F,0x72,0x55,0x48,0x1B,0x06,0x21,0x3C
  ,0x4A,0x57,0x70,0x6D,0x3E,0x23,0x04,0x19,0xA2,0xBF,0x98,0x85,0xD6,0xCB,0xEC,0xF1
  ,0x13,0x0E,0x29,0x34,0x67,0x7A,0x5D,0x40,0xFB,0xE6,0xC1,0xDC,0x8F,0x92,0xB5,0xA8
  ,0xDE,0xC3,0xE4,0xF9,0xAA,0xB7,0x90,0x8D,0x36,0x2B,0x0C,0x11,0x42,0x5F,0x78,0x65
  ,0x94,0x89,0xAE,0xB3,0xE0,0xFD,0xDA,0xC7,0x7C,0x61,0x46,0x5B,0x08,0x15,0x32,0x2F
  ,0x59,0x44,0x63,0x7E,0x2D,0x30,0x17,0x0A,0xB1,0xAC,0x8B,0x96,0xC5,0xD8,0xFF,0xE2
  ,0x26,0x3B,0x1C,0x01,0x52,0x4F,0x68,0x75,0xCE,0xD3,0xF4,0xE9,0xBA,0xA7,0x80,0x9D
  ,0xEB,0xF6,0xD1,0xCC,0x9F,0x82,0xA5,0xB8,0x03,0x1E,0x39,0x24,0x77,0x6A,0x4D,0x50
  ,0xA1,0xBC,0x9B,0x86,0xD5,0xC8,0xEF,0xF2,0x49,0x54,0x73,0x6E,0x3D,0x20,0x07,0x1A
  ,0x6C,0x71,0x56,0x4B,0x18,0x05,0x22,0x3F,0x84,0x99,0xBE,0xA3,0xF0,0xED,0xCA,0xD7
  ,0x35,0x28,0x0F,0x12,0x41,0x5C,0x7B,0x66,0xDD,0xC0,0xE7,0xFA,0xA9,0xB4,0x93,0x8E
  ,0xF8,0xE5,0xC2,0xDF,0x8C,0x91,0xB6,0xAB,0x10,0x0D,0x2A,0x37,0x64,0x79,0x5E,0x43
  ,0xB2,0xAF,0x88,0x95,0xC6,0xDB,0xFC,0xE1,0x5A,0x47,0x60,0x7D,0x2E,0x33,0x14,0x09
  ,0x7F,0x62,0x45,0x58,0x0B,0x16,0x31,0x2C,0x97,0x8A,0xAD,0xB0,0xE3,0xFE,0xD9,0xC4
};
#else
static const uint8_t crc_table[BZIP2_TABLE_SIZE] = {
  0x00,0x1D,0x3A,0x27,0x74,0x69,0x4E,0x53,0xE8,0xF5,0xD2,0xCF,0x9C,0x81,0xA6,0xBB
  ,0xCD,0xD0,0xF7,0xEA,0xB9,0xA4,0x83,0x9E,0x25,0x38,0x1F,0x02,0x51,0x4C,0x6B,0x76
  ,0x87,0x9A,0xBD,0xA0,0xF3,0xEE,0xC9,0xD4,0x6F,0x72,0x55,0x48,0x1B,0x06,0x21,0x3C
  ,0x4A,0x57,0x70,0x6D,0x3E,0x23,0x04,0x19,0xA2,0xBF,0x98,0x85,0xD6,0xCB,0xEC,0xF1
  ,0x13,0x0E,0x29,0x34,0x67,0x7A,0x5D,0x40,0xFB,0xE6,0xC1,0xDC,0x8F,0x92,0xB5,0xA8
  ,0xDE,0xC3,0xE4,0xF9,0xAA,0xB7,0x90,0x8D,0x36,0x2B,0x0C,0x11,0x42,0x5F,0x78,0x65
  ,0x94,0x89,0xAE,0xB3,0xE0,0xFD,0xDA,0xC7,0x7C,0x61,0x46,0x5B,0x08,0x15,0x32,0x2F
  ,0x59,0x44,0x63,0x7E,0x2D,0x30,0x17,0x0A,0xB1,0xAC,0x8B,0x96,0xC5,0xD8,0xFF,0xE2
  ,0x26,0x3B,0x1C,0x01,0x52,0x4F,0x68,0x75,0xCE,0xD3,0xF4,0xE9,0xBA,0xA7,0x80,0x9D
  ,0xEB,0xF6,0xD1,0xCC,0x9F,0x82,0xA5,0xB8,0x03,0x1E,0x39,0x24,0x77,0x6A,0x4D,0x50
  ,0xA1,0xBC,0x9B,0x86,0xD5,0xC8,0xEF,0xF2,0x49,0x54,0x73,0x6E,0x3D,0x20,0x07,0x1A
  ,0x6C,0x71,0x56,0x4B,0x18,0x05,0x22,0x3F,0x84,0x99,0xBE,0xA3,0xF0,0xED,0xCA,0xD7
  ,0x35,0x28,0x0F,0x12,0x41,0x5C,0x7B,0x66,0xDD,0xC0,0xE7,0xFA,0xA9,0xB4,0x93,0x8E
  ,0xF8,0xE5,0xC2,0xDF,0x8C,0x91,0xB6,0xAB,0x10,0x0D,0x2A,0x37,0x64,0x79,0x5E,0x43
  ,0xB2,0xAF,0x88,0x95,0xC6,0xDB,0xFC,0xE1,0x5A,0x47,0x60,0x7D,0x2E,0x33,0x14,0x09
  ,0x7F,0x62,0x45,0x58,0x0B,0x16,0x31,0x2C,0x97,0x8A,0xAD,0xB0,0xE3,0xFE,0xD9,0xC4
};
#endif  /*#if (CRC8_STANDAED == SAE_J1850_ZERO)*/

uint8_t u8fs_crc8_sae_j1850(uint8_t *data, uint8_t len)
{
  uint16_t i;
  uint8_t crc;
  uint8_t tmp;

  crc = CRC8_INIT_VALUE;
  for(i = 0; i < len; i ++)
  {
    tmp = crc ^ data[i];
    crc = crc_table[tmp];
  }
  crc ^= CRC8_XOR_VALUE;
  return crc;
}
#else   /*#if CRC_USE_TABLE*/
uint8_t u8fs_crc8_sae_j1850(uint8_t *data, uint8_t len)
{
    uint8_t i, j;
    uint8_t u8_crc8;
    uint8_t u8_poly;

    u8_crc8 = CRC8_INIT_VALUE;
    u8_poly = CRC8_POLY_VALUE;

    for (i = 0; i < len; i++)
    {
        u8_crc8 ^= data[i];

        for (j = 0u; j < 8u; j++)
        {
            if (u8_crc8 & 0x80u)
            {
                u8_crc8 = (u8)(u8_crc8 << 1) ^ u8_poly;  /*PRQA S 4571*/
            }
            else
            {
                u8_crc8 <<= 1;
            }
        }
    }

    u8_crc8 ^= (u8)CRC8_XOR_VALUE;

    return u8_crc8;
}
#endif  /*#if CRC_USE_TABLE*/

uint8_t checksum_crc_j1850(uint8_t *data,  uint8_t len)
{
    uint8_t u8databeforecrc[3];

    u8databeforecrc[0] = data[0];
    u8databeforecrc[1] = data[1];
    u8databeforecrc[2] = data[3];

    return u8fs_crc8_sae_j1850(u8databeforecrc,len);
}

void app_crc_j1850_task(void)
{
    uint8_t checksum_crc = 0;

    checksum_crc = checksum_crc_j1850(&TxIpduSWS_40A._c[0],3);
    Com_SendSignal(COM_TXSIGSWS_CS,&checksum_crc);
}
