使用Mathematica绘制双摆系统的Poincaré section

双摆模型的方程为（系数做过一定的伸展之后）：

目标：绘制当alpha=0和alpha'>0时的Poincare截面（由点(beta,l_beta)组成）。

abc = {a'[t] == 2*(la[t] - (1 + Cos[b[t]])*lb[t])/(3 - Cos[2*b[t]]),
   la'[t] == -2*Sin[a[t]] - Sin[a[t] + b[t]],
   b'[t] ==
    2*(-(1 + Cos[b[t]])*la[t] + (3 + 2*Cos[b[t]])*lb[t])/(3 -
        Cos[2*b[t]]),
   lb'[t] == -Sin[a[t] + b[t]] -
     2*Sin[b[t]]*((la[t] - lb[t])*lb[t])/(3 - Cos[2*b[t]]) +
     2*Sin[2*b[t]]*(la[t]^2 -
         2*(1 + Cos[b[t]])*la[t]*lb[t] + (3 + 2*Cos[b[t]])*
          lb[t]^2)/(3 - Cos[2*b[t]])^2};

psect[{a0_, la0_, b0_, lb0_}] :=
 Reap[NDSolve[{abc, a[0] == a0, la[0] == la0, b[0] == b0,
     lb[0] == lb0,
     WhenEvent[a[t] == 0 && -2*Sin[a[t]] - Sin[a[t] + b[t]] < 0,
      Sow[{b[t], lb[t]}]],
     WhenEvent[a[t] == 0 && -2*Sin[a[t]] - Sin[a[t] + b[t]] > 0,
      Sow[{b[t], lb[t]}]]}, {a[t], b[t], la[t], lb[t]}, {t, 0, 1000},
    MaxSteps -> Infinity]][[-1, 1]]

abcdata =
  Map[psect, {{0.01, 0.01, 0.01, 0}, {0.01, 0.01, 0.01, 0.01}, {0.01,
     0.01, 0.01, -0.01}}];

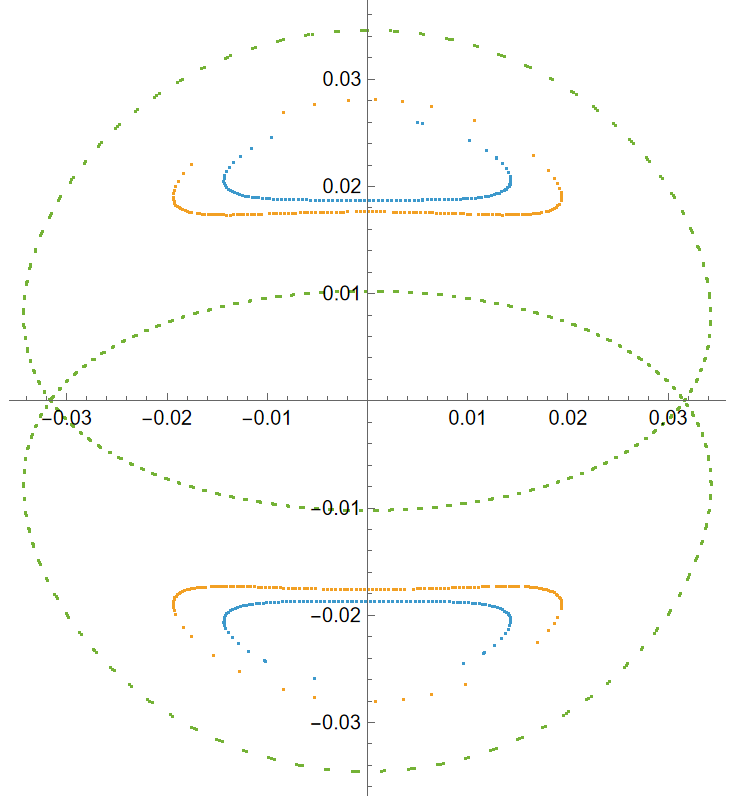

ListPlot[abcdata, ImageSize -> Medium, AspectRatio -> 1.15]

ps = psect /@ Table[{0.01, 0.005, 0.01, i}, {i, -.01, .01, .00125}];

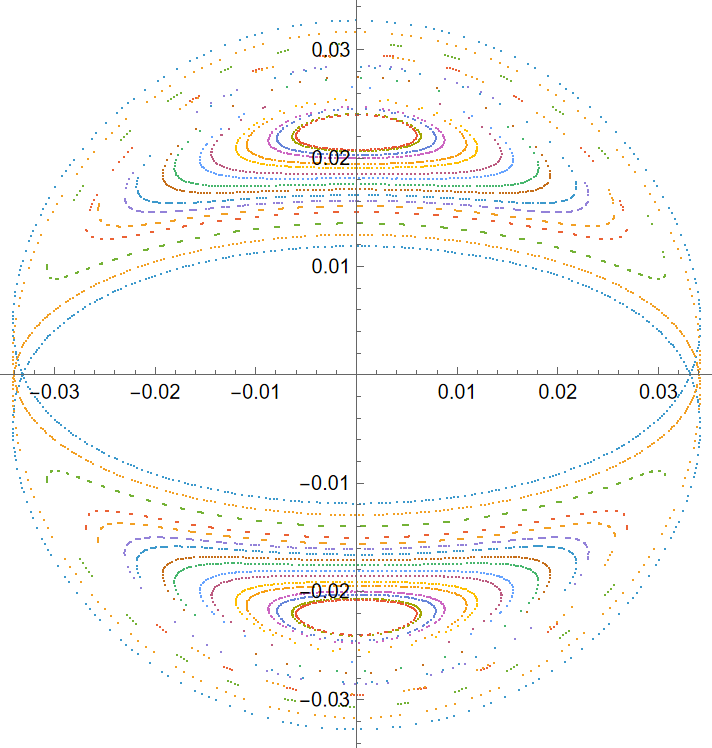

ListPlot[ps, ImageSize -> Medium,AspectRatio->1.1]
