112100833_Calculator | |
---|---|
这个作业属于哪个课程 | https://bbs.csdn.net/forums/ssynkqtd-05 |
这个作业要求在哪里 | https://bbs.csdn.net/topics/617377308 |
这个作业的目标 | 继续实现更完善的计算器功能并实现前后端分离 |
其他参考文献 | 无 |
1.git仓库链接和代码规范链接
前端:112100833黄咏清 / 112100833hyq_calculator_temp · GitCode
后端:112100833黄咏清 / 112100833hyq_cal_backport · GitCode
2.psp表格
PSP | Personal Software Process Stages | 预估耗时(分钟) | 实际耗时(分钟) |
---|---|---|---|
Planning | 计划 | 30 | 35 |
• Estimate | • 估计这个任务需要多少时间 | 15 | 10 |
Development | 开发 | 900 | 990 |
• Analysis | • 需求分析 (包括学习新技术) | 30 | 30 |
• Design Spec | • 生成设计文档 | 60 | 75 |
• Design Review | • 设计复审 | 30 | 45 |
• Coding Standard | • 代码规范 (为目前的开发制定合适的规范) | 30 | 100 |
• Design | • 具体设计 | 60 | 100 |
• Coding | • 具体编码 | 900 | 970 |
• Code Review | • 代码复审 | 60 | 60 |
• Test | • 测试(自我测试,修改代码,提交修改) | 70 | 50 |
Reporting | 报告 | 90 | 60 |
• Test Repor | • 测试报告 | 30 | 20 |
• Size Measurement | • 计算工作量 | 15 | 10 |
• Postmortem & Process Improvement Plan | • 事后总结, 并提出过程改进计划 | 45 | 30 |
合计 | 3025 | 3375 |
3.成品展示:

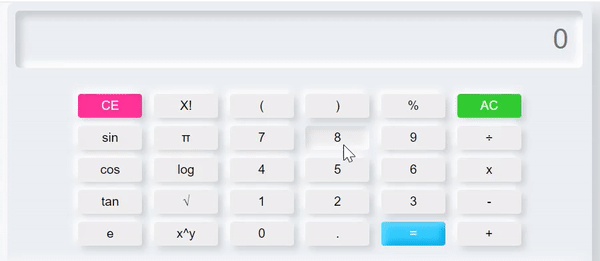

功能1:四则运算、取余、括号
功能2:清零回退
功能3:错误提示
功能4:读取历史记录

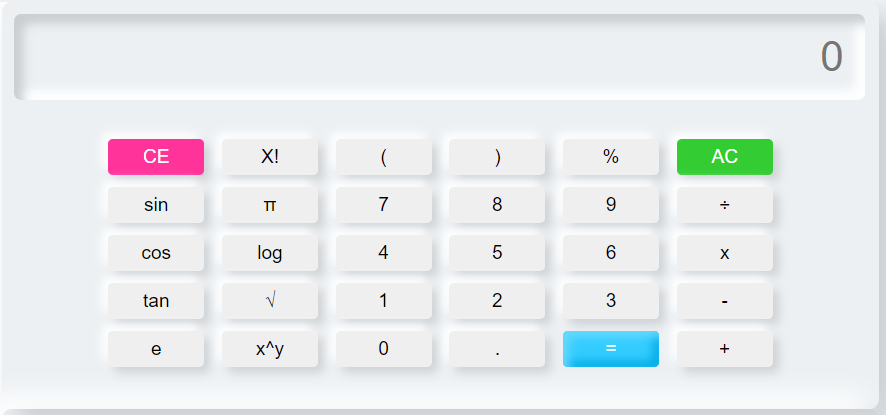

附加功能1:科学计算器
页面原型设计:

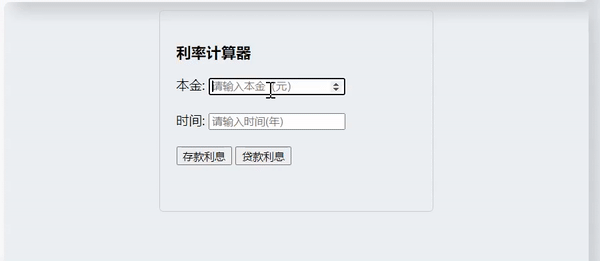

利率计算器:
4.设计实现过程:
1.功能结构图
2.前端:html+css+js 原生写代码,直接用Fetch API、XMLHttpRequest(XHR)(原生请求库)发送请求,成功和后端对接
3.后端:用springboot作为开发框架,在orm层用mybatis框架

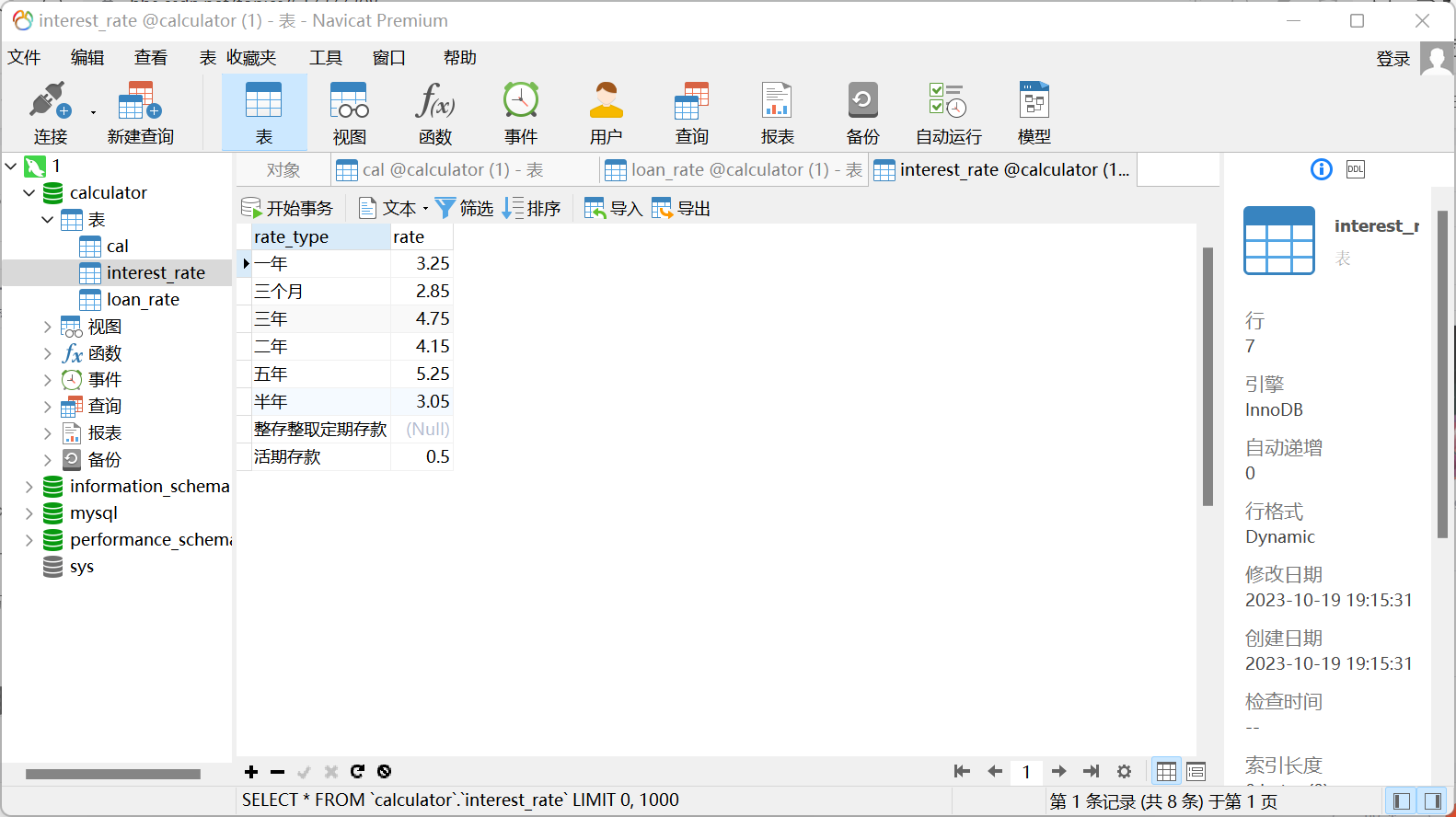

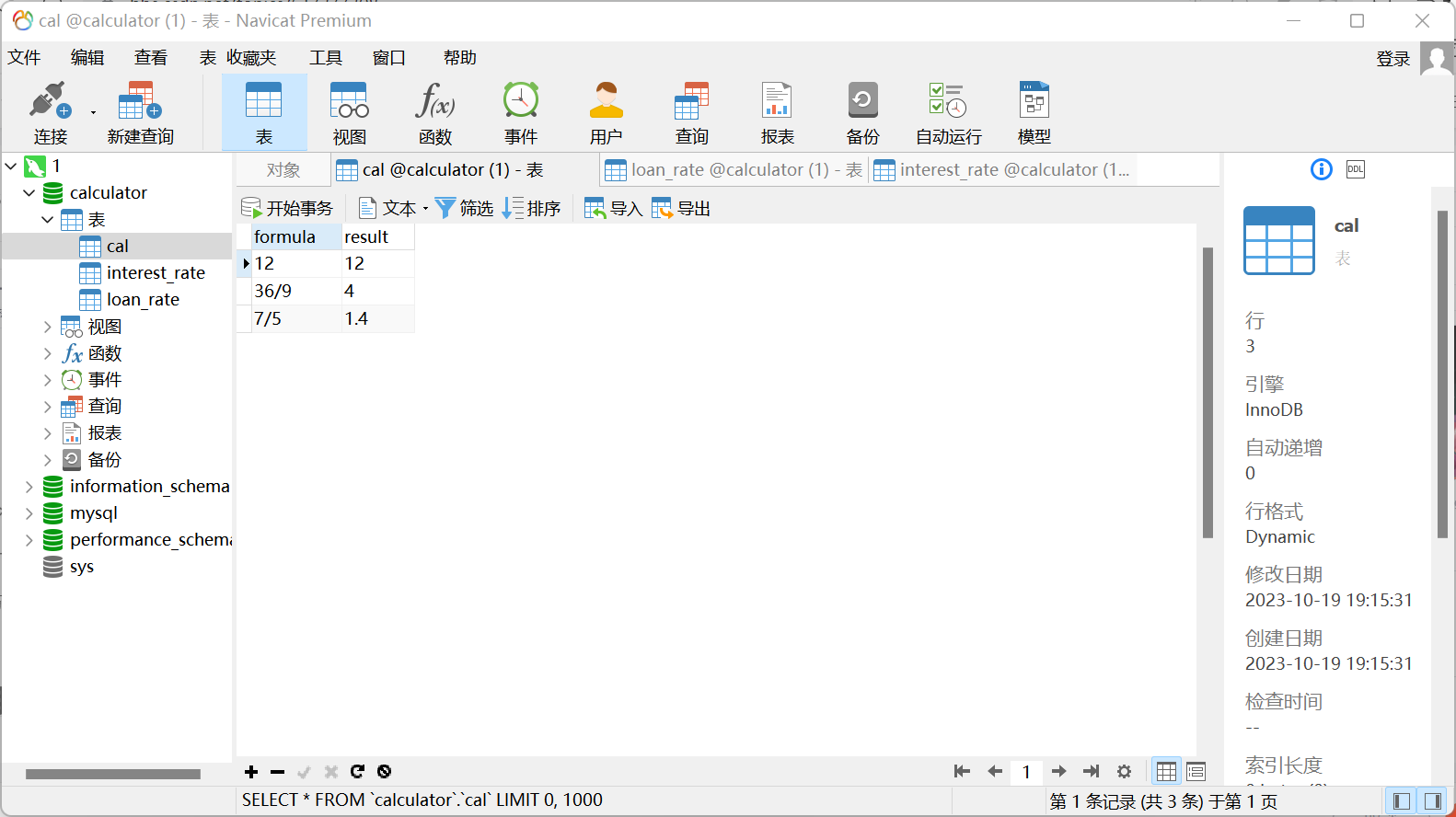

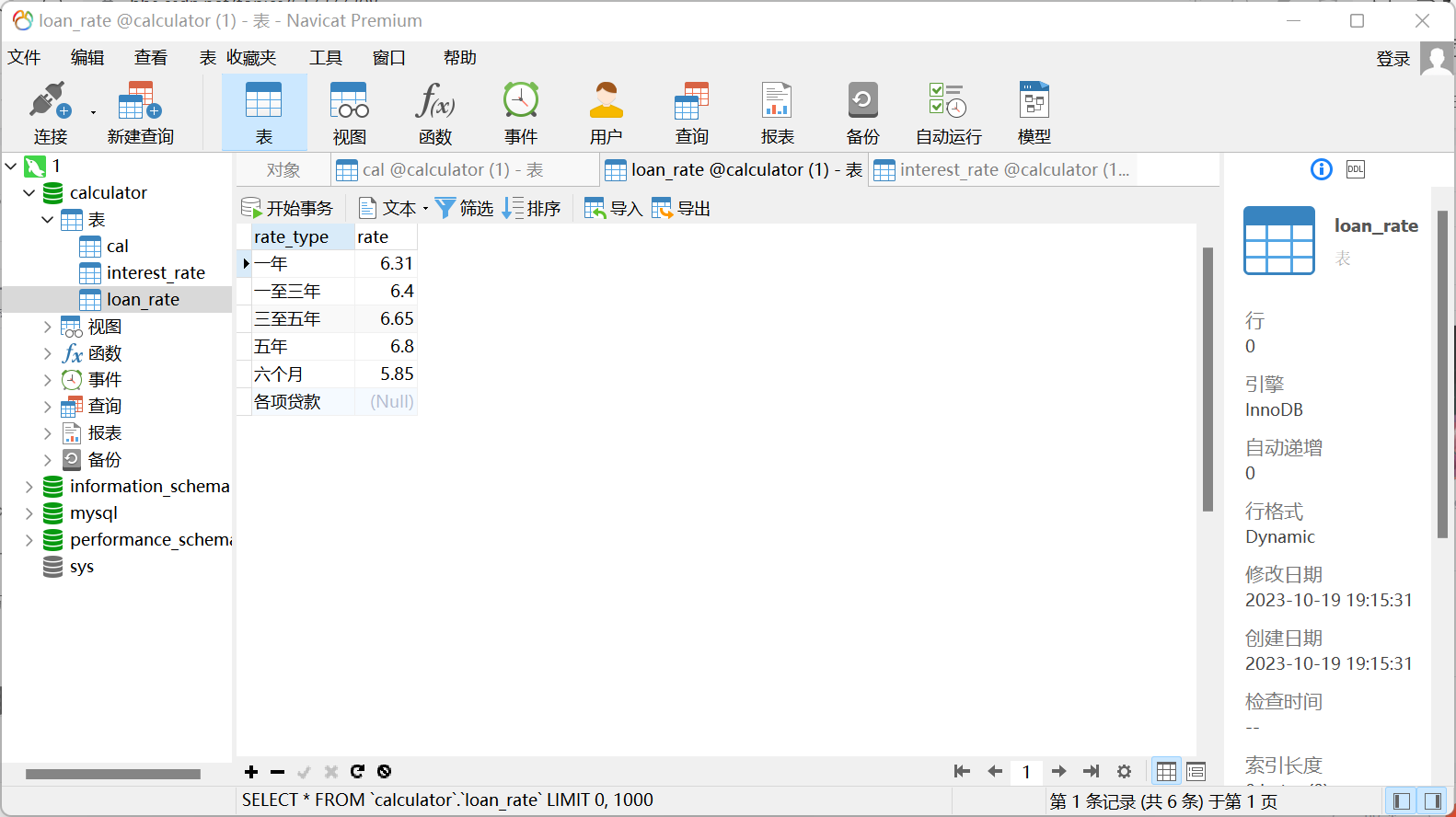

4.数据库:存历史记录以及数据,用了可视化工具navicat,共有三个表
5.代码说明:
前端部分:
1.使用了js中的Fetch API ,向本地主机 http://localhost:8082/history
发送了一个 GET 请求,并且在响应返回后对数据进行处理。
-
function getHistory() {
-
fetch('http://localhost:8082/history')
-
.then(response => response.json())
-
.then(data => {
-
// 将数据传递给构建表格的函数
-
buildTable(data);
-
});
-
}
-
function buildTable(data) {
-
let table = document.getElementById('history');
-
// 创建表格行并添加到表格中
-
data.forEach(function(rowData) {
-
let row = table.insertRow();
-
Object.values(rowData).forEach(function(value) {
-
let cell = row.insertCell();
-
cell.innerHTML = value;
-
});
-
});
-
}
2.使用XMLHttpRequest(XHR)对象发送 GET 请求的 JavaScript 代码
-
function interfun(){
-
// 获取输入
-
var year=parseFloat(document.getElementById("caltype").value);
-
var xhr = new XMLHttpRequest();
-
var principal=parseFloat(document.getElementById("principal").value);
-
xhr.open('GET', `http://localhost:8082/interest?time=${year}`, true);
-
xhr.onload = function () {
-
if (xhr.status >= 200 && xhr.status < 300) {
-
var rate = xhr.responseText;
-
const interest=rate*principal*year/100;
-
document.getElementById("result").innerHTML=interest.toFixed(2);
-
} else {
-
console.error('Request failed with status', xhr.status);
-
}
-
};
-
xhr.onerror = function () {
-
console.error('Request failed due to a network error');
-
};
-
xhr.setRequestHeader('Content-Type', 'text/plain');
-
xhr.send();
-
}
-
function loanfun(){
-
// 获取输入
-
var year=parseFloat(document.getElementById("caltype").value);
-
var xhr = new XMLHttpRequest();
-
var principal=parseFloat(document.getElementById("principal").value);
-
xhr.open('GET', `http://localhost:8082/loan?time=${year}`, true);
-
xhr.onload = function () {
-
if (xhr.status >= 200 && xhr.status < 300) {
-
var rate = xhr.responseText;
-
const loan=rate*principal*year/100;
-
document.getElementById("result").innerHTML=loan.toFixed(2);
-
} else {
-
console.error('Request failed with status', xhr.status);
-
}
-
};
-
xhr.onerror = function () {
-
console.error('Request failed due to a network error');
-
};
-
xhr.setRequestHeader('Content-Type', 'text/plain');
-
xhr.send();
-
}
后端部分:
API代码(计算器部分):
-
@Controller
-
public class calController {
-
@Resource
-
private ResultRepository ResultRepository;
-
@Resource
-
private ResultService ResultService;
-
@GetMapping("/test1")
-
@ResponseBody
-
public String test1(){
-
return ResultService.list().toString();
-
}
-
@GetMapping("/save")
-
@CrossOrigin(originPatterns = "*", methods = {RequestMethod.GET, RequestMethod.POST})
-
@ResponseBody
-
public void resSave(@RequestParam("formula") String formula,@RequestParam("result")String result){
-
ResultService.save(new Result(formula,result));
-
}
-
@GetMapping("/history")
-
@CrossOrigin(originPatterns = "*", methods = {RequestMethod.GET, RequestMethod.POST})
-
@ResponseBody
-
public List<Result> GetHistory(){
-
QueryWrapper<Result> resultQueryWrapper=new QueryWrapper<>();
-
return ResultService.list();
-
}
-
}
API代码(存款):
-
public class InterestRateController {
-
@Resource
-
private rateServer rateserver;
-
@Resource
-
private InterestRateRepository rateRepository;
-
// @RequestMapping("/helloo")
-
// @ResponseBody
-
// public String hello(){return "Hello world!";}
-
@GetMapping("/interest")
-
@CrossOrigin(originPatterns = "*", methods = {RequestMethod.GET, RequestMethod.POST})
-
@ResponseBody
-
public String interestCal(@RequestParam("time") String time){
-
QueryWrapper<InterestRate> intQueWrapper=new QueryWrapper<>();
-
double year= Double.parseDouble(time);
-
if(year==0.25)
-
{
-
intQueWrapper.eq("rate_type","三个月");
-
}
-
else if(year==0.5)
-
{
-
intQueWrapper.eq("rate_type","半年");
-
}
-
else if(year==1)
-
{
-
intQueWrapper.eq("rate_type","一年");
-
}
-
else if(year==2)
-
{
-
intQueWrapper.eq("rate_type","二年");
-
}
-
else if(year==3)
-
{
-
intQueWrapper.eq("rate_type","三年");
-
}
-
else if(year==5)
-
{
-
intQueWrapper.eq("rate_type","五年");
-
}
-
else
-
{
-
intQueWrapper.eq("rate_type","活期存款");
-
}
-
InterestRate intRate=rateRepository.selectOne(intQueWrapper);
-
String result=Double.toString(intRate.getRate());
-
return result;
-
}
-
}
API代码(贷款):
public class InterestRateController { @Resource private rateServer rateserver; @Resource private InterestRateRepository rateRepository; // @RequestMapping("/helloo") // @ResponseBody // public String hello(){return "Hello world!";} @GetMapping("/interest") @CrossOrigin(originPatterns = "*", methods = {RequestMethod.GET, RequestMethod.POST}) @ResponseBody public String interestCal(@RequestParam("time") String time){ QueryWrapper<InterestRate> intQueWrapper=new QueryWrapper<>(); double year= Double.parseDouble(time); if(year==0.25) { intQueWrapper.eq("rate_type","三个月"); } else if(year==0.5) { intQueWrapper.eq("rate_type","半年"); } else if(year==1) { intQueWrapper.eq("rate_type","一年"); } else if(year==2) { intQueWrapper.eq("rate_type","二年"); } else if(year==3) { intQueWrapper.eq("rate_type","三年"); } else if(year==5) { intQueWrapper.eq("rate_type","五年"); } else { intQueWrapper.eq("rate_type","活期存款"); } InterestRate intRate=rateRepository.selectOne(intQueWrapper); String result=Double.toString(intRate.getRate()); return result; } }
连接数据库
-
server:
-
port: 8082
-
spring:
-
datasource:
-
driver-class-name: com.mysql.cj.jdbc.Driver
-
url: jdbc:mysql://localhost:3306/calculator?serverTimezone=GMT%2b8
-
username: root
-
password: password
6.心路历程和收获
通过这次作业,我充分了解到了前后端开发的基本模式。我使用html,css,js原生来开发前端,遇到了响应式变量不便于管理的问题,在接口对接上,直接使用了原生请求库,成功与后端对接。后端经过了解,选用了springboot作为开发框架,在orm层一开始使用jpa。遇到一些问题后切换到了更合适的mybatis框架成功解决问题。也第一次的部署了自己的mysql数据库。总的来说这次作业收获很大,是一次完整的前后端分离开发体验,也学习到了许多新知识,接下来我会去了解vue框架,希望能在之后的项目中做得更好
