旋转、移动、镜像

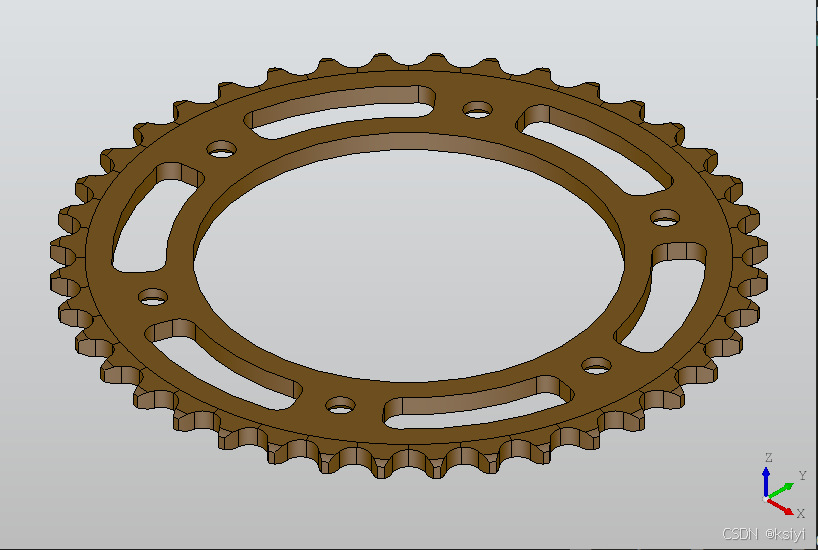

官方案例展示
core_modeling_sprocket.py:
import sys
from math import pi as M_PI, sin, cos, atan
from OCC.Core.gp import (
gp_Pnt2d,
gp_Ax2d,
gp_Dir2d,
gp_Circ2d,
gp_Origin2d,
gp_DX2d,
gp_Ax2,
gp_OX2d,
gp_Lin2d,
gp_Trsf,
gp_XOY,
gp_Pnt,
gp_Vec,
gp_Ax3,
gp_Pln,
gp_Origin,
gp_DX,
gp_DY,
gp_DZ,
gp_OZ,
)
from OCC.Core.GCE2d import GCE2d_MakeArcOfCircle, GCE2d_MakeCircle, GCE2d_MakeLine
from OCC.Core.Geom2dAPI import Geom2dAPI_InterCurveCurve
from OCC.Core.Geom2d import Geom2d_TrimmedCurve
from OCC.Core.GeomAPI import geomapi_To3d
from OCC.Core.BRepBuilderAPI import (
BRepBuilderAPI_MakeEdge,
BRepBuilderAPI_MakeWire,
BRepBuilderAPI_MakeFace,
BRepBuilderAPI_Transform,
)
from OCC.Core.BRepPrimAPI import (
BRepPrimAPI_MakePrism,
BRepPrimAPI_MakeRevol,
BRepPrimAPI_MakeCylinder,
BRepPrimAPI_MakeCone,
)
from OCC.Core.GccAna import GccAna_Circ2d2TanRad
from OCC.Core.BRepAlgoAPI import BRepAlgoAPI_Cut, BRepAlgoAPI_Fuse
from OCC.Core.BRepFilletAPI import BRepFilletAPI_MakeFillet2d
from OCC.Core.BRepTools import BRepTools_WireExplorer
from OCC.Display.SimpleGui import init_display
roller_diameter = 10.2
pitch = 15.875
num_teeth = 40
chain_width = 6.35
# Dimensions derived from the provided inputs
roller_radius = roller_diameter / 2.0
tooth_angle = (2 * M_PI) / num_teeth
pitch_circle_diameter = pitch / sin(tooth_angle / 2.0)
pitch_circle_radius = pitch_circle_diameter / 2.0
roller_contact_angle_min = (M_PI * 120 / 180) - ((M_PI / 2.0) / num_teeth)
roller_contact_angle_max = (M_PI * 140 / 180) - ((M_PI / 2.0) / num_teeth)
roller_contact_angle = (roller_contact_angle_min + roller_contact_angle_max) / 2.0
tooth_radius_min = 0.505 * roller_diameter
tooth_radius_max = tooth_radius_min + (0.069 * pow(roller_diameter, 1.0 / 3.0))
tooth_radius = (tooth_radius_min + tooth_radius_max) / 2.0
profile_radius = 0.12 * roller_diameter * (num_teeth + 2)
top_diameter = (
pitch_circle_diameter + ((1 - (1.6 / num_teeth)) * pitch) - roller_diameter
)
top_radius = top_diameter / 2.0
thickness = chain_width * 0.95
# Center hole data
center_radius = 125.0 / 2.0
# Mounting hole data
mounting_hole_count = 6
mounting_radius = 153.0 / 2.0
hole_radius = 8.5 / 2.0
def build_tooth():
base_center = gp_Pnt2d(pitch_circle_radius + (tooth_radius - roller_radius), 0)
base_circle = gp_Circ2d(gp_Ax2d(base_center, gp_Dir2d()), tooth_radius)
trimmed_base = GCE2d_MakeArcOfCircle(
base_circle, M_PI - (roller_contact_angle / 2.0), M_PI
).Value()
trimmed_base.Reverse() # just a trick
p0 = trimmed_base.StartPoint()
p1 = trimmed_base.EndPoint()
# Determine the center of the profile circle
x_distance = cos(roller_contact_angle / 2.0) * (profile_radius + tooth_radius)
y_distance = sin(roller_contact_angle / 2.0) * (profile_radius + tooth_radius)
profile_center = gp_Pnt2d(pitch_circle_radius - x_distance, y_distance)
# Construct the profile circle gp_Circ2d
profile_circle = gp_Circ2d(
gp_Ax2d(profile_center, gp_Dir2d()), profile_center.Distance(p1)
)
geom_profile_circle = GCE2d_MakeCircle(profile_circle).Value()
# Construct the outer circle gp_Circ2d
outer_circle = gp_Circ2d(gp_Ax2d(gp_Pnt2d(0, 0), gp_Dir2d()), top_radius)
geom_outer_circle = GCE2d_MakeCircle(outer_circle).Value()
inter = Geom2dAPI_InterCurveCurve(geom_profile_circle, geom_outer_circle)
num_points = inter.NbPoints()
assert isinstance(p1, gp_Pnt2d)
if num_points == 2:
if p1.Distance(inter.Point(1)) < p1.Distance(inter.Point(2)):
p2 = inter.Point(1)
else:
p2 = inter.Point(2)
elif num_points == 1:
p2 = inter.Point(1)
else:
sys.exit(-1)
# Trim the profile circle and mirror
trimmed_profile = GCE2d_MakeArcOfCircle(profile_circle, p1, p2).Value()
# Calculate the outermost point
p3 = gp_Pnt2d(
cos(tooth_angle / 2.0) * top_radius, sin(tooth_angle / 2.0) * top_radius
)
# and use it to create the third arc
trimmed_outer = GCE2d_MakeArcOfCircle(outer_circle, p2, p3).Value()
# Mirror and reverse the three arcs
mirror_axis = gp_Ax2d(gp_Origin2d(), gp_DX2d().Rotated(tooth_angle / 2.0))
mirror_base = Geom2d_TrimmedCurve.DownCast(trimmed_base.Copy())
mirror_profile = Geom2d_TrimmedCurve.DownCast(trimmed_profile.Copy())
mirror_outer = Geom2d_TrimmedCurve.DownCast(trimmed_outer.Copy())
mirror_base.Mirror(mirror_axis)
mirror_profile.Mirror(mirror_axis)
mirror_outer.Mirror(mirror_axis)
mirror_base.Reverse()
mirror_profile.Reverse()
mirror_outer.Reverse()
# Replace the two outer arcs with a single one
outer_start = trimmed_outer.StartPoint()
outer_mid = trimmed_outer.EndPoint()
outer_end = mirror_outer.EndPoint()
outer_arc = GCE2d_MakeArcOfCircle(outer_start, outer_mid, outer_end).Value()
# Create an arc for the inside of the wedge
inner_circle = gp_Circ2d(
gp_Ax2d(gp_Pnt2d(0, 0), gp_Dir2d()), top_radius - roller_diameter
)
inner_start = gp_Pnt2d(top_radius - roller_diameter, 0)
inner_arc = GCE2d_MakeArcOfCircle(inner_circle, inner_start, tooth_angle).Value()
inner_arc.Reverse()
# Convert the 2D arcs and two extra lines to 3D edges
plane = gp_Pln(gp_Origin(), gp_DZ())
arc1 = BRepBuilderAPI_MakeEdge(geomapi_To3d(trimmed_base, plane)).Edge()
arc2 = BRepBuilderAPI_MakeEdge(geomapi_To3d(trimmed_profile, plane)).Edge()
arc3 = BRepBuilderAPI_MakeEdge(geomapi_To3d(outer_arc, plane)).Edge()
arc4 = BRepBuilderAPI_MakeEdge(geomapi_To3d(mirror_profile, plane)).Edge()
arc5 = BRepBuilderAPI_MakeEdge(geomapi_To3d(mirror_base, plane)).Edge()
p4 = mirror_base.EndPoint()
p5 = inner_arc.StartPoint()
lin1 = BRepBuilderAPI_MakeEdge(
gp_Pnt(p4.X(), p4.Y(), 0), gp_Pnt(p5.X(), p5.Y(), 0)
).Edge()
arc6 = BRepBuilderAPI_MakeEdge(geomapi_To3d(inner_arc, plane)).Edge()
p6 = inner_arc.EndPoint()
lin2 = BRepBuilderAPI_MakeEdge(
gp_Pnt(p6.X(), p6.Y(), 0), gp_Pnt(p0.X(), p0.Y(), 0)
).Edge()
wire = BRepBuilderAPI_MakeWire(arc1)
wire.Add(arc2)
wire.Add(arc3)
wire.Add(arc4)
wire.Add(arc5)
wire.Add(lin1)
wire.Add(arc6)
wire.Add(lin2)
face = BRepBuilderAPI_MakeFace(wire.Wire())
wedge = BRepPrimAPI_MakePrism(face.Shape(), gp_Vec(0.0, 0.0, thickness))
return wedge.Shape()
def round_tooth(wedge):
round_x = 2.6
round_z = 0.06 * pitch
round_radius = pitch
# Determine where the circle used for rounding has to start and stop
p2d_1 = gp_Pnt2d(top_radius - round_x, 0)
p2d_2 = gp_Pnt2d(top_radius, round_z)
# Construct the rounding circle
round_circle = GccAna_Circ2d2TanRad(p2d_1, p2d_2, round_radius, 0.01)
if round_circle.NbSolutions() != 2:
sys.exit(-2)
round_circle_2d_1 = round_circle.ThisSolution(1)
round_circle_2d_2 = round_circle.ThisSolution(2)
if round_circle_2d_1.Position().Location().Coord()[1] >= 0:
round_circle_2d = round_circle_2d_1
else:
round_circle_2d = round_circle_2d_2
# Remove the arc used for rounding
trimmed_circle = GCE2d_MakeArcOfCircle(round_circle_2d, p2d_1, p2d_2).Value()
# Calculate extra points used to construct lines
p1 = gp_Pnt(p2d_1.X(), 0, p2d_1.Y())
p2 = gp_Pnt(p2d_2.X(), 0, p2d_2.Y())
p3 = gp_Pnt(p2d_2.X() + 1, 0, p2d_2.Y())
p4 = gp_Pnt(p2d_2.X() + 1, 0, p2d_1.Y() - 1)
p5 = gp_Pnt(p2d_1.X(), 0, p2d_1.Y() - 1)
# Convert the arc and four extra lines into 3D edges
plane = gp_Pln(gp_Ax3(gp_Origin(), gp_DY().Reversed(), gp_DX()))
arc1 = BRepBuilderAPI_MakeEdge(geomapi_To3d(trimmed_circle, plane)).Edge()
lin1 = BRepBuilderAPI_MakeEdge(p2, p3).Edge()
lin2 = BRepBuilderAPI_MakeEdge(p3, p4).Edge()
lin3 = BRepBuilderAPI_MakeEdge(p4, p5).Edge()
lin4 = BRepBuilderAPI_MakeEdge(p5, p1).Edge()
# Make a wire composed of the edges
round_wire = BRepBuilderAPI_MakeWire(arc1)
round_wire.Add(lin1)
round_wire.Add(lin2)
round_wire.Add(lin3)
round_wire.Add(lin4)
# Turn the wire into a face
round_face = BRepBuilderAPI_MakeFace(round_wire.Wire()).Shape()
# Revolve the face around the Z axis over the tooth angle
rounding_cut_1 = BRepPrimAPI_MakeRevol(round_face, gp_OZ(), tooth_angle).Shape()
# Construct a mirrored copy of the first cutting shape
mirror = gp_Trsf()
mirror.SetMirror(gp_XOY())
mirrored_cut_1 = BRepBuilderAPI_Transform(rounding_cut_1, mirror, True).Shape()
# and translate it so that it ends up on the other side of the wedge
translate = gp_Trsf()
translate.SetTranslation(gp_Vec(0, 0, thickness))
rounding_cut_2 = BRepBuilderAPI_Transform(mirrored_cut_1, translate, False).Shape()
# Cut the wedge using the first and second cutting shape
cut_1 = BRepAlgoAPI_Cut(wedge, rounding_cut_1).Shape()
cut_2 = BRepAlgoAPI_Cut(cut_1, rounding_cut_2).Shape()
return cut_2
def clone_tooth(base_shape):
clone = gp_Trsf()
grouped_shape = base_shape
# Find a divisor, between 1 and 8, for the number_of teeth
multiplier = 1
max_multiplier = 1
for i in range(0, 8):
if num_teeth % multiplier == 0:
max_multiplier = i + 1
multiplier = max_multiplier
for i in range(1, multiplier):
clone.SetRotation(gp_OZ(), -i * tooth_angle)
rotated_shape = BRepBuilderAPI_Transform(base_shape, clone, True).Shape()
grouped_shape = BRepAlgoAPI_Fuse(grouped_shape, rotated_shape).Shape()
# Rotate the basic tooth and fuse together
aggregated_shape = grouped_shape
for i in range(1, int(num_teeth / multiplier)):
clone.SetRotation(gp_OZ(), -i * multiplier * tooth_angle)
rotated_shape = BRepBuilderAPI_Transform(grouped_shape, clone, True).Shape()
aggregated_shape = BRepAlgoAPI_Fuse(aggregated_shape, rotated_shape).Shape()
cylinder = BRepPrimAPI_MakeCylinder(
gp_XOY(), top_radius - roller_diameter, thickness
)
aggregated_shape = BRepAlgoAPI_Fuse(aggregated_shape, cylinder.Shape()).Shape()
return aggregated_shape
def center_hole(base):
cylinder = BRepPrimAPI_MakeCylinder(center_radius, thickness).Shape()
cut = BRepAlgoAPI_Cut(base, cylinder)
return cut.Shape()
def mounting_holes(base):
result = base
for i in range(0, mounting_hole_count):
center = gp_Pnt(
cos(i * M_PI / 3) * mounting_radius,
sin(i * M_PI / 3) * mounting_radius,
0.0,
)
center_axis = gp_Ax2(center, gp_DZ())
cylinder = BRepPrimAPI_MakeCylinder(center_axis, hole_radius, thickness).Shape()
result = BRepAlgoAPI_Cut(result, cylinder).Shape()
cone = BRepPrimAPI_MakeCone(
center_axis, hole_radius + thickness / 2.0, hole_radius, thickness / 2.0
)
result = BRepAlgoAPI_Cut(result, cone.Shape()).Shape()
return result
def cut_out(base):
outer = gp_Circ2d(gp_OX2d(), top_radius - 1.75 * roller_diameter)
inner = gp_Circ2d(gp_OX2d(), center_radius + 0.75 * roller_diameter)
geom_outer = GCE2d_MakeCircle(outer).Value()
geom_inner = GCE2d_MakeCircle(inner).Value()
geom_inner.Reverse()
base_angle = (2.0 * M_PI) / mounting_hole_count
hole_angle = atan(hole_radius / mounting_radius)
correction_angle = 3 * hole_angle
left = gp_Lin2d(gp_Origin2d(), gp_DX2d())
right = gp_Lin2d(gp_Origin2d(), gp_DX2d())
left.Rotate(gp_Origin2d(), correction_angle)
right.Rotate(gp_Origin2d(), base_angle - correction_angle)
geom_left = GCE2d_MakeLine(left).Value()
geom_right = GCE2d_MakeLine(right).Value()
inter_1 = Geom2dAPI_InterCurveCurve(geom_outer, geom_left)
inter_2 = Geom2dAPI_InterCurveCurve(geom_outer, geom_right)
inter_3 = Geom2dAPI_InterCurveCurve(geom_inner, geom_right)
inter_4 = Geom2dAPI_InterCurveCurve(geom_inner, geom_left)
if inter_1.Point(1).X() > 0:
p1 = inter_1.Point(1)
else:
p1 = inter_1.Point(2)
if inter_2.Point(1).X() > 0:
p2 = inter_2.Point(1)
else:
p2 = inter_2.Point(2)
if inter_3.Point(1).X() > 0:
p3 = inter_3.Point(1)
else:
p3 = inter_3.Point(2)
if inter_4.Point(1).X() > 0:
p4 = inter_4.Point(1)
else:
p4 = inter_4.Point(2)
trimmed_outer = GCE2d_MakeArcOfCircle(outer, p1, p2).Value()
trimmed_inner = GCE2d_MakeArcOfCircle(inner, p4, p3).Value()
plane = gp_Pln(gp_Origin(), gp_DZ())
arc1 = BRepBuilderAPI_MakeEdge(geomapi_To3d(trimmed_outer, plane)).Edge()
lin1 = BRepBuilderAPI_MakeEdge(
gp_Pnt(p2.X(), p2.Y(), 0), gp_Pnt(p3.X(), p3.Y(), 0)
).Edge()
arc2 = BRepBuilderAPI_MakeEdge(geomapi_To3d(trimmed_inner, plane)).Edge()
lin2 = BRepBuilderAPI_MakeEdge(
gp_Pnt(p4.X(), p4.Y(), 0), gp_Pnt(p1.X(), p1.Y(), 0)
).Edge()
cutout_wire = BRepBuilderAPI_MakeWire(arc1)
cutout_wire.Add(lin1)
cutout_wire.Add(arc2)
cutout_wire.Add(lin2)
# Turn the wire into a face
cutout_face = BRepBuilderAPI_MakeFace(cutout_wire.Wire())
filleted_face = BRepFilletAPI_MakeFillet2d(cutout_face.Face())
explorer = BRepTools_WireExplorer(cutout_wire.Wire())
while explorer.More():
vertex = explorer.CurrentVertex()
filleted_face.AddFillet(vertex, roller_radius)
explorer.Next()
cutout = BRepPrimAPI_MakePrism(
filleted_face.Shape(), gp_Vec(0.0, 0.0, thickness)
).Shape()
result = base
rotate = gp_Trsf()
for i in range(0, mounting_hole_count):
rotate.SetRotation(gp_OZ(), i * 2.0 * M_PI / mounting_hole_count)
rotated_cutout = BRepBuilderAPI_Transform(cutout, rotate, True)
result = BRepAlgoAPI_Cut(result, rotated_cutout.Shape()).Shape()
return result
def build_sprocket():
# create the sprocket model
wedge = build_tooth()
rounded_wedge = round_tooth(wedge)
basic_disk = clone_tooth(rounded_wedge)
cut_disc = center_hole(basic_disk)
mountable_disc = mounting_holes(cut_disc)
sprocket = cut_out(mountable_disc)
return sprocket
sprocket_model = build_sprocket()
# display the sprocket
display, start_display, add_menu, add_function_to_menu = init_display()
display.DisplayShape(sprocket_model, update=True)
display.FitAll()
start_display()
运行结果
重点摘要
这个案例代码主要分为以下几个部分：
- 导入模块
- 定义常量以及计算衍生尺寸
设置了链轮的基本参数，如滚子直径、节距、齿数和链宽等。根据输入参数计算出其他必要的尺寸，如滚子半径、齿角、节圆直径等。 - build_tooth 函数
定义一个函数来创建链轮的一个齿。它首先创建了齿的基础轮廓，然后通过一系列的2D几何操作构建了齿的外形，并最终将其转换为3D边缘和面。 - round_tooth 函数
定义一个函数来为链轮齿添加圆角。这涉及到创建一个用于圆角的2D圆，并将其转换为3D形状，然后通过布尔运算在齿上切出圆角。 - clone_tooth 函数
定义一个函数来复制单个齿形以形成整个链轮的齿。通过旋转和融合多个齿形来实现。#创建一个gp_Trsf对象，即几何变换（Transformation）对象。gp_Trsf是OCC中用于存储几何变换（如平移、旋转、缩放等）的类。 clone = gp_Trsf() #SetRotation是gp_Trsf类的一个方法，用于设置一个旋转变换。这里，它被用来设置绕Z轴（由gp_OZ()指定，代表通过原点且方向沿着Z轴的轴对象）的旋转。 ##第一个参数gp_OZ()定义了旋转的轴。 ##第二个参数-i * tooth_angle定义了旋转的角度，其中i是一个循环变量，表示当前是第几个齿（在clone_tooth函数中定义），tooth_angle是每个齿之间的角度。 clone.SetRotation(gp_OZ(), -i * tooth_angle) #BRepBuilderAPI_Transform是OCC中的一个方法，用于对边界表示（BRep）对象应用一个几何变换。 ##第一个参数base_shape是要被变换的形状。 ##第二个参数clone是我们刚刚创建的包含旋转信息的gp_Trsf对象。 ##第三个参数True表示应用变换后要更新base_shape的形状（在某些情况下，如果设置为False，则不会更新原对象，而是创建一个新的变换后的对象） rotated_shape = BRepBuilderAPI_Transform(base_shape, clone, True).Shape() - center_hole 函数
定义了一个函数来在链轮中心创建一个孔。 - mounting_holes 函数
定义一个函数在链轮的周边创建安装孔。 - cut_out 函数
定义一个函数在链轮上创建凹槽。 - build_sprocket 函数
主函数，调用上述所有函数来创建完整的链轮模型。 - 显示模型
最后，使用OCC的SimpleGui模块来显示生成的链轮模型。
扫一扫
9768
被折叠的 条评论
为什么被折叠?
到【灌水乐园】发言
