一、前言

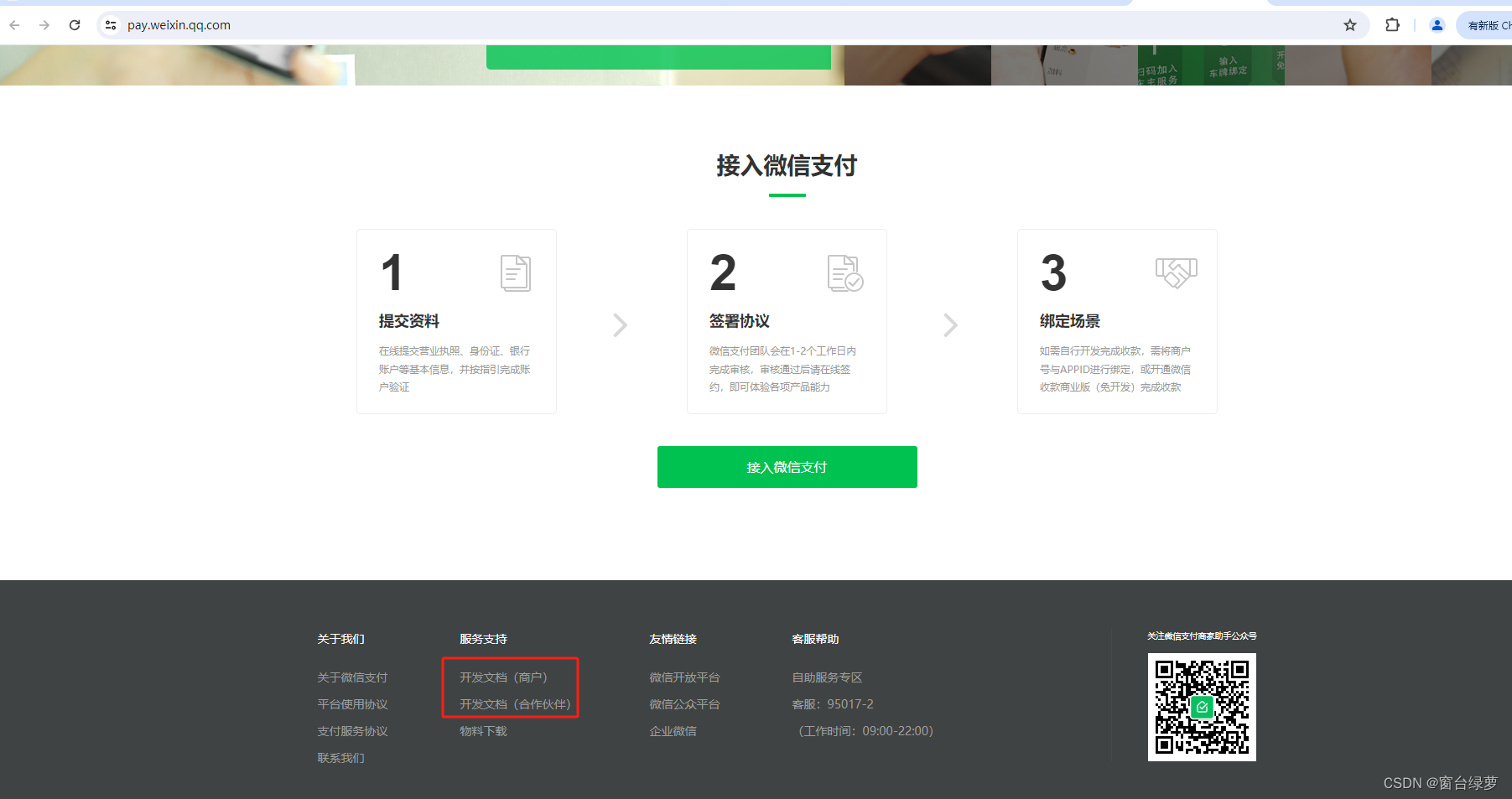

微信支付账号类型分为商户平台和合作伙伴平台，今天主要是梳理商品平台微信支付流程。

商品平台文档地址，(在接入前建议仔细阅读这份文档，会少走很多弯路!!!)

小程序下单 - 小程序支付 | 微信支付商户文档中心

二、接入流程

以下是我SpringBoot项目接入微信支付V3流程，如果还有更好的集成方式，欢迎留言探讨。

2.1、pom.xml导入微信支付SDK

<!--微信支付SDK-->
<dependency>
    <groupId>com.github.wechatpay-apiv3</groupId>
    <artifactId>wechatpay-apache-httpclient</artifactId>
    <version>0.3.0</version>
</dependency>

2.2、application.yaml配置微信支付相关配置

# 微信支付相关参数
wxpay:
# 商户号
  mch-id: 1888888888
# 商户API证书序列号
  mch-serial-no: 188D8D888888888A476B7DEB5F820082570CA4BA
# APIv3密钥
  api-v3-key: 88888888
# APPID
  appId: wx88888ff5ee888f88
# 微信服务器地址
  domain: https://api.mch.weixin.qq.com
# 微信支付回调地址 https和外网可以访问的地址
  notify-domain: https://35p3811d81.yicp.fun
# 商户私钥 此处注意换行，回车等不可见字符
  private-key: BIIEvgIBADANBgkqhkiG9w0BAQEFAASCBKgwggSkAgEAAoIBAQDV9Hl2qVkpVaAfBiH4SCv6dFbWS/Rem+HhFwQ8mV1XtT7kZUmaSEbrfOE3NSHx5oI+zpnr/nNHSh9vTYUbbH0LcE7Ad+oLtLNVTsZXLOrUPoEgcxSokaNHXd9gfGpKX/i8rkdNnOKTESBxGf8tGrQniBycWwGGJMUAngVeaJQKVN3PC+4WrLFm/x1gWUeGOvXNuKuAyu7VPgN+UKAUC1BuadwM6eokA

2.3、WxPayController.java(回调通知接口一定要从权限拦截器中剔除)

  /**
     * 微信支付API
     */
    @PostMapping("/save")
    @Resubmit
    public ApiResponse<?> saveWxPayOrder(@RequestBody OrderWxPayAppReq orderWxPayAppReq) throws Exception {
        orderWxPayAppReq.setUserId(getUserId());
        return ApiResponse.ok(orderWxPayService.saveWxPayOrder(orderWxPayAppReq));
    }

    /**
     * 微信退款API
     */
    @PostMapping("/refunds/apply")
    @Resubmit
    public ApiResponse<?> refunds(@RequestBody OrderWxPayAppReq orderWxPayAppReq) throws Exception {
        log.info("申请退款");
        orderWxPayAppReq.setUserId(getUserId());
        return ApiResponse.ok(orderWxPayService.wxRefund(orderWxPayAppReq));
    }

    /**
     * 微信支付回调通知
     */
    @PostMapping("/callback/pay/notify")
    public ApiResponse<?> payCallBack(HttpServletRequest request) {
        Gson gson = new Gson();
        try {
            //处理通知参数
            String body = HttpUtils.readData(request);
            Map<String, Object> bodyMap = gson.fromJson(body, HashMap.class);
            String requestId = (String) bodyMap.get("id");
            //签名的验证
            WechatPay2ValidatorForRequest wechatPay2ValidatorForRequest
                    = new WechatPay2ValidatorForRequest(verifier, requestId, body);
            if (!wechatPay2ValidatorForRequest.validate(request)) {
                //失败应答
                return ApiResponse.error("通知验签失败");
            }
            //处理订单
            orderWxPayService.processOrder(bodyMap);
            //成功应答
            return ApiResponse.ok("成功");
        } catch (Exception e) {
            e.printStackTrace();
            //失败应答
            return ApiResponse.error("失败");
        }
    }

     /**
     * 微信退款结果通知
     */
    @PostMapping("/callback/refunds/notify")
    public ApiResponse<?> refundsNotify(HttpServletRequest request) {
        log.info("退款通知执行");
        try {
            //处理通知参数
            String body = HttpUtils.readData(request);
            Gson gson = new Gson();
            Map<String, Object> bodyMap = gson.fromJson(body, HashMap.class);
            String requestId = (String) bodyMap.get("id");
            //签名的验证
            WechatPay2ValidatorForRequest wechatPay2ValidatorForRequest
                    = new WechatPay2ValidatorForRequest(verifier, requestId, body);
            if (!wechatPay2ValidatorForRequest.validate(request)) {
                return ApiResponse.error("通知验签失败");
            }
            //处理退款单
            orderWxPayService.processRefund(bodyMap);
            return ApiResponse.ok("成功");
        } catch (Exception e) {
            e.printStackTrace();
            //失败应答
            return ApiResponse.error("失败");
        }
    }

2.4、WxPayService.java

    @Override
    public Map<String, String> saveWxPayOrder(OrderWxPayAppReq orderWxPayAppReq) throws IOException {
        log.info("调用统一下单API");
        List<Long> orderIdList = orderWxPayAppReq.getOrderIdList();
        if (CollUtil.isEmpty(orderIdList)) {
            throw new BaseRuntimeException(OrderErrorCodeEnums.BASE_003);
        }
        //查询订单
        LambdaQueryWrapper<OrderInfo> orderQueryWrapper = new LambdaQueryWrapper<OrderInfo>()
                .in(OrderInfo::getOrderId, orderIdList)
                .eq(OrderInfo::getDeleted, Boolean.FALSE);
        List<OrderInfo> orderInfoList = orderInfoMapper.selectList(orderQueryWrapper);
        if (CollUtil.isEmpty(orderInfoList)) {
            throw new BaseRuntimeException(OrderErrorCodeEnums.ORDER_001);
        }
        AtomicReference<Long> totalPayMoney = new AtomicReference<>(0L);
        String orderIdStr = orderInfoList.stream().map(o -> {
            totalPayMoney.updateAndGet(v -> v + o.getPayMoney());
            return String.valueOf(o.getOrderId());
        }).collect(Collectors.joining(","));

        //调用统一下单API
        HttpPost httpPost = new HttpPost(wxPayConfig.getDomain().concat(WxApiType.JSAPI_PAY.getType()));
        String paymentKey = OrderNoUtils.createOrderNo(OrderNoUtils.PAYMENT_SERIAL_NUMBER_PREFIX);
        // key值有效期为1小时
        redisUtil.set(RedisKeys.OrderKeys.ORDER_PAYMENT_KEY + paymentKey, orderIdStr, 3600);
        // 请求body参数
        Gson gson = new Gson();
        Map<String, Object> paramsMap = new HashMap<>(CommonConstants.DEFAULT_MAP_CAPACITY);
        paramsMap.put("appid", wxPayConfig.getAppId());
        paramsMap.put("mchid", wxPayConfig.getMchId());
        paramsMap.put("description", orderIdStr);
        paramsMap.put("out_trade_no", paymentKey);
        paramsMap.put("notify_url", wxPayConfig.getNotifyDomain().concat(WxNotifyType.JSAPI_NOTIFY.getType()));

        Map<String, Object> amountMap = new HashMap<>(CommonConstants.DEFAULT_MAP_CAPACITY);
        Long totalMoney = totalPayMoney.get();
        Boolean enableVirtualPay = Optional.ofNullable(enabled.getEnableVirtualPay()).orElse(Boolean.TRUE);
        if (enableVirtualPay) {
            totalMoney = 1L;
        }
        amountMap.put("total", totalMoney);
        amountMap.put("currency", "CNY");
        paramsMap.put("amount", amountMap);

        Map<String, String> payerMap = new HashMap<>(CommonConstants.DEFAULT_MAP_CAPACITY);
        final UserThirdInfoApiVo userThirdInfoApiVo = userFeignApi.getUserThirdInfoRsp(orderWxPayAppReq.getUserId(), "WX", wxPayConfig.getManagerAppId());
        payerMap.put("openid", userThirdInfoApiVo.getOpenId());
        paramsMap.put("payer", payerMap);

        //将参数转换成json字符串
        String jsonParams = gson.toJson(paramsMap);
        StringEntity entity = new StringEntity(jsonParams, "utf-8");
        entity.setContentType("application/json");
        httpPost.setEntity(entity);
        httpPost.setHeader("Accept", "application/json");

        //完成签名并执行请求
        CloseableHttpResponse response = wxPayClient.execute(httpPost);
        //返回二维码
        Map<String, String> map = new HashMap<>(CommonConstants.DEFAULT_MAP_CAPACITY);
        try {
            //响应体
            String bodyAsString = EntityUtils.toString(response.getEntity());
            log.info("成功, 支付接口返回结果：{} ", bodyAsString);
            //响应状态码
            int statusCode = response.getStatusLine().getStatusCode();
            //响应结果
            Map<String, String> resultMap = gson.fromJson(bodyAsString, HashMap.class);
            //处理成功
            if (statusCode != 200 && statusCode != 204) {
                throw new BaseRuntimeException(OrderErrorCodeEnums.ORDER_002.code, resultMap.get("message"));
            }

            //预支付交易会话标识
            String prePayId = resultMap.get("prepay_id");
            String prePayIdStr = "prepay_id=" + prePayId;
            long epochSecond = LocalDateTime.now().toEpochSecond(ZoneOffset.of("+8"));
            String timestamp = String.valueOf(epochSecond);
            String nonceStr = NonceUtil.createNonce(32);

            //关联的公众号的appid
            map.put("appId", wxPayConfig.getAppId());
            //时间戳
            map.put("timeStamp", timestamp);
            //生成随机字符串
            map.put("nonceStr", nonceStr);
            map.put("package", prePayIdStr);
            map.put("signType", "RSA");
            map.put("paySign", wxPayConfig.getPaySign(timestamp, nonceStr, prePayIdStr));
        } finally {
            response.close();
        }
        return map;
    }

    @Transactional(rollbackFor = Exception.class)
    @Override
    public Boolean processOrder(Map<String, Object> bodyMap) throws GeneralSecurityException {
        //将明文转换成map
        HashMap plainTextMap = new Gson().fromJson(decryptFromResource(bodyMap), HashMap.class);
        String paymentKey = String.valueOf(plainTextMap.get("out_trade_no"));
        Object orderIdObj = redisUtil.get(RedisKeys.OrderKeys.ORDER_PAYMENT_KEY + paymentKey);
        if (ObjectUtil.isNull(orderIdObj)) {
            return Boolean.FALSE;
        }
        // 处理支付成功后业务数据
        ... ...
        return Boolean.TRUE;
    }

      /**
     * 退款
     *
     * @param orderWxPayAppReq
     * @return
     */
    @Transactional(rollbackFor = Exception.class)
    @Override
    public Boolean wxRefund(OrderWxPayAppReq orderWxPayAppReq) throws IOException {
        if (ObjectUtil.isEmpty(orderWxPayAppReq.getAfterOrderId())) {
            throw new BaseRuntimeException(OrderErrorCodeEnums.BASE_003.code, OrderErrorCodeEnums.BASE_003.desc);
        }
        OrderAfter orderAfter = orderAfterMapper.selectById(orderWxPayAppReq.getAfterOrderId());
        OrderInfo orderInfo = orderInfoMapper.selectById(orderAfter.getOrderId());

        if (ObjectUtil.isNull(orderInfo.getPaySerialNumber())) {
            return Boolean.FALSE;
        }
        // 请求body参数
        Gson gson = new Gson();
        Map<String, Object> paramsMap = new HashMap<>(CommonConstants.DEFAULT_MAP_CAPACITY);
        paramsMap.put("out_trade_no", orderInfo.getPaySerialNumber());
        paramsMap.put("out_refund_no", String.valueOf(orderAfter.getAfterOrderId()));
        paramsMap.put("reason", orderWxPayAppReq.getRefundReason());
        paramsMap.put("notify_url", wxPayConfig.getNotifyDomain().concat(WxNotifyType.REFUND_NOTIFY.getType()));

        Map<String, Object> amountMap = new HashMap<>(CommonConstants.DEFAULT_MAP_CAPACITY);
        final Boolean enableVirtualPay = Optional.ofNullable(enabled.getEnableVirtualPay()).orElse(Boolean.TRUE);
        Long refund = orderAfter.getApplyRefundAmount();
        Long total = orderInfo.getPayMoney();
        if (enableVirtualPay) {
            refund = 1L;
            total = 1L;
        }
        amountMap.put("refund", refund);
        amountMap.put("total", total);
        amountMap.put("currency", "CNY");
        paramsMap.put("amount", amountMap);

        //将参数转换成json字符串
        String jsonParams = gson.toJson(paramsMap);
        StringEntity entity = new StringEntity(jsonParams, "utf-8");
        entity.setContentType("application/json");

        //调用统一下单API
        String url = wxPayConfig.getDomain().concat(WxApiType.DOMESTIC_REFUNDS.getType());
        HttpPost httpPost = new HttpPost(url);
        httpPost.setEntity(entity);
        httpPost.setHeader("Accept", "application/json");

        //完成签名并执行请求，并完成验签
        CloseableHttpResponse response = wxPayClient.execute(httpPost);
        try {
            //解析响应结果
            String bodyAsString = EntityUtils.toString(response.getEntity());
            int statusCode = response.getStatusLine().getStatusCode();
            Map<String, Object> bodyMap = gson.fromJson(bodyAsString, HashMap.class);
            if (statusCode != 200 && statusCode != 204) {
                throw new BaseRuntimeException(OrderErrorCodeEnums.BASE_003.getCode(), String.valueOf(bodyMap.get("message")));
            }
            //保存退款日志
            return saveRefundPaymentBillInfo(bodyMap);
        } finally {
            response.close();
        }
    }

    @Override
    @Transactional(rollbackFor = Exception.class)
    public Boolean processRefund(Map<String, Object> bodyMap) throws GeneralSecurityException, InterruptedException {
        //解密报文
        String plainText = decryptFromResource(bodyMap);
        //将明文转换成map
        HashMap plainTextMap = new Gson().fromJson(plainText, HashMap.class);
        String paySerialNumber = (String) plainTextMap.get("out_trade_no");
        String outRefundNo = (String) plainTextMap.get("out_refund_no");
        // 处理退款后的业务逻辑
        ... ...
        return Boolean.TRUE;
    }

    /**
     * 对称解密
     *
     * @param bodyMap
     * @return
     */
    private String decryptFromResource(Map<String, Object> bodyMap) throws GeneralSecurityException {
        log.info("密文解密");
        //通知数据
        Map<String, String> resourceMap = (Map) bodyMap.get("resource");
        //数据密文
        String ciphertext = resourceMap.get("ciphertext");
        //随机串
        String nonce = resourceMap.get("nonce");
        //附加数据
        String associatedData = resourceMap.get("associated_data");

        AesUtil aesUtil = new AesUtil(wxPayConfig.getApiV3Key().getBytes(StandardCharsets.UTF_8));
        String plainText = aesUtil.decryptToString(associatedData.getBytes(StandardCharsets.UTF_8),
                nonce.getBytes(StandardCharsets.UTF_8),
                ciphertext);
        return plainText;
    }

2.5、WxApiType.java

@AllArgsConstructor
@Getter
public enum WxApiType {

	/**
	 * JSAPI下单
	 * https://api.mch.weixin.qq.com/v3/pay/transactions/jsapi
	 */
	JSAPI_PAY("/v3/pay/transactions/jsapi"),
	/**
	 * 申请退款
	 * https://api.mch.weixin.qq.com/v3/refund/domestic/refunds
	 */
	DOMESTIC_REFUNDS("/v3/refund/domestic/refunds");

	/**
	 * 类型
	 */
	private final String type;
}

2.6、WxPayConfig.java

/**
* 微信支付配置类
*/
@Configuration
@ConfigurationProperties(prefix = "wxpay")
@Data
@Slf4j
public class WxPayConfig {

    /**
     * 商户号
     */
    private String mchId;

    /**
     * 商户API证书序列号
     */
    private String mchSerialNo;

    /**
     * APIv3密钥
     */
    private String apiV3Key;

    /**
     * APPID
     */
    private String appId;

    /**
     * 微信服务器地址
     */
    private String domain;

    /**
     * 微信回调通知地址
     */
    private String notifyDomain;

    /**
     * 商户密钥
     */
    private String privateKey;

    /**
     * 获取商户的私钥
     *
     * @return
     */
    public PrivateKey getPrivateKey(String privateKey) {
        return PemUtil.loadPrivateKey(privateKey);
    }

    /**
     * 获取签名验证器
     *
     * @return
     */
    @Bean
    public ScheduledUpdateCertificatesVerifier getVerifier() {
        log.info("获取签名验证器");
        //获取商户私钥
        PrivateKey privateKeyObj = getPrivateKey(privateKey);
        //私钥签名对象
        PrivateKeySigner privateKeySigner = new PrivateKeySigner(mchSerialNo, privateKeyObj);
        //身份认证对象
        WechatPay2Credentials wechatPay2Credentials = new WechatPay2Credentials(mchId, privateKeySigner);
        // 使用定时更新的签名验证器，不需要传入证书
        ScheduledUpdateCertificatesVerifier verifier = new ScheduledUpdateCertificatesVerifier(
                wechatPay2Credentials,
                apiV3Key.getBytes(StandardCharsets.UTF_8));
        return verifier;
    }

    /**
     * 获取http请求对象
     *
     */
    @Bean(name = "wxPayClient")
    public CloseableHttpClient getWxPayClient(ScheduledUpdateCertificatesVerifier verifier) throws FileNotFoundException {
        log.info("获取httpClient");
        //获取商户私钥
        PrivateKey privateKeyObj = getPrivateKey(privateKey);
        WechatPayHttpClientBuilder builder = WechatPayHttpClientBuilder.create()
                .withMerchant(mchId, mchSerialNo, privateKeyObj)
                .withValidator(new WechatPay2Validator(verifier));
        // ... 接下来，你仍然可以通过builder设置各种参数，来配置你的HttpClient
        // 通过WechatPayHttpClientBuilder构造的HttpClient，会自动的处理签名和验签，并进行证书自动更新
        CloseableHttpClient httpClient = builder.build();
        return httpClient;
    }

    public String getPaySign(String timestamp, String nonceStr, String prePayIdStr) {
        String paySign = "";
        try {
            Signature sign = Signature.getInstance("SHA256withRSA");
            sign.initSign(getPrivateKey(privateKey));
            String message = appId + "\n" + timestamp + "\n" + nonceStr + "\n" + prePayIdStr + "\n";
            sign.update(message.getBytes(StandardCharsets.UTF_8));
            paySign = Base64.getEncoder().encodeToString(sign.sign());
        } catch (NoSuchAlgorithmException | InvalidKeyException | SignatureException e) {
            e.printStackTrace();
        }
        return paySign;
    }

    public static void main(String[] args) throws SignatureException, NoSuchAlgorithmException, InvalidKeyException {
        WxPayConfig wxPayConfig = new WxPayConfig();
        long timestamp = 1414561699L;
        String nonceStr = "5K8264ILTKCH16CQ2502SI8ZNMTM67VS";
        String packageVal = "prepay_id=wx201410272009395522657a690389285100";
        String appId = "wx8b888b888e888d8a";
        String sign = wxPayConfig.getPaySign(String.valueOf(timestamp), nonceStr, packageVal);
        System.out.println(sign);
    }
}

2.7、WxNotifyType.java

/**
 * 微信支付，退款回调地址
 * 1.此处注意接口路径地址
 * 2.在权限控制拦截器中放开接口限制
 */

@AllArgsConstructor
@Getter
public enum WxNotifyType {

    /**
     * 支付通知
     */
    JSAPI_NOTIFY("/app/order/wx/pay/callback/pay/notify"),

    /**
     * 退款结果通知
     */
    REFUND_NOTIFY("/app/order/wx/pay/callback/refunds/notify");

    /**
     * 类型
     */
    private final String type;
}
