Java安卓开发 Spinner 快速教程 附Demo

继承关系

java.lang.Object

android.view.View

        android.view.ViewGroup

                android.widget.AdapterView<T extends android.widget.Adapter>

                        android.widget.AbsSpinner

                                android.widget.Spinner

AdapterView的特征:只要为AdapterView提供Adapter即可。

静态添加项目

values文件夹下新建array.xml文件（也可以直接在stings.xml文件里插入节点）
string-array节点和item节点

<resources>
    <string-array name="spinnerclass">
        <item>C++</item>
        <item>C#</item>
        <item>java</item>
        <item>python</item>
    </string-array></resources>

layout布局文件里：
array资源文件里的spinnerclass类
'@array’表示array类型的节点，spinnerclass表示节点名字

android:entries="@array/spinnerclass"

databinding

不需要使用adapater来绑定视图和数据，用ObservableArrayList<T>来存储元素，增删操作只需要在ObservableArrayList中进行就可以。

<variable
    name="item_list"
    type="androidx.databinding.ObservableArrayList&lt;String&gt;" />

<Spinner
    android:entries="@{item_list}"   />

动态添加项目

//Cautions: has to use ArrayList as data source to perform add and remove operation
//数据源，ArrayList可以修改
String[] mitems = getResources().getStringArray(R.array.spinnerclass);
ArrayList<String> arrayList = new ArrayList<>(Arrays.asList(mitems));
//adapter
//三个参数：context, item的布局文件， 数据源
ArrayAdapter<String> adapter = new ArrayAdapter<String>(
        this,
        androidx.appcompat.R.layout.support_simple_spinner_dropdown_item,
        arrayList);
spinner.setAdapter(adapter);

增删元素可以通过adapter来操作（内部的ArrayList提供了增删的方法）

adapter.remove("C");
adapter.add("C++");

常用方法

String item_selected = spinner.getSelectedItem().toString();
String selectedItem = (String) parent.getItemAtPosition(position)

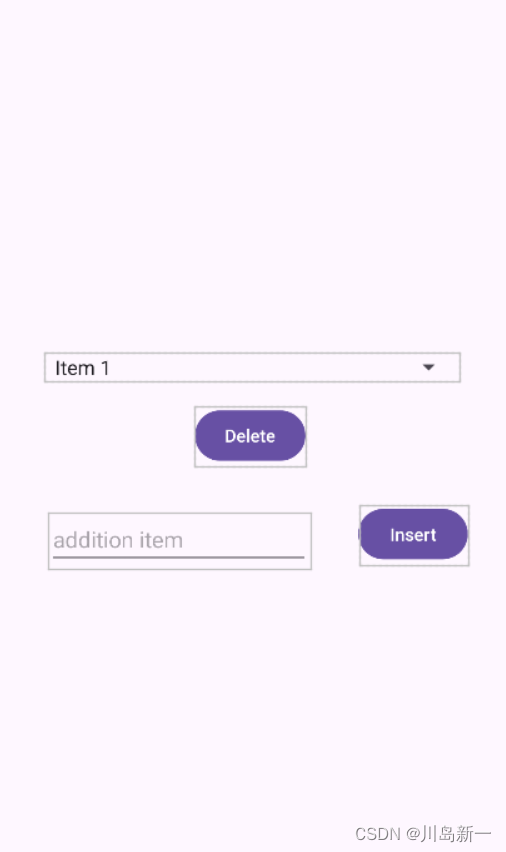

练习Demo

activity文件

package com.example.javalearningexamples.uiTest;

import android.os.Bundle;
import android.view.View;
import android.widget.ArrayAdapter;
import android.widget.Button;
import android.widget.EditText;
import android.widget.Spinner;

import androidx.activity.EdgeToEdge;
import androidx.appcompat.app.AppCompatActivity;
import androidx.core.graphics.Insets;
import androidx.core.view.ViewCompat;
import androidx.core.view.WindowInsetsCompat;

import com.example.javalearningexamples.R;

import java.util.ArrayList;
import java.util.Arrays;

public class SpinnerActivity extends AppCompatActivity {

    @Override
    protected void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
        EdgeToEdge.enable(this);
        setContentView(R.layout.activity_spinner);
        ViewCompat.setOnApplyWindowInsetsListener(findViewById(R.id.main), (v, insets) -> {
            Insets systemBars = insets.getInsets(WindowInsetsCompat.Type.systemBars());
            v.setPadding(systemBars.left, systemBars.top, systemBars.right, systemBars.bottom);
            return insets;
        });
        Spinner spinner = findViewById(R.id.spinner);
        String[] mitems = getResources().getStringArray(R.array.spinnerclass);
        ArrayList<String> arrayList = new ArrayList<>(Arrays.asList(mitems));
        ArrayAdapter<String> adapter = new ArrayAdapter<String>(
                this,
                androidx.appcompat.R.layout.support_simple_spinner_dropdown_item,
                arrayList);
        spinner.setAdapter(adapter);
        EditText editText = findViewById(R.id.editText_spinner_item);
        Button button_delete = findViewById(R.id.button_delete);
        Button button_insert = findViewById(R.id.button_insert);
        button_delete.setOnClickListener(new View.OnClickListener() {
            @Override
            public void onClick(View v) {
                String item_selected = spinner.getSelectedItem().toString();
                if(!item_selected.equals("")){
                    adapter.remove(item_selected);
                }
            }
        });
        button_insert.setOnClickListener(new View.OnClickListener() {
            @Override
            public void onClick(View v) {
                String item = editText.getText().toString();
                if(!item.equals("")){
                    adapter.add(item);
                    //notifyDataSetChanged();
                }
            }
        });
    }
}

布局文件

<?xml version="1.0" encoding="utf-8"?>
<androidx.constraintlayout.widget.ConstraintLayout xmlns:android="http://schemas.android.com/apk/res/android"
    xmlns:app="http://schemas.android.com/apk/res-auto"
    xmlns:tools="http://schemas.android.com/tools"
    android:id="@+id/main"
    android:layout_width="match_parent"
    android:layout_height="match_parent"
    tools:context=".uiTest.SpinnerActivity">

    <Spinner        android:id="@+id/spinner"
        android:layout_width="0dp"
        android:layout_height="wrap_content"
        android:layout_marginStart="40dp"
        android:layout_marginTop="324dp"
        android:layout_marginEnd="40dp"
        android:entries="@array/spinner"
        app:layout_constraintEnd_toEndOf="parent"
        app:layout_constraintStart_toStartOf="parent"
        app:layout_constraintTop_toTopOf="parent" />

    <Button        android:id="@+id/button_delete"
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
        android:layout_marginTop="19dp"
        android:layout_marginEnd="3dp"
        android:text="Delete"
        app:layout_constraintEnd_toEndOf="@+id/editText_spinner_item"
        app:layout_constraintTop_toBottomOf="@+id/spinner" />

    <EditText        android:id="@+id/editText_spinner_item"
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
        android:layout_marginStart="10dp"
        android:layout_marginTop="6dp"
        android:layout_marginEnd="7dp"
        android:ems="10"
        android:hint="addition item"
        android:inputType="text"
        app:layout_constraintEnd_toStartOf="@+id/button_insert"
        app:layout_constraintStart_toStartOf="parent"
        app:layout_constraintTop_toTopOf="@+id/button_insert" />

    <Button        android:id="@+id/button_insert"
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
        android:layout_marginTop="31dp"
        android:text="Insert"
        app:layout_constraintEnd_toEndOf="parent"
        app:layout_constraintStart_toEndOf="@+id/editText_spinner_item"
        app:layout_constraintTop_toBottomOf="@+id/button_delete" />

</androidx.constraintlayout.widget.ConstraintLayout>

练习Demo data binding 方法

activity文件

package com.example.javalearningexamples.uiTest;

import android.os.Bundle;
import android.view.View;
import android.widget.AdapterView;
import android.widget.Spinner;

import androidx.activity.EdgeToEdge;
import androidx.appcompat.app.AppCompatActivity;
import androidx.core.graphics.Insets;
import androidx.core.view.ViewCompat;
import androidx.core.view.WindowInsetsCompat;
import androidx.databinding.DataBindingUtil;
import androidx.databinding.ObservableArrayList;
import androidx.databinding.ObservableField;

import com.example.javalearningexamples.R;
import com.example.javalearningexamples.databinding.ActivitySpinnerDataBindingBinding;

import java.util.ArrayList;
import java.util.Arrays;
import java.util.Collections;

public class SpinnerDataBindingActivity extends AppCompatActivity {
    ActivitySpinnerDataBindingBinding binding;
    Spinner spinner;
    ObservableArrayList<String> items;
    ObservableField<String> text;
    ObservableField<String> item_selected;
    @Override
    protected void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
        EdgeToEdge.enable(this);
        setContentView(R.layout.activity_spinner_data_binding);
        ViewCompat.setOnApplyWindowInsetsListener(findViewById(R.id.main), (v, insets) -> {
            Insets systemBars = insets.getInsets(WindowInsetsCompat.Type.systemBars());
            v.setPadding(systemBars.left, systemBars.top, systemBars.right, systemBars.bottom);
            return insets;
        });
        item_selected = new ObservableField<String>();
        text = new ObservableField<String>();
        items = new ObservableArrayList<String>();
        MyClick myClick = new MyClick();
        binding = DataBindingUtil.setContentView(this, R.layout.activity_spinner_data_binding);
        items.addAll(Arrays.asList(getResources().getStringArray(R.array.spinnerclass)));
        binding.setItemList(items);
        binding.setText(text);
        binding.setItemSelected(item_selected);
        binding.setMyClick(myClick);
        spinner = findViewById(R.id.spinner2);
        spinner.setOnItemSelectedListener(new AdapterView.OnItemSelectedListener() {
            @Override
            public void onItemSelected(AdapterView<?> parent, View view, int position, long id) {
                String selectedItem = (String) parent.getItemAtPosition(position);
                item_selected.set(selectedItem);
            }
            @Override
            public void onNothingSelected(AdapterView<?> parent) {

            }
        });
    }
    public class MyClick{
        public void insertClick(View view, String item){
            if(!item.toString().equals(""))
                items.add(item);
        }
        public void deleteClick(View view, String item){
            //items.remove(item);
            items.remove(item);
            if(!items.isEmpty())
                item_selected.set((String) spinner.getSelectedItem());
            else
                item_selected.set("");
        }
    }
}

布局文件

<?xml version="1.0" encoding="utf-8"?>
<layout xmlns:android="http://schemas.android.com/apk/res/android"
    xmlns:app="http://schemas.android.com/apk/res-auto"
    xmlns:tools="http://schemas.android.com/tools">

    <data>        <variable            name="item_list"
            type="androidx.databinding.ObservableArrayList&lt;String&gt;" />
        <variable            name="myClick"
            type="com.example.javalearningexamples.uiTest.SpinnerDataBindingActivity.MyClick" />
        <variable            name="text"
            type="androidx.databinding.ObservableField&lt;String&gt;" />
        <variable            name="item_selected"
            type="androidx.databinding.ObservableField&lt;String&gt;" />

    </data>
    <androidx.constraintlayout.widget.ConstraintLayout        android:id="@+id/main"
        android:layout_width="match_parent"
        android:layout_height="match_parent"
        tools:context=".uiTest.SpinnerDataBindingActivity">

        <Spinner            android:id="@+id/spinner2"
            android:layout_width="0dp"
            android:layout_height="wrap_content"
            android:layout_marginStart="40dp"
            android:layout_marginTop="324dp"
            android:layout_marginEnd="40dp"
            android:entries="@{item_list}"
            app:layout_constraintEnd_toEndOf="parent"
            app:layout_constraintStart_toStartOf="parent"
            app:layout_constraintTop_toTopOf="parent" />

        <Button            android:id="@+id/button_delete2"
            android:layout_width="wrap_content"
            android:layout_height="wrap_content"
            android:layout_marginTop="19dp"
            android:layout_marginEnd="3dp"
            android:text="Delete"
            android:onClick="@{(view) -> myClick.deleteClick(view, item_selected.toString())}"
            app:layout_constraintEnd_toEndOf="@+id/editText_spinner_item2"
            app:layout_constraintTop_toBottomOf="@+id/spinner2" />

        <EditText            android:id="@+id/editText_spinner_item2"
            android:layout_width="wrap_content"
            android:layout_height="wrap_content"
            android:layout_marginStart="10dp"
            android:layout_marginTop="6dp"
            android:inputType="text"
            android:layout_marginEnd="7dp"
            android:ems="10"
            android:hint="addition item"
            android:text="@={text}"
            app:layout_constraintEnd_toStartOf="@+id/button_insert2"
            app:layout_constraintStart_toStartOf="parent"
            app:layout_constraintTop_toTopOf="@+id/button_insert2" />

        <Button            android:id="@+id/button_insert2"
            android:layout_width="wrap_content"
            android:layout_height="wrap_content"
            android:layout_marginTop="31dp"
            android:text="Insert"
            android:onClick="@{(view) -> myClick.insertClick(view, text.toString())}"
            app:layout_constraintEnd_toEndOf="parent"
            app:layout_constraintStart_toEndOf="@+id/editText_spinner_item2"
            app:layout_constraintTop_toBottomOf="@+id/button_delete2" />

    </androidx.constraintlayout.widget.ConstraintLayout></layout>
