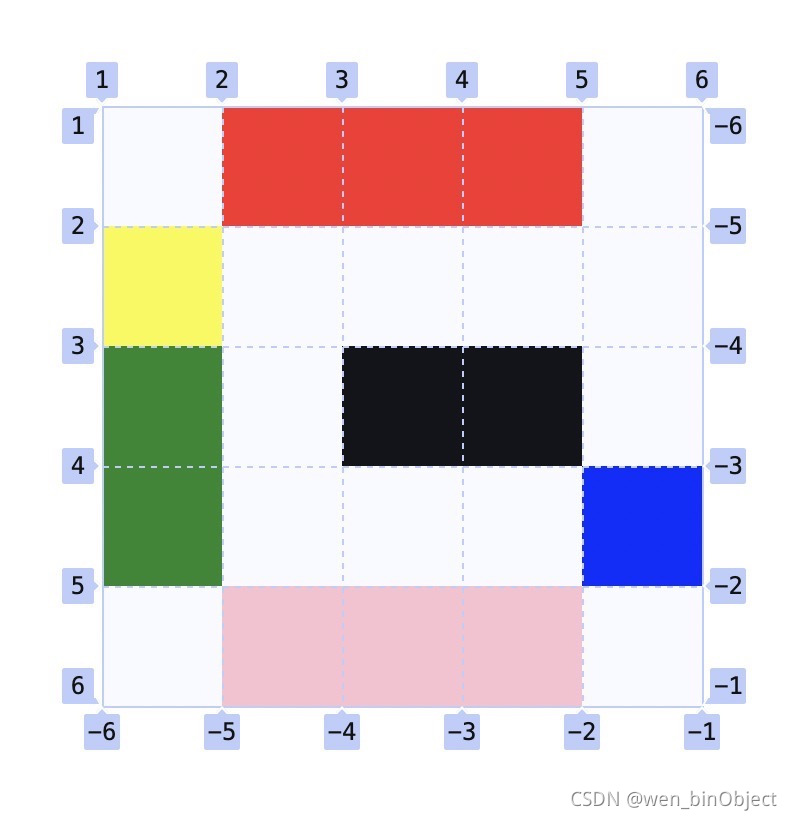

在这里插入图片描述

上面的效果怎么样通过grid实现呢？话不多说上代码

<!DOCTYPE html>
<html lang="en">

<head>
	<meta charset="UTF-8">
	<meta http-equiv="X-UA-Compatible" content="IE=edge">
	<meta name="viewport" content="width=device-width, initial-scale=1.0">
	<title>Document</title>
</head>
<style>
	.container {
		display: grid;
		width: calc(5 * 60px);
		height: calc(5 * 60px);
		padding: 60px;
		grid-template-rows: repeat(5, 60px);
		grid-template-columns: repeat(5, 60px);
		grid-template-areas: ".  red  red  red  . "
							 "yellow .  .  .  . "
							 "green  .  black  black  . "
							 "green  .  .  .  blue "
							 ".  pink pink pink . ";
	}

	.red {
		grid-area: red;
		background: red;
	}

	.yellow {
		grid-area: yellow;
		background: yellow;
	}

	.green {
		grid-area: green;
		background: green;
	}

	.pink {
		grid-area: pink;
		background: pink;
	}

	.blue {
		grid-area: blue;
		background: blue;
	}

	.black {
		grid-area: black;
		background: black;
	}
</style>

<body>
	<div class="container">
		<div class="red"></div>
		<div class="yellow"></div>
		<div class="green"></div>
		<div class="pink"></div>
		<div class="blue"></div>
		<div class="black"></div>
	</div>
</body>

</html>
