vue组件代码:
<template>
<div class="map-wrapper">
<!-- 地图容器 -->
<div id="mapContainer" class="map-container"></div>
</div>
</template>
<script>
import HuaweiMapLoader from '../utils/mapLoader';
import axios from 'axios';
export default {
name: 'HuaweiMap',
props: {
// 初始中心点坐标
center: {
type: Object,
default: () => ({ lat: 42.913263077808665, lng: 129.52051265361135}), // 延边
},
// 初始缩放级别
zoom: {
type: Number,
default: 12,
validator: (value) => value >= 3 && value <= 19,
},
},
data() {
return {
map: null, // 地图实例
mapLoader: null, // 地图加载器实例
};
},
mounted() {
// 初始化地图加载器
this.mapLoader = new HuaweiMapLoader('你的API密钥');
// 加载并初始化地图
this.initMap();
},
beforeDestroy() {
// 销毁地图实例
if (this.map) {
// HWMapJsSDK的销毁方法
this.map.destroy();
this.map = null;
}
// 清除标记点引用
this.markers = [];
// 清理全局回调
window.huaweiMapLoaded = null;
},
methods: {
/**
* 初始化地图
*/
async initMap() {
try {
this.loading = true;
this.errorMessage = '';
// 1. 加载地图API
const HWMapJsSDK = await this.mapLoader.load();
// 2. 创建坐标对象 (HWMapJsSDK需要显式创建经纬度对象) 地图初始化定位
const centerLatLng = { lat: 42.90694185, lng: 129.49231709};
// 3. 配置地图参数
const mapOptions = {
zoom: this.zoom,
center: centerLatLng,
zoomControl: true, // 显示缩放控件
mapType: null, // 标准地图
zoomSlider:true, // 显示缩放条控件
navigationControl: true, //平移按钮
rotateControl:true,//指南针
copyrightControl :true, // 设置显示版权
};
// 4. 创建地图实例 (适配HWMapJsSDK版本)
this.map = new HWMapJsSDK.HWMap(
document.getElementById('mapContainer'),
mapOptions
);
// axios.get('/api/get/user')
// .then(response => {
// this.PlantPolygon(response.data.list);
// })
this.loading = false;
console.log('地图初始化成功');
} catch (error) {
this.loading = false;
this.errorMessage = error.message || '地图初始化失败,请稍后重试';
console.error('地图初始化错误:', error);
}
},
},
watch: {
}
};
</script>
<style scoped>
.map-wrapper {
position: relative;
width: 100%;
height: 100vh;
overflow: hidden;
}
.map-container {
width: 100%;
height: 100%;
}
/* 控制面板样式 */
.map-controls {
position: absolute;
top: 20px;
right: 50px;
z-index: 100;
display: flex;
gap: 10px;
flex-wrap: wrap;
}
</style>
util统一管理加载:
/**
* 华为地图API加载工具(适配HWMapJsSDK版本)
*/
export default class HuaweiMapLoader {
constructor(apiKey) {
this.apiKey = apiKey;
this.scriptLoaded = false;
this.loadPromise = null;
// 适配HWMapJsSDK版本的脚本URL
this.mapScriptUrl = `https://mapapi.cloud.huawei.com/mapjs/v1/api/js?callback=huaweiMapLoaded&key=${encodeURIComponent(this.apiKey)}`;
}
/**
* 加载地图脚本
* @returns {Promise} 加载成功/失败的Promise
*/
load() {
// 避免重复加载
if (this.loadPromise) {
return this.loadPromise;
}
// 创建全局回调函数(适配HWMapJsSDK的回调机制)
window.huaweiMapLoaded = () => {
if (this.resolve) {
this.resolve(window.HWMapJsSDK);
}
};
this.loadPromise = new Promise((resolve, reject) => {
// 存储resolve和reject供回调使用
this.resolve = resolve;
this.reject = reject;
// 检查是否已加载
if (window.HWMapJsSDK && this.scriptLoaded) {
resolve(window.HWMapJsSDK);
return;
}
// 检查是否已有script标签
const existingScript = document.querySelector(`script[src="${this.mapScriptUrl}"]`);
if (existingScript) {
// 监听已有脚本加载完成
const checkLoaded = setInterval(() => {
if (window.HWMapJsSDK) {
clearInterval(checkLoaded);
this.scriptLoaded = true;
resolve(window.HWMapJsSDK);
}
}, 100);
// 超时处理
setTimeout(() => {
clearInterval(checkLoaded);
if (!window.HWMapJsSDK) {
reject(new Error('华为地图SDK加载超时'));
}
}, 10000);
return;
}
// 创建新script标签
const script = document.createElement('script');
script.type = 'text/javascript';
script.src = this.mapScriptUrl;
script.async = true;
script.defer = true;
// 加载失败回调
script.onerror = () => {
reject(new Error('华为地图SDK加载失败,请检查网络或API密钥'));
};
// 超时处理
this.timeoutId = setTimeout(() => {
if (!window.HWMapJsSDK) {
reject(new Error('华为地图SDK加载超时,请检查网络或API密钥'));
}
}, 10000);
document.head.appendChild(script);
});
return this.loadPromise;
}
/**
* 清理资源
*/
cleanup() {
if (this.timeoutId) {
clearTimeout(this.timeoutId);
}
// 清除全局回调
if (window.huaweiMapLoaded) {
window.huaweiMapLoaded = null;
}
}
}

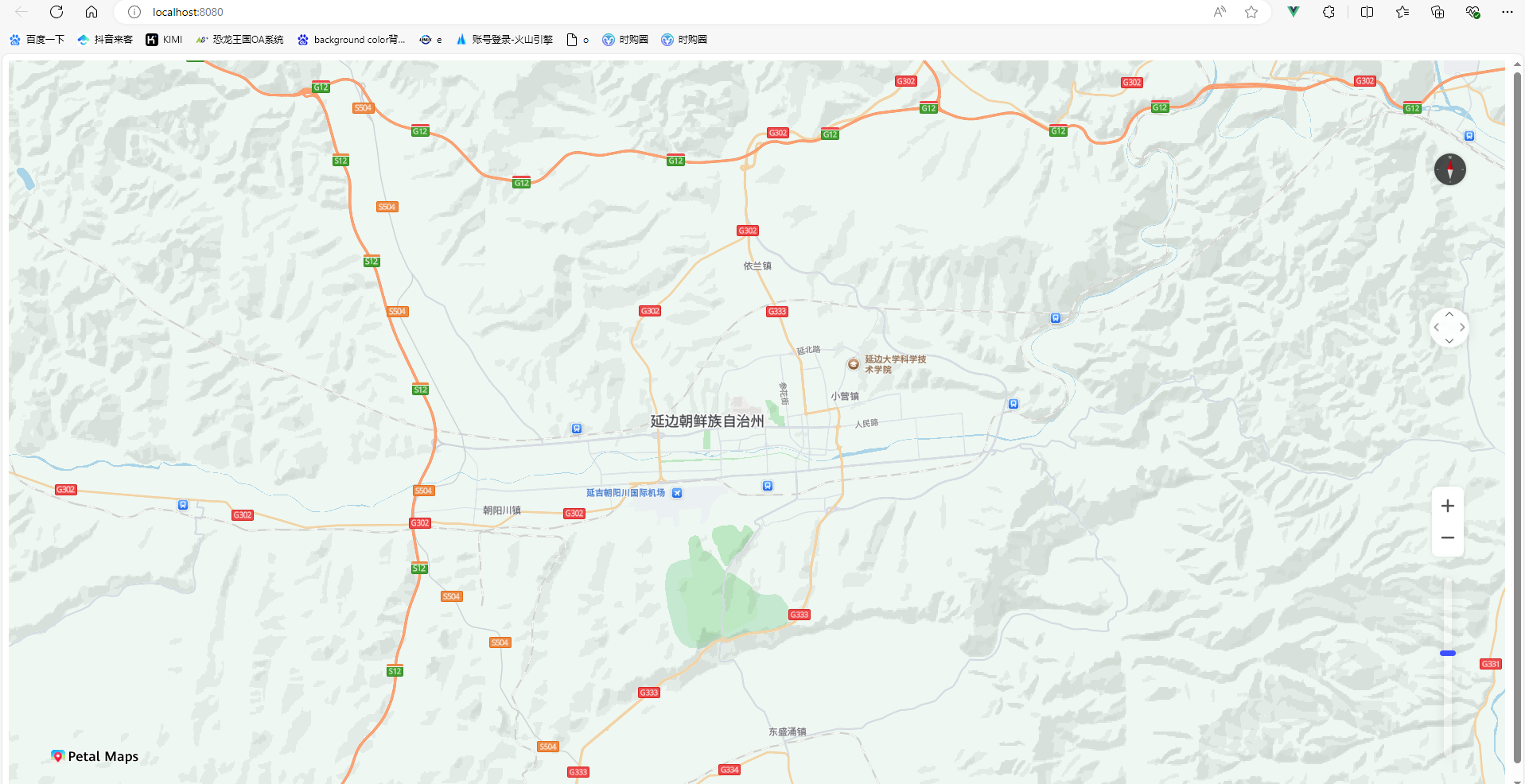

效果图:
