网络配置实验

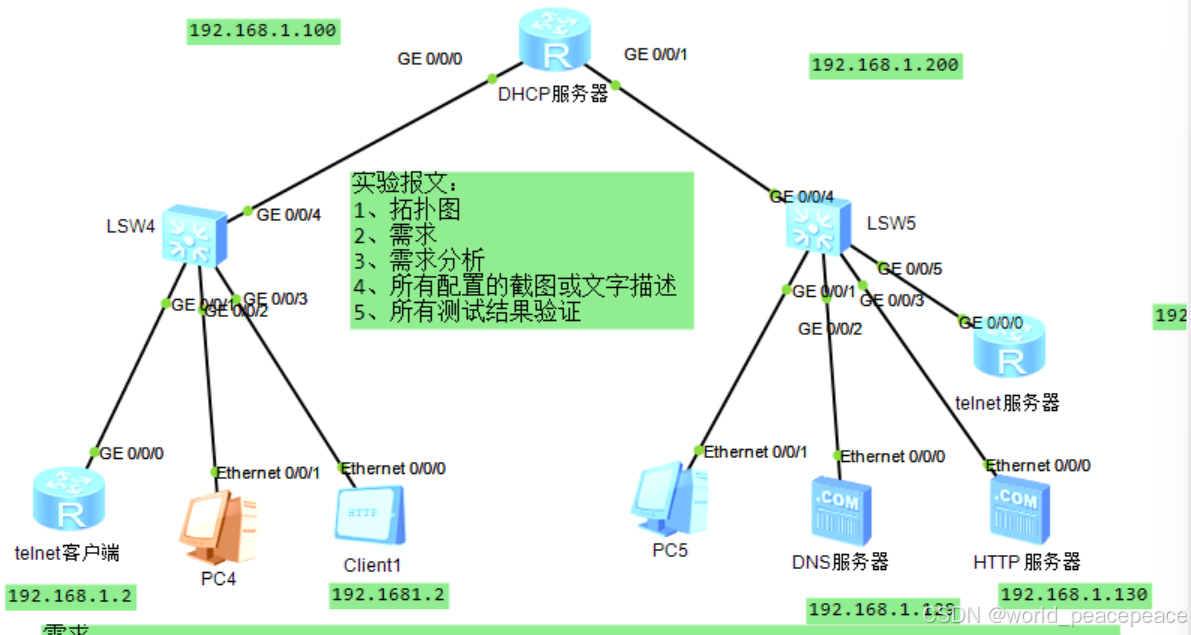

一、拓扑图

二、需求分析
需求:

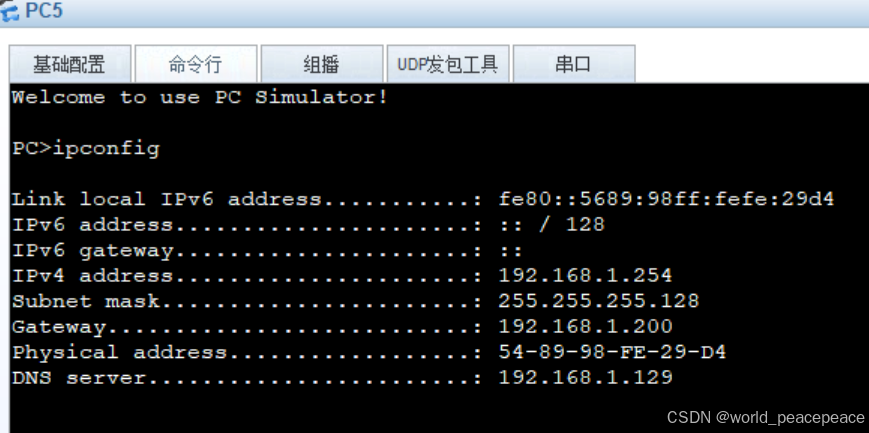

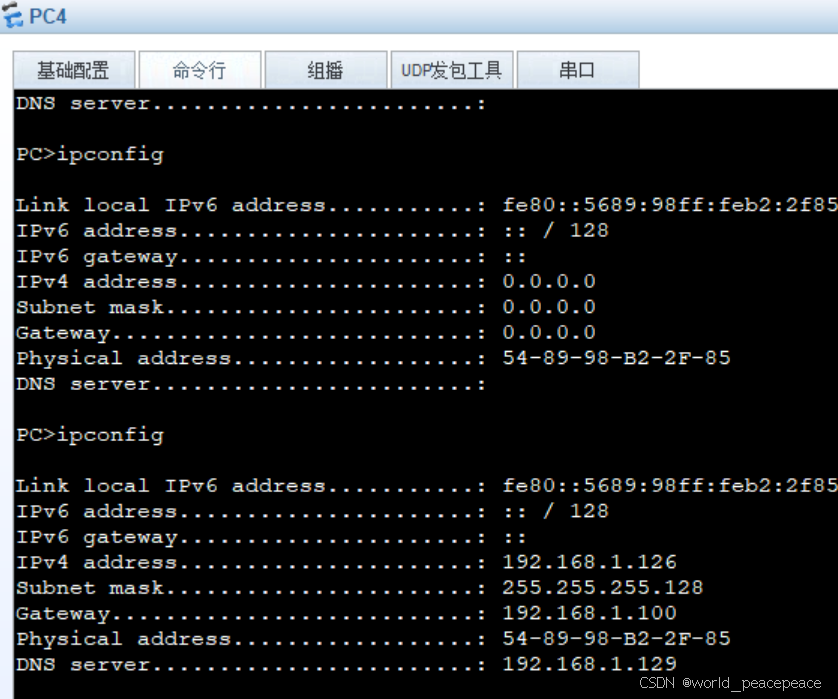

1、通过DHCP服务，给PC4和PC5分配IP地址、网关、掩码、DNS服务器IP地址

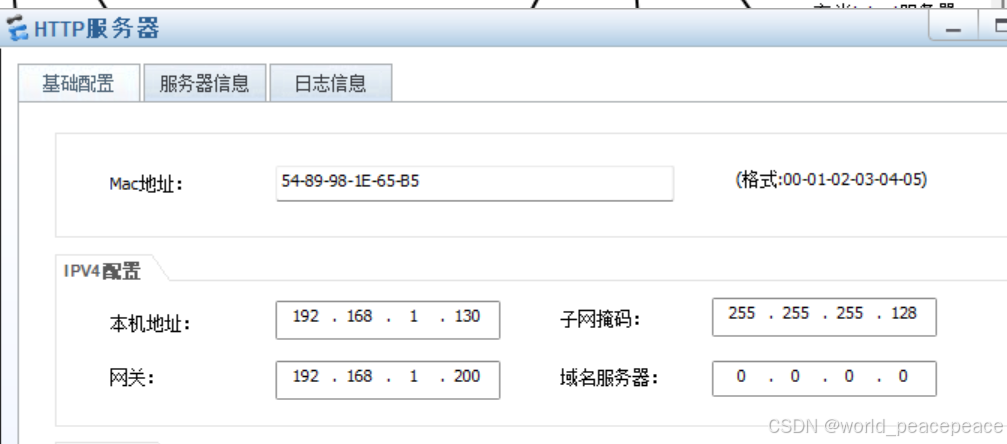

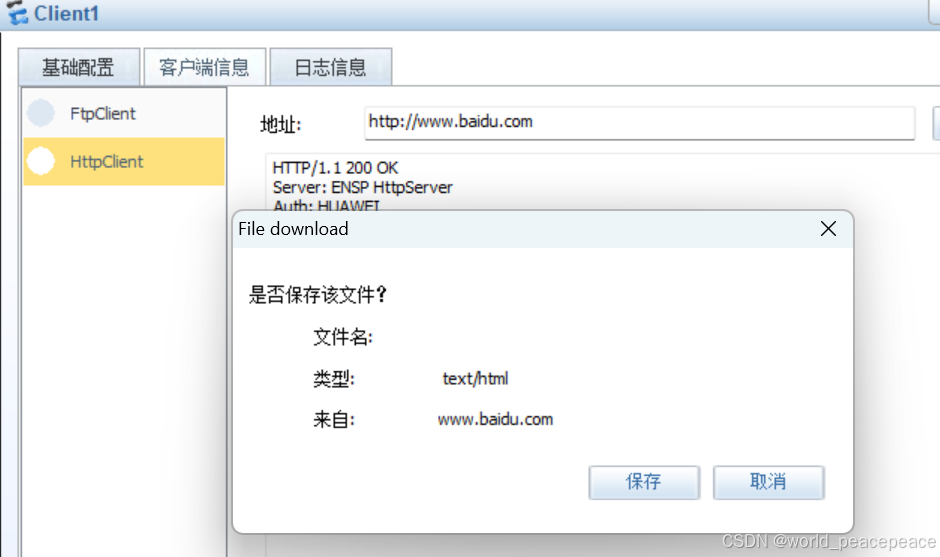

2、Client-1要求手工配置IP地址，为192.168.1.1，可以通过该设备使用域名成功访问HTTP服务器

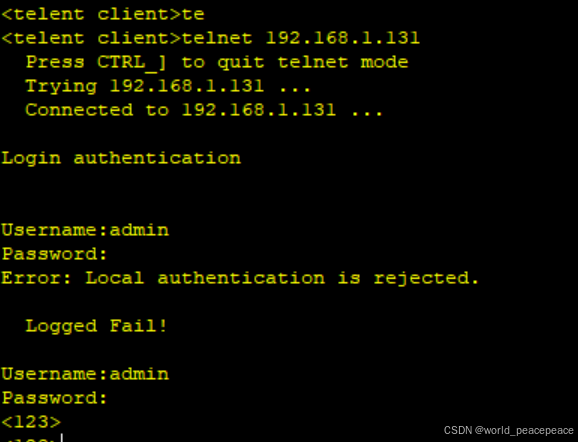

3、telnet客户端可以远程登录telnet服务器进行设备管理，并成功修改telnet服务器的名称为123
telnet设备登录的账号密码为:admin/admin
4、要求DHCP服务器需要排除被手工配置的IP地址，并修改租期时间为1小时;

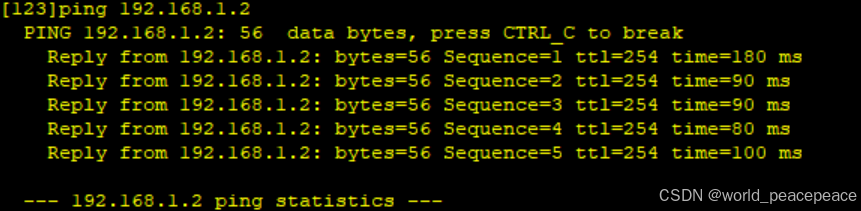

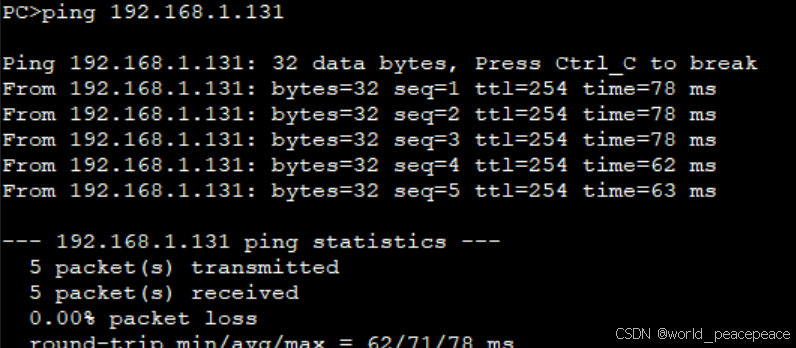

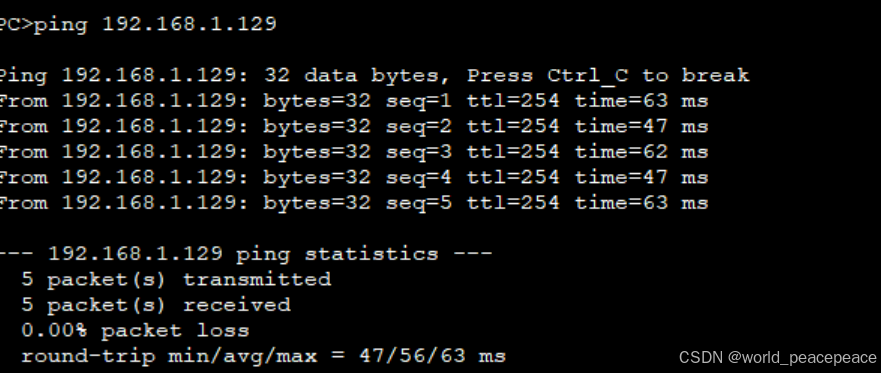

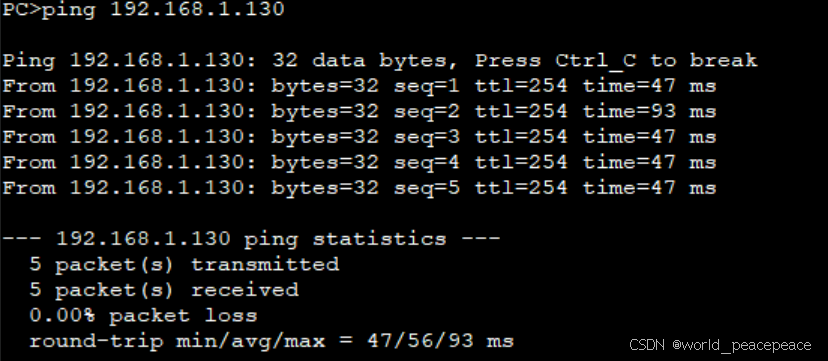

5、最终实现每台终端都可以相互通讯(ping成功)
6、整个拓扑图使用192.168.1.0/24网段进行分配

三、配置过程
[DHCP server]int g 0/0/0
[DHCP server-GigabitEthernet0/0/0]ip address 192.168.1.100 24
[DHCP server-GigabitEthernet0/0/1]ip address 192.168.1.200 25
[Huawei-GigabitEthernet0/0/0]sys telnet client
[telnet client]int g 0/0/0
[telnet client-GigabitEthernet0/0/0]ip address 192.168.1.1 25
[telnet client-GigabitEthernet0/0/0]
[Huawei]sys 123
[123]int g 0/0/0
[123-GigabitEthernet0/0/0]ip address 192.168.1.131

[DHCP server]dhcp enable
[DHCP server-ip-pool-aa]network 192.168.1.0 mask 25
[DHCP server-ip-pool-aa]gateway-list 192.168.1.100

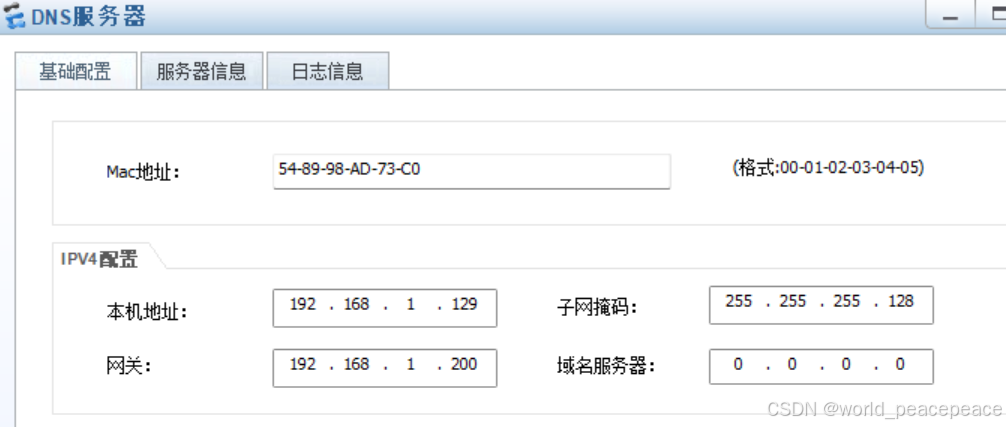

[DHCP server-ip-pool-aa]dns-list 192.168.1.129
[DHCP server-ip-pool-aa]excluded-ip-address 192.168.1.1 192.168.1.2
[DHCP server]int g 0/0/0
[DHCP server-GigabitEthernet0/0/0]dhcp select global
[DHCP server-GigabitEthernet0/0/0]q
[DHCP server]ip pool bb
[DHCP server-ip-pool-bb]network 192.168.1.128 mask 25
[DHCP server-ip-pool-bb]gateway-list 192.168.1.200
[DHCP server-ip-pool-bb]dns-list 192.168.1.129
[DHCP server-ip-pool-bb]excluded-ip-address 192.168.1.129 192.168.1.131
[DHCP server]int g 0/0/1
[DHCP server-GigabitEthernet0/0/1]dhcp select global
[DHCP server-ip-pool-bb]lease day 0 hour 1 minute 0



[123]ip route-static 0.0.0.0 0 192.168.1.100
[te;net client]ip route-static 0.0.0.0 0 192.168.1.100

[123]user-interface vty 0 4
[123-ui-vty0-4]authentication-mode aaa
[123-ui-vty0-4]q
[123]aaa
[123-aaa]local-user admin password cipher admin
[123-aaa]local-user admin
[123-aaa]local-user admin privilege level 15
[123-aaa]local-user admin service-type terminal
[123-aaa]local-user admin service-type telnet
