Solarflare网卡丢包检查

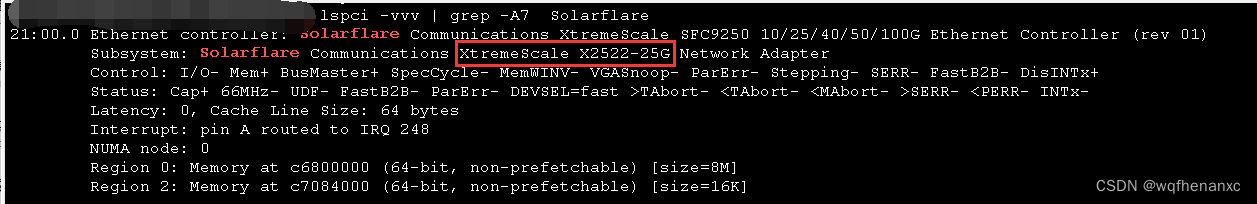

查看网卡型号

lspci
lspci -vvv

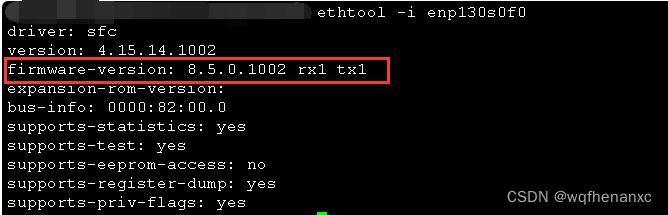

查看网卡信息

注意这里的rx1/tx1表示low latency模式：
转自：https://support.xilinx.com/s/question/0D54U00005TFyjxSAD/efvi-best-practice-for-low-latency?language=en_US
In terms of settings - our cards that support lowlatency mode ship in that mode by default. You can check this using “ethtool -i”, its should show ‘rx1’. If it shows rx0 then you’re in full-feature mode, nd if you don’t need those features then a small latency improvement (about 100-200ns) can be gained by disabling it. This can be done using: sfboot --firmware-variant=low-latency. (Sfboot is available in our utiltiies package, from https://www.xilinx.com/support/download/nic-software-and-drivers.html#linux )

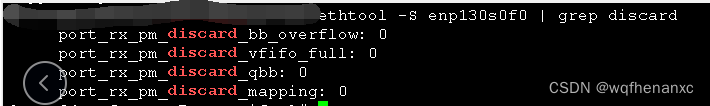

查看网卡bad/drop/discard的数量

From Onload User Guide:

• port_rx_nodesc_drops：Number of packets dropped when there are no further descriptors in the rx ring buffer to receive them.
• port_rx_dp_di_dropped_packets： Number of packets dropped because filters indicate the packets should be dropped - this can happen when packets don’t match any filter or the matched filter indicates the packet should be dropped.

netstat -i 检查网卡丢包

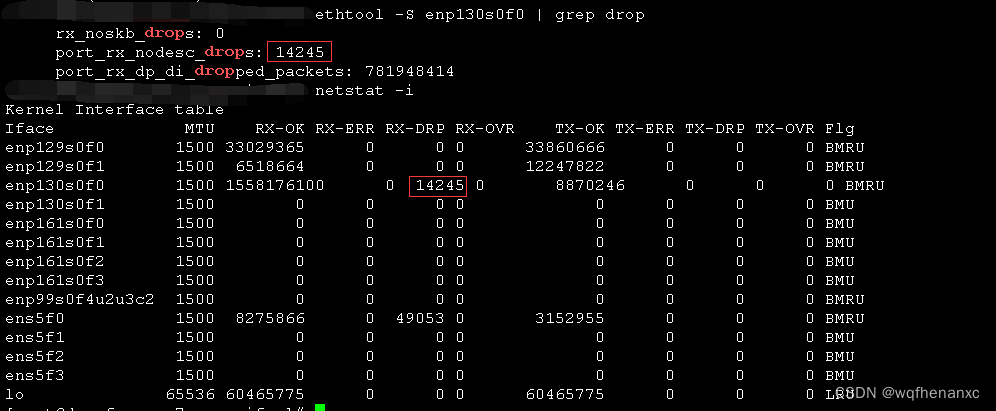

netstat -i 显示的网卡丢包和ethtool -S 是一样的：

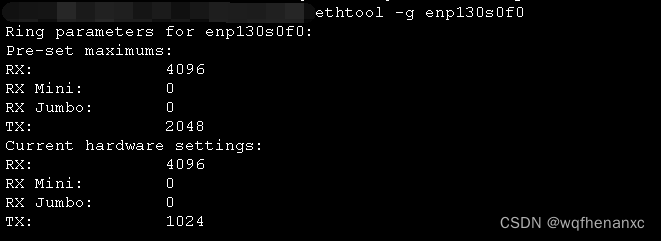

ethtool -g/-G 获取/设置 网卡读写环形缓冲区大小

ethtool -G enp130s0f0 rx 4096  #设置为4096

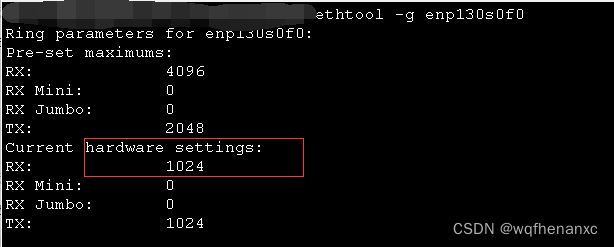

注意： 机器重启后可能会恢复到默认的1024， 需要重新设置。 我们发生过重启后恢复到了1024， 导致efvi从网卡获取数据时丢包的情况

numa node号

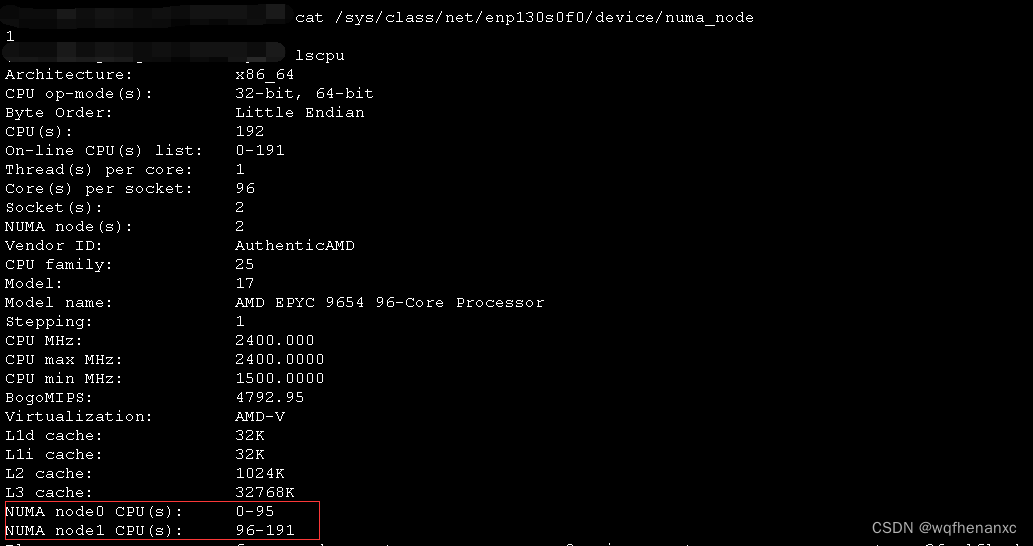

查看网卡的numa node， 然后查看cpu所在的numa node

NUMA架构显著的特点就是CPU访问本地内存快，访问远程内存慢。所以我们在NUMA架构下编写程序，要扬长避短，多核多线程编程中，我们要尽可能的利用CPU Core的亲和性，将线程绑定到对应的CPU上，并且该线程从该CPU对应的本地内存上去申请内存，这样才能最大限度发挥NUMA架构的优势，达到比较好的处理性能。

简单来说，就是本地的处理器、本地的内存来处理本地的设备上产生的数据。如果有一个PCI设备（比如网卡）在Node0上，就用Node0上的核来处理该设备，处理该设备用到的数据结构和数据缓冲区都从Node0上分配。
参考： https://zhuanlan.zhihu.com/p/643610982

使用命令cat /etc/default/grub 查看核心隔离情况：

onload_stackdump lots

sfreport

参考资料：

【1】Onload_User_Guide：
https://www.xilinx.com/content/dam/xilinx/publications/solarflare/onload/enterprise-onload/SF-104474-CD-34_Onload_User_Guide.pdf
【2】efvi user guide
https://docs.xilinx.com/v/u/en-US/SF-114063-CD-ef_vi_User_Guide
【3】How can I detect packet drops due to ef_vi specifically on Solarflare XtremeScale X2522-25G Adapter?
https://support.xilinx.com/s/question/0D54U000076eThKSAU/how-can-i-detect-packet-drops-due-to-efvi-specifically-on-solarflare-xtremescale-x252225g-adapter?language=en_US
【4】multicast packet loss in ef_vi processes while onload processes are OK
https://support.xilinx.com/s/question/0D54U00005wU25ySAC/multicast-packet-loss-in-efvi-processes-while-onload-processes-are-ok?language=en_US
【5】efvi best practice for low latency
https://support.xilinx.com/s/question/0D54U00005TFyjxSAD/efvi-best-practice-for-low-latency?language=en_US
【6】UDP multicast drops
https://support.xilinx.com/s/question/0D52E00006hpSOoSAM/udp-multicast-drops?language=en_US
【7】Lost multicast packets troubleshooting guide
https://ref.onixs.biz/lost-multicast-packets-troubleshooting.html
【8】Learning Path of ef_vi and Onload
https://support.xilinx.com/s/question/0D54U00005Sh49sSAB/learning-path-of-efvi-and-onload?language=en_US
