SharpCAD1.0.1发布

SharpCAD是一款以C#为脚本的建模工具。模仿的开源脚本建模工具OpenSCAD，SharpCAD造型内核使用的是OpenCasCADE7.5。

1.0.1相比1.0增加了一下功能：

import        =>        导入   (目前仅支持OFF)

projection  =>         投影

TriangleMesh布尔运算

示例：

Import ：TriangleMesh ACOCCTTools.Import(String strFileName);导入文件，目前仅支持OFF文件，返回值为TriangleMesh，三角网格。

String strFile       = @"D:\SharpCAD\data\elephant.off";
TriangleMesh triMesh = ACOCCTTools.Import(strFile);
//各个方向缩放10倍
triMesh.Scale(10,10,10);
triMesh.Color = Color.Red;
Scene.Add(triMesh);

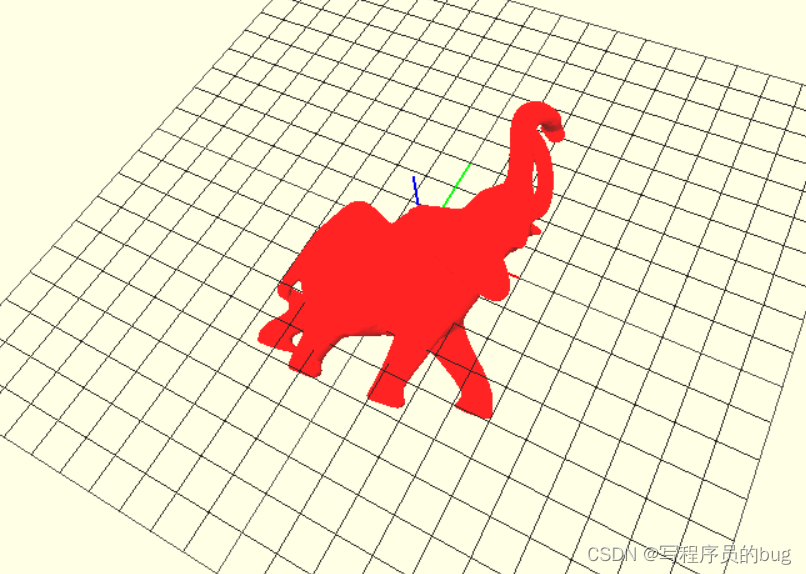

效果如下：

Projection ：

List<PolyFace> ACOCCTTools.Projection(TriangleMesh triMesh)三角网获取投影

List<PolyFace> ACOCCTTools.Projection(ShapeBase shape)Shape获取投影

//triMesh为import导入后的TriangleMesh
var faces = ACOCCTTools.Projection(triMesh);

//设置下颜色,否则默认为triMesh颜色
foreach(var item in faces)
{
    item .Color=Color.Blue;
}
Scene.Add(faces);

TriangleMesh布尔，同，ShapeBase布尔一样：

TriangleMesh TriangleMesh operator+(TriangleMesh left, TriangleMesh right);//布尔并

TriangleMesh TriangleMesh operator-(TriangleMesh left, TriangleMesh right);//布尔减

TriangleMesh TriangleMesh operator*(TriangleMesh left, TriangleMesh right);//布尔交

String strFile = @"D:\SharpCAD\data\elephant.off";
TriangleMesh triMesh0 = ACOCCTTools.Import(strFile);
triMesh0.Scale(10,10,10);
triMesh0.Color = Color.Red;
Scene.Add(triMesh0);

String strFile1 = @"D:\SharpCAD\data\eight.off";
TriangleMesh triMesh1 = ACOCCTTools.Import(strFile1);

triMesh1.Scale(10,10,10);
triMesh1.Color = Color.Green;
Scene.Add(triMesh1);

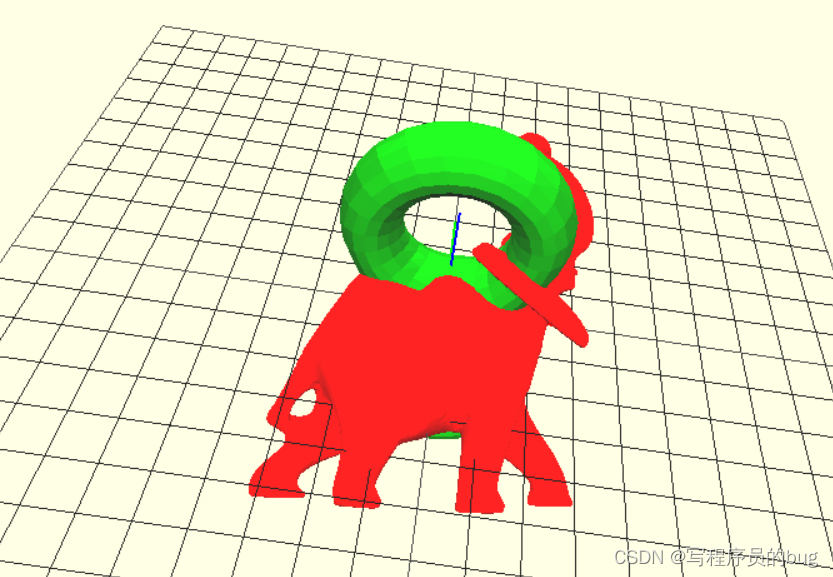

大象和数字8

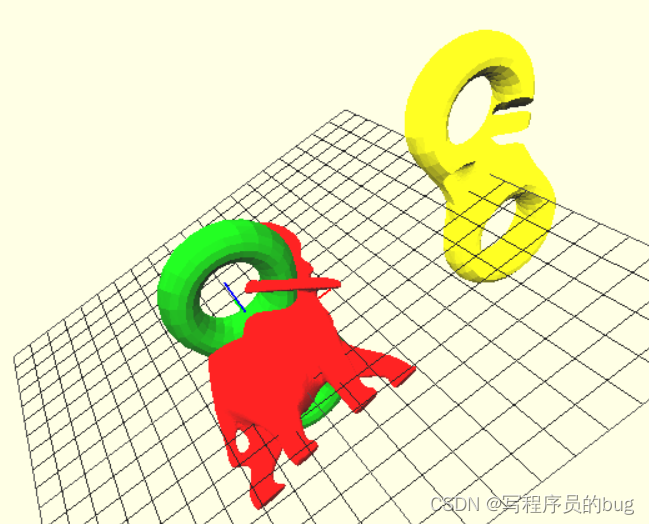

 布尔差

TriangleMesh triBoolean = triMesh1-triMesh0;
triBoolean.Translate(10,0,0);
triBoolean.Color = Color.Yellow;
Scene.Add(triBoolean );

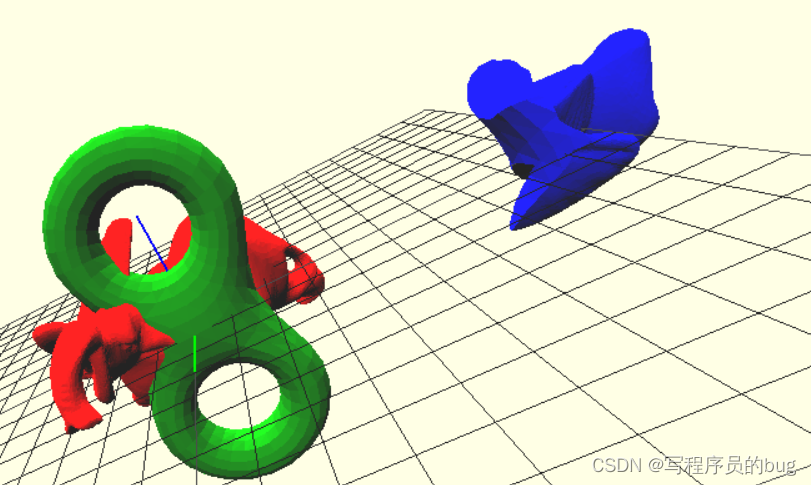

布尔交

triBoolean = triMesh1*triMesh0;
triBoolean.Translate(-10,0,0);
triBoolean.Color = Color.Blue;
Scene.Add(triBoolean );



完整代码:

String strFile        = @"D:\SharpCAD\data\elephant.off";
TriangleMesh triMesh0 = ACOCCTTools.Import(strFile);
triMesh0.Scale(10,10,10);
triMesh0.Color = Color.Red;
Scene.Add(triMesh0);

String strFile1       = @"D:\SharpCAD\data\eight.off";
TriangleMesh triMesh1 = ACOCCTTools.Import(strFile1);

triMesh1.Scale(10,10,10);
triMesh1.Color = Color.Green;
Scene.Add(triMesh1);


TriangleMesh triBoolean = triMesh1-triMesh0;
triBoolean.Translate(10,0,0);
triBoolean.Color = Color.Yellow;
Scene.Add(triBoolean );



triBoolean = triMesh1*triMesh0;
triBoolean.Translate(-10,0,0);
triBoolean.Color = Color.Blue;
Scene.Add(triBoolean );
