简单暴力,亲测有效!!!
柱状图顶部添加文字核心操作是在series中添加itemStyle
series: [
{
type: 'bar',//定义柱状图
data: income,
// barWidth:10,//柱子宽度
// barGap:1,//柱子间距
itemStyle: {//柱状图上方显示数值
normal: {
label: {
show: true, //开启显示
position: 'top', //在上方显示
textStyle: { //数值样式
color: 'black',
fontSize: 16
}
}
}
},
}
]
改变柱状图柱子颜色核心操作是添加color
//定义柱子颜色
color:['#5470c6']
全部代码
<!DOCTYPE html>
<html lang="en">
<head>
<meta charset="UTF-8">
<title>Title</title>
<script src="../js/echarts.min.js"></script>
<script src="../js/jquery.js"></script>
</head>
<body>
<script>
$(function () {
var year=2021;
var area=['华北','东北','华东','华中','华南','西南','西北'];
var income=[110.12,35.03,725.34,82.8,386.23,541.37,211.4];
var myChart = echarts.init(document.getElementById('main'));
var option = {
//定义柱子颜色
color:['#5470c6'],
title: {
text: year+'年全国省级(含)以上旅游度假区旅游收入地区差异状况',
},
tooltip: {
trigger: 'axis'
},
toolbox: {
show: true,
feature: {
dataZoom: {
yAxisIndex: 'none'
},
dataView: {readOnly: false},
magicType: {type: ['bar', 'line']},
restore: {},
saveAsImage: {}
}
},
xAxis: [{
type:'category',
data:area
}],
yAxis: [{
type:"value",
axisLabel: {
formatter: '{value} 亿元'
}
}],
series: [
{
type: 'bar',
data: income,
itemStyle: {//柱状图上方显示数值
normal: {
label: {
show: true, //开启显示
position: 'top', //在上方显示
textStyle: { //数值样式
color: 'black',
fontSize: 16
}
}
}
},
}
]
};
myChart.setOption(option);
})
</script>
</body>
<div id="main" style="height: 450px; width: 730px; border: solid 5px rgb(95,184,120);"></div>
</html>

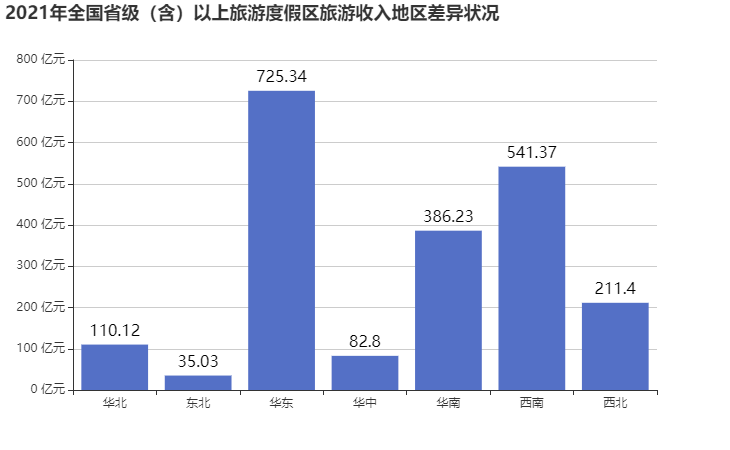

效果展示:
