GAP解读一

GAP解读

概述

The purpose of this profile is to describe:

• Profile roles
• Discoverability modes and procedures
• Connection modes and procedures
• Security modes and procedures

PROFILE ROLES

Roles when operating over BR/EDR Physical Transport

• A-party is the one that, for a given procedure, initiates device discovery, initiates the establishment of a physical link or initiates a transaction on an existing link.
• B-party (paged device or acceptor) is used.

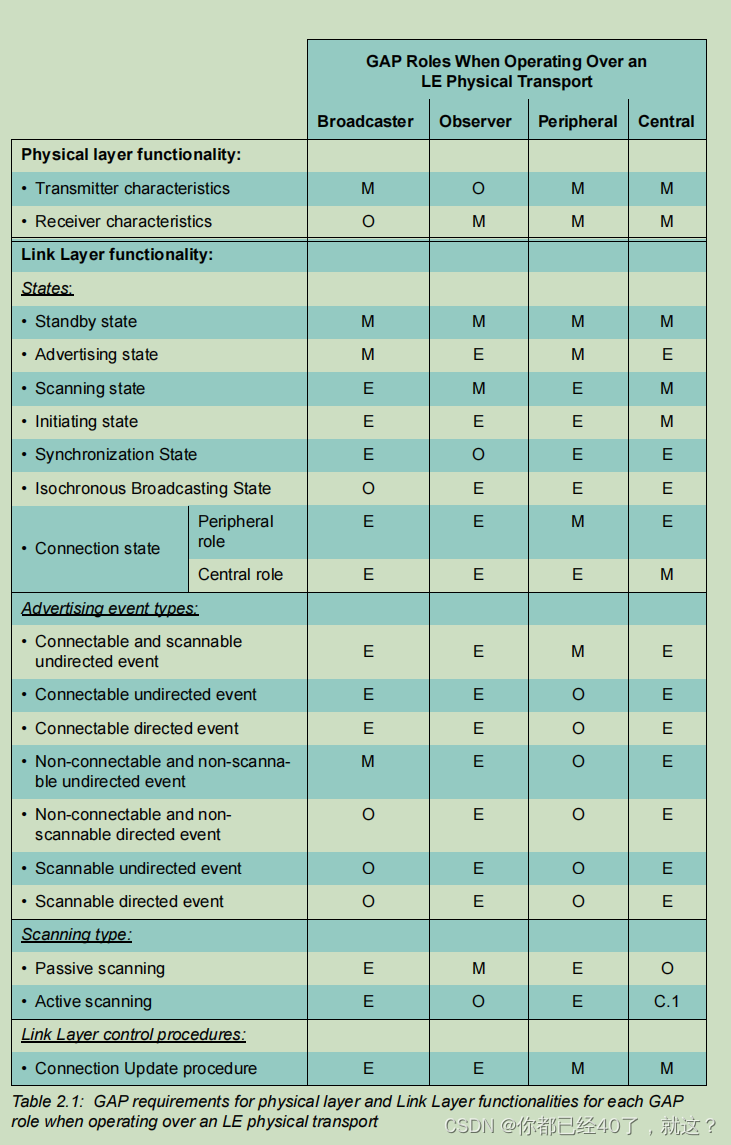

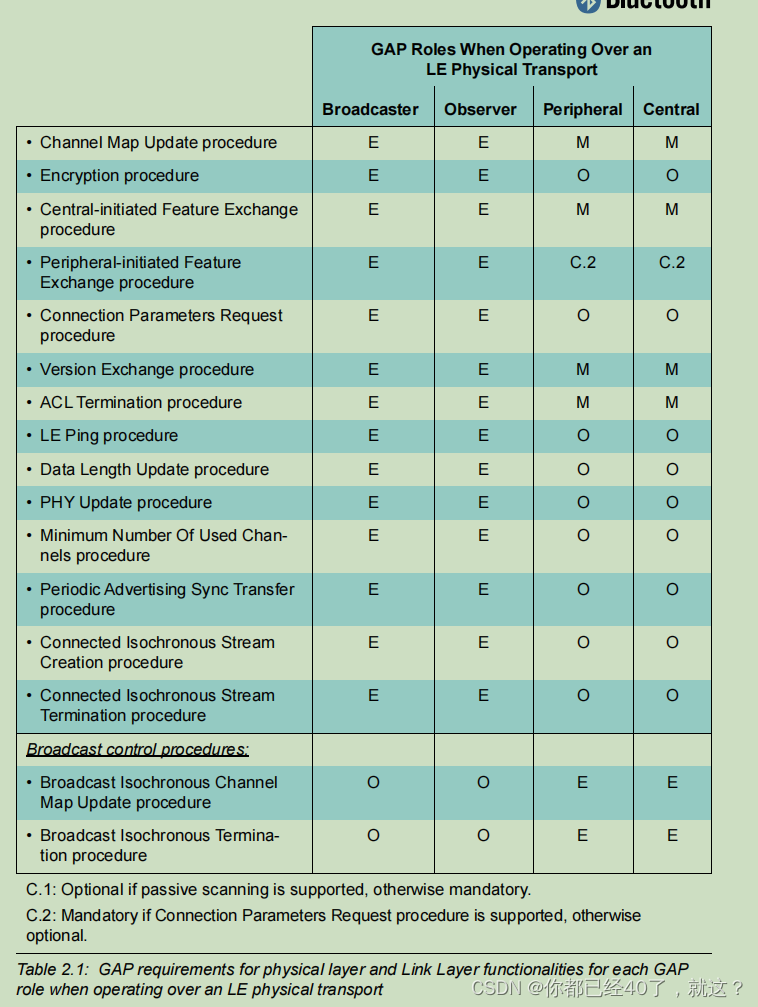

Roles when operating over an LE physical transport

There are four GAP roles defined for devices operating over an LE physical transport:

• Broadcaster
• Observer
• Peripheral
• Central



USER INTERFACE ASPECTS

REPRESENTATION OF BLUETOOTH PARAMETERS

Bluetooth Device Address (BD_ADDR):

• On the Baseband level the BD_ADDR is represented as 48 bits,
• On the Link Layer the public and random device address are
  represented as 48-bit addresses.

Bluetooth Device Name (the user-friendly name)

• For the BR/EDR physical channel the name is received in the
  LMP_NAME_RES.
• For the LE physical channel the name can be read from the Device
  Name characteristic as defined in Section 12.1 (DEVICE NAME CHARACTERISTIC).
