AIDL文件

IRemoteService.aidl

// IRemoteService.aidl
package com.example.aidldemo;
import com.example.aidldemo.MyData;

// Declare any non-default types here with import statements

interface IRemoteService {

    int getPid();

    MyData getMyData();

    /**
     * Demonstrates some basic types that you can use as parameters
     * and return values in AIDL.
     */
    void basicTypes(int anInt, long aLong, boolean aBoolean, float aFloat,
            double aDouble, String aString);
}

MyData.aidl 定义远程通信的自定义数据

// MyData.aidl
package com.example.aidldemo;
parcelable MyData;

Parcel数据

MyData.java

public class MyData implements Parcelable {
    private int data1;
    private int data2;

    public MyData(){

    }

    protected MyData(Parcel in) {
        readFromParcel(in);
    }

    public static final Creator<MyData> CREATOR = new Creator<MyData>() {
        @Override
        public MyData createFromParcel(Parcel in) {
            return new MyData(in);
        }

        @Override
        public MyData[] newArray(int size) {
            return new MyData[size];
        }
    };

    @Override
    public int describeContents() {
        return 0;
    }

    /** 将数据写入到Parcel **/
    @Override
    public void writeToParcel(Parcel dest, int flags) {
        dest.writeInt(data1);
        dest.writeInt(data2);
    }

    /** 从Parcel中读取数据 **/
    public void readFromParcel(Parcel in){
        data1 = in.readInt();
        data2 = in.readInt();
    }


    public int getData2() {
        return data2;
    }

    public void setData2(int data2) {
        this.data2 = data2;
    }

    public int getData1() {
        return data1;
    }

    public void setData1(int data1) {
        this.data1 = data1;
    }

    @Override
    public String toString() {
        return "data1 = "+ data1 + ", data2="+ data2;
    }
}

Server端

RemoteService.java

本例是为了演示进程间的通信机制，故需要将Service与Activity处于不同的进程，需要在AndroidManifest.xml中，把service配置成android:process=":remote",进程也可以命名成其他的。

package com.example.aidldemo;

import android.app.Service;
import android.content.Intent;
import android.os.IBinder;
import android.os.Parcel;
import android.os.RemoteException;
import android.util.Log;

public class RemoteService extends Service {
    private static final String TAG = "BinderSimple";

    MyData mMyData;

    @Override
    public void onCreate() {
        super.onCreate();
        Log.i(TAG, "[RemoteService] onCreate");
        initMyData();
    }

    @Override
    public IBinder onBind(Intent intent) {
        Log.i(TAG,"[RemoteService] onBind");
        return mBinder;
    }

    @Override
    public boolean onUnbind(Intent intent) {
        Log.i(TAG, "[RemoteService] onUnbind");
        return super.onUnbind(intent);
    }

    @Override
    public void onDestroy() {
        Log.i(TAG, "[RemoteService] onDestroy");
        super.onDestroy();
    }

    /**
     * 实现IRemoteService.aidl中定义的方法
     */
    private final IRemoteService.Stub mBinder = new IRemoteService.Stub() {

        @Override
        public int getPid() throws RemoteException {
            Log.i(TAG,"[RemoteService] getPid()="+android.os.Process.myPid());
            return android.os.Process.myPid();
        }

        @Override
        public MyData getMyData() throws RemoteException {
            Log.i(TAG,"[RemoteService] getMyData()  "+ mMyData.toString());
            return mMyData;
        }

        @Override
        public void basicTypes(int anInt, long aLong, boolean aBoolean, float aFloat, double aDouble, String aString) throws RemoteException {

        }

        /**此处可用于权限拦截**/
        @Override
        public boolean onTransact(int code, Parcel data, Parcel reply, int flags) throws RemoteException {
            return super.onTransact(code, data, reply, flags);
        }
    };

    /**
     * 初始化MyData数据
     **/
    private void initMyData() {
        mMyData = new MyData();
        mMyData.setData1(10);
        mMyData.setData2(20);
    }
}

Client端

ClientActivity.java

package com.example.aidldemo;

import androidx.appcompat.app.AppCompatActivity;

import android.content.ComponentName;
import android.content.Context;
import android.content.Intent;
import android.content.ServiceConnection;
import android.os.Bundle;
import android.os.IBinder;
import android.os.RemoteException;
import android.util.Log;
import android.view.View;
import android.widget.TextView;
import android.widget.Toast;


public class MainActivity extends AppCompatActivity {

    private static final String TAG = "BinderSimple";

    private IRemoteService mRemoteService;

    private boolean mIsBound;
    private TextView mCallBackTv;

    @Override
    protected void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
        Log.i(TAG, "[ClientActivity] onCreate");

        setContentView(R.layout.activity_main);

        mCallBackTv = (TextView) findViewById(R.id.tv_callback);
        mCallBackTv.setText(R.string.remote_service_unattached);
    }

    /**
     * 用语监控远程服务连接的状态
     */
    private ServiceConnection mConnection = new ServiceConnection() {
        @Override
        public void onServiceConnected(ComponentName name, IBinder service) {

            mRemoteService = IRemoteService.Stub.asInterface(service);
            String pidInfo = null;
            try {
                MyData myData = mRemoteService.getMyData();
                pidInfo = "pid="+ mRemoteService.getPid() +
                        ", data1 = "+ myData.getData1() +
                        ", data2="+ myData.getData2();
            } catch (RemoteException e) {
                e.printStackTrace();
            }
            Log.i(TAG, "[ClientActivity] onServiceConnected  "+pidInfo);
            mCallBackTv.setText(pidInfo);
            Toast.makeText(MainActivity.this, R.string.remote_service_connected, Toast.LENGTH_SHORT).show();
        }

        @Override
        public void onServiceDisconnected(ComponentName name) {
            Log.i(TAG, "[ClientActivity] onServiceDisconnected");
            mCallBackTv.setText(R.string.remote_service_disconnected);
            mRemoteService = null;
            Toast.makeText(MainActivity.this, R.string.remote_service_disconnected, Toast.LENGTH_SHORT).show();
        }
    };


    public void clickHandler(View view){
        switch (view.getId()){
            case R.id.btn_bind:
                bindRemoteService();
                break;

            case R.id.btn_unbind:
                unbindRemoteService();
                break;

            case R.id.btn_kill:
                killRemoteService();
                break;
        }
    }

    /**
     * 绑定远程服务
     */
    private void bindRemoteService(){
        Log.i(TAG, "[ClientActivity] bindRemoteService");
        Intent intent = new Intent(MainActivity.this, RemoteService.class);
        intent.setAction(IRemoteService.class.getName());
        bindService(intent, mConnection, Context.BIND_AUTO_CREATE);

        mIsBound = true;
        mCallBackTv.setText(R.string.binding);
    }

    /**
     * 解除绑定远程服务
     */
    private void unbindRemoteService(){
        if(!mIsBound){
            return;
        }
        Log.i(TAG, "[ClientActivity] unbindRemoteService ==>");
        unbindService(mConnection);
        mIsBound = false;
        mCallBackTv.setText(R.string.unbinding);
    }

    /**
     * 杀死远程服务
     */
    private void killRemoteService(){
        Log.i(TAG, "[ClientActivity] killRemoteService");
        try {
            android.os.Process.killProcess(mRemoteService.getPid());
            mCallBackTv.setText(R.string.kill_success);
        } catch (RemoteException e) {
            e.printStackTrace();
            Toast.makeText(MainActivity.this, R.string.kill_failure, Toast.LENGTH_SHORT).show();
        }
    }
}

运行

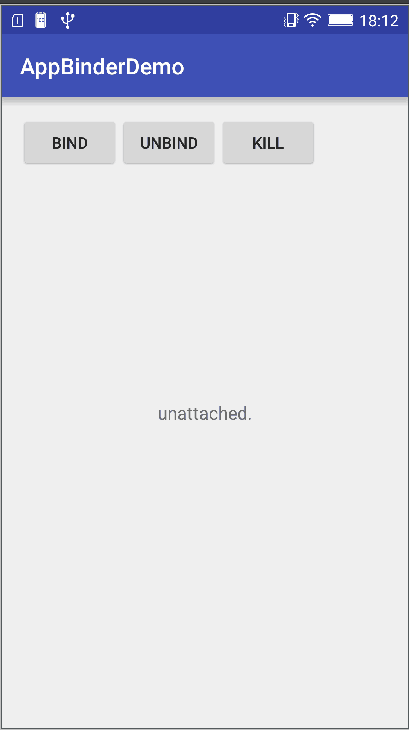

该工程会生成一个apk，安装到手机，打开apk，界面如下：

apk

界面上有三个按钮，分别是功能分别是bindService(绑定Service), unbindService(解除绑定Service), killProcess(杀死Service进程)。

从左往右，依次点击界面，可得：

apk

原理分析

调用图：

aidl image

源码

采用AIDL技术，原理还是利用framework binder的架构。本文的实例AIDL会自动生成一个与之相对应的IRemoteService.java文件，如下：

/*
 * This file is auto-generated.  DO NOT MODIFY.
 */
package com.example.aidldemo;
// Declare any non-default types here with import statements

public interface IRemoteService extends android.os.IInterface
{
  /** Default implementation for IRemoteService. */
  public static class Default implements com.example.aidldemo.IRemoteService
  {
    @Override public int getPid() throws android.os.RemoteException
    {
      return 0;
    }
    @Override public com.example.aidldemo.MyData getMyData() throws android.os.RemoteException
    {
      return null;
    }
    /**
         * Demonstrates some basic types that you can use as parameters
         * and return values in AIDL.
         */
    @Override public void basicTypes(int anInt, long aLong, boolean aBoolean, float aFloat, double aDouble, java.lang.String aString) throws android.os.RemoteException
    {
    }
    @Override
    public android.os.IBinder asBinder() {
      return null;
    }
  }
  /** Local-side IPC implementation stub class. */
  public static abstract class Stub extends android.os.Binder implements com.example.aidldemo.IRemoteService
  {
    private static final java.lang.String DESCRIPTOR = "com.example.aidldemo.IRemoteService";
    /** Construct the stub at attach it to the interface. */
    public Stub()
    {
      this.attachInterface(this, DESCRIPTOR);
    }
    /**
     * Cast an IBinder object into an com.example.aidldemo.IRemoteService interface,
     * generating a proxy if needed.
     */
    public static com.example.aidldemo.IRemoteService asInterface(android.os.IBinder obj)
    {
      if ((obj==null)) {
        return null;
      }
      android.os.IInterface iin = obj.queryLocalInterface(DESCRIPTOR);
      if (((iin!=null)&&(iin instanceof com.example.aidldemo.IRemoteService))) {
        return ((com.example.aidldemo.IRemoteService)iin);
      }
      return new com.example.aidldemo.IRemoteService.Stub.Proxy(obj);
    }
    @Override public android.os.IBinder asBinder()
    {
      return this;
    }
    @Override public boolean onTransact(int code, android.os.Parcel data, android.os.Parcel reply, int flags) throws android.os.RemoteException
    {
      java.lang.String descriptor = DESCRIPTOR;
      switch (code)
      {
        case INTERFACE_TRANSACTION:
        {
          reply.writeString(descriptor);
          return true;
        }
        case TRANSACTION_getPid:
        {
          data.enforceInterface(descriptor);
          int _result = this.getPid();
          reply.writeNoException();
          reply.writeInt(_result);
          return true;
        }
        case TRANSACTION_getMyData:
        {
          data.enforceInterface(descriptor);
          com.example.aidldemo.MyData _result = this.getMyData();
          reply.writeNoException();
          if ((_result!=null)) {
            reply.writeInt(1);
            _result.writeToParcel(reply, android.os.Parcelable.PARCELABLE_WRITE_RETURN_VALUE);
          }
          else {
            reply.writeInt(0);
          }
          return true;
        }
        case TRANSACTION_basicTypes:
        {
          data.enforceInterface(descriptor);
          int _arg0;
          _arg0 = data.readInt();
          long _arg1;
          _arg1 = data.readLong();
          boolean _arg2;
          _arg2 = (0!=data.readInt());
          float _arg3;
          _arg3 = data.readFloat();
          double _arg4;
          _arg4 = data.readDouble();
          java.lang.String _arg5;
          _arg5 = data.readString();
          this.basicTypes(_arg0, _arg1, _arg2, _arg3, _arg4, _arg5);
          reply.writeNoException();
          return true;
        }
        default:
        {
          return super.onTransact(code, data, reply, flags);
        }
      }
    }
    private static class Proxy implements com.example.aidldemo.IRemoteService
    {
      private android.os.IBinder mRemote;
      Proxy(android.os.IBinder remote)
      {
        mRemote = remote;
      }
      @Override public android.os.IBinder asBinder()
      {
        return mRemote;
      }
      public java.lang.String getInterfaceDescriptor()
      {
        return DESCRIPTOR;
      }
      @Override public int getPid() throws android.os.RemoteException
      {
        android.os.Parcel _data = android.os.Parcel.obtain();
        android.os.Parcel _reply = android.os.Parcel.obtain();
        int _result;
        try {
          _data.writeInterfaceToken(DESCRIPTOR);
          boolean _status = mRemote.transact(Stub.TRANSACTION_getPid, _data, _reply, 0);
          if (!_status && getDefaultImpl() != null) {
            return getDefaultImpl().getPid();
          }
          _reply.readException();
          _result = _reply.readInt();
        }
        finally {
          _reply.recycle();
          _data.recycle();
        }
        return _result;
      }
      @Override public com.example.aidldemo.MyData getMyData() throws android.os.RemoteException
      {
        android.os.Parcel _data = android.os.Parcel.obtain();
        android.os.Parcel _reply = android.os.Parcel.obtain();
        com.example.aidldemo.MyData _result;
        try {
          _data.writeInterfaceToken(DESCRIPTOR);
          boolean _status = mRemote.transact(Stub.TRANSACTION_getMyData, _data, _reply, 0);
          if (!_status && getDefaultImpl() != null) {
            return getDefaultImpl().getMyData();
          }
          _reply.readException();
          if ((0!=_reply.readInt())) {
            _result = com.example.aidldemo.MyData.CREATOR.createFromParcel(_reply);
          }
          else {
            _result = null;
          }
        }
        finally {
          _reply.recycle();
          _data.recycle();
        }
        return _result;
      }
      /**
           * Demonstrates some basic types that you can use as parameters
           * and return values in AIDL.
           */
      @Override public void basicTypes(int anInt, long aLong, boolean aBoolean, float aFloat, double aDouble, java.lang.String aString) throws android.os.RemoteException
      {
        android.os.Parcel _data = android.os.Parcel.obtain();
        android.os.Parcel _reply = android.os.Parcel.obtain();
        try {
          _data.writeInterfaceToken(DESCRIPTOR);
          _data.writeInt(anInt);
          _data.writeLong(aLong);
          _data.writeInt(((aBoolean)?(1):(0)));
          _data.writeFloat(aFloat);
          _data.writeDouble(aDouble);
          _data.writeString(aString);
          boolean _status = mRemote.transact(Stub.TRANSACTION_basicTypes, _data, _reply, 0);
          if (!_status && getDefaultImpl() != null) {
            getDefaultImpl().basicTypes(anInt, aLong, aBoolean, aFloat, aDouble, aString);
            return;
          }
          _reply.readException();
        }
        finally {
          _reply.recycle();
          _data.recycle();
        }
      }
      public static com.example.aidldemo.IRemoteService sDefaultImpl;
    }
    static final int TRANSACTION_getPid = (android.os.IBinder.FIRST_CALL_TRANSACTION + 0);
    static final int TRANSACTION_getMyData = (android.os.IBinder.FIRST_CALL_TRANSACTION + 1);
    static final int TRANSACTION_basicTypes = (android.os.IBinder.FIRST_CALL_TRANSACTION + 2);
    public static boolean setDefaultImpl(com.example.aidldemo.IRemoteService impl) {
      // Only one user of this interface can use this function
      // at a time. This is a heuristic to detect if two different
      // users in the same process use this function.
      if (Stub.Proxy.sDefaultImpl != null) {
        throw new IllegalStateException("setDefaultImpl() called twice");
      }
      if (impl != null) {
        Stub.Proxy.sDefaultImpl = impl;
        return true;
      }
      return false;
    }
    public static com.example.aidldemo.IRemoteService getDefaultImpl() {
      return Stub.Proxy.sDefaultImpl;
    }
  }
  public int getPid() throws android.os.RemoteException;
  public com.example.aidldemo.MyData getMyData() throws android.os.RemoteException;
  /**
       * Demonstrates some basic types that you can use as parameters
       * and return values in AIDL.
       */
  public void basicTypes(int anInt, long aLong, boolean aBoolean, float aFloat, double aDouble, java.lang.String aString) throws android.os.RemoteException;
}

简单分析

ClientActivity 拿到 mRemoteService （类型IRemoteService extends android.os.IInterface），
然后可以远程调用 mRemoteService的成员方法

  public int getPid() throws android.os.RemoteException;
  public com.example.aidldemo.MyData getMyData() throws android.os.RemoteException;

IRemoteService 由 onServiceConnected(ComponentName name, IBinder service) 中参数service（android.os.IBinder）而来
即 IRemoteService.Stub.asInterface(service)

android.os.IBinder obj 如何得到 IRemoteService （android.os.IInterface）?

    /**
     * Cast an IBinder object into an com.example.aidldemo.IRemoteService interface,
     * generating a proxy if needed.
     */
    public static com.example.aidldemo.IRemoteService asInterface(android.os.IBinder obj)
    {
      if ((obj==null)) {
        return null;
      }
      // 通过描述符查询
      android.os.IInterface iin = obj.queryLocalInterface(DESCRIPTOR);
      if (((iin!=null)&&(iin instanceof com.example.aidldemo.IRemoteService))) {
        // 类型转换
        return ((com.example.aidldemo.IRemoteService)iin);
      }
      return new com.example.aidldemo.IRemoteService.Stub.Proxy(obj);
    }

RichardXFB

关注

0
点赞
踩
1

收藏

觉得还不错? 一键收藏
0
评论
Android 如何使用AIDL

界面上有三个按钮，分别是功能分别是bindService(绑定Service), unbindService(解除绑定Service), killProcess(杀死Service进程)。本例是为了演示进程间的通信机制，故需要将Service与Activity处于不同的进程，需要在AndroidManifest.xml中，把service配置成。android.os.IBinder obj 如何得到 IRemoteService （android.os.IInterface）?,进程也可以命名成其他的。
复制链接

扫一扫
