本文想说的是折线点的地方显示数据纵坐标数据
利用:plt.text() 方法
废话不多说,直接上代码:
# encoding=utf-8
import matplotlib.pyplot as plt
# 月份
x1 = ['2017-01', '2017-02', '2017-03', '2017-04', '2017-05', '2017-06', '2017-07', '2017-08',
'2017-09', '2017-10', '2017-11', '2017-12']
# 体重
y1 = [86, 85, 84, 80, 75, 70, 70, 74, 78, 70, 74, 80]
# 设置画布大小
plt.figure(figsize=(16, 4))
# 标题
plt.title("my weight")
# 数据
plt.plot(x1, y1, label='weight changes', linewidth=3, color='r', marker='o',
markerfacecolor='blue', markersize=20)
# 横坐标描述
plt.xlabel('month')
# 纵坐标描述
plt.ylabel('weight')
# 设置数字标签
for a, b in zip(x1, y1):
plt.text(a, b, b, ha='center', va='bottom', fontsize=20)
plt.legend()
plt.show()

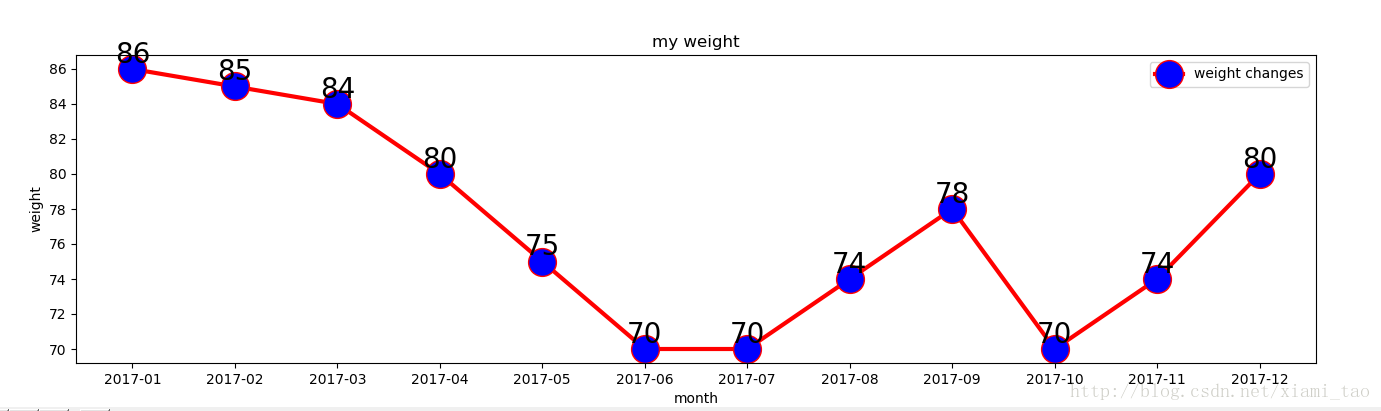

效果:
