使用Python做bootloader下载程序

该教程通过使用peak can和python 及相关的库实现bootloader下载功能，该工具非常适合研发阶段，可根据需要方便修改，避免频繁修改界面语言设计的上位机。量产阶段仍推荐界面的上位机。

一、Python库

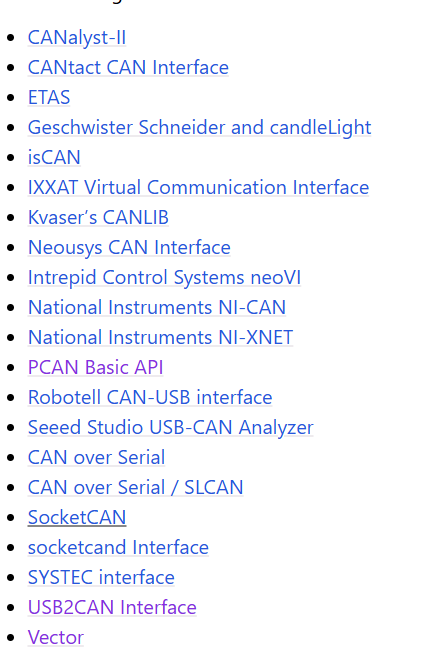

1、python-can支持的CAN设备

推荐版本4.6以上，python>=3.8，本教程以peak can为例【需先安装相关驱动，并把对应的pcanbasic.dll版本（32bit/64bit）放在系统变量中】，其他设备需要修改：

can_channel，bustype 设置，详见：python-can

2、udsoncan

实现UDS的封装 [ISO 14229]，分客户端和服务端，该教程使用客户端，ECU实现服务端。

3、can-isotp

实现CAN-TP层[ISO 15765]的操作，单帧，流控帧……

4、bincopy

实现Motorola S-Record, Intel HEX 和 binary 文件的解析

5、代码

import udsoncan                         # pip install udsoncan
from udsoncan.client import Client
from udsoncan.connections import PythonIsoTpConnection

import can                              # pip install python-can==4.6
import isotp                            # pip install can-isotp
import bincopy                          # pip install bincopy, for reading S19 files
import tqdm                             # pip install tqdm, for progress bar， py3.8 pip install tqdm -i https://mirrors.aliyun.com/pypi/simple/
from can.bit_timing import BitTimingFd

二、自定义函数

1、安全算法示例 - CRC16

可根据实际需要修改该安全算法【如借用AI编程转化C代码为python代码】

    def CRC16(level, seed, params):
        crc = params['initial_value']
        polynomial = params['polynomial']

        for byte in seed:
            crc ^= (byte << 8)
            for _ in range(8):
                if crc & 0x8000:
                    crc = (crc << 1) ^ polynomial
                else:
                    crc <<= 1
                crc &= 0xFFFF  # Ensure CRC remains 16-bit

        key = crc.to_bytes(2, byteorder=BYTE_ORDER)  # Convert to 2-byte representation
        print(f" - CRC16 used <Seed>: {seed.hex()}" + f" with <Key>: {key.hex()}")
        return key

三、配置数据

# configure data
ROUTINE_ID_ERASE_FLASH = 0xFF22         # Erase Flash Routine ID, [Update for project]
SUB_FUNCTION_ERASE = 0x01               # Subfunction for Erase Flash, [Update for project]
ROUTINE_ID_CHECK_CONSISTENCY = 0xFF33   # Check Consistency Routine ID, [Update for project]
SUB_FUNCTION_CHECK = 0x01               # Subfunction for Check Consistency, [Update for project]

BYTE_ORDER = 'big'                      # Byte order for multi-byte values
CHUNK_SIZE = 1024                       # Size of data chunks for transfer
SECURITY_LEVEL = 0x01                   # Security level 0x01 = Security Access Level 1
ECU_ADDRESS_SIZE = 32                   # Address size of ECU, 32 bits MCU
ECU_ADDRESS_TYPE = 4                    # Address type of ECU, 4 bytes (32 bits) MCU
CAN_FD_ENABLE = True
CAN_FRMAE_SIZE = 64                      # CAN frame size, 8 bytes for classic CAN, 64 bytes for CAN FD=64
TIMING_FD = BitTimingFd(f_clock=40000000,
                        nom_brp=4, nom_tseg1=15, nom_tseg2=4, nom_sjw=3,        # 500KHz
                        data_brp=1, data_tseg1=15, data_tseg2=4, data_sjw=3)    # 2MHz

CRC16_DICT = dict(initial_value = 0xFFFF, polynomial = 0x1021)   # CRC-16-CCITT polynomial

# configure ISO-TP
ISO_PARAMETERS = {
    'stmin': 0,                         # Minimum time between frames in milliseconds
    'can_fd': CAN_FD_ENABLE,            # Enable CAN FD support
    'blocksize': CAN_FRMAE_SIZE,        # Request the sender to send 8 consecutives frames before sending a new flow control message
    'wftmax': 0,
    'tx_data_length': CAN_FRMAE_SIZE,   # Maximum length of data in a single CAN frame
    'tx_data_min_length': 8,            # Minimum length of data in a single CAN frame，inhibit the dlc less than 8 bytes[ECU boot issue]
    'tx_padding': 0xFF,                 # Padding byte for data frames
    'rx_flowcontrol_timeout': 2000,
    'rx_consecutive_frame_timeout': 2000,
    'max_frame_size': CHUNK_SIZE,       # Maximum size of a single frame
    'bitrate_switch': True,             # Enable bitrate switching for CAN FD

}

# configure UDS
UDS_PARAMETERS = {
    'security_algo': CRC16,              # Security algorithm
    'security_algo_params': CRC16_DICT,  # Parameters for the security algorithm
    'use_server_timing': False,         # Use server timing for response timeouts
    'p2_timeout': 0.5,                  # Timeout for the sender to wait for response message
    'p2_star_timeout': 6.0,
    'request_timeout' : 10,
}

四、CANBootloader 类

1、__init__

    def __init__(self, can_channel = 'PCAN_USBBUS1', bitrate = 500000, func_tx_id = 0x701, phy_tx_id = 0x702, rx_id = 0x703):
        self.can_channel = can_channel      # default is 'PCAN_USBBUS1' for PCAN-USB
        self.bitrate = bitrate
        self.func_tx_id = func_tx_id
        self.phy_tx_id = phy_tx_id
        self.rx_id = rx_id
        self.bus = None
        self.func_client = None
        self.phy_client = None
        self.phy_stack = None
        self.func_stack = None

2、setup_can

def setup_can(self, notifier_enable = True):
        self.bus = can.interface.Bus(channel = self.can_channel, bustype ='pcan', bitrate = self.bitrate,
                                     fd = CAN_FD_ENABLE,
                                     timing = TIMING_FD,
                                     data_bitrate=500000,
                                     receive_own_messages=True)

        current_time = time.strftime("%Y%m%d_%H%M%S", time.localtime())
        log_file = f'.\\LogFile\\Boot_{current_time}.csv'  # Log file path format in [.asc/.blf/.csv/.db/.mf4 (need asammdf)/.trc/.txt]

        if notifier_enable:
            notifier = can.Notifier(self.bus, [can.Printer(), can.Logger(log_file)], timeout=0.5)  # Create a notifier with filters
        else:
            notifier = can.Notifier(self.bus, [can.Logger(log_file)], timeout=0.5)  # Create a notifier with no filters

        # Configure ISOTP stack for functional and physical channels
        func_address = isotp.Address(isotp.AddressingMode.Normal_11bits, rxid=self.rx_id, txid=self.func_tx_id)
        phy_address = isotp.Address(isotp.AddressingMode.Normal_11bits, rxid=self.rx_id, txid=self.phy_tx_id)

        self.func_stack = isotp.NotifierBasedCanStack(bus=self.bus, params = ISO_PARAMETERS, notifier = notifier, address = func_address)
        self.func_stack.set_sleep_timing(0, 0)
        self.func_client = Client(PythonIsoTpConnection(self.func_stack), request_timeout = UDS_PARAMETERS['request_timeout'])  # Set request timeout to n second
        self.func_client.config['p2_timeout']  = UDS_PARAMETERS['p2_timeout']           # udsontp config
        self.func_client.open()

        # pyhysical channel
        self.phy_stack = isotp.NotifierBasedCanStack(bus=self.bus, params = ISO_PARAMETERS, notifier = notifier, address = phy_address)
        self.phy_client = Client(PythonIsoTpConnection(self.phy_stack), request_timeout = UDS_PARAMETERS['request_timeout'])  # Set request timeout to n second
        self.phy_client.config['p2_timeout']  = UDS_PARAMETERS['p2_timeout']
        self.phy_client.config['p2_star_timeout']  = UDS_PARAMETERS['p2_star_timeout']
        self.phy_client.config['use_server_timing'] = UDS_PARAMETERS['use_server_timing']
        self.phy_client.config['security_algo'] = UDS_PARAMETERS['security_algo']       # udsontp config
        self.phy_client.config['security_algo_params'] = UDS_PARAMETERS['security_algo_params']
        self.phy_client.open()

3、close_can

    def close_can(self):
        self.func_client.close()
        self.phy_client.close()
        self.func_stack.notifier.stop()  # Stop the notifier
        self.phy_stack.notifier.stop()  # Stop the notifier
        self.bus.shutdown()

4、flash_ready

def flash_ready(self):
        ready_ok = False
        try:
            self.func_client.change_session(0x03)
            self.func_client.communication_control(0x03, 0x03)
            self.phy_client.change_session(0x02)
            time.sleep(0.5)

            resp = self.phy_client.unlock_security_access(SECURITY_LEVEL)
            if resp != None and resp.positive:
                ready_ok = True
            else:
                print("[BT log]: No Seed Received")

        except udsoncan.exceptions.TimeoutException as e:
            pass
        except udsoncan.exceptions.NegativeResponseException as e:
            print(e.response)

        return ready_ok

5、flash_post

    def flash_post(self):
        try:
            print("[BT log] : ECU rest...")
            self.phy_client.ecu_reset(0x01)
            time.sleep(1.0)

        except udsoncan.exceptions.NegativeResponseException as e:
            print(e.response)
        except udsoncan.exceptions.TimeoutException as e:
            pass

6、flash_driver

def flash_driver(self, drv_data):
        flash_success = False
        try:
            drv_data_size = drv_data.maximum_address - drv_data.minimum_address
            drv_mem = udsoncan.MemoryLocation(drv_data.minimum_address, drv_data_size, address_format = ECU_ADDRESS_SIZE, memorysize_format = ECU_ADDRESS_SIZE)
            self.phy_client.request_download(drv_mem, dfi=None)  # Request Download

            cnt  = 1    # Block Counter from 1 start
            chunks = tqdm.tqdm(self.split_into_chunks(drv_data.as_binary(), CHUNK_SIZE), desc=' - Transfer Data to RAM...',)
            for chunk in chunks:
                data = bytes(chunk)
                self.phy_client.transfer_data((cnt & 0xFF), data)  # Transfer Data
                cnt += 1

            self.phy_client.request_transfer_exit()             # Request Transfer Exit
            flash_success = True

        except udsoncan.exceptions.TimeoutException as e:
            pass
        except udsoncan.exceptions.NegativeResponseException as e:
            print(e.response)
        return flash_success

7、flash_firmware

    def flash_firmware(self, firmware_data, verify_of_data, verify_of_data_size):
        flash_success = False
        try:
            firmware_first_address = firmware_data.minimum_address
            firmware_data_size = firmware_data.maximum_address - firmware_data.minimum_address  # maximum_address has plus 1 byte

            firmware_first_address_bytes = firmware_first_address.to_bytes(ECU_ADDRESS_TYPE, byteorder = BYTE_ORDER)
            firmware_data_size_bytes = firmware_data_size.to_bytes(ECU_ADDRESS_TYPE, byteorder = BYTE_ORDER)
            verify_of_data_bytes = verify_of_data.to_bytes(verify_of_data_size, byteorder = BYTE_ORDER)
            data = firmware_first_address_bytes + firmware_data_size_bytes

            self.phy_client.routine_control(ROUTINE_ID_ERASE_FLASH, SUB_FUNCTION_ERASE, data)

            print("[BT log] : Starting firmware flashing...")
            firmware_mem = udsoncan.MemoryLocation(firmware_first_address, firmware_data_size, address_format = ECU_ADDRESS_SIZE, memorysize_format = ECU_ADDRESS_SIZE)
            self.phy_client.request_download(firmware_mem, dfi = None)

            chunks = self.split_into_chunks(firmware_data.as_binary(), CHUNK_SIZE)
            chunk_index = 0
            for chunk in tqdm.tqdm(chunks, desc=' - Transfer Data to write flash...'):
                block_cnt = (chunk_index + 1) % 256
                self.phy_client.transfer_data(block_cnt, bytes(chunk))  # Transfer Data
                chunk_index += 1

            print("[BT log]: driver flashing completed successfully.")
            self.phy_client.request_transfer_exit()

            print("[BT log]: Check Consistency of firmware in ECU.")
            data = firmware_first_address_bytes + firmware_data_size_bytes + verify_of_data_bytes
            self.phy_client.routine_control(ROUTINE_ID_CHECK_CONSISTENCY, SUB_FUNCTION_CHECK, data)
            flash_success = True

        except udsoncan.exceptions.TimeoutException as e:
            pass
        except udsoncan.exceptions.NegativeResponseException as e:
            print(e.response)
        return flash_success

8、flash_run

    def flash_run(self, flash_drv_data, firmware_data, verify_of_data):
        start_time = time.time()
        if self.flash_ready() :
            flash_driver_success = self.flash_driver(flash_drv_data)
            if flash_driver_success:
                flash_firmware_success = self.flash_firmware(firmware_data, verify_of_data, verify_of_data_size)
                if flash_firmware_success:
                    self.flash_post()

                    time_taken = (time.time() - start_time)
                    print("[BT log] <Info>: Firmware flashing completed successfully.")
                    print(" Time Taken    :%10.3f Seconds" % time_taken)

                else:
                    print("[BT log] : Flash Failed")
            else:
                print("[BT log] : Flash Driver Failed")
        else:
            print("[BT log] : Flash Ready Failed")

9、split_into_chunks

    def split_into_chunks(data, chunk_size):
        chunk_list = []

        for i in range(0, len(data), chunk_size):
            chunk_list.append(data[i:i + chunk_size])
        return chunk_list

五、使用CANBootloader

1、main

if __name__ == "__main__":
    logging.basicConfig(level=logging.ERROR)

    ## Change the paths to your firmware and driver files
    flash_drv_path ='./Binary/flashdrv.s19'
    firmware_path = './Binary/Application.s19'

    flash_drv_data = bincopy.BinFile(flash_drv_path)
    firmware_data = bincopy.BinFile(firmware_path)

    # Verify firmware data setting [change for project]
    [verify_of_data, verify_of_data_size] = CRC32(firmware_data.as_binary())

    bootloader = CANBootloader(bitrate = 500000, func_tx_id = 0x701, phy_tx_id= 0x702, rx_id = 0x703)

    bootloader.setup_can(notifier_enable = False)
    bootloader.flash_run(flash_drv_data, firmware_data, verify_of_data)
    bootloader.close_can()
