Cesium|xt3d canvas画图billboard文字动画

效果
代码
预览地址

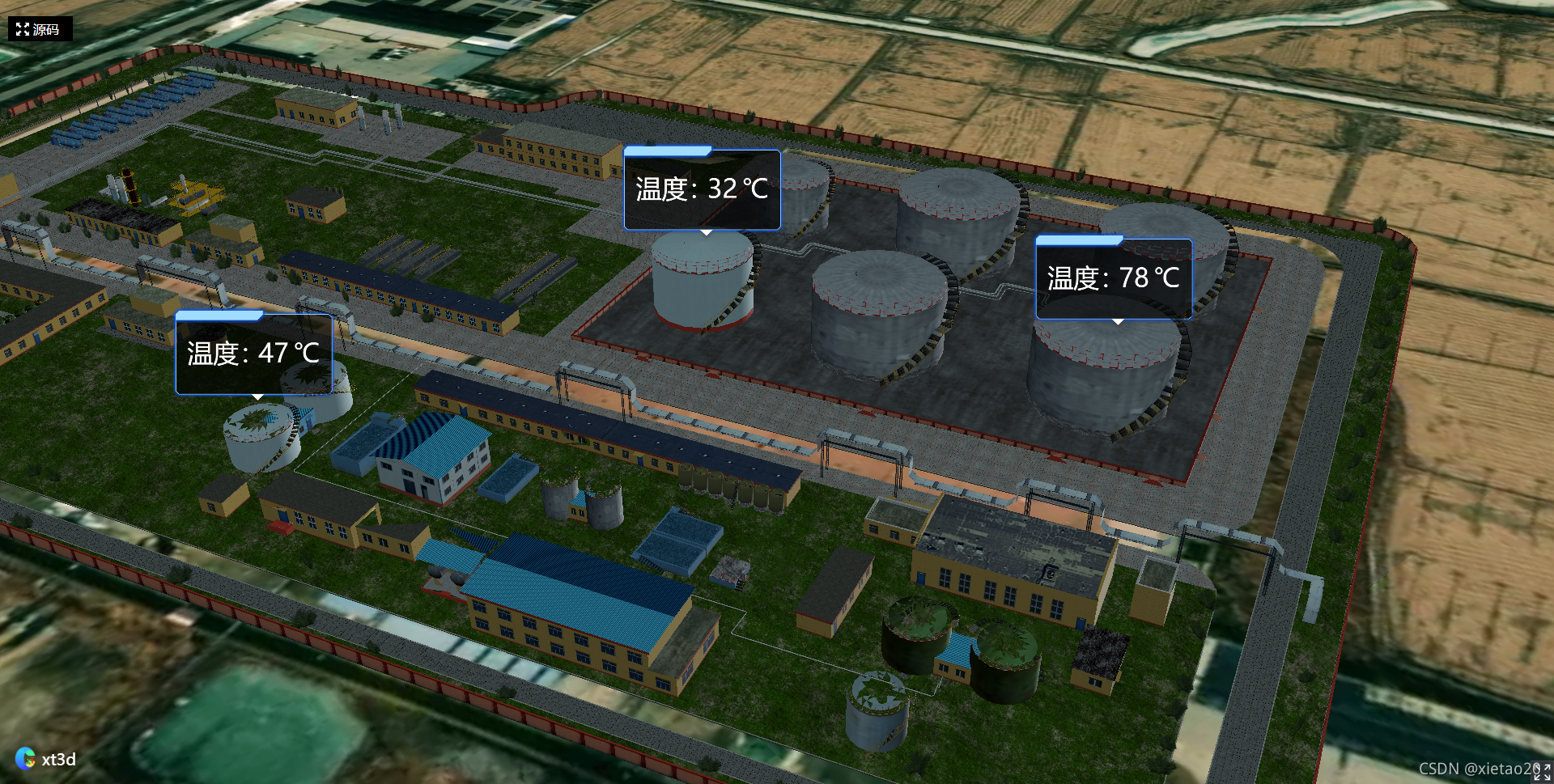

效果

在这里插入图片描述

代码

 <!DOCTYPE html>
<html lang="zh-CN">

<head>
    <meta charset="UTF-8">
    <meta name="viewport" content="width=device-width, initial-scale=1.0">
    <meta http-equiv="X-UA-Compatible" content="ie=edge">
    <title>cesium|xt3d</title>
    <!-- 引入Cesium -->
    <script src="https://cdn.jsdelivr.net/npm/cesium@1.84.0/Build/Cesium/Cesium.js"></script>
    <link rel="stylesheet" href="https://cdn.jsdelivr.net/npm/cesium@1.84.0/Build/Cesium/Widgets/widgets.css">

    <!--  引入xt3d -->
    <script src="http://www.xt3d.cn/xt3dlib/xt3d.min.js"></script>
    <style>
        html,
        body,
        #map3d {
            width: 100%;
            height: 100%;
            margin: 0px;
            padding: 0px;
        }
    </style>
</head>

<body>
    <div id="map3d"></div>
    <script>
        let xt3dInit = {
            init(el) {
                this.initViewer(el);
                this.load3dtiles();
                this.addBillboards();
                this.setView();
            },

            //初始化viewer
            initViewer(el) {
                this.viewer = new Cesium.Viewer(el, {
                    infoBox: false,
                    selectionIndicator: false,
                    navigation: false,
                    animation: false,
                    timeline: false,
                    baseLayerPicker: false,
                    geocoder: false,
                    homeButton: false,
                    sceneModePicker: false,
                    navigationHelpButton: false,
                    shouldAnimate: false,
                    imageryProvider: new Cesium.UrlTemplateImageryProvider({
                        url: "https://a.tiles.mapbox.com/v4/mapbox.satellite/{z}/{x}/{y}.png?access_token=mapboxTk"
                    })
                });
            },

            //加载3dtiles数据
            load3dtiles() {
                var tileset = this.viewer.scene.primitives.add(
                    new Cesium.Cesium3DTileset({
                        url: "http://www.xt3d.cn/data/3dtiles/gongchang/tileset.json",
                    })
                );
            },

            addBillboards() {
                let position = Cesium.Cartesian3.fromDegrees(121.92424498806614, 40.89661528946011, 12);
                let p1 = new xt3d.PointObject.BillboardPlane(this.viewer, position);

                position = Cesium.Cartesian3.fromDegrees(121.92435768210461, 40.89759625865303, 18);
                let p2 = new xt3d.PointObject.BillboardPlane(this.viewer, position);


                position = Cesium.Cartesian3.fromDegrees(121.92543397812894, 40.897983965047615, 19);
                let p3 = new xt3d.PointObject.BillboardPlane(this.viewer, position);

                let max = 100;
                let min = 1;
                setInterval(() => {
                    p1.updateText(Math.floor(Math.random() * (max - min)) + min);
                    p2.updateText(Math.floor(Math.random() * (max - min)) + min);
                    p3.updateText(Math.floor(Math.random() * (max - min)) + min);
                }, 1000);
            },

            setView() {
                let flyToOpts = {
                    destination: {
                        x: -2553393.6419166615,
                        y: 4097867.5398520203,
                        z: 4153816.106705832
                    },
                    orientation: {
                        heading: 5.402228688436439,
                        pitch: -0.5918797601825894,
                        roll: 6.280092867887838
                    },
                    duration: 1
                };
                this.viewer.scene.camera.setView(flyToOpts);
            },

            destroy() {
                this.viewer.entities.removeAll();
                this.viewer.imageryLayers.removeAll(true);
                this.viewer.destroy();
            }
        }

        xt3dInit.init("map3d");
    </script>
</body>

</html>

预览地址

xt3d 在线预览地址
