Avalonia 数据模型与数据绑定

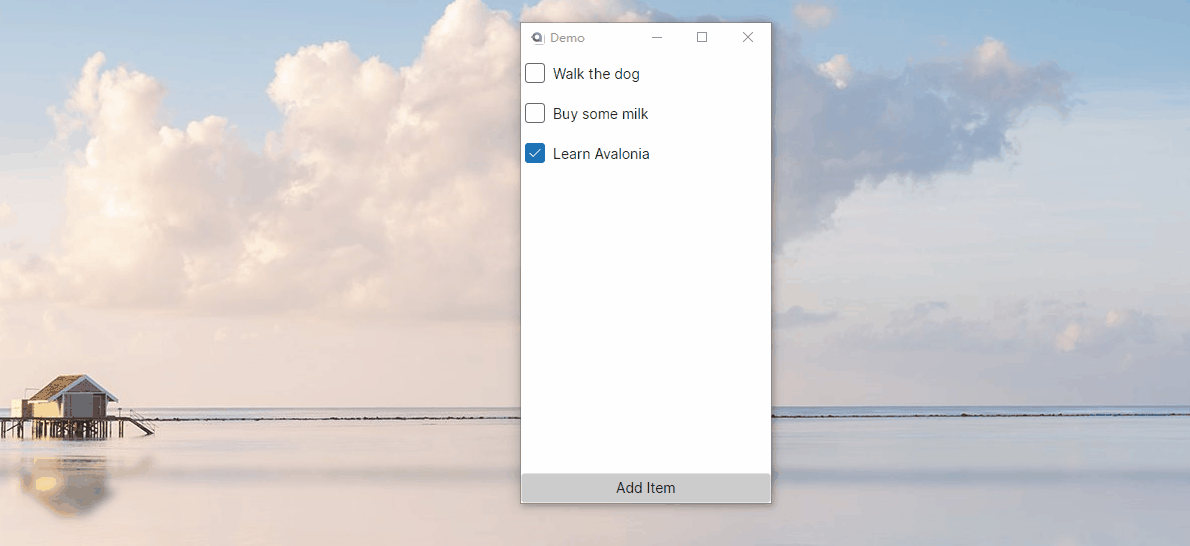

程序整体效果。

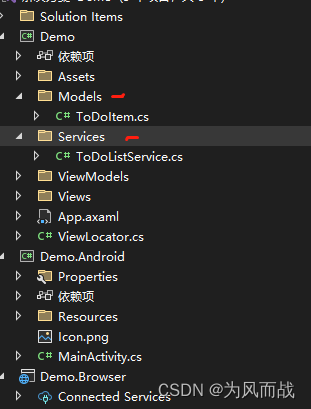

1、在Demo项目下创建Models和Services文件夹。如下图。

2、在 Models文件夹中创建ToDoItem.cs，在Services文件夹中创建ToDoListService.cs代码如下。

using System;
using System.Collections.Generic;
using System.Linq;
using System.Text;
using System.Threading.Tasks;

namespace Demo.Models
{
    public class ToDoItem
    {
        public string Description { get; set; }=String.Empty;
        public bool IsChecked { get; set; }
    }
}

using System;
using System.Collections.Generic;
using System.Linq;
using System.Text;
using System.Threading.Tasks;
using Demo.Models;

namespace Demo.Services
{
    public class ToDoListService
    {
        public IEnumerable<ToDoItem> GetItems() => new[]
        {
            new ToDoItem { Description = "Walk the dog" },
            new ToDoItem { Description = "Buy some milk" },
            new ToDoItem { Description = "Learn Avalonia", IsChecked = true },
        };
    }
}

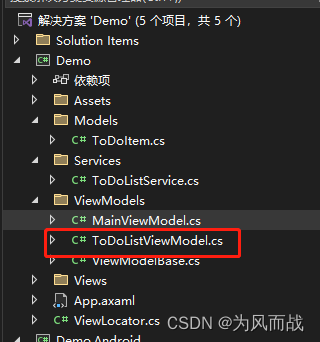

3、在Demo项目下创建视图模型，ViewModels文件夹中创建ToDoListViewModel.cs。代码如下。

using Demo.Models;
using System;
using System.Collections.Generic;
using System.Collections.ObjectModel;
using System.Linq;
using System.Text;
using System.Threading.Tasks;

namespace Demo.ViewModels
{
    public class ToDoListViewModel : ViewModelBase
    {
        public ToDoListViewModel(IEnumerable<ToDoItem> items)
        {
            ListItems = new ObservableCollection<ToDoItem>(items);
        }

        public ObservableCollection<ToDoItem> ListItems { get; }
    }
}

 对MainWindowViewModel.cs文件进行修改，代码如下。

using Demo.Services;

namespace Demo.ViewModels;

public class MainViewModel : ViewModelBase
{
    public ToDoListViewModel ToDoListViewModel { get; }

    public MainViewModel()
    {
        var service = new ToDoListService();
        ToDoListViewModel = new ToDoListViewModel(service.GetItems());
    }
}

4、添加数据绑定，修改ToDoListView.axaml文件如下。

<UserControl xmlns="https://github.com/avaloniaui"
             xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
             xmlns:d="http://schemas.microsoft.com/expression/blend/2008"
             xmlns:mc="http://schemas.openxmlformats.org/markup-compatibility/2006"
             mc:Ignorable="d" d:DesignWidth="250" d:DesignHeight="450"
             x:Class="Demo.Views.ToDoListView"
             xmlns:vm="using:Demo.ViewModels"
             x:DataType="vm:ToDoListViewModel">
    <DockPanel>
        <Label Content="111"></Label>
        <Button DockPanel.Dock="Bottom"
                HorizontalAlignment="Stretch"
                HorizontalContentAlignment="Center">
            Add Item
        </Button>
        <ItemsControl ItemsSource="{Binding ListItems}">
            <ItemsControl.ItemTemplate>
                <DataTemplate>
                    <CheckBox Margin="4"
                              IsChecked="{Binding IsChecked}"
                              Content="{Binding Description}"/>
                </DataTemplate>
            </ItemsControl.ItemTemplate>
        </ItemsControl>
    </DockPanel>
</UserControl>

注意代码中的

             xmlns:vm="using:Demo.ViewModels"
