前言
公司新需求要一个在线的excel编辑器
一、luckysheet是什么?
LuckySheet是一款基于Web的在线表格组件,一款纯前端类似excel的在线表格,功能强大、配置简单、完全开源结合Vue3可以实现数据的动态展示和编辑,为用户提供良好的用户体验。
二、使用步骤
1.引入库
有两种方式,第一种是直接通过npm下载
npm install luckysheet
第二种是将luckysheet下载到本地之后打包之后在引入(我会在另一篇文章中写怎么打包)
<link rel='stylesheet' href='./luckysheet/plugins/css/pluginsCss.css' />
<link rel='stylesheet' href='./luckysheet/plugins/plugins.css' />
<link rel='stylesheet' href='./luckysheet/css/luckysheet.css' />
<link rel='stylesheet' href='./luckysheet/assets/iconfont/iconfont.css' />
<script src="./luckysheet/plugins/js/plugin.js"></script>
<script src="./luckysheet/luckysheet.umd.js"></script>

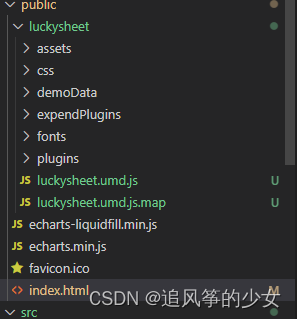

(将打包后的包放在public中)
2.使用
let options={
container: "luckysheet", // 设定DOM容器的id
title: "原始记录表格", // 设定表格名称
lang: "zh", // 设定表格语言,
gridKey: "luckysheet",
showtoolbar: true, //是否显示工具栏
functionButton:
'<button id="myElement" class="btn" style="padding:3px 6px;font-size: 12px;margin-right: 10px;">保存</button>',
showtoolbarConfig: {
undoRedo: true, //撤销重做,注意撤消重做是两个按钮,由这一个配置决定显示还是隐藏
paintFormat: true, //格式刷
currencyFormat: true, //货币格式
percentageFormat: true, //百分比格式
numberDecrease: true, // '减少小数位数'
numberIncrease: true, // '增加小数位数
moreFormats: true, // '更多格式'
font: true, // '字体'
fontSize: true, // '字号大小'
bold: true, // '粗体 (Ctrl+B)'
italic: true, // '斜体 (Ctrl+I)'
strikethrough: true, // '删除线 (Alt+Shift+5)'
underline: true, // '下划线 (Alt+Shift+6)'
textColor: true, // '文本颜色'
fillColor: true, // '单元格颜色'
border: true, // '边框'
mergeCell: true, // '合并单元格'
horizontalAlignMode: true, // '水平对齐方式'
verticalAlignMode: true, // '垂直对齐方式'
textWrapMode: true, // '换行方式'
textRotateMode: true, // '文本旋转方式'
image: true, // '插入图片'
link: true, // '插入链接'
chart: true, // '图表'(图标隐藏,但是如果配置了chart插件,右击仍然可以新建图表)
postil: true, //'批注'
pivotTable: true, //'数据透视表'
function: true, // '公式'
frozenMode: true, // '冻结方式'
sortAndFilter: true, // '排序和筛选'
conditionalFormat: true, // '条件格式'
dataVerification: true, // '数据验证'
splitColumn: true, // '分列'
screenshot: true, // '截图'
findAndReplace: true, // '查找替换'
protection: true, // '工作表保护'(解除保护密码为admin)
print: false, // '打印'
},
showsheetbar: false,
showsheetbarConfig: {
add: true, //新增sheet
menu: true, //sheet管理菜单
sheet: true, //sheet页显示
},
data: [
{
name: "测试",
celldata: [],
},
],
}
window.luckysheet.create(options);
其中options里面的functionButton需要注意下只能用javascript的点击事件
//事件写在luckysheet初始化之后
//myElement为functionButton中的button的id
const element = document.getElementById("myElement");
// 为该元素添加点击事件监听器
element.addEventListener("click", function () {
});
填充进表格中的数据需要转化为二维数据
let array= [
['iii','uuuuu'],
['1111','2222']
]
options.data[0].celldata=window.luckysheet.transToCellData(array)
总结
luckysheet的文档地址为https://mengshukeji.gitee.io/luckysheetdocs/zh/
