项目演示

学生端：

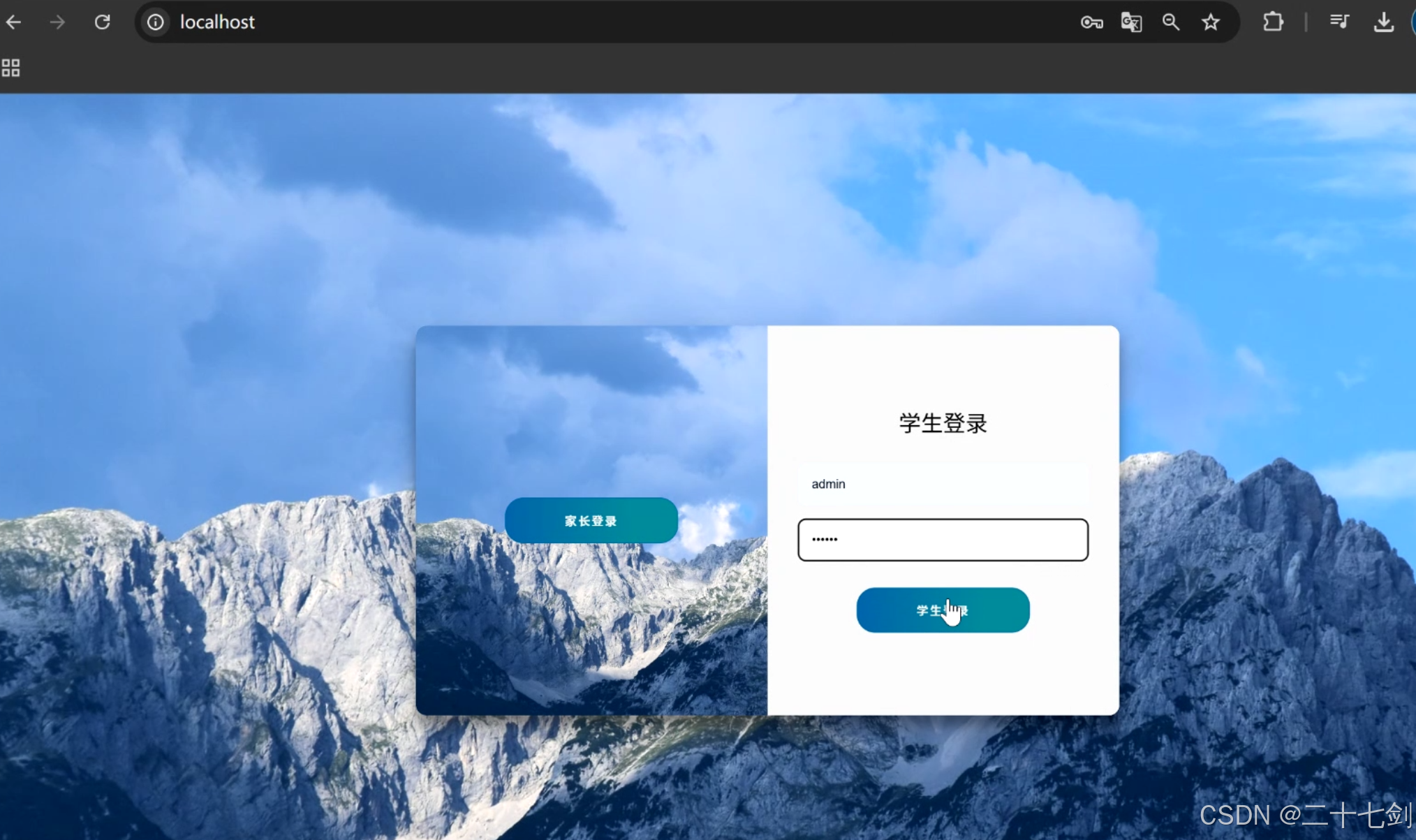

学生主界面

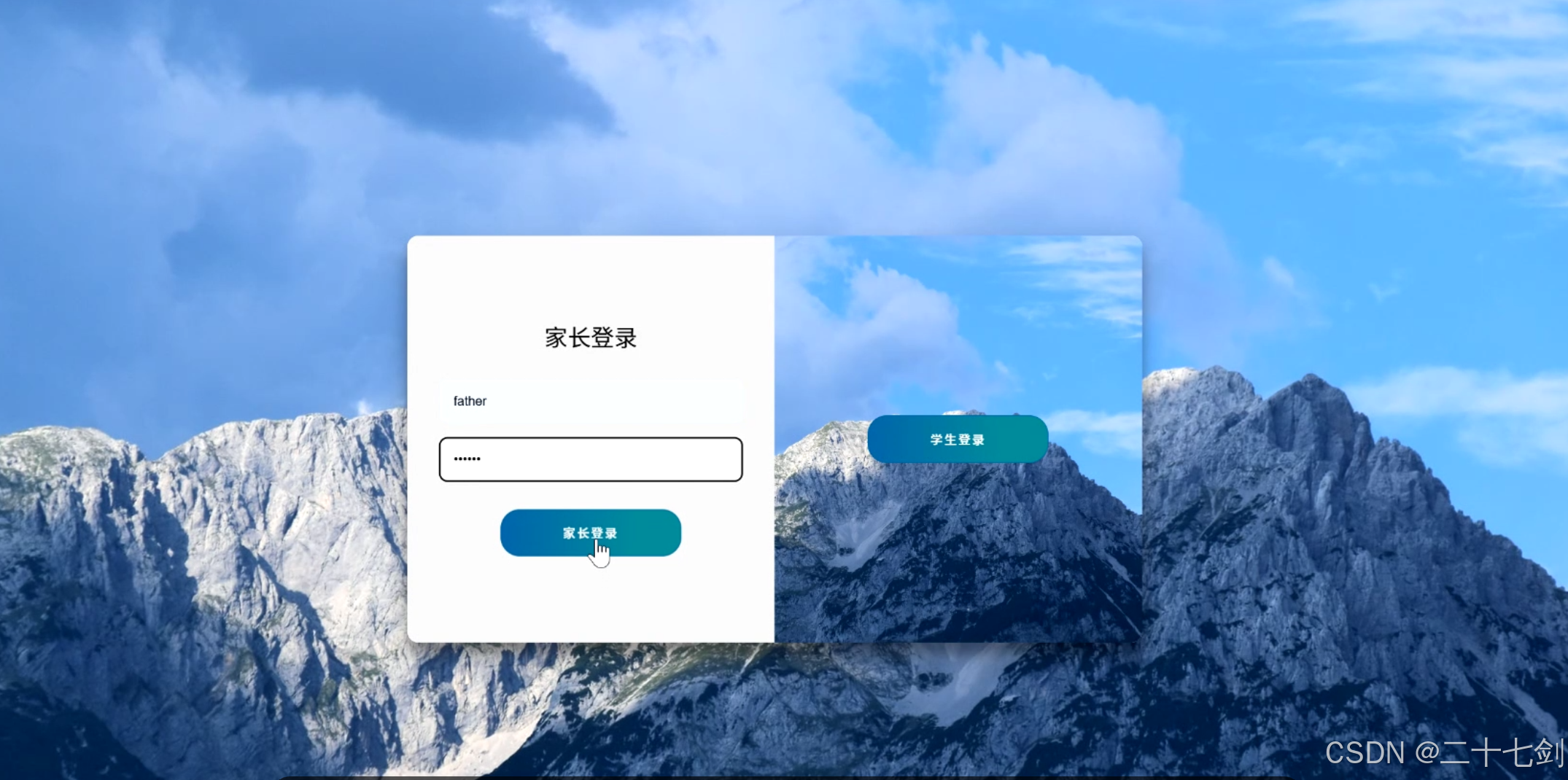

家长登录

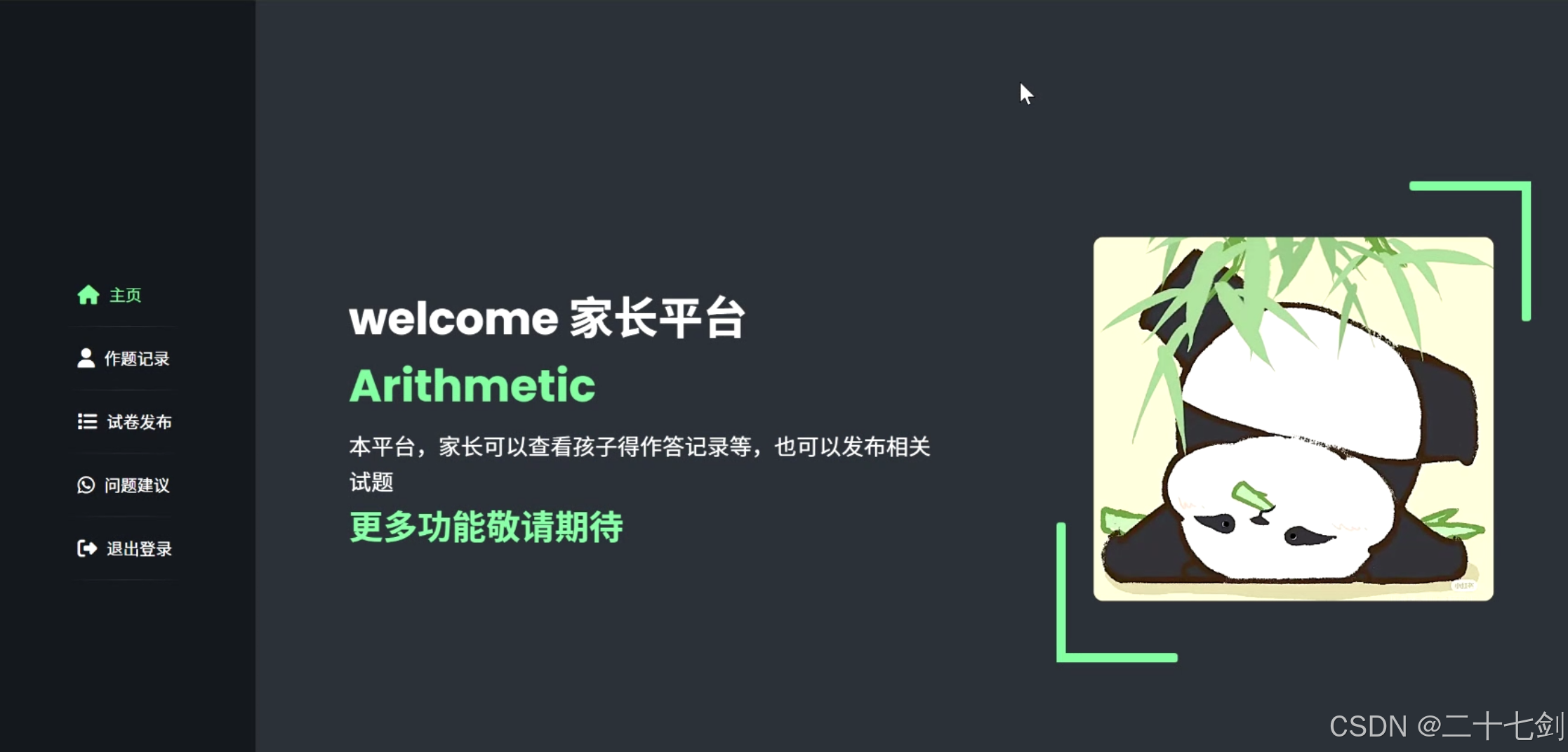

家长主页面

视频演示(前端效果很惊艳)

100以内学生家长端视频演示

项目介绍

1使用技术和代码包

前端使用html+css+javaScript

后端使用SSM

数据库 mysql

网关层 nginx(反向代理)

after_demo1:后端代码,个人的数据库信息需要在里面的.yml里面修改

\ArithmeticDemo1\nginx-1.20.2\html\login:login包是前端包，只不过我把它配置在了nginx里面

mysql里面是五个表,直接导入

项目全路径不能包含中文路径，否则，nginx启动失败

2项目定位

本项目就是为了满足二年级一下阶段小学生100以内的算式计算，并且家长可以查看自家孩子的做题记录，以及家长发布试题，

3项目内容及技术实现

3.1学生界面

登录界面使用jwt进行前后端验证，以后端生成令牌的方式传送到前端，这样的作用是用户只有登录后才可以使用，而不是通过复制主界面网址直接跳转使用，

+，-，*，/，混合试题，

每个都是当用户点击后从后端请求返回100道对应的试题，例如当用户点击+时，前端的请求体内会带有对应的请求类型，当后端Controller层接收后，后调用Service层进行功能实现，service层会根据请求的算式类型，调用Utils组件里的算式生成方法，这个方法返回的是两个hashmap类型，一个hashmap存放的是例如1+1的算式，另一个hashmap存放的是这个算式对应的结果，算式和结果之间使用相同的key值联系，

除法混合实现逻辑举例

因为这是个前后端项目，所以在处理除法时，直接调用乘法实现，把乘法的结果当作被除数，把乘法的两个乘数分别当作除法算式的除数和结果，这样保证了一道算式的三个数都在1-100之间而且没有余数问题，即避开了整除问题

混合试题的生成就是随机调用+，-，*，/的方法

学生只要提交试题或练习，都会在界面显示正确率等信息，这些信息会保存到数据库，以便家长查询

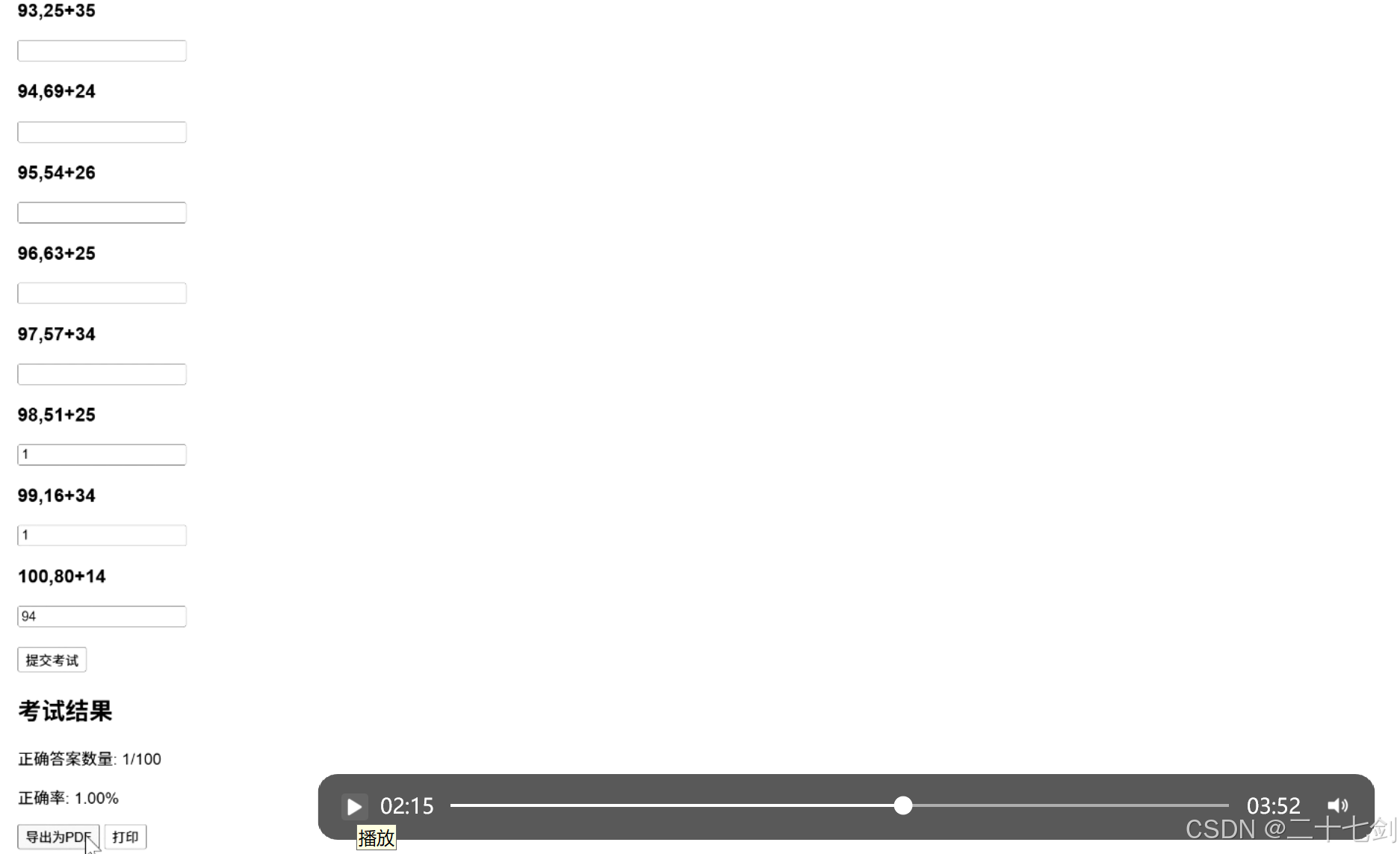

学生考试

当用户点击考试后，前端会在请求体中加入当前学生姓名返回给后端，后端通过访问数据库，里面的试题库这个表，查询到对应的家长所发布的试题，这样前端返回的是家长发布的多套试卷，当用户选择其中一套试卷后，跳转考试界面，开始计时考试，在考试界面有导出为pdf功能和打印功能，

退出登录

当用户点击退出按钮后，系统会删除该用户的jwt令牌，之后跳转道登录界面

3.2家长界面

家长登录

查看对应孩子答题信息

孩子情况界面，会从后端请求到对应的孩子信息，做题记录，时间，还可以通过折线统计图查看孩子正确率走势

建议界面

家长通过填写联系方式和建议信息从而向开发者提出建议

4数据库

各个数据库之间通过外键添加从而联系，除此之外用户的密码信息通过MD5加密后存入数据库

部分代码


添加微信 ershiqijian 获取源码




package com.arithmetic.controller.student_admin;
import com.arithmetic.result.EquationResult;
import com.arithmetic.result.PageResult;
import com.arithmetic.result.Result;
import com.arithmetic.service.studentService.GeneratePracticeService;
import lombok.extern.slf4j.Slf4j;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.web.bind.annotation.GetMapping;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.RestController;
@RestController
@RequestMapping("/student/Practice")
@Slf4j
public class GeneratePracticeController {
    @Autowired
    private GeneratePracticeService generatePracticeService;
    //TODO:这里需要将参数100通过yml文件引入
    int number=100;//生成题目数量
    @GetMapping("/addition")
    public Result<EquationResult> generateAddition() {
        log.info("生成加法练习");
        EquationResult equationResult = generatePracticeService.pageAddition(number);
        return Result.success(equationResult);
    }
    @GetMapping("/subtraction")
    public Result<EquationResult> generateSubtraction() {
        log.info("生成减法练习，");
        EquationResult equationResult = generatePracticeService.pageSubtraction(number);
        return Result.success(equationResult);
    }
    @RequestMapping("/multiplication")
    public Result<EquationResult> generateMultiplication() {
        log.info("生成乘法练习，");
        EquationResult equationResult = generatePracticeService.pageMultiplication(number);
        return Result.success(equationResult);
    }
    @RequestMapping("/division")
    public Result<EquationResult> generateDivision() {
        log.info("生成除法练习，");
        EquationResult equationResult = generatePracticeService.pageDivision(number);
        return Result.success(equationResult);
    }
    @RequestMapping("/mix")
    public Result<EquationResult> generateMix() {
        log.info("生成混合练习，");
         EquationResult equationResult = generatePracticeService.pageMix(number);
        return Result.success(equationResult);
    }

}


package com.arithmetic.service.studentService;

import com.arithmetic.result.EquationResult;

public interface GeneratePracticeService {
    EquationResult pageAddition(int number);
    EquationResult pageSubtraction(int number);
    EquationResult pageMultiplication(int number);
    EquationResult pageDivision(int number);
    EquationResult pageMix(int number);


}
...

package com.arithmetic.service.studentService.impl;
import com.arithmetic.properties.EquationProperties;
import com.arithmetic.result.EquationResult;

import com.arithmetic.service.studentService.GeneratePracticeService;
import com.arithmetic.utils.EquationConstructionUtil;
import org.springframework.stereotype.Service;

import java.util.HashMap;
import java.util.Random;
@Service
public class GeneratePracticeServiceImpl implements GeneratePracticeService {
    HashMap<Integer,String> hashMap1=new HashMap();
    HashMap<Integer,Integer> hashMap2=new HashMap<>();
    EquationConstructionUtil equationConstructionUtil=new EquationConstructionUtil();

    public EquationResult pageAddition(int number) {

        while(number>0) {
            EquationProperties equationProperties = equationConstructionUtil.generationEquation("+");
            hashMap1.put(number, equationProperties.getSuanshi());
            hashMap2.put(number, equationProperties.getJieguo());
            number--;
        }


        return new EquationResult(hashMap1,hashMap2);
    }
    public EquationResult pageSubtraction(int number) {

        while(number>0) {
            EquationProperties equationProperties = equationConstructionUtil.generationEquation("-");
            hashMap1.put(number, equationProperties.getSuanshi());
            hashMap2.put(number, equationProperties.getJieguo());
            number--;
        }


        return new EquationResult(hashMap1,hashMap2);
    }
    public EquationResult pageMultiplication(int number) {

        while(number>0) {
            EquationProperties equationProperties = equationConstructionUtil.generationEquation("*");
            hashMap1.put(number, equationProperties.getSuanshi());
            hashMap2.put(number, equationProperties.getJieguo());
            number--;
        }


        return new EquationResult(hashMap1,hashMap2);

    }
    public EquationResult pageDivision(int number) {

        while(number>0) {
            EquationProperties equationProperties = equationConstructionUtil.generationEquation("/");
            hashMap1.put(number, equationProperties.getSuanshi());
            hashMap2.put(number, equationProperties.getJieguo());
            number--;
        }
        return new EquationResult(hashMap1,hashMap2);

    }


    public EquationResult pageMix(int number) {
        while(number>0) {
            EquationProperties equationProperties = equationConstructionUtil.generationEquation("mix");
            hashMap1.put(number, equationProperties.getSuanshi());
            hashMap2.put(number, equationProperties.getJieguo());
            number--;
        }


        return new EquationResult(hashMap1,hashMap2);
    }

}
...

package com.arithmetic.interceptor;

import com.arithmetic.constant.JwtClaimsConstant;
import com.arithmetic.context.BaseContext;
import com.arithmetic.properties.JwtProperties;

import com.arithmetic.utils.JwtUtil;
import io.jsonwebtoken.Claims;
import lombok.extern.slf4j.Slf4j;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.stereotype.Component;
import org.springframework.web.method.HandlerMethod;
import org.springframework.web.servlet.HandlerInterceptor;

import javax.servlet.http.HttpServletRequest;
import javax.servlet.http.HttpServletResponse;

/**
 * jwt令牌校验的拦截器
 */
@Component
@Slf4j
public class JwtTokenAdminInterceptor implements HandlerInterceptor {

    @Autowired
    private JwtProperties jwtProperties;

    /**
     * 校验jwt
     *
     * @param request
     * @param response
     * @param handler
     * @return
     * @throws Exception
     */
    public boolean preHandle(HttpServletRequest request, HttpServletResponse response, Object handler) throws Exception {
        //判断当前拦截到的是Controller的方法还是其他资源
        if (!(handler instanceof HandlerMethod)) {
            //当前拦截到的不是动态方法，直接放行
            return true;
        }

        //1、从请求头中获取令牌
        String token = request.getHeader(jwtProperties.getAdminTokenName());


        //2、校验令牌
        try {
            log.info("jwt校验:{}", token);
            Claims claims = JwtUtil.parseJWT(jwtProperties.getAdminSecretKey(), token);
            Long stuId = Long.valueOf(claims.get(JwtClaimsConstant.Student_ID).toString());
            log.info("当前id：", stuId);

//            将用户id存储到ThreadLocal
            BaseContext.setCurrentId(stuId);

            //3、通过，放行
            return true;
        } catch (Exception ex) {
            //4、不通过，响应401状态码
            response.setStatus(401);
            return false;
        }
    }


}

...
package com.arithmetic.service.studentService.impl;

import com.alibaba.fastjson.JSONObject;
import com.arithmetic.dto.StudentTestDTO;
import com.arithmetic.entity.StudentTest;
import com.arithmetic.mapper.studentMapper.StudentTestMapper;
import com.arithmetic.service.studentService.GetTestService;
import com.arithmetic.utils.JacksonToHashMap;
import com.arithmetic.vo.StudentTestVO;
import com.fasterxml.jackson.core.type.TypeReference;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.stereotype.Service;

import java.util.ArrayList;
import java.util.HashMap;
import java.util.List;

import static com.arithmetic.utils.JacksonToHashMap.jsonToHashMap;

@Service
public class GetTestServiceImpl implements GetTestService {
    @Autowired
    StudentTestMapper studentTestMapper;

    public List<StudentTestVO> getTest(StudentTestDTO studentTestDTO) {
        List<StudentTest> studentTests =studentTestMapper.getTest(studentTestDTO);
        List<StudentTestVO> studentTestVOS = new ArrayList<>();
        for(int i=0;i<studentTests.size();i++){
            //获取每行数据
           String question= studentTests.get(i).getQuestion();
           String answer=studentTests.get(i).getAnswer();
           //String 转hashmap
//            HashMap<Integer,String> map1 = jsonToHashMap(question);
//            HashMap<Integer,Integer> map2 = jsonToHashMap(answer);
            HashMap<Integer, String> map1 = JacksonToHashMap.jsonToHashMap(question, new TypeReference<HashMap<Integer, String>>() {});
            HashMap<Integer, Integer> map2 = JacksonToHashMap.jsonToHashMap(answer, new TypeReference<HashMap<Integer, Integer>>() {});

            //放入StudentTestVO
            StudentTestVO studentTestVO = StudentTestVO.builder()
                    .question(map1)
                    .answer(map2)
                    .build();
            //这里把处理好的数据放入
            studentTestVOS.add(studentTestVO);
        }
        return studentTestVOS;
    }
}
