01、可能是目前最简单,最详细的Quartz集群搭建了

                                               ========= 本文，只涉及到quartz集群搭建应用 ==========

1，下载quartz集群数据库表压缩包。

下载地址：链接: https://pan.baidu.com/s/1y6rOUfUuXg189Z4Fta3tyg 密码: j29f

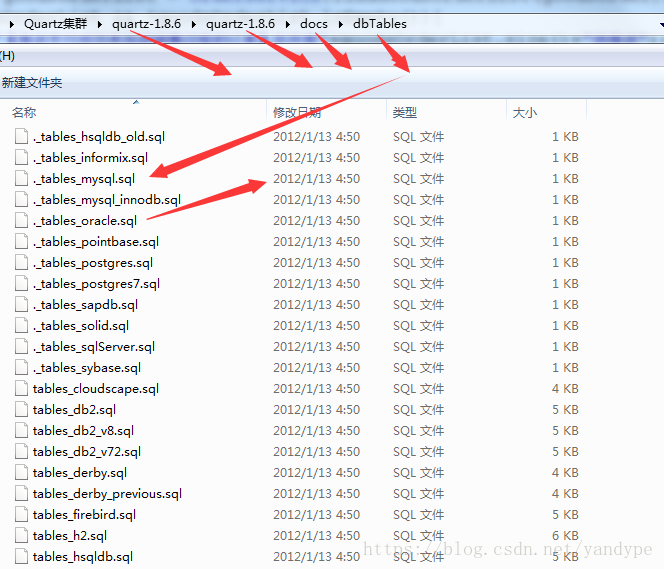

解压打开文件夹，选择对应的数据库表sql脚本：

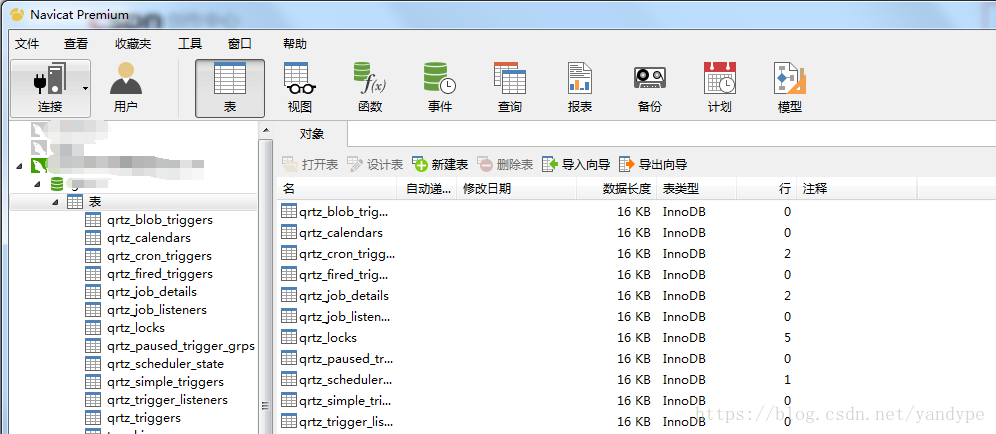

2，选择对应的sql脚本。到数据库里面执行创建表。我这里是mysql数据库。

3，编写job类中可以使用Spring自动注入

package com.cong.quartz;

import org.quartz.spi.TriggerFiredBundle;
import org.springframework.beans.BeansException;
import org.springframework.beans.factory.config.AutowireCapableBeanFactory;
import org.springframework.context.ApplicationContext;
import org.springframework.context.ApplicationContextAware;
import org.springframework.scheduling.quartz.SpringBeanJobFactory;

/**
 * @author
 * @description job类支持spring的自动注入
 */
public class AutowiringSpringBeanJobFactory extends SpringBeanJobFactory implements ApplicationContextAware{

	private transient AutowireCapableBeanFactory beanFactory;

    public void setApplicationContext(ApplicationContext applicationContext) throws BeansException{
        beanFactory = applicationContext.getAutowireCapableBeanFactory();
    }

    @Override
    protected Object createJobInstance(TriggerFiredBundle bundle) throws Exception{
        Object job = super.createJobInstance(bundle);
        beanFactory.autowireBean(job);
        return job;
    }
}

3.1，job类

package com.cong.quartz;

import org.quartz.JobExecutionContext;
import org.quartz.JobExecutionException;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.scheduling.quartz.QuartzJobBean;

import com.cong.service.GoodsOrderService;

public class GoodsOrderStatusQuartz extends QuartzJobBean{

	@Autowired
	private GoodsOrderService goodsOrderService;

	@Override
	protected void executeInternal(JobExecutionContext context)throws JobExecutionException {
		try {
			goodsOrderService.synOrderStatus();
		} catch (Exception e) {
			e.printStackTrace();
		}
	}

}

4，配置quartz.properties文件

#==============================================================
#Configure Main Scheduler Properties
#==============================================================
org.quartz.scheduler.instanceName = quartzScheduler
org.quartz.scheduler.instanceId = AUTO

#==============================================================
#Configure JobStore
#==============================================================
org.quartz.jobStore.misfireThreshold = 60000
org.quartz.jobStore.class = org.quartz.impl.jdbcjobstore.JobStoreTX
org.quartz.jobStore.driverDelegateClass=org.quartz.impl.jdbcjobstore.StdJDBCDelegate
org.quartz.jobStore.tablePrefix = QRTZ_
org.quartz.jobStore.maxMisfiresToHandleAtATime=10
org.quartz.jobStore.isClustered = true
org.quartz.jobStore.clusterCheckinInterval = 20000

#==============================================================
#Configure ThreadPool
#==============================================================
org.quartz.threadPool.class = org.quartz.simpl.SimpleThreadPool
org.quartz.threadPool.threadCount = 10
org.quartz.threadPool.threadPriority = 5
org.quartz.threadPool.threadsInheritContextClassLoaderOfInitializingThread =true

5，整合spring与quartz的xml配置文件

<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
	xmlns:context="http://www.springframework.org/schema/context" xmlns:p="http://www.springframework.org/schema/p"
	xmlns:aop="http://www.springframework.org/schema/aop" xmlns:tx="http://www.springframework.org/schema/tx"
	xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
	xsi:schemaLocation="http://www.springframework.org/schema/beans http://www.springframework.org/schema/beans/spring-beans-4.0.xsd
	http://www.springframework.org/schema/context http://www.springframework.org/schema/context/spring-context-4.0.xsd
	http://www.springframework.org/schema/aop http://www.springframework.org/schema/aop/spring-aop-3.0.xsd http://www.springframework.org/schema/tx http://www.springframework.org/schema/tx/spring-tx-3.0.xsd
	http://www.springframework.org/schema/util http://www.springframework.org/schema/util/spring-util-4.0.xsd">

    <!-- quartz集群总管理类  开始 -->
	<bean name="quartzScheduler" class="org.springframework.scheduling.quartz.SchedulerFactoryBean">
        <!-- 数据源 -->
        <property name="dataSource" ref="dataSource"/>
        <!-- 避免启动的时候,定时器连续执行多次。设置延迟加载10秒,即启动后10秒再执行 -->
        <property name="startupDelay" value="10"/>

        <!-- 开启修改触发时间同步更新数据库执行时间。如有需求才开启,建议使用默认关闭就好了
        <property name="overwriteExistingJobs" value="true" />  -->

        <property name="applicationContextSchedulerContextKey" value="applicationContextKey" />
        <property name="configLocation" value="classpath:quartz.properties" />
        <!-- 配置job类可以使用@Autowired注入 -->
        <property name="jobFactory">
            <bean class="com.cong.quartz.AutowiringSpringBeanJobFactory"/>
        </property>
        <property name="triggers">
            <list>
                <ref bean="timingGoodsOrderStatusCronTrigger" />
            </list>
        </property>
    </bean>
	<!-- quartz集群总管理类  结束-->

    <!-- 定时扫描当天晚上1点未支付单  开始 -->
	<bean name="timingGoodsOrderStatusJobDetail" class="org.springframework.scheduling.quartz.JobDetailFactoryBean">
		<property name="jobClass" value="com.cong.quartz.GoodsOrderStatusQuartz" />
		<property name="durability" value="true"/>
	</bean>
	<bean id="timingGoodsOrderStatusCronTrigger" class="org.springframework.scheduling.quartz.CronTriggerFactoryBean">
		<property name="jobDetail" ref="timingGoodsOrderStatusJobDetail" />
		<property name="cronExpression" value="0 0 1 * * ?" />
	</bean>
    <!-- 定时扫描当天晚上1点未支付单  结束 -->

</beans>

到此，quartz的集群就搭建完了。是不是很简单呢？

可能遇到的问题：

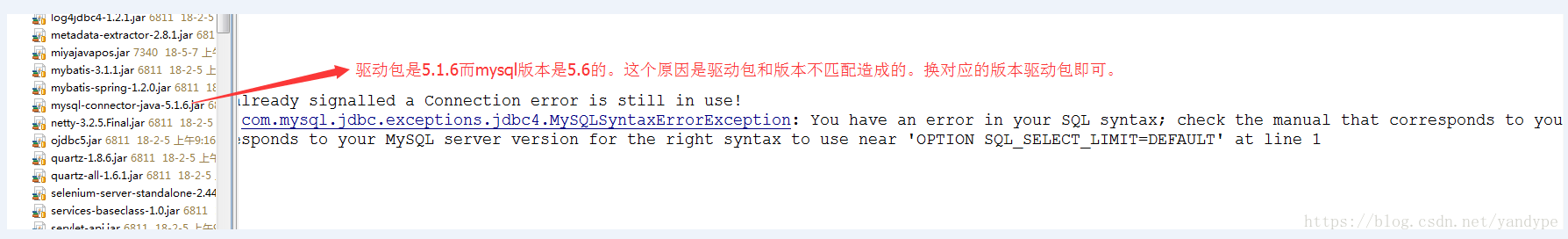

        数据库版本可能与驱动包不匹配。导致quartz抛此异常：

com.mysql.jdbc.exceptions.jdbc4.MySQLSyntaxErrorException: You have an error in your SQL syntax; check the manual that corresponds to your MySQL server version for the right syntax to use near 'OPTION SQL_SELECT_LIMIT=DEFAULT' at line 1

解决方案：

   把驱动包换成对应的版本。如：
