华为VRP设备例行检查命令（笔记篇）

本文链接：https://blog.csdn.net/yangchuang111213/article/details/146248412

一. 设备基本信息检查

1.设备运行的版本 display version

<Huawei>display version

Huawei Versatile Routing Platform Software

VRP (R) software, Version 5.130 (AR2200 V200R003C00)

Copyright (C) 2011-2012 HUAWEI TECH CO., LTD

Huawei AR2240 Router uptime is 0 week, 0 day, 1 hour, 46 minutes

BKP 0 version information:

1. PCB Version : AR01BAK2B VER.NC

2. If Supporting PoE : No

3. Board Type : AR2240

4. MPU Slot Quantity : 1

5. LPU Slot Quantity : 8


MPU 11(Master) : uptime is 0 week, 0 day, 1 hour, 46 minutes

MPU version information :

1. PCB Version : AR01SRU3A VER.A

2. MAB Version : 0

3. Board Type : SRU40

4. BootROM Version : 0


FAN version information :

1. PCB Version : AR01DF05A VER.A

2. Board Type : FAN

3. Software Version : 0

2.检查软件包 display startup

<Huawei>display startup

MainBoard:

Startup system software: null

Next startup system software: null

Backup system software for next startup: null

Startup saved-configuration file: flash:/vrpcfg.zip

Next startup saved-configuration file: flash:/vrpcfg.zip

Startup license file: null

Next startup license file: null

Startup patch package: null

Next startup patch package: null

Startup voice-files: null

Next startup voice-files: null

3.检查License display license

<Huawei>display license

Info: License activated does not exist on master board. /这个是虚拟设备，没有许可

4.检查补丁信息 display patch-information

<Huawei>display patch-information

Info: No patch exists.

The state of the patch state file is: Idle

The current state is: Idle

5.检查系统时间 display clock

<Huawei>display clock

2025-03-13 17:10:53

Thursday

Time Zone(China-Standard-Time) : UTC-08:00

6.检查Fiash空间 dir flash:

<Huawei>dir flash:

Directory of flash:/


Idx Attr Size(Byte) Date Time(LMT) FileName

0 drw- - Mar 13 2025 07:18:33 dhcp

1 -rw- 121,802 May 26 2014 09:20:58 portalpage.zip

2 -rw- 2,263 Mar 13 2025 07:18:28 statemach.efs

3 -rw- 828,482 May 26 2014 09:20:58 sslvpn.zip


1,090,732 KB total (784,464 KB free)

7.检查信息中心状态 display info-center

<Huawei>display info-center

Information Center: enabled

Log host:

Console:

channel number: 0, channel name: console

Monitor:

channel number: 1, channel name: monitor

SNMP Agent:

channel number: 5, channel name: snmpagent

Log buffer:

enabled

max buffer size: 1024, current buffer size: 512

current messages: 3, channel number: 4, channel name: logbuffer

dropped messages: 0, overwritten messages: 0

Trap buffer:

enabled

max buffer size: 1024, current buffer size: 256

current messages: 1, channel number: 3, channel name: trapbuffer

dropped messages: 0, overwritten messages: 0

Logfile:

channel number: 9, channel name: channel9, language: English

Information timestamp setting:

log - date, trap - date, debug - date


Sent messages = 941, Received messages = 941

8.检查配置信息正确性 display current-configuration

<Huawei>display current-configuration

[V200R003C00]

#

snmp-agent local-engineid 800007DB03000000000000

snmp-agent

#

clock timezone China-Standard-Time minus 08:00:00

#

portal local-server load portalpage.zip

#

drop illegal-mac alarm

#

set cpu-usage threshold 80 restore 75

#

aaa

authentication-scheme default

authorization-scheme default

accounting-scheme default

domain default

domain default_admin

local-user admin password cipher %$%$+_(W(-p~jV"E]3C6C>.%TMiu%$%$

local-user admin privilege level 15

local-user admin service-type telnet http

#

firewall zone Local

9.检查debug开关状态 display debugging

<Huawei>display debugging  /设备正常运行时，开关处于关闭状态

10.检查配置是否保存 display saved-configuration

<Huawei>display saved-configuration

There is no correct configuration file in FLASH

二. 设备运行状态检查

1.单板运行状态 display device

<Huawei>display device

AR2240's Device status:

Slot Sub Type Online Power Register Alarm Primary

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

2 - 4GEW-T Present PowerOn Registered Normal NA

3 - 2SA Present PowerOn Registered Normal NA

4 - 2E1/T1-F Present PowerOn Registered Normal NA

5 - 4GEW-T Present PowerOn Registered Normal NA

6 - 4GEW-T Present PowerOn Registered Normal NA

7 - 24GE Present PowerOn Registered Normal NA

8 - 24GE Present PowerOn Registered Normal NA

11 - SRU40 Present PowerOn Registered Normal Master

12 - FAN Present PowerOn Registered Normal NA

2.设备复位情况 display reset-reason

<Huawei>display reset-reason

The LPU frame[0] board[1] has no reset records.

The LPU frame[0] board[2] has no reset records.

The LPU frame[0] board[3] has no reset records.

The LPU frame[0] board[4] has no reset records.

The LPU frame[0] board[5] has no reset records.

The LPU frame[0] board[6] has no reset records.

The LPU frame[0] board[7] has no reset records.

The LPU frame[0] board[8] has no reset records.

The MPU frame[0] board[11] has no reset records.

3.设备温度 display temperature all

<Huawei>display temperature all

--------------------------------------------------------------------------------


Slot Card Sensor No. SensorName Status Upper Lower Temp(C)


--------------------------------------------------------------------------------

2 - 1 4GEW-T TEMP NORMAL 65 0 0

3 - 1 2SA TEMP NORMAL 65 0 0

4 - 1 2E1/T1-F TEMP NORMAL 65 0 0

5 - 1 4GEW-T TEMP NORMAL 65 0 0

6 - 1 4GEW-T TEMP NORMAL 65 0 0

7 - 1 24GE TEMP NORMAL 65 0 0

8 - 1 24GE TEMP NORMAL 65 0 0

11 - 1 SRU40 TEMP NORMAL 70 0 0

4.风扇状态 display fan

<Huawei>display fan

------------------------------------------------------------------

FanId FanNum Present Register Speed Mode

------------------------------------------------------------------

12 [1-5] YES YES NA AUTO

5.FTP服务端口状态 display ftp-client

<Huawei>display ftp-client

Info: The source address of FTP client is 0.0.0.0.

6.告警信息 display alarm active

<Huawei>display alarm active

7.内存占用率信息 display memory-usage

<Huawei>display memory-usage

Memory utilization statistics at 2025-03-13 17:33:08 977 ms

System Total Memory Is: 159383552 bytes

Total Memory Used Is: 131050088 bytes

Memory Using Percentage Is: 82%

8.设备健康状况 display health

<Huawei>display health

--------------------------------------------------------------------------------


Slot Card Sensor No. SensorName Status Upper Lower Temp(C)


--------------------------------------------------------------------------------


2 - 1 4GEW-T TEMP NORMAL 65 0 0

3 - 1 2SA TEMP NORMAL 65 0 0

4 - 1 2E1/T1-F TEMP NORMAL 65 0 0

5 - 1 4GEW-T TEMP NORMAL 65 0 0

6 - 1 4GEW-T TEMP NORMAL 65 0 0

7 - 1 24GE TEMP NORMAL 65 0 0

8 - 1 24GE TEMP NORMAL 65 0 0

11 - 1 SRU40 TEMP NORMAL 70 0 0

--------------------------------------------------------------------------

PowerNo Present Mode State Current(A) Voltage(V) Power(W)

--------------------------------------------------------------------------

9 NO N/A N/A N/A N/A N/A

10 NO N/A N/A N/A N/A N/A

------------------------------------------------------------------

FanId FanNum Present Register Speed Mode

------------------------------------------------------------------

12 [1-5] YES YES NA AUTO

The total power is : 350.000(W)

The used power is : 0.000(W)

The remain power is : 350.000(W)

The system used power detail information :

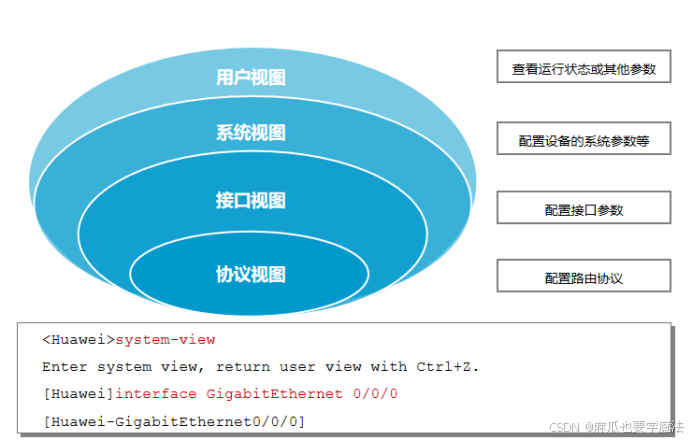

这里是封面：
