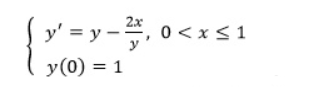

原式:

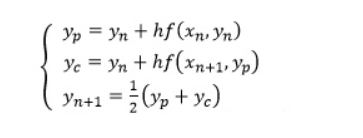

改进欧拉法公式:
单纯的比着公式打程序,与欧拉法进行对比,发现改进欧拉法的精度高了不少
import numpy as np
from matplotlib import pyplot as plt
from scipy.integrate import odeint
#梯形算法
def f(x,y):
return y-2*x/y
def diff_equation(y, x):
return np.array(y - 2 * x / y)
h=0.1
# x = np.linspace(0, 1, num=10)
x=[x/10 for x in range(0,11)]
n=np.size(x)
y=np.zeros([1,n+1])
t=np.zeros([1,n])
y[0,0]=1
t = odeint(diff_equation, 1, x) # 利用python内置函数求解该常微分方程
for i in range(n):
yp=y[0,i]+h*f(x[i],y[0,i])
yc=y[0,i]+h*f(x[i]+h,yp)
y[0,i+1]=0.5*(yp+yc)
print(y)
print(t)
plt.figure(1)
plt.grid()
plt.plot(x, y[0,0:n],label='evolve-Euler')
plt.plot(x, t[:,0],color='red',linestyle='--',label='Standard value')
h=0.1
y=1
x=0
xx = []
yy = []
for i in range(100):
y=1.1*y-0.2*x/y
x=x+h
xx.append(x)
yy.append(y)
if(x>1):
break
plt.plot(xx,yy,color='brown',linestyle='--',label='Euler')
plt.legend(loc='upper right')
plt.show()

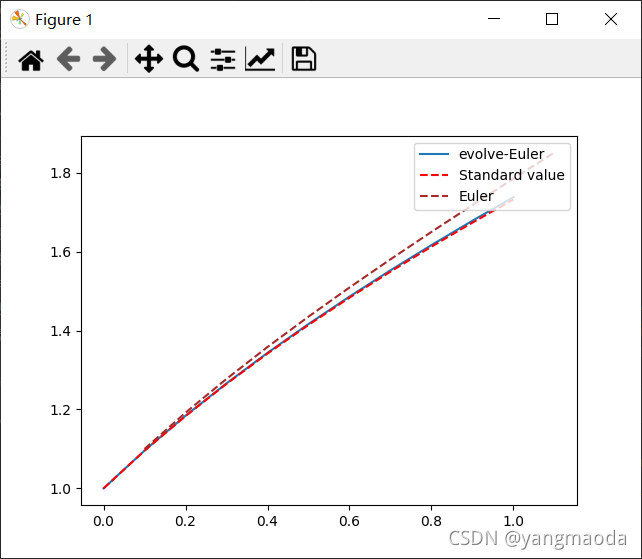

运行结果:
