华为交换机配置trunk接口

配置Trunk接口

trunk端口一般用于交换机之间连接的端口，trunk端口可以属于多个vlan，可以接受发发送多个vlan的报文。

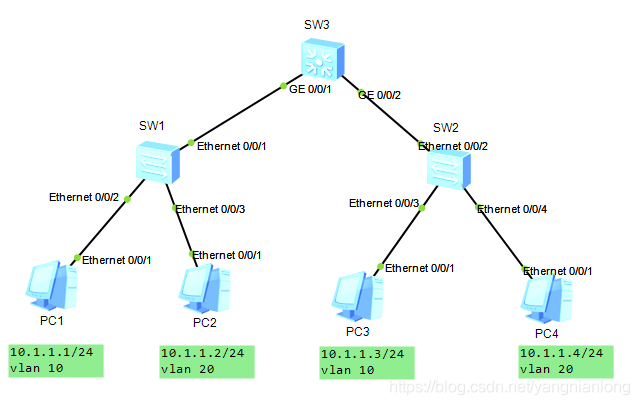

本次的实验如下图：

模拟两天办公区怎么互信通信，切互不影响，PC1与PC3是同网段，PC2与PC4是相同网段
r$d代表研发部,market代表市场部[SW1]vlan10[SW1-vlan10]descriptionR$D
[SW1-vlan10]vlan 20
[SW1-vlan20]description Market

[SW2]
[SW2]vlan 10
[SW2-vlan10]description R$D
[SW2-vlan10]vlan 20
[SW2-vlan20]description Market

[SW3]
[SW3]vlan 10
[SW3-vlan10]description R$D
[SW3-vlan10]vlan 20
[SW3-vlan20]description Market

以下是基础网络配置
[SW1]interface Ethernet 0/0/2
[SW1-Ethernet0/0/2]port link-type access
[SW1-Ethernet0/0/2]port default vlan 10
[SW1]interface Ethernet 0/0/3
[SW1-Ethernet0/0/2]port link-type access
[SW1-Ethernet0/0/2]port default vlan 20

[SW2]interface Ethernet 0/0/3
[SW2-Ethernet0/0/3]port link-type access
[SW2-Ethernet0/0/3]port default vlan 10
[SW2]interface Ethernet 0/0/4
[SW2-Ethernet0/0/4]port link-type access
[SW2-Ethernet0/0/4]port default vlan 20

接下来配置trunk接口
[SW1]interface Ethernet 0/0/1
[SW1-Ethernet0/0/1]port link-type trunk
[SW1-Ethernet0/0/1]port trunk allow-pass vlan 10 20

[SW2]interface Ethernet 0/0/2
[SW2-Ethernet0/0/2]port link-type trunk
[SW2-Ethernet0/0/2]port trunk allow-pass vlan 10 20

[SW3]interface GigabitEthernet 0/0/1
[SW3-GigabitEthernet0/0/1]port link-type trunk
[SW3-GigabitEthernet0/0/1]port trunk allow-pass vlan all
[SW3]interface GigabitEthernet 0/0/2
[SW3-GigabitEthernet0/0/2]port link-type trunk
[SW3-GigabitEthernet0/0/2]port trunk allow-pass vlan all

配置完成后PC1 ping PC3
PC1>ping 10.1.1.3

Ping 10.1.1.3: 32 data bytes, Press Ctrl_C to break
From 10.1.1.3: bytes=32 seq=1 ttl=128 time=93 ms
From 10.1.1.3: bytes=32 seq=2 ttl=128 time=78 ms
From 10.1.1.3: bytes=32 seq=3 ttl=128 time=78 ms
From 10.1.1.3: bytes=32 seq=4 ttl=128 time=93 ms
From 10.1.1.3: bytes=32 seq=5 ttl=128 time=78 ms

PC2 ping PC4
PC2>ping 10.1.1.4

Ping 10.1.1.4: 32 data bytes, Press Ctrl_C to break
From 10.1.1.4: bytes=32 seq=1 ttl=128 time=93 ms
From 10.1.1.4: bytes=32 seq=2 ttl=128 time=78 ms
From 10.1.1.4: bytes=32 seq=3 ttl=128 time=78 ms
From 10.1.1.4: bytes=32 seq=4 ttl=128 time=93 ms
From 10.1.1.4: bytes=32 seq=5 ttl=128 time=78 ms
