本文主要讲述ffmpeg编码过程中是如何设置I帧,B帧及P帧的,以及如何通过代码判断帧类型。
之前看过很多网上的文章,讲述如何判断I帧,B帧,P帧,然而都是停留在H.264官方文档中的定义,如果不结合ffmpeg,就仿佛纸上谈兵,有点不切实际,而且很多文章将I帧与I Slice混为一谈,将I Slice当做I帧,这其实是错的。本文就结合ffmpeg讲解ffmpeg中是如何编码各种帧类型的,并纠正其他一些文章的说法。
先有如下定义:
I帧:帧内预测
P帧:前向预测
B帧:前后双向预测
IDR图像:第一个I帧(IDR图像一定是I图像,但I图像不一定是IDR图像),具有随机访问的能力,在IDR帧之后的所有帧都不能引用任何IDR帧之前的帧的内容
(1)IDR帧肯定为I帧
(2)I帧包含了SPS, PPS, I条带
(3)P帧包含P条带
(4)B帧包含B条带
FFMPEG中有以下与帧类型相关的参数:
AVCodecContext* pCodecCtx;
pCodecCtx->gop_size = 25;
pCodecCtx->max_b_frames = 3;
gop_size设置一个gop中有多少帧,默认情况下,一个gop的第一帧为I帧,因此也可以理解为gop_size为相邻两个I帧之间的帧数。max_b_frames设置相邻两个非B帧之间最多出现的B帧数量。
gop有两种类型:封闭式与开放式。封闭式中每个gop的第一帧都是IDR图像,开放式中第一个gop的第一帧是IDR,后续的gop的第一帧非IDR图像。
再看以下编码函数:
int ret = avcodec_encode_video2(pCodecCtx, &pkt, pFrame, &got_picture);
第2个参数pFrame类型为AVFrame*,其有参数 pFrame->pict_type,用于设置编码的帧类型(这个值由用户设置,默认值为0,编码器不会自动设置该值,即不会自动设置为I帧,B帧的类型),pict_type的类型为:
enum AVPictureType {
AV_PICTURE_TYPE_NONE = 0, ///< Undefined
AV_PICTURE_TYPE_I, ///< Intra
AV_PICTURE_TYPE_P, ///< Predicted
AV_PICTURE_TYPE_B, ///< Bi-dir predicted
AV_PICTURE_TYPE_S, ///< S(GMC)-VOP MPEG4
AV_PICTURE_TYPE_SI, ///< Switching Intra
AV_PICTURE_TYPE_SP, ///< Switching Predicted
AV_PICTURE_TYPE_BI, ///< BI type
};

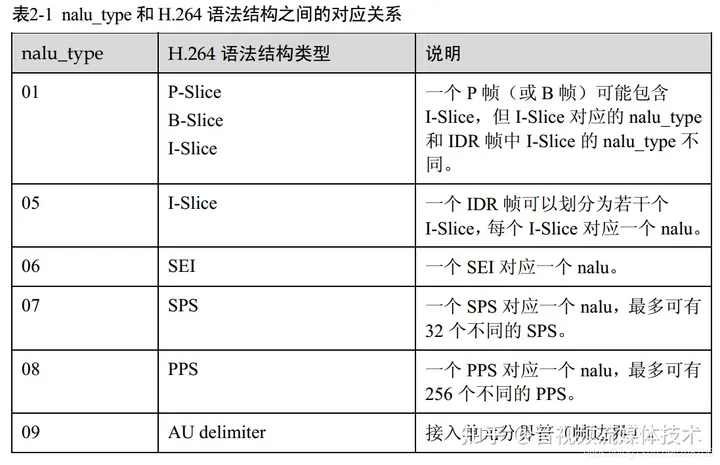

根据编码输出码流 pkt.data[4] 的值来判断帧类型,其中(pkt.data[4] & 0x1F)即为以下表中的nal_uint_type:

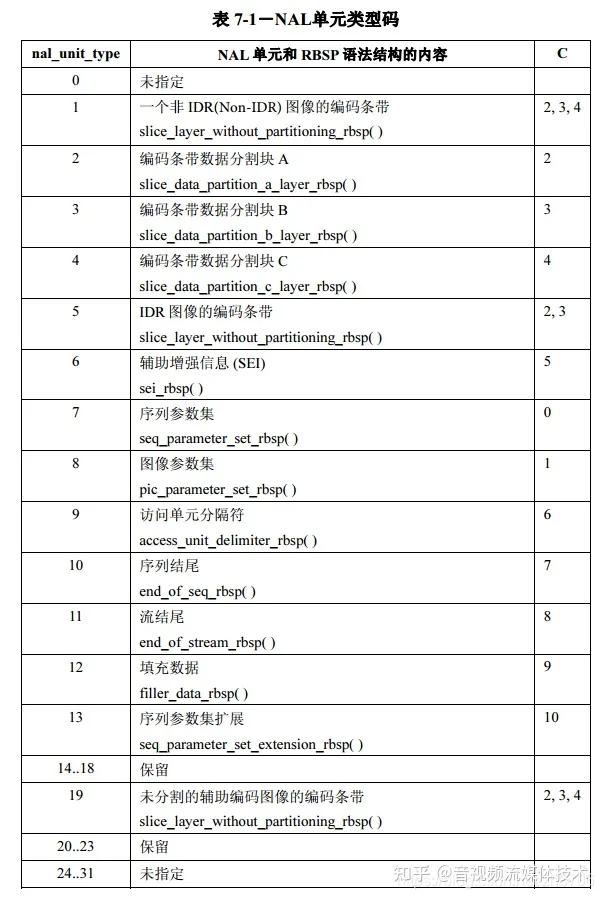

也可以看这个:
这里将一个yuv视频文件编码为H264文件,设置参数如下:
pCodecCtx->max_b_frames = 3;
pFrame->pict_type = AV_PICTURE_TYPE_NONE;
pCodecCtx->gop_size = 25;

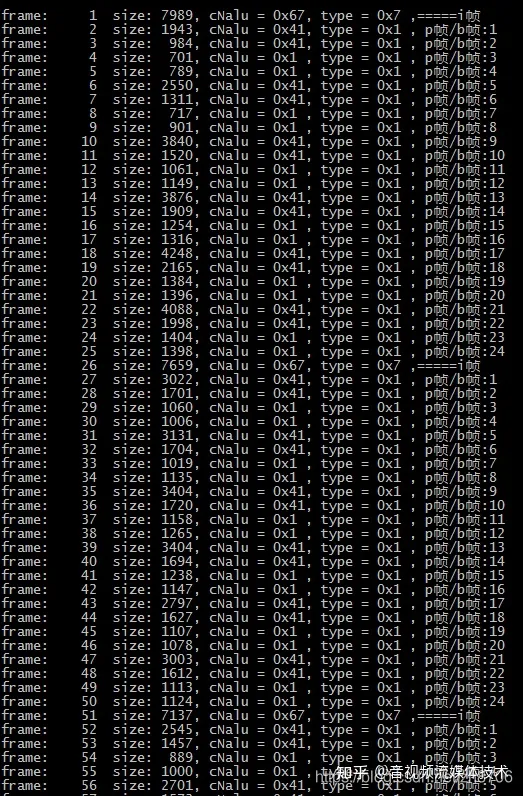

以上参数,打印输出如下,其中cNalu =pkt.data[4], type = (pkt.data[4] & 0x1F)。
pFrame->pict_type = AV_PICTURE_TYPE_NONE时,pkt.data[4] 只有3个值:0x01, 0x41, 0x67,即(pkt.data[4] & 0x1F)的值为0x01和0x07,即分别表示非IDR与SPS,对于H.264来说,只有I帧才有SPS与PPS,因此这里的0x07即为I帧,而0x01为P或B帧。因此,pFrame->pict_type = AV_PICTURE_TYPE_NONE时,对于帧头来说,(pkt.data[4] & 0x1F)等于0x07表示I帧,等于0x01表示B或P帧。注意我这里说的是帧头,而对于slice头来说,(pkt.data[4] & 0x1F)等于0x1时,也有可能是非IDR的I Slice的。

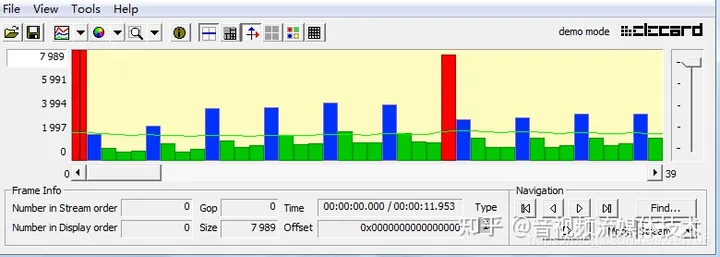

编码后的帧序列图如下,一个Group的帧序列为:I PBBB PBBB PBBB PBBB PBBB PBBB

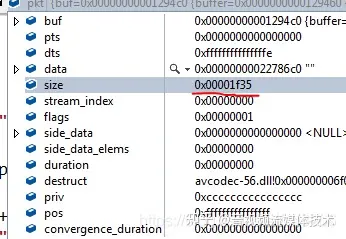

ffmpeg编码出来后第1帧(I帧)的长度为0x1F35,对应的十进制就是7989,跟上图中I帧 Size为7989对应。

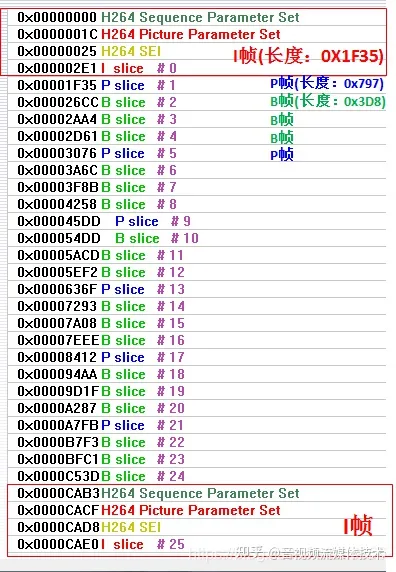

我们再来看编码后文件的slice结构如下,I帧包含了SPS, PPS, SEI, I Slice四个结构,总长度为0x1F35(7989)。后面的P Slice 及B Slice 就各自单独作为一帧,第1个P帧的长度为0x797(1943),第1个B帧长度为0x3D8(984)。
其文件的十六进制码结构如下:
当参数设置为:
pCodecCtx->max_b_frames = 0;
pFrame->pict_type = AV_PICTURE_TYPE_NONE;
pCodecCtx->gop_size = 25;
这里设置b帧的数量为0,打印输出如下,输出只有I帧与P帧:

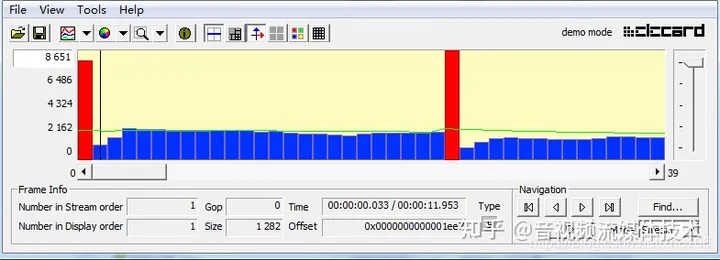

编码序列如下图,一个Group的帧序列为:I PPPPPPPPPPPPPPPPPPPP
其他设置的信息如下:
AV_PICTURE_TYPE_NONE:有三种帧类型输出:I帧,B帧,P帧,根据gop_size与max_b_frames设置I帧与B帧间隔。max_b_frames为0时,只有I帧与P帧
AV_PICTURE_TYPE_I:全都为I帧输出,这时max_b_frames要设置为0,不设置为0,tpye值由可能为0x1,但实际上这是个I帧
AV_PICTURE_TYPE_P:输出为I帧与P帧,max_b_frames要设置为0。I帧间隔由gop_size设置。
AV_PICTURE_TYPE_B:效果跟AV_PICTURE_TYPE_I时一致,max_b_frames要大于0
测试代码用的是雷霄华写的例子:
#include "stdafx.h"
#include <stdio.h>
#define __STDC_CONSTANT_MACROS
#ifdef _WIN32
//Windows
extern "C"
{
#include "libavutil/opt.h"
#include "libavcodec/avcodec.h"
#include "libavformat/avformat.h"
};
#else
//Linux...
#ifdef __cplusplus
extern "C"
{
#endif
#include <libavutil/opt.h>
#include <libavcodec/avcodec.h>
#include <libavformat/avformat.h>
#ifdef __cplusplus
};
#endif
#endif
#pragma comment(lib,"avcodec.lib")
#pragma comment(lib,"avutil.lib")
#pragma comment(lib,"swscale.lib")
#pragma comment(lib, "avformat.lib")
int flush_encoder(AVFormatContext *fmt_ctx, unsigned int stream_index) {
int ret;
int got_frame;
AVPacket enc_pkt;
if (!(fmt_ctx->streams[stream_index]->codec->codec->capabilities &
CODEC_CAP_DELAY))
return 0;
while (1) {
enc_pkt.data = NULL;
enc_pkt.size = 0;
av_init_packet(&enc_pkt);
ret = avcodec_encode_video2(fmt_ctx->streams[stream_index]->codec, &enc_pkt,
NULL, &got_frame);
av_frame_free(NULL);
if (ret < 0)
break;
if (!got_frame) {
ret = 0;
break;
}
printf("Flush Encoder: Succeed to encode 1 frame!\tsize:%5d\n", enc_pkt.size);
/* mux encoded frame */
ret = av_write_frame(fmt_ctx, &enc_pkt);
if (ret < 0)
break;
}
return ret;
}
int main(int argc, char* argv[])
{
AVFormatContext* pFormatCtx;
AVOutputFormat* fmt;
AVStream* video_st;
AVCodecContext* pCodecCtx;
AVCodec* pCodec;
AVPacket pkt;
uint8_t* picture_buf;
AVFrame* pFrame;
int picture_size;
int y_size;
int framecnt = 0;
//FILE *in_file = fopen("src01_480x272.yuv", "rb"); //Input raw YUV data
FILE *in_file = fopen("../akiyo_cif.y4m", "rb"); //Input raw YUV data
int in_w = 352, in_h = 288; //Input data's width and height
int framenum = 300; //Frames to encode
const char* out_file = "ds.h264";
av_register_all();
//Method1.
pFormatCtx = avformat_alloc_context();
//Guess Format
fmt = av_guess_format(NULL, out_file, NULL);
pFormatCtx->oformat = fmt;
//Open output URL
if (avio_open(&pFormatCtx->pb, out_file, AVIO_FLAG_READ_WRITE) < 0) {
printf("Failed to open output file! \n");
return -1;
}
video_st = avformat_new_stream(pFormatCtx, 0);
//video_st->time_base.num = 1;
//video_st->time_base.den = 25;
if (video_st == NULL) {
return -1;
}
//Param that must set
pCodecCtx = video_st->codec;
pCodecCtx->codec_id = fmt->video_codec;
pCodecCtx->codec_type = AVMEDIA_TYPE_VIDEO;
pCodecCtx->pix_fmt = AV_PIX_FMT_YUV420P;
pCodecCtx->width = in_w;
pCodecCtx->height = in_h;
pCodecCtx->bit_rate = 400000;
pCodecCtx->gop_size = 25;
pCodecCtx->time_base.num = 1;
pCodecCtx->time_base.den = 25;
//H264
//pCodecCtx->me_range = 16;
//pCodecCtx->max_qdiff = 4;
//pCodecCtx->qcompress = 0.6;
pCodecCtx->qmin = 10;
pCodecCtx->qmax = 51;
//Optional Param
pCodecCtx->max_b_frames = 3;
// Set Option
AVDictionary *param = 0;
//H.264
if (pCodecCtx->codec_id == AV_CODEC_ID_H264) {
av_dict_set(¶m, "preset", "slow", 0);
av_dict_set(¶m, "tune", "zerolatency", 0);
//av_dict_set(¶m, "profile", "main", 0);
}
//H.265
//if (pCodecCtx->codec_id == AV_CODEC_ID_H265) {
// av_dict_set(¶m, "preset", "ultrafast", 0);
// av_dict_set(¶m, "tune", "zero-latency", 0);
//}
//Show some Information
av_dump_format(pFormatCtx, 0, out_file, 1);
pCodec = avcodec_find_encoder(pCodecCtx->codec_id);
if (!pCodec) {
printf("Can not find encoder! \n");
return -1;
}
if (avcodec_open2(pCodecCtx, pCodec, ¶m) < 0) {
printf("Failed to open encoder! \n");
return -1;
}
pFrame = av_frame_alloc();
picture_size = avpicture_get_size(pCodecCtx->pix_fmt, pCodecCtx->width, pCodecCtx->height);
picture_buf = (uint8_t *)av_malloc(picture_size);
avpicture_fill((AVPicture *)pFrame, picture_buf, pCodecCtx->pix_fmt, pCodecCtx->width, pCodecCtx->height);
//Write File Header
avformat_write_header(pFormatCtx, NULL);
av_new_packet(&pkt, picture_size);
y_size = pCodecCtx->width * pCodecCtx->height;
pFrame->width = pCodecCtx->width;
pFrame->height = pCodecCtx->height;
pFrame->format = pCodecCtx->pix_fmt;
int iPFrame = 0;
pFrame->pict_type = AV_PICTURE_TYPE_NONE;
for (int i = 0; i<framenum; i++) {
//Read raw YUV data
if (fread(picture_buf, 1, y_size * 3 / 2, in_file) <= 0) {
printf("Failed to read raw data! \n");
return -1;
}
else if (feof(in_file)) {
break;
}
pFrame->data[0] = picture_buf; // Y
pFrame->data[1] = picture_buf + y_size; // U
pFrame->data[2] = picture_buf + y_size * 5 / 4; // V
//PTS
//pFrame->pts=i;
pFrame->pts = i*(video_st->time_base.den) / ((video_st->time_base.num) * 25);
int got_picture = 0;
//Encode
int ret = avcodec_encode_video2(pCodecCtx, &pkt, pFrame, &got_picture);
if (ret < 0) {
printf("Failed to encode! \n");
return -1;
}
if (got_picture == 1) {
framecnt++;
pkt.stream_index = video_st->index;
char cNalu = pkt.data[4];
char type = (cNalu & 0x1f);
if (type == 7)
{
iPFrame = 0;
printf("Succeed to encode frame: %5d\tsize:%5d, cNalu = 0x%-2x, type = 0x%-2x,=====i帧\n", framecnt, pkt.size, cNalu, type);
}
else if (type == 1)
{
iPFrame++;
printf("Succeed to encode frame: %5d\tsize:%5d, cNalu = 0x%-2x, type = 0x%-2x, p帧:%d\n", framecnt, pkt.size, cNalu, type, iPFrame);
}
else
{
printf("其他帧类型:cNalu = 0x%-2x, type = 0x%-2x\n", cNalu, type);
}
ret = av_write_frame(pFormatCtx, &pkt);
av_free_packet(&pkt);
}
}
//Flush Encoder
int ret = flush_encoder(pFormatCtx, 0);
if (ret < 0) {
printf("Flushing encoder failed\n");
return -1;
}
//Write file trailer
av_write_trailer(pFormatCtx);
//Clean
if (video_st) {
avcodec_close(video_st->codec);
av_free(pFrame);
av_free(picture_buf);
}
avio_close(pFormatCtx->pb);
avformat_free_context(pFormatCtx);
fclose(in_file);
return 0;
}
