一.什么是光立方？

首先，我以一个转载于B站的光立方视频开始，让对这个没有了解的小伙伴初步了解什么是光立方。其次，可能有人会问，网上有很多这样的教程，为什么我会说最详细。对于这个疑问，首先我说视频，大部分的视频我们会发现很多细小的原理知识会略过不讲，只告诉你该用什么器件，或者直接开始焊接，看了半天也看不懂，以至于无从下手，最后感觉这东西好难，很容易放弃。然后，我来说文章，很多文章代码方面会提供最简单的代码，主要的代码会不开源，需要你购买。所以，我才准备了一篇比较完整的文章，解决广大喜欢制作的朋友的问题~

Arduino 8*8光立方，你值得拥有

二.我对于光立方原理的见解

1.首先，我们要先实现控制第一层的任意列，任意个灯的控制，这里如果用单片机的两个引脚控制一个LED,我们这个需要控制512个LED灯，我们所需要的IO口的数量可想而知，所以，我们可能会想如何用少的IO口控制多个LED呢？这里，有一点译码器知识的小伙伴可能会说用74hc138译码器不就得了，但是，我们仔细想一想，这个确实可以让某一列对应引脚低电平，但是不能任意控制那一列高电平，那一列低电平，这里又卡住了，难道没其他办法了吗？行了，我不卖关子了，我用的是74hc595锁存器，至于为什么选择它呢？因为它只需要三个IO口就能随意控制8个接线为高电平或低电平。当你输入一位数据到DS引脚，给SH-CP引脚一个高电平，这位数据就被74hc595锁存了，然后不要忘记将该引脚在变成低电平，此时因为还没输入到8位数据，所以此时ST-CP引脚为低电平。这样重复8次就给锁存器锁存了8位数据，此时给ST-CP一个高电平，锁存器就会将这8位数据存到自己的flash中，对后面的8个接线输出放大后的高低电平，用于驱动LED。但是，由于数据你是一位一位移进去的，所以你移进去的第一位对应的是控制的是第8个输入口，而你的第8个数据对应第一个输入口，大家这里如果听不懂，我会加一个我认为讲这个锁存器好的视频给大家，帮助大家理解。

5分钟了解移位寄存器74HC595工作原理及使用（SIPO）

2.然后我就来说我是如何控制第一层任意列和任意灯的亮灭的，我是先将每一横行的阳极用一根铜线连接起来，每一列的阴极用一根铜线连接起来，这样，我们得到了8行接正极的铜线，8列接负极的铜线，这里，我们各将这8个正极和负极分别用一个74hc595控制输出高低电平（本质是放大的高低电平，也可以说是正负极），这样，我们就可以控制哪几行给正极（高电平），然后在控制哪几列接地（低电平），就会像是两个不平行的线会有交点一样，这里交点就是LED灯，我们就可以控制任意行，任意列和任意灯的亮灭。这里为防止大家不理解，我举个例子。

比如，我只点亮第1行，那么我给控制行的74hc595的数据用16进制写出来就是0x01,转为二进制也就是0000 0001，这样意思就是让第一行接上正极了，其他行全接负极（这里默认锁存器第一个输出口对应接到LED第一行的正极上），在将控制列的锁存器输入数据0000 0000，16进制为0X00，相当于全为负极，这样就只有第一行亮起来了。如果点亮第一列，我们就写入二进制数据1111 1111, 16进制为0xFF,在将控制列的锁存器传入数据1111 1110，就可以了。还有就是控制任意LED灯，比如控制第一个灯，就只将第一行给高电平，然后只给第一列低电平，这样就只有第一个灯亮起来。相信到这里，大家已经了解如何控制第一层了。那，我们如何控制每一层的任意列，任意行，任意个灯的亮灭呢？其实这里我们可以进行将第一层叠加上去，但是控制正级的那个锁存器，一个就可以控制整个8层的正极，我们是将每一层的正极都与第一层正极对应相连接，然后每一层的负极都需要一个单独的锁存器，这样，你在想一想是不是用很少的IO口控制了512个灯呢！

3.对于如何只点亮立方体的最外层的12条棱，这种点亮方法如果和上面那样显然是不能一次性做到的，所以，我们可以这么想，如果我们一条棱一条棱顺序显示，这样利用我们人眼对于接受光的变化有时间差。这样我们顺序将一个棱一个棱点亮，在我们眼睛看来，其实就是这12条棱一起点亮，这就解决了这类不能依靠我这个电路设计的图案的问题了。

4.相信大家看到这，在大脑里应该已经形成了一个基本框架，所以，我这里先告诉大家我对于我在下面用proteus仿真的电路位置的安排，首先，我们会看到最大的一个8*8的方阵就是我们的第一层，其左边有一个74hc595的8个输出口依次连接这层的8行阳极，这8个输出口不仅是这层的阳极，还是其他7层的阳极控制端。随后我们向上看对应的就是第2层，第三层.....,下面看图吧。

如果有下载proteus的小伙伴，我下面百度云盘里是完整电路图。

百度网盘请输入提取码

三.代码部分

main函数

#include "stm32f10x.h"                  // Device header
#include "LED.h"
#include "Delay.h"
#include "xianshi.h"


int main()
{
/*

 int a[]={0XFF,0X00,0XFF,0X01,0X80,0XFF,0X7E,0X02,0X40,0X7E,0X3C,0X04,0X20,0X3C,0X18,0X08,0X10,0X18,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0X80,0X40,0x20,0x10,0x08,0x04,0x02,0x01,0X08,0X1C,0X3E,0X3E,0X14,0X08,0X1C,0X3E,0X3E,0X14,0X08,0X1C,0X3E,0X3E,0X14};//控制给阳极的数据
 int b[]={0X00,0X00,0XFE,0X00,0X00,0X7F,0XFD,0X81,0X81,0XBF,0XFB,0XC3,0XC3,0XDF,0XF7,0XE7,0XE7,0XEF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF};//控0XE3制第一层哪个灯亮的数据
 int c[]={0X00,0X00,0XFE,0X00,0X00,0X7F,0XFD,0X81,0X81,0XBF,0XFB,0XC3,0XC3,0XDF,0XF7,0XE7,0XE7,0XEF,0XF7,0XF7,0XF7,0XF7,0XF7,0XF7,0XF7,0XF7,0XF7,0XF7,0XF7,0XF7,0XF7,0XF7,0XFE,0XFE,0XFE,0XFE,0XFE,0XFD,0XFD,0XFD,0XFD,0XFD,0XFB,0XFB,0XFB,0XFB,0XFB};//控0XC1制第二层哪个灯亮的数据
 int d[]={0X00,0X00,0XFE,0X00,0X00,0X7F,0XFD,0X81,0X81,0XBF,0XFB,0XC3,0XC3,0XDF,0XF7,0XE7,0XE7,0XEF,0XFF,0XE3,0XE3,0XE3,0XE3,0XE3,0XE3,0XE3,0XE3,0XE3,0XE3,0XE3,0XE3,0XE3,0XFF,0XFE,0XFE,0XFE,0XFE,0XFD,0XFD,0XFD,0XFD,0XFD,0XFB,0XFB,0XFB,0XFB,0XFB};//控0XC9制第三层哪个灯亮的数据
 int e[]={0X00,0X00,0XFE,0X00,0X00,0X7F,0XFD,0X81,0X81,0XBF,0XFB,0XC3,0XC3,0XDF,0XF7,0XE7,0XE7,0XEF,0XFF,0XFF,0XC1,0XC1,0XC1,0XC1,0XC1,0XC1,0XC1,0XC1,0XC1,0XC1,0XC1,0XC1,0XFF,0XFF,0XFE,0XFE,0XFE,0XFD,0XFD,0XFD,0XFD,0XFD,0XFB,0XFB,0XFB,0XFB,0XFB};//控0XEB制第四层哪个灯亮的数据
 int f[]={0X00,0X00,0XFE,0X00,0X00,0X7F,0XFD,0X81,0X81,0XBF,0XFB,0XC3,0XC3,0XDF,0XF7,0XE7,0XE7,0XEF,0XFF,0XFF,0XFF,0XC9,0XC9,0XC9,0XC9,0XC9,0XC9,0XC9,0XC9,0XC9,0XC9,0XC9,0XFF,0XFF,0XFF,0XFE,0XFE,0XFD,0XFD,0XFD,0XFD,0XFD,0XFB,0XFB,0XFB,0XFB,0XFB};//控0XFF制第五层哪个灯亮的数据
 int g[]={0X00,0X00,0XFE,0X00,0X00,0X7F,0XFD,0X81,0X81,0XBF,0XFB,0XC3,0XC3,0XDF,0XF7,0XE7,0XE7,0XEF,0XFF,0XFF,0XFF,0XFF,0XEB,0XEB,0XEB,0XEB,0XEB,0XEB,0XEB,0XEB,0XEB,0XEB,0XFF,0XFF,0XFF,0XFF,0XFE,0XFD,0XFD,0XFD,0XFD,0XFD,0XFB,0XFB,0XFB,0XFB,0XFB};//控0XFF制第六层哪个灯亮的数据
 int h[]={0X00,0X00,0XFE,0X00,0X00,0X7F,0XFD,0X81,0X81,0XBF,0XFB,0XC3,0XC3,0XDF,0XF7,0XE7,0XE7,0XEF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF};//控制第七层哪个灯亮的数据
 int i[]={0X00,0X00,0XFE,0X00,0X00,0X7F,0XFD,0X81,0X81,0XBF,0XFB,0XC3,0XC3,0XDF,0XF7,0XE7,0XE7,0XEF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF};//控制第八层哪个灯亮的数据

 int  j[]={0X08,0X1C,0X3E,0X3E,0X14,0X08,0X1C,0X3E,0X3E,0X14,0X08,0X1C,0X3E,0X3E,0X14,0X08,0X1C,0X3E,0X3E,0X14,0X08,0X1C,0X3E,0X3E,0X14};
 int  k[]={0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF};
 int  l[]={0XF7,0XF7,0XF7,0XF7,0XF7,0XEF,0XEF,0XEF,0XEF,0XEF,0XEF,0XEF,0XEF,0XEF,0XEF,0XBF,0XBF,0XBF,0XBF,0X7F,0X7F,0X7F,0X7F,0X7F,0X7F};
 int  m[]={0XF7,0XF7,0XF7,0XF7,0XF7,0XEF,0XEF,0XEF,0XEF,0XEF,0XEF,0XEF,0XEF,0XEF,0XEF,0XBF,0XBF,0XBF,0XBF,0X7F,0X7F,0X7F,0X7F,0X7F,0X7F};
 int  n[]={0XF7,0XF7,0XF7,0XF7,0XF7,0XEF,0XEF,0XEF,0XEF,0XEF,0XEF,0XEF,0XEF,0XEF,0XEF,0XBF,0XBF,0XBF,0XBF,0X7F,0X7F,0X7F,0X7F,0X7F,0X7F};
 int  o[]={0XF7,0XF7,0XF7,0XF7,0XF7,0XEF,0XEF,0XEF,0XEF,0XEF,0XEF,0XEF,0XEF,0XEF,0XEF,0XBF,0XBF,0XBF,0XBF,0X7F,0X7F,0X7F,0X7F,0X7F,0X7F};
 int  p[]={0XF7,0XF7,0XF7,0XF7,0XF7,0XEF,0XEF,0XEF,0XEF,0XEF,0XEF,0XEF,0XEF,0XEF,0XEF,0XBF,0XBF,0XBF,0XBF,0X7F,0X7F,0X7F,0X7F,0X7F,0X7F};
 int  q[]={0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF};
 int  r[]={0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF};


 int  a1[]={0X40,0X20,0X10,0X08,0X04,0X40,0X20,0X10,0X08,0X04,0X40,0X20,0X10,0X08,0X04,0X40,0X20,0X10,0X08,0X04,0X40,0X20,0X10,0X08,0X04,0X40,0X20,0X10,0X08,0X04,0X40,0X20,0X10,0X08,0X04,0X40,0X20,0X10,0X08,0X04};
 int  b1[]={0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XF7,0XE3,0XC1,0XC1,0XEB};
 int  c1[]={0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XF7,0XE3,0XC1,0XC1,0XEB,0XFF,0XFF,0XFF,0XFF,0XFF};
 int  d1[]={0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XF7,0XE3,0XC1,0XC1,0XEB,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF};
 int  e1[]={0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XF7,0XE3,0XC1,0XC1,0XEB,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF};
 int  f1[]={0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XF7,0XE3,0XC1,0XC1,0XEB,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF};
 int  g1[]={0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XF7,0XE3,0XC1,0XC1,0XEB,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF};
 int  h1[]={0XFF,0XFF,0XFF,0XFF,0XFF,0XF7,0XE3,0XC1,0XC1,0XEB,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF};
 int  i1[]={0XF7,0XE3,0XC1,0XC1,0XEB,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF};



*/




GPIO1_Init();	//数组第一与第二位控制全亮全灭，第三到第六控制12条最外层棱亮，7~10为下一小层棱亮，11~14控制在里一层的棱，15~18控制最里层的棱亮
               //第19~24为心性一点一点显示,24~32为心形从前到后闪烁，33~37为最左面心形显示 38~72为从左到右显示心形
	      //第三行从a1开始为心形从上到下显示
              //第四行从a3开始为瀑布繁星
while(1)
{


liangmie();//此处调用显示图像的子函数




/*
GPIO_ResetBits(GPIOA,GPIO_Pin_3);//以下注释掉的是传数据的过程，无意义
GPIO_ResetBits(GPIOA,GPIO_Pin_6);

GPIO_ResetBits(GPIOA,GPIO_Pin_1);
GPIO_ResetBits(GPIOA,GPIO_Pin_4);

GPIO_SetBits(GPIOA,GPIO_Pin_2);//第一位数据
GPIO_ResetBits(GPIOA,GPIO_Pin_5);

GPIO_SetBits(GPIOA,GPIO_Pin_1);
GPIO_SetBits(GPIOA,GPIO_Pin_4);//第一位数据传输结束

GPIO_ResetBits(GPIOA,GPIO_Pin_1);
GPIO_ResetBits(GPIOA,GPIO_Pin_4);


GPIO_SetBits(GPIOA,GPIO_Pin_2);//第二位数据
GPIO_ResetBits(GPIOA,GPIO_Pin_5);

GPIO_SetBits(GPIOA,GPIO_Pin_1);
GPIO_SetBits(GPIOA,GPIO_Pin_4);//第二位数据传输结束


GPIO_ResetBits(GPIOA,GPIO_Pin_1);
GPIO_ResetBits(GPIOA,GPIO_Pin_4);


GPIO_SetBits(GPIOA,GPIO_Pin_2);//第三位数据
GPIO_ResetBits(GPIOA,GPIO_Pin_5);

GPIO_SetBits(GPIOA,GPIO_Pin_1);
GPIO_SetBits(GPIOA,GPIO_Pin_4);//第三位数据传输结束


GPIO_ResetBits(GPIOA,GPIO_Pin_1);
GPIO_ResetBits(GPIOA,GPIO_Pin_4);


GPIO_SetBits(GPIOA,GPIO_Pin_2);//第四位数据
GPIO_ResetBits(GPIOA,GPIO_Pin_5);

GPIO_SetBits(GPIOA,GPIO_Pin_1);
GPIO_SetBits(GPIOA,GPIO_Pin_4);//第四位数据传输结束


GPIO_ResetBits(GPIOA,GPIO_Pin_1);
GPIO_ResetBits(GPIOA,GPIO_Pin_4);


GPIO_SetBits(GPIOA,GPIO_Pin_2);//第五位数据
GPIO_ResetBits(GPIOA,GPIO_Pin_5);

GPIO_SetBits(GPIOA,GPIO_Pin_1);
GPIO_SetBits(GPIOA,GPIO_Pin_4);//第五位数据传输结束

GPIO_ResetBits(GPIOA,GPIO_Pin_1);
GPIO_ResetBits(GPIOA,GPIO_Pin_4);


GPIO_ResetBits(GPIOA,GPIO_Pin_2);//第六位数据
GPIO_ResetBits(GPIOA,GPIO_Pin_5);

GPIO_SetBits(GPIOA,GPIO_Pin_1);
GPIO_SetBits(GPIOA,GPIO_Pin_4);//第六位数据传输结束



GPIO_ResetBits(GPIOA,GPIO_Pin_1);
GPIO_ResetBits(GPIOA,GPIO_Pin_4);


GPIO_SetBits(GPIOA,GPIO_Pin_2);//第七位数据
GPIO_ResetBits(GPIOA,GPIO_Pin_5);

GPIO_SetBits(GPIOA,GPIO_Pin_1);
GPIO_SetBits(GPIOA,GPIO_Pin_4);//第七位数据传输结束

GPIO_ResetBits(GPIOA,GPIO_Pin_1);
GPIO_ResetBits(GPIOA,GPIO_Pin_4);


GPIO_SetBits(GPIOA,GPIO_Pin_2);//第八位数据
GPIO_ResetBits(GPIOA,GPIO_Pin_5);

GPIO_SetBits(GPIOA,GPIO_Pin_1);
GPIO_SetBits(GPIOA,GPIO_Pin_4);//第八位数据传输结束

GPIO_SetBits(GPIOA,GPIO_Pin_3);
GPIO_SetBits(GPIOA,GPIO_Pin_6);


*/
}


}

按位传输数据的子函数.c

#include "stm32f10x.h" // Device header
#include "Delay.h"

int i2;

void GPIO1_Init()
{

GPIO_InitTypeDef    GPIO_InitStruct;
GPIO_InitTypeDef    GPIO_InitStruct1;

RCC_APB2PeriphClockCmd(RCC_APB2Periph_GPIOA,ENABLE);
RCC_APB2PeriphClockCmd(RCC_APB2Periph_GPIOB,ENABLE);


GPIO_InitStruct.GPIO_Mode=GPIO_Mode_Out_PP;
GPIO_InitStruct.GPIO_Pin=GPIO_Pin_1|GPIO_Pin_2|GPIO_Pin_3|GPIO_Pin_4|GPIO_Pin_5|GPIO_Pin_6|GPIO_Pin_7|GPIO_Pin_8|GPIO_Pin_9|GPIO_Pin_10|GPIO_Pin_11|GPIO_Pin_12|GPIO_Pin_13|GPIO_Pin_14|GPIO_Pin_15;
GPIO_InitStruct.GPIO_Speed=GPIO_Speed_50MHz;
GPIO_Init(GPIOA,&GPIO_InitStruct);


GPIO_InitStruct1.GPIO_Mode=GPIO_Mode_Out_PP;
GPIO_InitStruct1.GPIO_Pin=GPIO_Pin_1|GPIO_Pin_2|GPIO_Pin_3|GPIO_Pin_4|GPIO_Pin_5|GPIO_Pin_6|GPIO_Pin_7|GPIO_Pin_8|GPIO_Pin_9|GPIO_Pin_10|GPIO_Pin_11|GPIO_Pin_12|GPIO_Pin_13|GPIO_Pin_14|GPIO_Pin_15;
GPIO_InitStruct1.GPIO_Speed=GPIO_Speed_50MHz;
GPIO_Init(GPIOB,&GPIO_InitStruct1);


}


void pose(int date1,int date2,int date3,int date4,int date5,int date6,int date7,int date8,int date9)
{


GPIO_ResetBits(GPIOA,GPIO_Pin_3);//以下几个是先将ST-CP电平拉低
GPIO_ResetBits(GPIOA,GPIO_Pin_6);
GPIO_ResetBits(GPIOA,GPIO_Pin_9);
GPIO_ResetBits(GPIOA,GPIO_Pin_12);
GPIO_ResetBits(GPIOA,GPIO_Pin_15);

GPIO_ResetBits(GPIOB,GPIO_Pin_3);
GPIO_ResetBits(GPIOB,GPIO_Pin_6);
GPIO_ResetBits(GPIOB,GPIO_Pin_9);
GPIO_ResetBits(GPIOB,GPIO_Pin_12);


	for(i2=0;i2<8;i2++)
	{



	if((date1&0x80)!=0)//date1数据
	{

	GPIO_SetBits(GPIOA,GPIO_Pin_2);

	}

	else

	{

	GPIO_ResetBits(GPIOA,GPIO_Pin_2);




	}


	if((date2&0x80)!=0)//date2数据
	{

	GPIO_SetBits(GPIOA,GPIO_Pin_5);

	}

	else

	{

	GPIO_ResetBits(GPIOA,GPIO_Pin_5);




	}

	if((date3&0x80)!=0)//date3数据
	{

	GPIO_SetBits(GPIOA,GPIO_Pin_8);

	}

	else

	{

	GPIO_ResetBits(GPIOA,GPIO_Pin_8);




	}

	if((date4&0x80)!=0)//date4数据
	{

	GPIO_SetBits(GPIOA,GPIO_Pin_11);

	}

	else

	{

	GPIO_ResetBits(GPIOA,GPIO_Pin_11);




	}

	if((date5&0x80)!=0)//date5数据
	{

	GPIO_SetBits(GPIOA,GPIO_Pin_14);

	}

	else

	{

	GPIO_ResetBits(GPIOA,GPIO_Pin_14);




	}


	if((date6&0x80)!=0)//date6数据
	{

	GPIO_SetBits(GPIOB,GPIO_Pin_2);

	}

	else

	{

	GPIO_ResetBits(GPIOB,GPIO_Pin_2);




	}

	if((date7&0x80)!=0)//date7数据
	{

	GPIO_SetBits(GPIOB,GPIO_Pin_5);

	}

	else

	{

	GPIO_ResetBits(GPIOB,GPIO_Pin_5);




	}


	if((date8&0x80)!=0)//date8数据
	{

	GPIO_SetBits(GPIOB,GPIO_Pin_8);

	}

	else

	{

	GPIO_ResetBits(GPIOB,GPIO_Pin_8);




	}


	if((date9&0x80)!=0)//date9数据
	{

	GPIO_SetBits(GPIOB,GPIO_Pin_11);

	}

	else

	{

	GPIO_ResetBits(GPIOB,GPIO_Pin_11);




	}



	GPIO_ResetBits(GPIOA,GPIO_Pin_1);
	GPIO_ResetBits(GPIOA,GPIO_Pin_4);
	GPIO_ResetBits(GPIOA,GPIO_Pin_7);
	GPIO_ResetBits(GPIOA,GPIO_Pin_10);
	GPIO_ResetBits(GPIOA,GPIO_Pin_13);
	GPIO_ResetBits(GPIOB,GPIO_Pin_1);
	GPIO_ResetBits(GPIOB,GPIO_Pin_4);
	GPIO_ResetBits(GPIOB,GPIO_Pin_7);
	GPIO_ResetBits(GPIOB,GPIO_Pin_10);


	Delay(2);

	GPIO_SetBits(GPIOA,GPIO_Pin_1);
	GPIO_SetBits(GPIOA,GPIO_Pin_4);
	GPIO_SetBits(GPIOA,GPIO_Pin_7);
	GPIO_SetBits(GPIOA,GPIO_Pin_10);
	GPIO_SetBits(GPIOA,GPIO_Pin_13);
	GPIO_SetBits(GPIOB,GPIO_Pin_1);
	GPIO_SetBits(GPIOB,GPIO_Pin_4);
	GPIO_SetBits(GPIOB,GPIO_Pin_7);
	GPIO_SetBits(GPIOB,GPIO_Pin_10);


	date1=date1<<1;
	date2=date2<<1;
	date3=date3<<1;
	date4=date4<<1;
	date5=date5<<1;
	date6=date6<<1;
	date7=date7<<1;
	date8=date8<<1;
	date9=date9<<1;



	}


GPIO_SetBits(GPIOA,GPIO_Pin_3);
GPIO_SetBits(GPIOA,GPIO_Pin_6);
GPIO_SetBits(GPIOA,GPIO_Pin_9);
GPIO_SetBits(GPIOA,GPIO_Pin_12);
GPIO_SetBits(GPIOA,GPIO_Pin_15);
GPIO_SetBits(GPIOB,GPIO_Pin_3);
GPIO_SetBits(GPIOB,GPIO_Pin_6);
GPIO_SetBits(GPIOB,GPIO_Pin_9);
GPIO_SetBits(GPIOB,GPIO_Pin_12);


}

传数据子函数.h文件

#ifndef  __LED_H__
#define  __LED_H__

void GPIO1_Init(void);
void pose(int date1,int date2,int date3,int date4,int date5,int date6,int date7,int date8,int date9);

#endif

显示图形的.c文件

#include "stm32f10x.h" // Device header
#include "Led.h"
#include "Delay.h"


int counter;
int counter1;
int counter2;
int counter3;

 int a[]={0XFF,0X00,0XFF,0X01,0X80,0XFF,0X7E,0X02,0X40,0X7E,0X3C,0X04,0X20,0X3C,0X18,0X08,0X10,0X18,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0X80,0X40,0x20,0x10,0x08,0x04,0x02,0x01,0X08,0X1C,0X3E,0X3E,0X14,0X08,0X1C,0X3E,0X3E,0X14,0X08,0X1C,0X3E,0X3E,0X14};//控制给阳极的数据
 int b[]={0X00,0X00,0XFE,0X00,0X00,0X7F,0XFD,0X81,0X81,0XBF,0XFB,0XC3,0XC3,0XDF,0XF7,0XE7,0XE7,0XEF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF};//控0XE3制第一层哪个灯亮的数据
 int c[]={0X00,0X00,0XFE,0X00,0X00,0X7F,0XFD,0X81,0X81,0XBF,0XFB,0XC3,0XC3,0XDF,0XF7,0XE7,0XE7,0XEF,0XF7,0XF7,0XF7,0XF7,0XF7,0XF7,0XF7,0XF7,0XF7,0XF7,0XF7,0XF7,0XF7,0XF7,0XFE,0XFE,0XFE,0XFE,0XFE,0XFD,0XFD,0XFD,0XFD,0XFD,0XFB,0XFB,0XFB,0XFB,0XFB};//控0XC1制第二层哪个灯亮的数据
 int d[]={0X00,0X00,0XFE,0X00,0X00,0X7F,0XFD,0X81,0X81,0XBF,0XFB,0XC3,0XC3,0XDF,0XF7,0XE7,0XE7,0XEF,0XFF,0XE3,0XE3,0XE3,0XE3,0XE3,0XE3,0XE3,0XE3,0XE3,0XE3,0XE3,0XE3,0XE3,0XFF,0XFE,0XFE,0XFE,0XFE,0XFD,0XFD,0XFD,0XFD,0XFD,0XFB,0XFB,0XFB,0XFB,0XFB};//控0XC9制第三层哪个灯亮的数据
 int e[]={0X00,0X00,0XFE,0X00,0X00,0X7F,0XFD,0X81,0X81,0XBF,0XFB,0XC3,0XC3,0XDF,0XF7,0XE7,0XE7,0XEF,0XFF,0XFF,0XC1,0XC1,0XC1,0XC1,0XC1,0XC1,0XC1,0XC1,0XC1,0XC1,0XC1,0XC1,0XFF,0XFF,0XFE,0XFE,0XFE,0XFD,0XFD,0XFD,0XFD,0XFD,0XFB,0XFB,0XFB,0XFB,0XFB};//控0XEB制第四层哪个灯亮的数据
 int f[]={0X00,0X00,0XFE,0X00,0X00,0X7F,0XFD,0X81,0X81,0XBF,0XFB,0XC3,0XC3,0XDF,0XF7,0XE7,0XE7,0XEF,0XFF,0XFF,0XFF,0XC9,0XC9,0XC9,0XC9,0XC9,0XC9,0XC9,0XC9,0XC9,0XC9,0XC9,0XFF,0XFF,0XFF,0XFE,0XFE,0XFD,0XFD,0XFD,0XFD,0XFD,0XFB,0XFB,0XFB,0XFB,0XFB};//控0XFF制第五层哪个灯亮的数据
 int g[]={0X00,0X00,0XFE,0X00,0X00,0X7F,0XFD,0X81,0X81,0XBF,0XFB,0XC3,0XC3,0XDF,0XF7,0XE7,0XE7,0XEF,0XFF,0XFF,0XFF,0XFF,0XEB,0XEB,0XEB,0XEB,0XEB,0XEB,0XEB,0XEB,0XEB,0XEB,0XFF,0XFF,0XFF,0XFF,0XFE,0XFD,0XFD,0XFD,0XFD,0XFD,0XFB,0XFB,0XFB,0XFB,0XFB};//控0XFF制第六层哪个灯亮的数据
 int h[]={0X00,0X00,0XFE,0X00,0X00,0X7F,0XFD,0X81,0X81,0XBF,0XFB,0XC3,0XC3,0XDF,0XF7,0XE7,0XE7,0XEF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF};//控制第七层哪个灯亮的数据
 int i[]={0X00,0X00,0XFE,0X00,0X00,0X7F,0XFD,0X81,0X81,0XBF,0XFB,0XC3,0XC3,0XDF,0XF7,0XE7,0XE7,0XEF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF};//控制第八层哪个灯亮的数据




 int  j[]={0X08,0X1C,0X3E,0X3E,0X14,0X08,0X1C,0X3E,0X3E,0X14,0X08,0X1C,0X3E,0X3E,0X14,0X08,0X1C,0X3E,0X3E,0X14,0X08,0X1C,0X3E,0X3E,0X14};
 int  k[]={0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF};
 int  l[]={0XF7,0XF7,0XF7,0XF7,0XF7,0XEF,0XEF,0XEF,0XEF,0XEF,0XEF,0XEF,0XEF,0XEF,0XEF,0XBF,0XBF,0XBF,0XBF,0X7F,0X7F,0X7F,0X7F,0X7F,0X7F};
 int  m[]={0XF7,0XF7,0XF7,0XF7,0XF7,0XEF,0XEF,0XEF,0XEF,0XEF,0XEF,0XEF,0XEF,0XEF,0XEF,0XBF,0XBF,0XBF,0XBF,0X7F,0X7F,0X7F,0X7F,0X7F,0X7F};
 int  n[]={0XF7,0XF7,0XF7,0XF7,0XF7,0XEF,0XEF,0XEF,0XEF,0XEF,0XEF,0XEF,0XEF,0XEF,0XEF,0XBF,0XBF,0XBF,0XBF,0X7F,0X7F,0X7F,0X7F,0X7F,0X7F};
 int  o[]={0XF7,0XF7,0XF7,0XF7,0XF7,0XEF,0XEF,0XEF,0XEF,0XEF,0XEF,0XEF,0XEF,0XEF,0XEF,0XBF,0XBF,0XBF,0XBF,0X7F,0X7F,0X7F,0X7F,0X7F,0X7F};
 int  p[]={0XF7,0XF7,0XF7,0XF7,0XF7,0XEF,0XEF,0XEF,0XEF,0XEF,0XEF,0XEF,0XEF,0XEF,0XEF,0XBF,0XBF,0XBF,0XBF,0X7F,0X7F,0X7F,0X7F,0X7F,0X7F};
 int  q[]={0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF};
 int  r[]={0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF};



 int  a1[]={0X40,0X20,0X10,0X08,0X04,0X40,0X20,0X10,0X08,0X04,0X40,0X20,0X10,0X08,0X04,0X40,0X20,0X10,0X08,0X04,0X40,0X20,0X10,0X08,0X04,0X40,0X20,0X10,0X08,0X04,0X40,0X20,0X10,0X08,0X04,0X40,0X20,0X10,0X08,0X04};
 int  b1[]={0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XF7,0XE3,0XC1,0XC1,0XEB};
 int  c1[]={0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XF7,0XE3,0XC1,0XC1,0XEB,0XFF,0XFF,0XFF,0XFF,0XFF};
 int  d1[]={0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XF7,0XE3,0XC1,0XC1,0XEB,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF};
 int  e1[]={0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XF7,0XE3,0XC1,0XC1,0XEB,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF};
 int  f1[]={0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XF7,0XE3,0XC1,0XC1,0XEB,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF};
 int  g1[]={0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XF7,0XE3,0XC1,0XC1,0XEB,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF};
 int  h1[]={0XFF,0XFF,0XFF,0XFF,0XFF,0XF7,0XE3,0XC1,0XC1,0XEB,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF};
 int  i1[]={0XF7,0XE3,0XC1,0XC1,0XEB,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF};



 int  j1[]={0x80,0X80,0x40,0X40,0x20,0X20,0x10,0X10,0x08,0X08,0x04,0X04,0x02,0X02,0x01,0X01,0x81,0x81,0x81,0x81,0x81,0x81,0x81,0x81,0X42,0X42,0X42,0X42,0X42,0X42,0X42,0X42,0X24,0X24,0X24,0X24,0X24,0X24,0X24,0X24,0X18,0X18,0X18,0X18,0X18,0X18,0X18,0X18};
 int  k1[]={0XFF,0X00,0XFF,0X00,0XFF,0X00,0XFF,0X00,0XFF,0X00,0XFF,0X00,0XFF,0X00,0XFF,0X00,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0x7E,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XBD,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XDB,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XE7};
 int  l1[]={0X00,0XFF,0X00,0XFF,0X00,0XFF,0X00,0XFF,0X00,0XFF,0X00,0XFF,0X00,0XFF,0X00,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0X7E,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XBD,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XDB,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XE7,0XFF};
 int  m1[]={0XFF,0X00,0XFF,0X00,0XFF,0X00,0XFF,0X00,0XFF,0X00,0XFF,0X00,0XFF,0X00,0XFF,0X00,0XFF,0XFF,0XFF,0XFF,0XFF,0X7E,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XBD,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XDB,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XE7,0XFF,0XFF};
 int  n1[]={0X00,0XFF,0X00,0XFF,0X00,0XFF,0X00,0XFF,0X00,0XFF,0X00,0XFF,0X00,0XFF,0X00,0XFF,0XFF,0XFF,0XFF,0XFF,0X7E,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XBD,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XDB,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XE7,0XFF,0XFF,0XFF};
 int  o1[]={0XFF,0X00,0XFF,0X00,0XFF,0X00,0XFF,0X00,0XFF,0X00,0XFF,0X00,0XFF,0X00,0XFF,0X00,0XFF,0XFF,0XFF,0X7E,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XBD,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XDB,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XE7,0XFF,0XFF,0XFF,0XFF};
 int  p1[]={0X00,0XFF,0X00,0XFF,0X00,0XFF,0X00,0XFF,0X00,0XFF,0X00,0XFF,0X00,0XFF,0X00,0XFF,0XFF,0XFF,0X7E,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XBD,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XDB,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XE7,0XFF,0XFF,0XFF,0XFF,0XFF};
 int  q1[]={0XFF,0X00,0XFF,0X00,0XFF,0X00,0XFF,0X00,0XFF,0X00,0XFF,0X00,0XFF,0X00,0XFF,0X00,0XFF,0X7E,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XBD,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XDB,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XE7,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF};
 int  r1[]={0X00,0XFF,0X00,0XFF,0X00,0XFF,0X00,0XFF,0X00,0XFF,0X00,0XFF,0X00,0XFF,0X00,0XFF,0X7E,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XBD,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XDB,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XE7,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF};

/*
 int  a3[]={};
 int  b3[]={};
 int  c3[]={};
 int  d3[]={};
 int  e3[]={};
 int  f3[]={};
 int  g3[]={};
 int  h3[]={};
 int  i3[]={};

	*/


//第四列形成流水瀑布  1~16为雨滴向下并排落下
 //17~24   每一层的四个角从上到下落下

//0X18为结束
    void  liangmie()
{


	for(counter=0;counter<=10;counter++)//进行11次亮灭操作，可以自己设计次数
	{


	pose(a[0],b[0],c[0],d[0],e[0],f[0],g[0],h[0],i[0]);

        Delay(5000);

        pose(a[1],b[1],c[1],d[1],e[1],f[1],g[1],h[1],i[1]);

	Delay(5000);

	}

}


     void  outtoin()

{


	for(counter2=0;counter2<=20;counter2++)//进行最外层棱的显示
   {



	for(counter1=0;counter1<=3;counter1++)
	{

	pose(a[2+counter1],b[2+counter1],c[2+counter1],d[2+counter1],e[2+counter1],f[2+counter1],g[2+counter1],h[2+counter1],i[2+counter1]);



	}


    }


       for(counter2=0;counter2<=20;counter2++)//向内一层棱的显示
   {



	for(counter1=0;counter1<=3;counter1++)
	{

	pose(a[6+counter1],b[6+counter1],c[6+counter1],d[6+counter1],e[6+counter1],f[6+counter1],g[6+counter1],h[6+counter1],i[6+counter1]);



	}


    }

       for(counter2=0;counter2<=20;counter2++)
    {



	for(counter1=0;counter1<=3;counter1++)
	{

	pose(a[10+counter1],b[10+counter1],c[10+counter1],d[10+counter1],e[10+counter1],f[10+counter1],g[10+counter1],h[10+counter1],i[10+counter1]);



	}


    }


       for(counter2=0;counter2<=20;counter2++)//到最里层显示结束
   {



	for(counter1=0;counter1<=3;counter1++)
	{

	pose(a[14+counter1],b[14+counter1],c[14+counter1],d[14+counter1],e[14+counter1],f[14+counter1],g[14+counter1],h[14+counter1],i[14+counter1]);



	}


    }


}


void  intoout()
{

  for(counter2=0;counter2<=20;counter2++)//到最里层显示开始
   {



	for(counter1=0;counter1<=3;counter1++)
	{

	pose(a[14+counter1],b[14+counter1],c[14+counter1],d[14+counter1],e[14+counter1],f[14+counter1],g[14+counter1],h[14+counter1],i[14+counter1]);



	}


    }


    for(counter2=0;counter2<=20;counter2++)
    {



	for(counter1=0;counter1<=3;counter1++)
	{

	pose(a[10+counter1],b[10+counter1],c[10+counter1],d[10+counter1],e[10+counter1],f[10+counter1],g[10+counter1],h[10+counter1],i[10+counter1]);



	}


    }


    for(counter2=0;counter2<=20;counter2++)//向内一层棱的显示
   {



	for(counter1=0;counter1<=3;counter1++)
	{

	pose(a[6+counter1],b[6+counter1],c[6+counter1],d[6+counter1],e[6+counter1],f[6+counter1],g[6+counter1],h[6+counter1],i[6+counter1]);



	}


    }

    for(counter2=0;counter2<=20;counter2++)//进行最外层棱的显示
   {



	for(counter1=0;counter1<=3;counter1++)
	{

	pose(a[2+counter1],b[2+counter1],c[2+counter1],d[2+counter1],e[2+counter1],f[2+counter1],g[2+counter1],h[2+counter1],i[2+counter1]);



	}


    }


}


    void  heart()
    {

    for(counter=0;counter<=6;counter++)
	    {

    for(counter1=0;counter1<=5;counter1++)//从下到上一点点组成心形
	{

	pose(a[18+counter1],b[18+counter1],c[18+counter1],d[18+counter1],e[18+counter1],f[18+counter1],g[18+counter1],h[18+counter1],i[18+counter1]);

	Delay(3500);

	}

}


     for(counter=0;counter<=6;counter++)
{


	for(counter1=5;counter1>=0;counter1--)//从上到下一点点组成心形
	{


	pose(a[18+counter1],b[18+counter1],c[18+counter1],d[18+counter1],e[18+counter1],f[18+counter1],g[18+counter1],h[18+counter1],i[18+counter1]);


	Delay(3500);


	}


}



	for(counter=0;counter<=6;counter++)//心形由前到后闪烁
	{

    for(counter1=0;counter1<=8;counter1++)
	{

	pose(a[23+counter1],b[23+counter1],c[23+counter1],d[23+counter1],e[23+counter1],f[23+counter1],g[23+counter1],h[23+counter1],i[23+counter1]);

	Delay(2500);

	}


       }

       for(counter=0;counter<=6;counter++)//最左面灯一点点亮起来
       {



          for(counter1=0;counter1<=4;counter1++)
	       {


	       pose(a[32+counter1],b[32+counter1],c[32+counter1],d[32+counter1],e[32+counter1],f[32+counter1],g[32+counter1],h[32+counter1],i[32+counter1]);

	       Delay(2500);




	       }

       }



       for(counter=0;counter<=5;counter++)//开始从左边一列一列亮起来
       {


           for(counter1=0;counter1<=4;counter1++)
	       {

	       pose(a[37+counter1],b[37+counter1],c[37+counter1],d[37+counter1],e[37+counter1],f[37+counter1],g[37+counter1],h[37+counter1],i[37+counter1]);


	       }

	       Delay(500);


       for(counter1=0;counter1<=5;counter1++)
	       {

	       pose(a[42+counter1],b[42+counter1],c[42+counter1],d[42+counter1],e[42+counter1],f[42+counter1],g[42+counter1],h[42+counter1],i[42+counter1]);


	       }

	       Delay(500);


	  for(counter1=0;counter1<=5;counter1++)
	       {

	       pose(a[48+counter1],b[48+counter1],c[48+counter1],d[48+counter1],e[48+counter1],f[48+counter1],g[48+counter1],h[48+counter1],i[48+counter1]);


	       }

	       Delay(500);


	       for(counter1=0;counter1<=5;counter1++)
	       {

	     pose(a[54+counter1],b[54+counter1],c[54+counter1],d[54+counter1],e[54+counter1],f[54+counter1],g[54+counter1],h[54+counter1],i[54+counter1]);




	       }

	       Delay(500);

	       for(counter1=0;counter1<=5;counter1++)
	       {

	       pose(a[60+counter1],b[60+counter1],c[60+counter1],d[60+counter1],e[60+counter1],f[60+counter1],g[60+counter1],h[60+counter1],i[60+counter1]);


	       }

	       Delay(500);


       for(counter1=0;counter1<=5;counter1++)
	       {



	       pose(a[66+counter1],b[66+counter1],c[66+counter1],d[66+counter1],e[66+counter1],f[66+counter1],g[66+counter1],h[66+counter1],i[66+counter1]);

	       }

	       Delay(500);


       }


    }

显示图形的.h文件

#ifndef    __xianshi_H__
#define    __xianshi_H__

void  liangmie(void);
void  outtoin(void);
void  intoout(void);
void  heart(void);


#endif

到此我的分享就结束了，这几天在实验室在焊接这个光立方，挤了很多时间才写完这个，希望大家能批评指正！

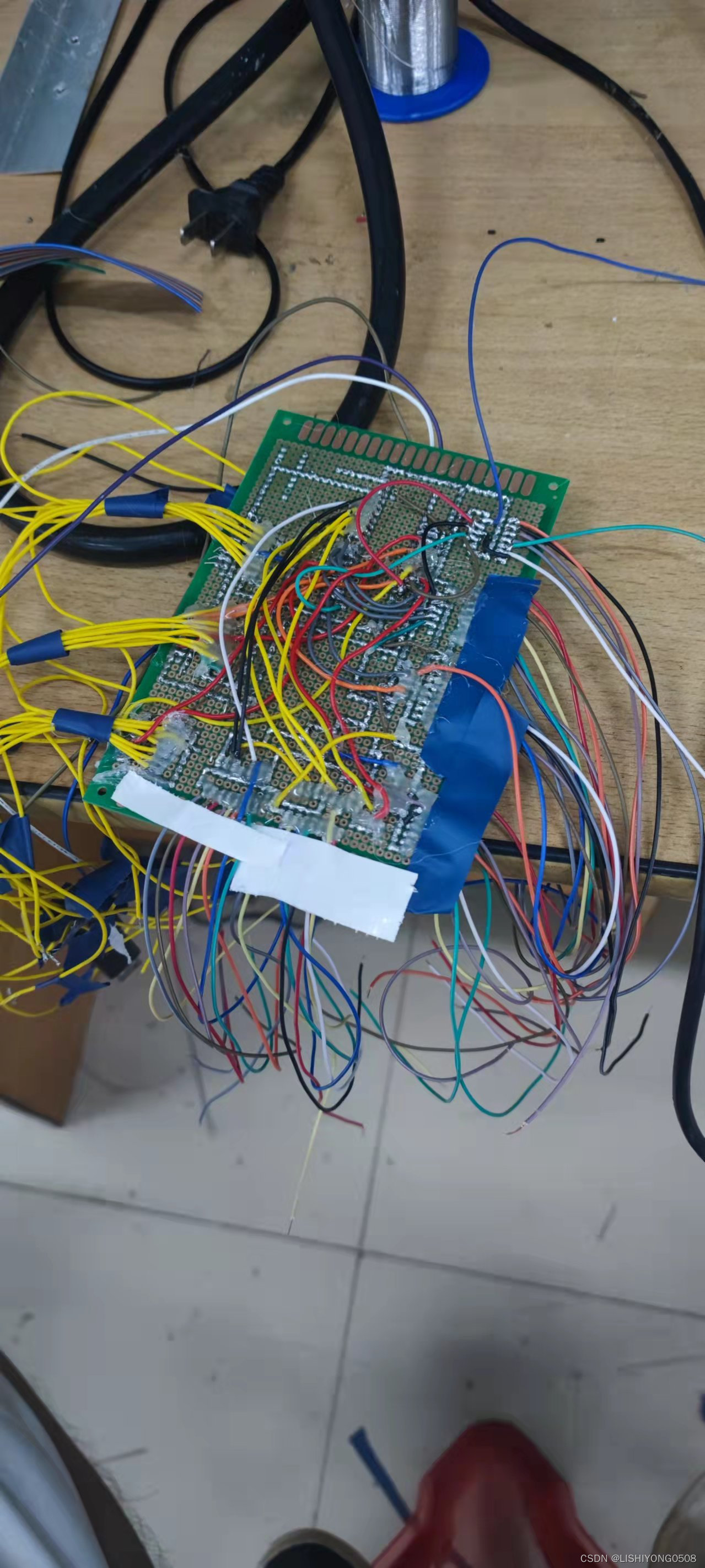

发一个我在实验室的飞线照片吧，挺好玩的~

这个由于后面飞线有点多，使用时间长了信号不稳定，后面我是自己画了个pcb板，自己的话建议还是打个板子使用。

最详细的制作8*8*8的光立方

最详细的制作888的光立方
