Ruoyi-Cloud新建模块+代码生成过程

新建模块+代码生成过程

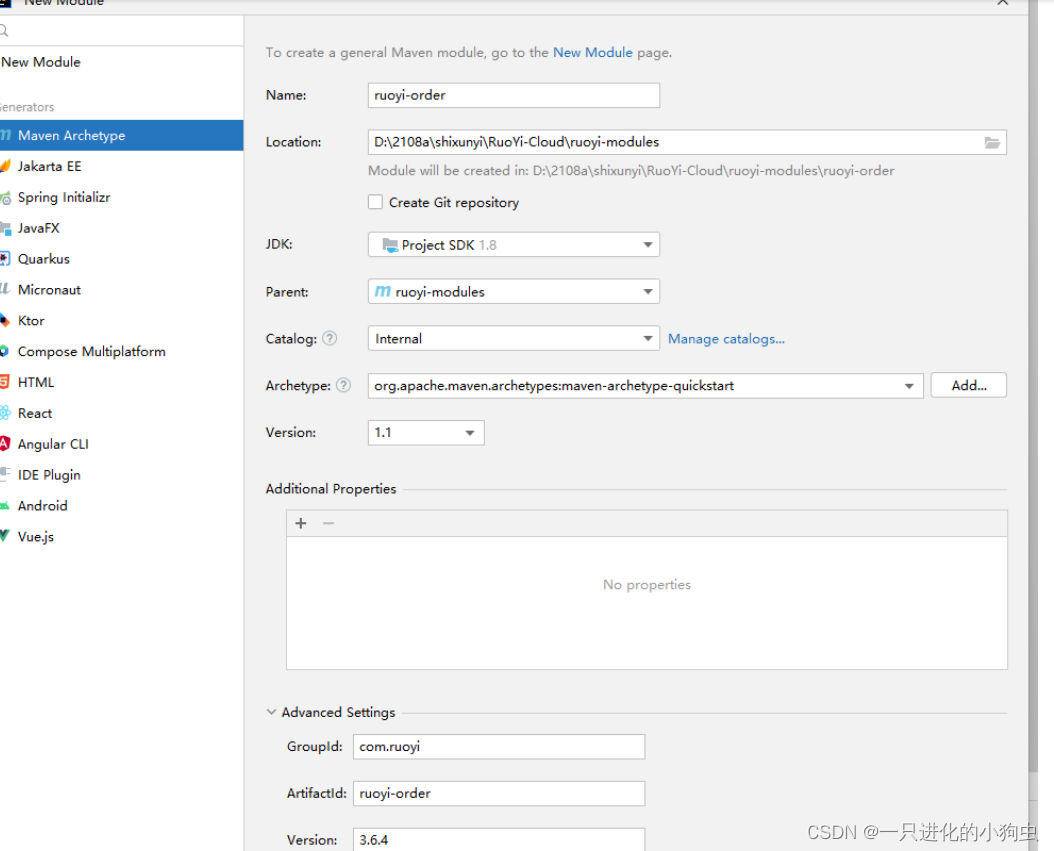

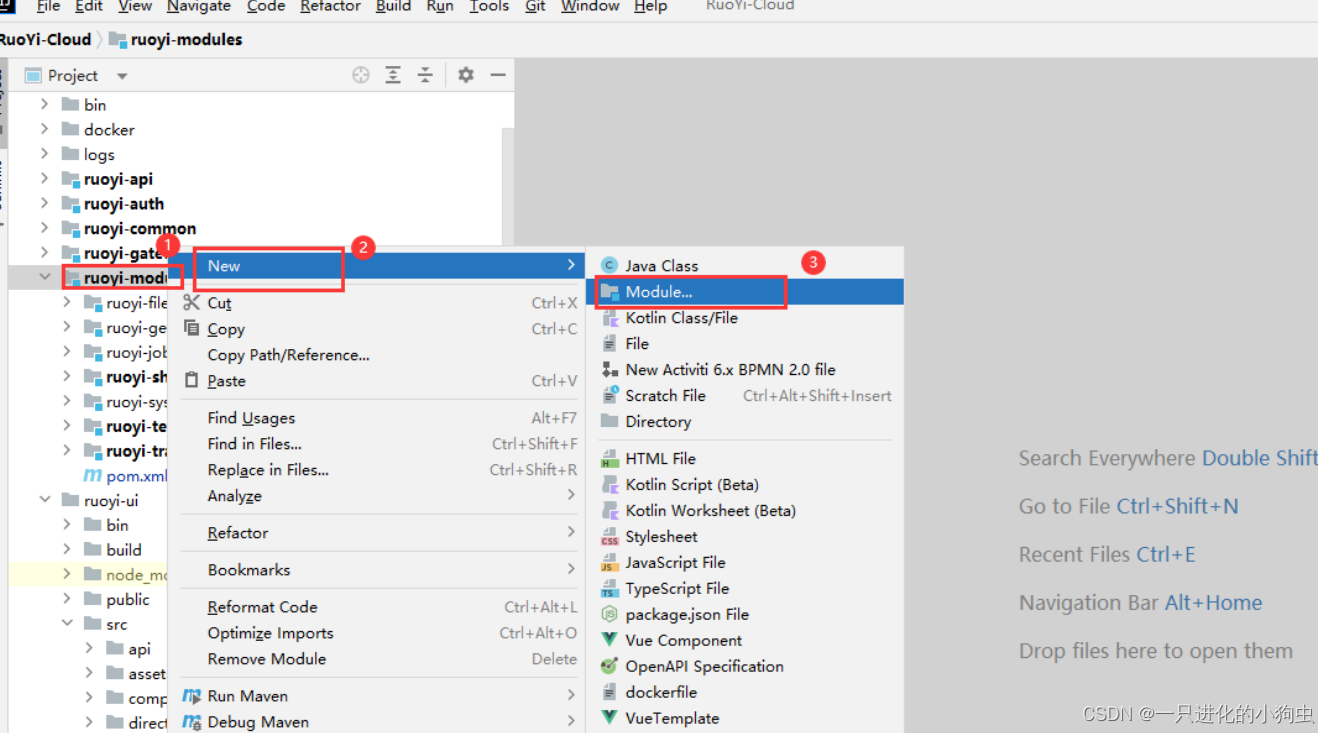

1. 在ruoyi-modules路径下新建一个子模块
2.
3.

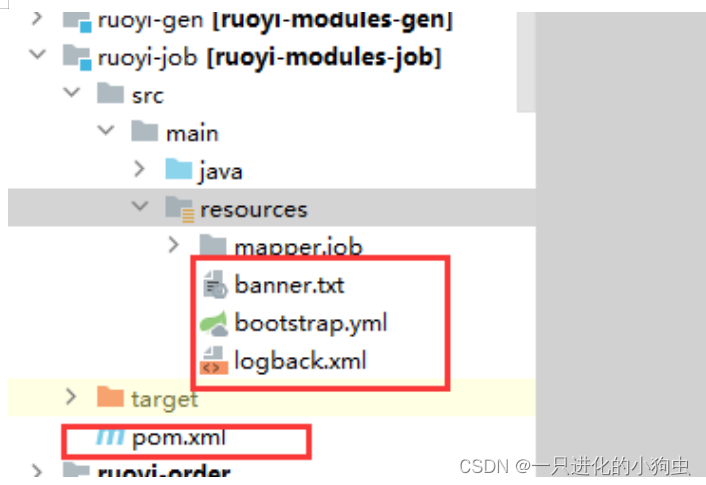

2. 把ruoyi-job的pom依赖,启动类,resources资源文件下的banner.txt,bootstrap.yml,logback复制到这个子模块ruoyi-order的pom文件中
3.

<dependencies>

   <!-- SpringCloud Alibaba Nacos -->
    <dependency>
        <groupId>com.alibaba.cloud</groupId>
        <artifactId>spring-cloud-starter-alibaba-nacos-discovery</artifactId>
    </dependency>

    <!-- SpringCloud Alibaba Nacos Config -->
    <dependency>
        <groupId>com.alibaba.cloud</groupId>
        <artifactId>spring-cloud-starter-alibaba-nacos-config</artifactId>
    </dependency>

    <!-- SpringCloud Alibaba Sentinel -->
    <dependency>
        <groupId>com.alibaba.cloud</groupId>
        <artifactId>spring-cloud-starter-alibaba-sentinel</artifactId>
    </dependency>

    <!-- SpringBoot Actuator -->
    <dependency>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-starter-actuator</artifactId>
    </dependency>

    <!-- Swagger UI -->
    <dependency>
        <groupId>io.springfox</groupId>
        <artifactId>springfox-swagger-ui</artifactId>
        <version>${swagger.fox.version}</version>
    </dependency>

    <!-- Quartz -->
    <dependency>
        <groupId>org.quartz-scheduler</groupId>
        <artifactId>quartz</artifactId>
        <exclusions>
            <exclusion>
                <groupId>com.mchange</groupId>
                <artifactId>c3p0</artifactId>
            </exclusion>
        </exclusions>
    </dependency>

    <!-- Mysql Connector -->
    <dependency>
        <groupId>com.mysql</groupId>
        <artifactId>mysql-connector-j</artifactId>
    </dependency>

    <!-- RuoYi Common Log -->
    <dependency>
        <groupId>com.ruoyi</groupId>
        <artifactId>ruoyi-common-log</artifactId>
    </dependency>

    <!-- RuoYi Common Swagger -->
    <dependency>
        <groupId>com.ruoyi</groupId>
        <artifactId>ruoyi-common-swagger</artifactId>
    </dependency>

</dependencies>

<build>
    <finalName>${project.artifactId}</finalName>
    <plugins>
        <plugin>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-maven-plugin</artifactId>
            <executions>
                <execution>
                    <goals>
                        <goal>repackage</goal>
                    </goals>
                </execution>
            </executions>
        </plugin>
    </plugins>
</build>

并且加入mybatis-plus的注解：

<dependency>
    <groupId>com.baomidou</groupId>
    <artifactId>mybatis-plus-boot-starter</artifactId>
    <version>3.5.2</version>
</dependency>

1. 在nacos中复制一个配置文件作为这个新建模块的配置文件并且在网关配置上配置一个路径：
2.
3.

如上图：网关路径是:/share

1. 启动若依系统-系统工具-代码生成
2.

编辑：

1. 把生成的压缩包后端代码解压到新建模块的目录，前端代码解压到前端对应路径
2. 修改后端生成代码的部分

给mapper层加上注解@mapper

修改xml文件，爆红的地方把实体类名改成实体类全路径

比如：把YuekaoOrder改成com.ruoyi.order.domain.YuekaoOrder

1. 修改前端的js配置的第一级路径名为网关配置的模块路径：

1. 重启项目，查看情况：
2. 调整订单管理展示的菜单路径，改到主目录下,方便查看：
3.
4.
5.

访问页面---------成功：
