JUnit + Robolectric + JaCoCo 实现Android单元测试及覆盖率检查

一、工具简介

JUnit Java 单元测试框架，是Android单元测试的基础

Robolectric 直接运行在JVM上，提供Android代码的运行环境（不需要虚拟机或Android设备）

JaCoCo 单元测试覆盖率工具

二、 配置

1.JUnit + Robolectric配置

testImplementation 'junit:junit:4.12'
testImplementation 'org.robolectric:robolectric:4.0-alpha-2’

2.JaCoCo配置

android {
   buildTypes {
      debug {
         testCoverageEnabled = true
      }
   }
}

apply plugin ‘jacoco'

jacoco {
    toolVersion = "0.7.1.201405082137"   //版本号可用最新
}

def coverageSourceDirs = [
        '../deckard-master/src/main/java' // deckard-master需要修改为你的module名称
]

task jacocoTestReport(type:JacocoReport, dependsOn: "testDebugUnitTest") {
    group = "Reporting"

    description = "Generate Jacoco coverage reports"

    // 下面dir deckard-master需要修改为你的module名称
    classDirectories = fileTree(
            dir: '../deckard-master/build/intermediates/classes/debug',
            excludes: ['**/R.class',
                       '**/R$*.class',
                       '**/*$ViewInjector*.*',
                       '**/BuildConfig.*',
                       '**/Manifest*.*']          // 去掉不进行检查的文件
    )

    additionalSourceDirs = files(coverageSourceDirs)
    sourceDirectories = files(coverageSourceDirs)
    // 下面dir deckard-master需要修改为你的module名称
    executionData = files('../deckard-master/build/jacoco/testDebugUnitTest.exec')

    reports {
        xml.enabled = true
        html.enabled = true
    }
}

三、实例

1.单元测试用例

@RunWith(RobolectricTestRunner.class)
public class DeckardActivityTest {

    @Test
    public void testSomething() throws Exception {
        ShadowApplication shadowApplication = Shadows.shadowOf(RuntimeEnvironment.application);
        assertNotNull(shadowApplication);
        String packageName = shadowApplication.getApplicationContext().getPackageName();
        assertEquals(packageName, "com.example");
        PackageInfo info = shadowApplication.getApplicationContext().getPackageManager()
                .getPackageInfo(packageName, 0);
        assertNotNull(info);
        assertEquals(info.versionCode, 2);
        DeckardActivity mainActivity = Robolectric.setupActivity(DeckardActivity.class);
        assertTrue(mainActivity != null);
        TextView textView = mainActivity.findViewById(R.id.text);
        assertNotNull(textView);
        Toast.makeText(shadowApplication.getApplicationContext(), textView.getText().toString(), Toast.LENGTH_SHORT).show();
        assertEquals(ShadowToast.getTextOfLatestToast(), "Hello Espresso!");
    }

    @Test
    public void testOtherSomething() throws Exception {
        ShadowApplication shadowApplication = Shadows.shadowOf(RuntimeEnvironment.application);
        assertNotNull(shadowApplication);
        String packageName = shadowApplication.getApplicationContext().getPackageName();
        assertEquals(packageName, "com.example");
    }
}

2.执行用例

./gradleview jacocoTestReport

3.执行结果:失败，不会生成覆盖率报告

MacBook-Pro:~/Downloads/deckard-master$ gradle jacocoTestReport

> Task :testDebugUnitTest
objc[3044]: Class JavaLaunchHelper is implemented in both /Library/Java/JavaVirtualMachines/jdk1.8.0_151.jdk/Contents/Home/bin/java (0x105a234c0) and /Library/Java/JavaVirtualMachines/jdk1.8.0_151.jdk/Contents/Home/jre/lib/libinstrument.dylib (0x105aa74e0). One of the two will be used. Which one is undefined.

com.example.activity.DeckardActivityTest > testSomething FAILED
    org.junit.ComparisonFailure at DeckardActivityTest.java:44

2 tests completed, 1 failed


FAILURE: Build failed with an exception.

* What went wrong:
Execution failed for task ':testDebugUnitTest'.
> There were failing tests. See the report at: file:///Users/Jason/Downloads/deckard-master/build/reports/tests/testDebugUnitTest/index.html

* Try:
Run with --stacktrace option to get the stack trace. Run with --info or --debug option to get more log output.

* Get more help at https://help.gradle.org

BUILD FAILED in 15s
22 actionable tasks: 2 executed, 20 up-to-date
MacBook-Pro:~/Downloads/deckard-master$

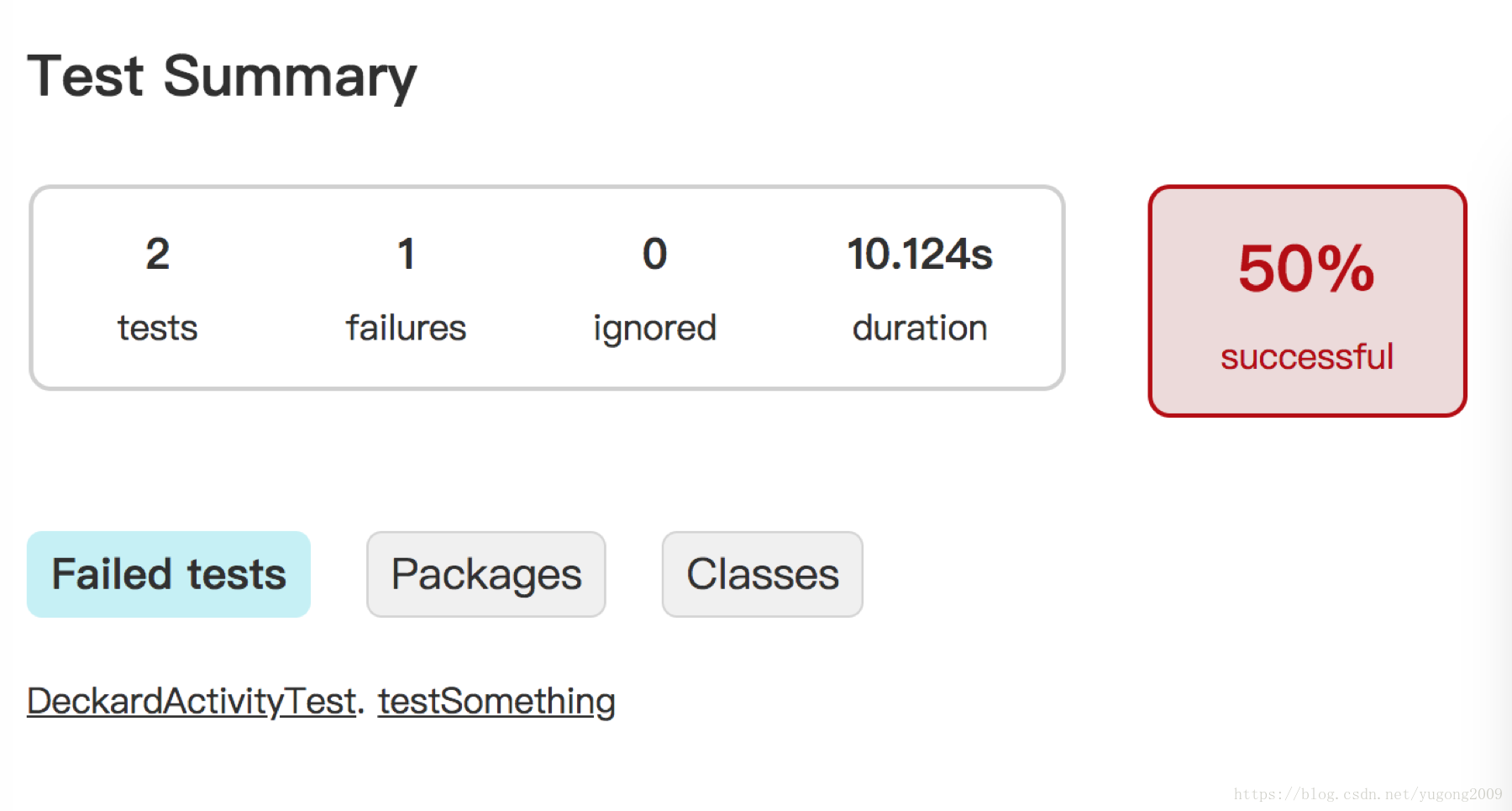

其中 file:///Users/Jason/Downloads/deckard-master/build/reports/tests/testDebugUnitTest/index.html

就是测试详情，如下图所示

4.执行结果：成功，生成覆盖率报告

Jason@YuSongdeMacBook-Pro:~/Downloads/deckard-master$ gradle jacocoTestReport

> Task :testDebugUnitTest
objc[3100]: Class JavaLaunchHelper is implemented in both /Library/Java/JavaVirtualMachines/jdk1.8.0_151.jdk/Contents/Home/bin/java (0x10c18a4c0) and /Library/Java/JavaVirtualMachines/jdk1.8.0_151.jdk/Contents/Home/jre/lib/libinstrument.dylib (0x10d1b54e0). One of the two will be used. Which one is undefined.


BUILD SUCCESSFUL in 16s
23 actionable tasks: 16 executed, 7 up-to-date
Jason@YuSongdeMacBook-Pro:~/Downloads/deckard-master$

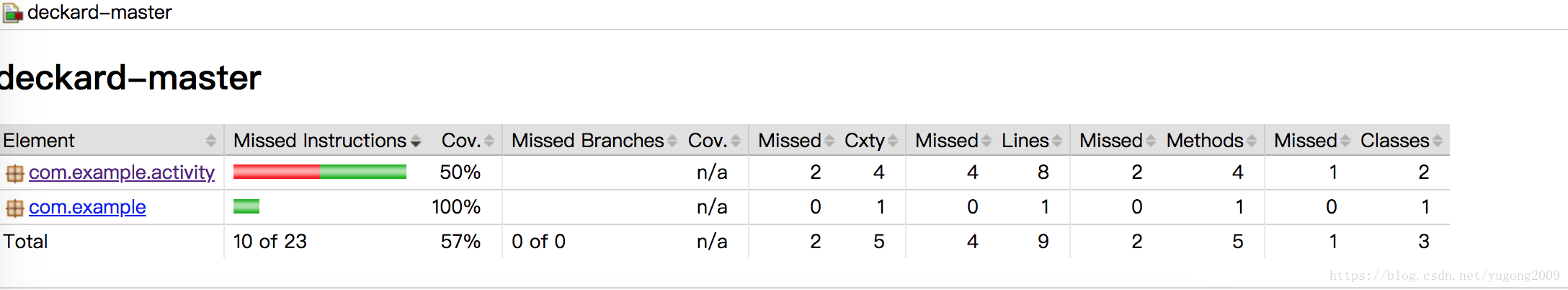

成功时才会生成覆盖率报告，路径为：build/reports/jacoco/jacocoTestReport/html/index.html， 如图所示：

参考

1.Robolectric 用法及API文档 :http://robolectric.org/

2.美团Android单元测试研究与实践: https://tech.meituan.com/Android_unit_test.html

3.与 Jenkins CI 的结合：https://www.jianshu.com/p/b8a7dfefba96
