canal高可用和mysql节点自动切换的部署，可以参考我的这篇文章

1. 准备工作

1.1 active mysql查看

因为我们部署了mysql节点自动切换，我们需要查看现在同步的是哪一台mysql服务器

先查看example_db1实例运行的服务器

[zk: canal1:2181,canal2:2181,canal3:2181(CONNECTED) 4]
[zk: canal1:2181,canal2:2181,canal3:2181(CONNECTED) 4] get /otter/canal/destinations/example_db1/running
{"active":true,"address":"192.168.23.31:11111"}
[zk: canal1:2181,canal2:2181,canal3:2181(CONNECTED) 5]

可以看到example_db1实例运行在canal1上

然后我们查看canal1的example_db1日志

[root@canal1 example_db1]#
[root@canal1 example_db1]# pwd
/root/canal.deployer-1.1.5/logs/example_db1
[root@canal1 example_db1]#
[root@canal1 example_db1]# tail example_db1.log
......省略部分......
2021-07-29 04:16:13.461 [destination = example_db1 , address = canal2/192.168.23.32:3306 , EventParser] WARN  c.a.o.c.p.inbound.mysql.rds.RdsBinlogEventParserProxy - prepare to find start position mysql-bin.000026:4:1627458457000
2021-07-29 04:16:14.278 [destination = example_db1 , address = canal2/192.168.23.32:3306 , EventParser] WARN  c.a.o.c.p.inbound.mysql.rds.RdsBinlogEventParserProxy - ---> find start position successfully, EntryPosition[included=false,journalName=mysql-bin.000026,position=4,serverId=2,gtid=<null>,timestamp=1627458457000] cost : 877ms , the next step is binlog dump
[root@canal1 example_db1]#

可以看到当前active的mysql为canal2

1.2 mysql数据情况

[root@canal2 ~]# mysql -u root -pRoot_123
mysql: [Warning] Using a password on the command line interface can be insecure.
Welcome to the MySQL monitor.  Commands end with ; or \g.
Your MySQL connection id is 22
Server version: 8.0.25 MySQL Community Server - GPL

Copyright (c) 2000, 2021, Oracle and/or its affiliates.

Oracle is a registered trademark of Oracle Corporation and/or its
affiliates. Other names may be trademarks of their respective
owners.

Type 'help;' or '\h' for help. Type '\c' to clear the current input statement.

mysql>
mysql> show databases;
+--------------------+
| Database           |
+--------------------+
| db1                |
| information_schema |
| mysql              |
| performance_schema |
| sys                |
+--------------------+
6 rows in set (0.01 sec)

mysql> use db1;
Reading table information for completion of table and column names
You can turn off this feature to get a quicker startup with -A

Database changed
mysql> show tables;
+---------------+
| Tables_in_db1 |
+---------------+
| tb1_1         |
| tb1_2         |
+---------------+
2 rows in set (0.00 sec)

mysql> select * from tb1_1;
+------+-------+--------+
| idA  | nameA | scoreA |
+------+-------+--------+
|    1 | 1     |   1.10 |
|    2 | 2     |   2.20 |
|    3 | 3     |   3.30 |
+------+-------+--------+
3 rows in set (0.00 sec)

mysql> select * from tb1_2;
+------+-------+------+
| idA  | nameA | ageA |
+------+-------+------+
|    1 | 1     |    1 |
|    2 | 2     |    2 |
|    3 | 3     |    3 |
+------+-------+------+
3 rows in set (0.00 sec)

mysql>

1.3 全量数据导出

这里我们找一台临时的数据库服务器canal3, 数据同步脚本如下：

[root@canal3 ~]#
[root@canal3 ~]# pwd
/root
[root@canal3 ~]#
[root@canal3 ~]# cat mysql_dump_load.sh
#!/usr/bin/env bash

# 脚本参数
mysql_source_host=192.168.23.32
mysql_source_port=3306
mysql_source_user=root
mysql_source_password=Root_123
mysql_source_db=db1

mysql_target_host=192.168.23.33
mysql_target_port=3306
mysql_target_user=root
mysql_target_password=Root_123
mysql_target_db=db1

mysql_dump_path=/root/db1.sql

# 不导出视图的参数
ignore_tables="--ignore-table=${mysql_source_db}.tb1 --ignore-table=${mysql_source_db}.tb2"






# 导出数据库数据
mysqldump -h ${mysql_host} -P ${mysql_port} -u ${mysql_user} -p${mysql_password} --databases ${mysql_source_db} --flush-logs --lock-all-tables --master-data=1 --column_statistics=0 ${ignore_tables} > ${mysql_dump_path}

# 获取binlog文件名和位置，并在导出的sql文件中添加注释
mysql_binlog_filename=`head -10000 ${mysql_dump_path} | grep 'CHANGE MASTER TO MASTER_LOG_FILE' | sed -r 's/CHANGE MASTER TO MASTER_LOG_FILE.*(mysql-bin\.[0-9]+).*MASTER_LOG_POS.*/\1/g'`
mysql_binlog_position=`head -10000 ${mysql_dump_path} | grep 'CHANGE MASTER TO MASTER_LOG_FILE' | sed -r 's/CHANGE MASTER TO MASTER_LOG_FILE.*MASTER_LOG_POS=([0-9]+).*/\1/g'`
sed -ri 's/(CHANGE MASTER TO MASTER_LOG_FILE.*MASTER_LOG_POS.*;)/-- \1/g' ${mysql_dump_path}

mysql -h ${mysql_target_host} -P ${mysql_target_port} -u ${mysql_target_user} -p${mysql_target_password} -e "drop database if exists ${mysql_target_db}"
mysql -h ${mysql_target_host} -P ${mysql_target_port} -u ${mysql_target_user} -p${mysql_target_password} -e "source ${mysql_dump_path}"

echo ${mysql_binlog_filename}
echo ${mysql_binlog_position}
[root@canal3 ~]#

运行数据导出脚本

[root@canal3 ~]#
[root@canal3 ~]# sh mysql_dump_load.sh
mysqldump: [Warning] Using a password on the command line interface can be insecure.
mysql: [Warning] Using a password on the command line interface can be insecure.
mysql: [Warning] Using a password on the command line interface can be insecure.
mysql-bin.000026
156
[root@canal3 ~]#

此时我们可以看到flush后的最新binlog文件是mysql-bin.000026，position是156

1.4 数据库的数据更新

然后我们再对db1数据库的数据做一些变更

[root@canal2 ~]# mysql -u root -pRoot_123
mysql: [Warning] Using a password on the command line interface can be insecure.
Welcome to the MySQL monitor.  Commands end with ; or \g.
Your MySQL connection id is 22
Server version: 8.0.25 MySQL Community Server - GPL

Copyright (c) 2000, 2021, Oracle and/or its affiliates.

Oracle is a registered trademark of Oracle Corporation and/or its
affiliates. Other names may be trademarks of their respective
owners.

Type 'help;' or '\h' for help. Type '\c' to clear the current input statement.

mysql>
mysql> insert into db1.tb1_1 values(4,'4',4.4),(5,'5',5.5);
Query OK, 2 rows affected (0.00 sec)
Records: 2  Duplicates: 0  Warnings: 0

mysql> delete from db1.tb1_2 where idA = 2;
Query OK, 1 rows affected (0.00 sec)

mysql> delete from db1.tb1_2 where idA = 3;
Query OK, 1 rows affected (0.00 sec)

mysql>

2. canal.deploy配置修改

修改3台服务器的配置

canal.properties

修改部分：

canal.destinations =

canal.serverMode = tcp

这里我们取消默认的example, 改用自动扫描，会扫描conf目录下的文件夹名(除了metrics和spring)来做example实例, 一般一个example实例对应一个数据库的同步

然后重启canal服务

2.2 删除conf/example，建立新的example实例

在canal1的/root目录下准备一个example实例，步骤如下

[root@canal1 conf]# ls
canal_local.properties  canal.properties  example  logback.xml  metrics  spring
[root@canal1 conf]#
[root@canal1 conf]# pwd
/root/canal.deployer-1.1.5/conf
[root@canal1 conf]#
[root@canal1 conf]# cp -r example/ ~
[root@canal1 conf]#
[root@canal1 conf]# cd ~
[root@canal1 ~]#
[root@canal1 ~]# mv example/ example_db1
[root@canal1 ~]#
[root@canal1 ~]# ll example_db1/
总用量 164
-rw-r--r--. 1 root root 163840 6月  25 11:01 h2.mv.db
-rwxr-xr-x. 1 root root   2621 6月  25 11:01 instance.properties
[root@canal1 ~]#
[root@canal1 ~]# rm example_db1/h2.mv.db -rf
[root@canal1 ~]#

example_db1/instance.properties设置了binlog的读取起始点，且只同步db1数据库的数据，内容如下

[root@canal1 ~]#
[root@canal1 ~]# cat example_db1/instance.properties
#################################################
## mysql serverId , v1.0.26+ will autoGen
# canal2为1232，canal3为1233
canal.instance.mysql.slaveId=1231

# enable gtid use true/false
canal.instance.gtidon=false

# position info
canal.instance.master.address=canal2:3306
canal.instance.master.journal.name=mysql-bin.000026
canal.instance.master.position=156
canal.instance.master.timestamp=
canal.instance.master.gtid=

# rds oss binlog
canal.instance.rds.accesskey=
canal.instance.rds.secretkey=
canal.instance.rds.instanceId=

# table meta tsdb info
canal.instance.tsdb.enable=true
#canal.instance.tsdb.url=jdbc:mysql://127.0.0.1:3306/canal_tsdb
#canal.instance.tsdb.dbUsername=canal
#canal.instance.tsdb.dbPassword=canal

canal.instance.standby.address = canal1:3306
#canal.instance.standby.journal.name =
#canal.instance.standby.position =
#canal.instance.standby.timestamp =
#canal.instance.standby.gtid=

# username/password
canal.instance.dbUsername=canal
canal.instance.dbPassword=Canal_123
canal.instance.connectionCharset = UTF-8
# enable druid Decrypt database password
canal.instance.enableDruid=false
#canal.instance.pwdPublicKey=MFwwDQYJKoZIhvcNAQEBBQADSwAwSAJBALK4BUxdDltRRE5/zXpVEVPUgunvscYFtEip3pmLlhrWpacX7y7GCMo2/JM6LeHmiiNdH1FWgGCpUfircSwlWKUCAwEAAQ==

# table regex
canal.instance.filter.regex=db1\\.tb\\d_\\d
# table black regex
canal.instance.filter.black.regex=mysql\\.slave_.*
# table field filter(format: schema1.tableName1:field1/field2,schema2.tableName2:field1/field2)
#canal.instance.filter.field=test1.t_product:id/subject/keywords,test2.t_company:id/name/contact/ch
# table field black filter(format: schema1.tableName1:field1/field2,schema2.tableName2:field1/field2)
#canal.instance.filter.black.field=test1.t_product:subject/product_image,test2.t_company:id/name/contact/ch

# mq config
canal.mq.topic=example
# dynamic topic route by schema or table regex
#canal.mq.dynamicTopic=mytest1.user,mytest2\\..*,.*\\..*
canal.mq.partition=0
# hash partition config
#canal.mq.partitionsNum=3
#canal.mq.partitionHash=test.table:id^name,.*\\..*
#canal.mq.dynamicTopicPartitionNum=test.*:4,mycanal:6
#################################################


# 需要开启心跳检查
canal.instance.detecting.enable = true
# 心跳检查sql
canal.instance.detecting.sql = select 1
# 心跳检查频率
canal.instance.detecting.interval.time = 3
# 心跳检查失败次数阀值，超过该阀值后会触发mysql链接切换，比如切换到standby机器上继续消费binlog
canal.instance.detecting.retry.threshold = 3
# 心跳检查超过失败次数阀值后，是否开启master/standby的切换
canal.instance.detecting.heartbeatHaEnable = true
[root@canal1 ~]#

删除3台服务器的conf/example目录，并将example_db1放到3台服务器的conf目录下，并修改canal2和canal3的instance.properties的canal.instance.mysql.slaveId参数

3. 同步代码的开发

3.1 重复测试的脚本

因为测试的时候，有时候会删除client在zookeeper的消费position, 和让canal server重新从instance.properties设置的position开始消费，所以需要重启canal server

[root@canal1 ~]#
[root@canal1 ~]# pwd
/root
[root@canal1 ~]#
[root@canal1 ~]# cat example_db_repeat_test.sh
#!/usr/bin/env bash

# 脚本参数
zk_cli=/root/apache-zookeeper-3.6.3-bin/bin/zkCli.sh
zk_url=canal1:2181,canal2:2181,canal3:2181
destinations=example_db1
canal_servers=('canal1' 'canal2' 'canal3')
canal_user=root
canal_restart_sh=/root/canal.deployer-1.1.5/bin/restart.sh

# 删除zk的canal client position
${zk_cli} -server ${zk_url} delete /otter/canal/destinations/${destinations}/1001/cursor


# 重启3台服务的canal server
for canal_server in ${canal_servers[@]}
do
ssh ${canal_user}@${canal_server} << begin2end
source /root/.bashrc
sh ${canal_restart_sh}
exit
begin2end
done

[root@canal1 ~]#

3.2 scala同步代码

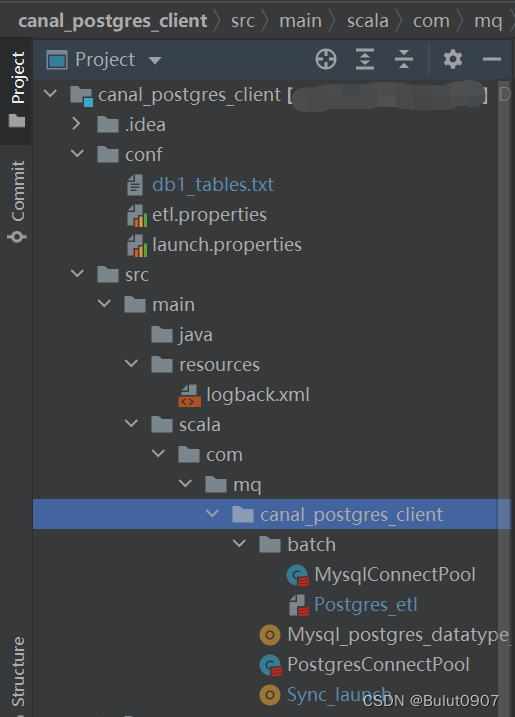

项目结构如下：

各文件作用如下：

db1_tables.txt：数据库需要同步的表名文件
etl.properties：批量数据同步的配置文件
launch.properties：增量日志同步的配置文件
logback.xml：项目运行的日志输出配置文件
MysqlConnectPool：Mysql连接池文件
Postgres_etl：批量数据同步程序
Mysql_postgres_datatype：Mysql和Postgres列类型对应
PostgresConnectPool：Postgres连接池文件
Sync_launch：增量数据同步程序

3.2.1 db1_tables.txt

tb1_1
tb1_2

3.2.2 etl.properties

source_db=db1
target_db=db1
target_db_schema=db1.public


mysql_host=192.168.23.33
mysql_port=3306
mysql_user=root
mysql_password=Root_123


postgres_host=192.168.23.33
postgres_port=5432
postgres_user=postgres
postgres_password=postgres123


tables_filename=db1_tables.txt
max_threads=8
query_batch_size=100000

3.2.3 launch.properties

destination=example_db1
subscribe=db1\\.tb\\d_\\d

source_db=db1
target_db=db1
target_db_schema=db1.public

zk_url=192.168.23.31:2181,192.168.23.32:2181,192.168.23.33:2181

postgres_host=192.168.23.33
postgres_port=5432
postgres_user=postgres
postgres_password=postgres123


tables_filename=db1_tables.txt

3.2.4 logback.xml

<?xml version="1.0" encoding="UTF-8"?>
<configuration>

    <appender name="STDOUT" class="ch.qos.logback.core.ConsoleAppender">
        <encoder class="ch.qos.logback.classic.encoder.PatternLayoutEncoder">
            <!--格式化输出：%d表示日期，%thread表示线程名，%-5level：级别靠左显示5个字符宽度，%logger：日志的类名，%msg：日志消息，%n是换行符 -->
            <pattern>%d{yyyy-MM-dd HH:mm:ss.SSS} [%thread] %-5level %logger{50} --- %msg%n</pattern>
        </encoder>
    </appender>

    <root level="INFO">
        <appender-ref ref="STDOUT" />
    </root>
</configuration>

3.2.5 MysqlConnectPool

package com.mq.canal_postgres_client.batch

import java.io.FileInputStream
import java.util.Properties

class MysqlConnectPool(properties_filename: String) {


  val prop = new Properties()
  val input_stream = new FileInputStream(properties_filename)
  prop.load(input_stream)

  //数据源配置
  val dataSource = new DruidDataSource()
  dataSource.setUrl(s"jdbc:mysql://${prop.getProperty("mysql_host")}:${prop.getProperty("mysql_port")}/${prop.getProperty("source_db")}?serverTimezone=UTC")
  dataSource.setDriverClassName("com.mysql.cj.jdbc.Driver")
  dataSource.setUsername(prop.getProperty("mysql_user"))
  dataSource.setPassword(prop.getProperty("mysql_password"))

  //下面都是可选的配置
  dataSource.setInitialSize(10) //初始连接数
  dataSource.setMaxActive(30) //最大连接数
  dataSource.setMinIdle(10) //最小闲置数
  dataSource.setMaxWait(5000) //获取连接的最大等待时间，单位毫秒
  dataSource.setPoolPreparedStatements(false) //缓存PreparedStatement
  dataSource.setMaxOpenPreparedStatements(-1) //缓存PreparedStatement的最大数量，默认-1（不缓存）
  dataSource.setValidationQuery("select 1")
  dataSource.setTestWhileIdle(true)
  dataSource.setTestOnBorrow(false)
  dataSource.setTestOnReturn(false)


  def getConnection() = {
    dataSource.getConnection()
  }

}

3.2.6 Postgres_etl.scala

package com.mq.canal_postgres_client.batch

import com.mq.canal_postgres_client.Mysql_postgres_datatype_map.mysql_postgres_datatype_map
import com.mq.canal_postgres_client.PostgresConnectPool
import org.apache.commons.io.{Charsets, IOUtils}

import java.io.FileInputStream
import java.sql.{Connection, SQLException, Statement}
import java.util.Properties
import java.util.concurrent.{ExecutorService, Executors}
import scala.collection.mutable.ArrayBuffer
import scala.jdk.CollectionConverters.CollectionHasAsScala

/*

${JAVA_HOME8}/bin/java \
-classpath /root/canal_postgres_client-1.0-SNAPSHOT.jar \
com.mq.canal_postgres_client.batch.Postgres_etl

 */


class Query_insert_data(mysql_connect_pool: MysqlConnectPool,
                        table_name: String,
                        prop: Properties,
                        postgres_connect_pool: PostgresConnectPool,
                        query_offset: Long,
                        query_batch_size: Long) extends Runnable {

  override def run(): Unit = {
    val mysql_conn = mysql_connect_pool.getConnection()
    val mysql_stmt = mysql_conn.createStatement()
    val postgres_conn = postgres_connect_pool.getConnection()

    val mysql_query_sql = s"select * from ${table_name} limit ${query_offset}, ${query_batch_size}"
    println(s">>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>${mysql_query_sql}>>>>>>>>>>>>>>>>>>>>>>>>>")
    val rs = mysql_stmt.executeQuery(mysql_query_sql)

    // 获取所有列名和类型名, 并拼接prepareStatement的sql
    val rmd = rs.getMetaData
    val column_name_types = ArrayBuffer[(String, String)]()
    var columns_str = ""
    var values_str = ""
    for (number <- 1 to rmd.getColumnCount) {

      val column_name = rmd.getColumnName(number)
      columns_str = columns_str + s"${column_name},"
      values_str = values_str + "?,"

      // ArrayBuffer((colA,int), (colB,varchar), (colC,decimal))
      column_name_types += ((column_name, rmd.getColumnTypeName(number).toLowerCase))
    }

    columns_str = columns_str.dropRight(1)
    values_str = values_str.dropRight(1)
    val insert_sql = s"insert into ${prop.getProperty("target_db_schema")}.${table_name}(${columns_str}) values(${values_str})"
    val postgres_pst = postgres_conn.prepareStatement(insert_sql)


    postgres_conn.setAutoCommit(false)

    // 计数器
    var increment_batch_count = 0L

    // 设置prestatement语句里面的值
    while (rs.next()) {
      increment_batch_count += 1
      for (column_name_type_index <- column_name_types.zipWithIndex) {
        val column_name = column_name_type_index._1._1
        val column_type = column_name_type_index._1._2

        val jdbc_parameter_index = column_name_type_index._2 + 1
        if (column_type == "bit" || column_type == "tinyint" || column_type.startsWith("int") || column_type.startsWith("bigint")) {
          postgres_pst.setLong(jdbc_parameter_index, rs.getLong(column_name))

        } else if (column_type == "float" || column_type == "double" || column_type == "decimal") {
          postgres_pst.setBigDecimal(jdbc_parameter_index, rs.getBigDecimal(column_name))
        } else if (column_type == "char" || column_type == "varchar" || column_type == "mediumtext" || column_type == "text") {
          postgres_pst.setString(jdbc_parameter_index, rs.getString(column_name))
        } else if (column_type == "date") {
          try {
            postgres_pst.setDate(jdbc_parameter_index, rs.getDate(column_name))
          } catch {
            case e: SQLException => {
              postgres_pst.setDate(jdbc_parameter_index, null)
            }
          }
        } else if (column_type == "time") {
          postgres_pst.setTime(jdbc_parameter_index, rs.getTime(column_name))
        } else if (column_type == "datetime" || column_type == "timestamp") {
          try {
            postgres_pst.setTimestamp(jdbc_parameter_index, rs.getTimestamp(column_name))
          } catch {
            case e: SQLException => {
              postgres_pst.setTimestamp(jdbc_parameter_index, null)
            }
          }

        } else if (column_type == "longblob") {
          val longblob_value = rs.getBlob(column_name)
          if (longblob_value == null) {
            postgres_pst.setBinaryStream(jdbc_parameter_index, null)
          } else {
            postgres_pst.setBinaryStream(jdbc_parameter_index, longblob_value.getBinaryStream)
          }

        }

      }

      postgres_pst.addBatch()

      // 按批次插入到postgres
      if (increment_batch_count % 5000 == 0) {
        postgres_pst.executeBatch()
        postgres_pst.clearBatch()
        postgres_conn.commit()

      }

    }

    postgres_pst.executeBatch()
    postgres_pst.clearBatch()
    postgres_conn.commit()

    postgres_conn.setAutoCommit(true)
    mysql_stmt.close()
    mysql_conn.close()
    postgres_pst.close()
    postgres_conn.close()

  }


}


object Postgres_etl {

  def load_etl_properties() = {

    val prop = new Properties()
    val input_stream = new FileInputStream(s"${System.getProperty("user.dir")}/conf/etl.properties")
    prop.load(input_stream)

    prop
  }

  // 获取数据库所有表名
  def get_mysql_table_names(mysql_stmt: Statement, prop: Properties) = {

    val query_sql = s"select table_name from information_schema.tables where table_schema = '${prop.getProperty("source_db")}'"
    val rs = mysql_stmt.executeQuery(query_sql)
    val table_names = ArrayBuffer[String]()
    while (rs.next()) {
      table_names += rs.getString(1)
    }

    table_names

  }

  // 先删除表再创建表
  def create_target_table(mysql_stmt: Statement, postgres_stmt: Statement, table_name: String, prop: Properties) = {

    val mysql_query_sql = s"select column_name, data_type, column_key from information_schema.columns where table_schema = '${prop.getProperty("source_db")}' and table_name = '${table_name}' order by ordinal_position asc"
    val rs = mysql_stmt.executeQuery(mysql_query_sql)

    // 目标表创建sql拼接
    var target_create_table_sql = s"create table if not exists ${prop.getProperty("target_db_schema")}.${table_name}("
    val column_type_sqls: ArrayBuffer[String] = ArrayBuffer()
    while (rs.next()) {
      var data_type = rs.getString(2)
      // 如果类型不一样，则进行类型映射替换
      if (mysql_postgres_datatype_map.contains(data_type)) {
        data_type = mysql_postgres_datatype_map(data_type)
      }

      // 如果是主键，就添加到前面
      if (rs.getString(3) == "PRI") {
        column_type_sqls.insert(0, s"${rs.getString(1)} ${data_type}")
      } else {
        column_type_sqls += s"${rs.getString(1)} ${data_type}"
      }


    }
    target_create_table_sql = target_create_table_sql + column_type_sqls.mkString(",") + ")"

    postgres_stmt.executeUpdate(s"drop table if exists ${prop.getProperty("target_db_schema")}.${table_name}")
    postgres_stmt.executeUpdate(target_create_table_sql)
  }


  def query_insert_data(mysql_stmt: Statement,
                        table_name: String,
                        prop: Properties,
                        postgres_conn: Connection,
                        executorService: ExecutorService,
                        mysql_connect_pool: MysqlConnectPool,
                        postgres_connect_pool: PostgresConnectPool) = {

    val count_query_sql = s"select count(*) from ${table_name}"
    val count_rs = mysql_stmt.executeQuery(count_query_sql)
    val table_count = if (count_rs.next()) count_rs.getLong(1) else 0L
    val query_batch_size = prop.getProperty("query_batch_size").toLong
    val batch_num = math.ceil(table_count.toDouble / query_batch_size).toInt
    for (batch_no <- 1 to batch_num) {
      val query_offset = (batch_no - 1) * query_batch_size

      executorService.submit(new Query_insert_data(mysql_connect_pool, table_name, prop, postgres_connect_pool, query_offset, query_batch_size))

    }

  }


  def get_required_tables(prop: Properties) = {

    val input_stream = new FileInputStream(s"${System.getProperty("user.dir")}/conf/${prop.getProperty("tables_filename")}")
    val require_tables = IOUtils.readLines(input_stream, Charsets.toCharset("UTF-8"))
      .asScala.toSeq

    require_tables
  }


  def main(args: Array[String]): Unit = {

    val mysql_connect_pool = new MysqlConnectPool(s"${System.getProperty("user.dir")}/conf/etl.properties")
    val postgres_connect_pool = new PostgresConnectPool(s"${System.getProperty("user.dir")}/conf/etl.properties")
    var mysql_conn: Connection = null
    var mysql_stmt: Statement = null
    var postgres_conn: Connection = null
    var postgres_stmt: Statement = null
    var executorService: ExecutorService = null

    try {
      val prop = load_etl_properties()

      Class.forName("com.mysql.cj.jdbc.Driver")
      mysql_conn = mysql_connect_pool.getConnection()
      mysql_stmt = mysql_conn.createStatement()
      postgres_conn = postgres_connect_pool.getConnection()
      postgres_stmt = postgres_conn.createStatement()

      val required_tables = get_required_tables(prop)
      val table_names = get_mysql_table_names(mysql_stmt, prop)
      executorService = Executors.newFixedThreadPool(prop.getProperty("max_threads").toInt)
      // 循环处理每个表
      for (table_name <- table_names) {
        if (required_tables.exists(_ == table_name)) {

          create_target_table(mysql_stmt, postgres_stmt, table_name, prop)
          Postgres_etl.query_insert_data(mysql_stmt, table_name, prop,
            postgres_conn, executorService,
            mysql_connect_pool, postgres_connect_pool)

        }
      }

    } catch {
      case e: Exception => {
        e.printStackTrace()
        throw e
      }
    } finally {
      mysql_stmt.close()
      mysql_conn.close()

      postgres_conn.close()
      postgres_stmt.close()
      executorService.shutdown()
    }


  }

}

3.2.7 Mysql_postgres_datatype

package com.mq.canal_postgres_client


object Mysql_postgres_datatype_map {

  val mysql_postgres_datatype_map = Map(
    "datetime" -> "timestamp",
    "longblob" -> "bytea",
    "double" -> "double precision",
    "char" -> "varchar",
    "tinyint" -> "smallint",
    "mediumtext" -> "text"
  )


}

3.2.8 PostgresConnectPool

package com.mq.canal_postgres_client

import java.io.FileInputStream
import java.util.Properties

class PostgresConnectPool(properties_filename: String) {


  val prop = new Properties()
  val input_stream = new FileInputStream(properties_filename)
  prop.load(input_stream)

  //数据源配置
  val dataSource = new DruidDataSource()
  dataSource.setUrl(s"jdbc:postgresql://${prop.getProperty("postgres_host")}:${prop.getProperty("postgres_port")}/${prop.getProperty("target_db")}?serverTimezone=UTC")
  // dataSource.setDriverClassName("")    // 根据url自动识别driver
  dataSource.setUsername(prop.getProperty("postgres_user"))
  dataSource.setPassword(prop.getProperty("postgres_password"))

  //下面都是可选的配置
  dataSource.setInitialSize(10) //初始连接数
  dataSource.setMaxActive(30) //最大连接数
  dataSource.setMinIdle(10) //最小闲置数
  dataSource.setMaxWait(5000) //获取连接的最大等待时间，单位毫秒
  dataSource.setPoolPreparedStatements(false) //缓存PreparedStatement
  dataSource.setMaxOpenPreparedStatements(-1) //缓存PreparedStatement的最大数量，默认-1（不缓存）
  dataSource.setValidationQuery("select 1")
  dataSource.setTestWhileIdle(true)
  dataSource.setTestOnBorrow(false)
  dataSource.setTestOnReturn(false)


  def getConnection() = {
    dataSource.getConnection()
  }

}

3.2.9 Sync_launch.scala

package com.mq.canal_postgres_client

import com.alibaba.otter.canal.client.{CanalConnector, CanalConnectors}
import com.alibaba.otter.canal.protocol.CanalEntry
import com.mq.canal_postgres_client.Mysql_postgres_datatype_map.mysql_postgres_datatype_map
import org.apache.commons.io.{Charsets, IOUtils}
import org.apache.commons.lang3.time.FastDateFormat

import java.io.FileInputStream
import java.sql.{Connection, PreparedStatement, Statement}
import java.util.Properties
import scala.collection.mutable.ArrayBuffer
import scala.jdk.CollectionConverters._
import scala.util.control.Breaks._


/* 运行jar包命令：



nohup ${JAVA_HOME8}/bin/java \
-classpath /root/canal_postgres_client-1.0-SNAPSHOT.jar \
com.mq.canal_postgres_client.Sync_launch >> /root/sync_launch.log 2>&1 &

**/
object Sync_launch {


  def load_launch_properties() = {

    val prop = new Properties()
    val input_stream = new FileInputStream(s"${System.getProperty("user.dir")}/conf/launch.properties")
    prop.load(input_stream)

    prop
  }


  def get_entries(prop: Properties, postgresConnectPool: PostgresConnectPool) = {
    val connector = CanalConnectors.newClusterConnector(prop.getProperty("zk_url"), prop.getProperty("destination"), "", "")
    connector.connect()
    connector.subscribe(prop.getProperty("subscribe"))
    connector.rollback() // 回滚上次未提交完成的batch

    while (true) {

      val message = connector.getWithoutAck(1000)
      val batch_id = message.getId()
      val batch_size = message.getEntries().size()


      if (!(batch_id == -1 || batch_size == 0)) {
        var postgres_conn: Connection = null
        var postgres_stmt: Statement = null

        try {
          val entries = message.getEntries()
          postgres_conn = postgresConnectPool.getConnection()
          postgres_stmt = postgres_conn.createStatement()
          deal_entrys(entries, postgres_stmt, prop, postgres_conn) // st是地址传递
          connector.ack(batch_id)
        } catch {
          case e: Exception => {
            connector.rollback(batch_id)
            e.printStackTrace()
            throw e

          }
        } finally {
          postgres_stmt.close()
          postgres_conn.close()
        }
      }
      Thread.sleep(1000L) // 等待1秒

    }


    connector
  }


  def print_column(columns: java.util.List[CanalEntry.Column]) {
    // 循环处理列
    for (column <- columns.asScala) {
      // column.getUpdated(): EventType=UPDATE时, 用来标识这个字段值是否有修改
      println(s"column[${column.getName()}:${column.getMysqlType}:${column.getValue()}], is_key: ${column.getIsKey}, is_null: ${column.getIsNull}, update: ${column.getUpdated()}")
    }
  }

  // 设置preparestatement的value值
  def set_jdbc_preparestatement_value(postgres_pst: PreparedStatement, column_value_types: ArrayBuffer[(String, String)], add_parameter_index: Int) = {
    val date_fdf = FastDateFormat.getInstance("yyyy-MM-dd")
    val time_fdf = FastDateFormat.getInstance("HH:mm:ss")
    val datetime_fdf = FastDateFormat.getInstance("yyyy-MM-dd HH:mm:ss")

    // 设置value的值
    for (column_value_type_index <- column_value_types.zipWithIndex) {
      val column_value = column_value_type_index._1._1
      val column_type = column_value_type_index._1._2
      val jdbc_parameter_index = column_value_type_index._2 + 1 + add_parameter_index

      if (column_type.startsWith("tinyint") || column_type.startsWith("int") || column_type.startsWith("bigint")) {
        if (column_value == "") {
          postgres_pst.setLong(jdbc_parameter_index, 0L)
        } else {
          postgres_pst.setLong(jdbc_parameter_index, column_value.toLong)
        }
      } else if (column_type.startsWith("float") || column_type.startsWith("double") || column_type.startsWith("decimal")) {
        if (column_value == "") {
          postgres_pst.setBigDecimal(jdbc_parameter_index, null)
        } else {
          postgres_pst.setBigDecimal(jdbc_parameter_index, new java.math.BigDecimal(column_value))
        }

      } else if (column_type.startsWith("char") || column_type.startsWith("varchar") || column_type == "text") {
        postgres_pst.setString(jdbc_parameter_index, column_value)
      } else if (column_type == "date") {
        if (column_value == "") {
          postgres_pst.setDate(jdbc_parameter_index, null)
        } else {
          postgres_pst.setDate(jdbc_parameter_index, new java.sql.Date(date_fdf.parse(column_value).getTime))
        }
      } else if (column_type == "time") {
        if (column_value == null || column_value == "") {
          postgres_pst.setTime(jdbc_parameter_index, null)
        } else {
          postgres_pst.setTime(jdbc_parameter_index, new java.sql.Time(time_fdf.parse(column_value).getTime))
        }
      } else if (column_type == "datetime" || column_type == "timestamp") {
        if (column_value == "") {
          postgres_pst.setTimestamp(jdbc_parameter_index, null)
        } else {
          postgres_pst.setTimestamp(jdbc_parameter_index, new java.sql.Timestamp(datetime_fdf.parse(column_value).getTime))
        }
      } else if (column_type == "longblob") {
        // 参考源码：com.alibaba.otter.canal.parse.inbound.mysql.dbsync.LogEventConvert 839行
        postgres_pst.setBytes(jdbc_parameter_index, column_value.getBytes("ISO-8859-1"))
      }

    }


  }


  def alter_operate(row_change: CanalEntry.RowChange,
                    postgres_stmt: Statement,
                    schema_name: String,
                    prop: Properties
                   ) = {

    if (row_change.getIsDdl()) {
      val ddl_sql = row_change.getSql() // row_change.getDdlSchemaName(): 获取源端在哪个数据库运行DDL命令
      println(ddl_sql)

      var target_ddl_sql = ""
      // MODIFY COLUMN和ADD COLUMN情况处理
      if (ddl_sql.contains("MODIFY COLUMN") || ddl_sql.contains("ADD COLUMN")) {
        // 样列数据：ALTER TABLE `db`.`tb` MODIFY COLUMN `col2` varchar(20) CHARACTER SET utf8 COLLATE utf8_general_ci NULL DEFAULT NULL COMMENT '列2' AFTER `col1`
        // 样列数据：ALTER TABLE `db`.`tb` ADD COLUMN `col3` int(5) NULL COMMENT '列3' AFTER `col2`
        val elements = ddl_sql.split(" ").take(7)
        val alter_table__element = elements(0)
        val table_element = elements(1)
        val db_tb_element = prop.getProperty("target_db_schema") + "." + elements(2).replaceAll("`", "").split("\\.")(1)
        val alter_column_element = if (ddl_sql.contains("MODIFY COLUMN")) "alter" else elements(3)
        val column_element = elements(4)
        val col_element = elements(5).replaceAll("`", "")
        val type_element = if (ddl_sql.contains("MODIFY COLUMN")) "type " else ""
        val target_type_element = {
          var target_type = elements(6).split("\\(")(0)
          if (mysql_postgres_datatype_map.contains(target_type)) target_type = mysql_postgres_datatype_map(target_type)
          target_type
        }

        target_ddl_sql = s"${alter_table__element} ${table_element} ${db_tb_element} ${alter_column_element} ${column_element} ${col_element} ${type_element}${target_type_element}"
        println(target_ddl_sql)
        // DROP COLUMN情况处理
      } else if (ddl_sql.contains("DROP COLUMN")) {
        // 样列数据: ALTER TABLE `db`.`tb` DROP COLUMN `col3`
        val elements = ddl_sql.split(" ")
        val alter_table__element = elements(0)
        val table_element = elements(1)
        val db_tb_element = prop.getProperty("target_db_schema") + "." + elements(2).replaceAll("`", "").split("\\.")(1)
        val alter_column_element = elements(3)
        val column_element = elements(4)
        val col_element = elements(5).replaceAll("`", "")

        target_ddl_sql = s"${alter_table__element} ${table_element} ${db_tb_element} ${alter_column_element} ${column_element} ${col_element}"
        println(target_ddl_sql)

        // 其它情况先不考虑，等实际情况再处理
      } else {
        target_ddl_sql = ddl_sql
      }


      postgres_stmt.execute(target_ddl_sql)

    }


  }


  def create_operate(row_change: CanalEntry.RowChange,
                     postgres_stmt: Statement
                    ) = {

    val ddl_sql = row_change.getSql()
    println(ddl_sql) // row_change.getDdlSchemaName(): 获取源端在哪个数据库运行DDL命令
    postgres_stmt.execute(ddl_sql)

  }

  def rename_operate(row_change: CanalEntry.RowChange,
                     postgres_stmt: Statement
                    ) = {

    val ddl_sql = row_change.getSql()
    println(ddl_sql) // row_change.getDdlSchemaName(): 获取源端在哪个数据库运行DDL命令
    postgres_stmt.execute(ddl_sql)

  }


  def truncate_operate(row_change: CanalEntry.RowChange,
                       postgres_stmt: Statement
                      ) = {

    val ddl_sql = row_change.getSql()
    println(ddl_sql) // row_change.getDdlSchemaName(): 获取源端在哪个数据库运行DDL命令
    postgres_stmt.execute(ddl_sql)

  }


  def erase_operate(row_change: CanalEntry.RowChange,
                    postgres_stmt: Statement
                   ) = {

    val ddl_sql = row_change.getSql()
    println(ddl_sql) // row_change.getDdlSchemaName(): 获取源端在哪个数据库运行DDL命令
    postgres_stmt.execute(ddl_sql)

  }


  // 插入数据同步
  def insert_data(columns: java.util.List[CanalEntry.Column], postgres_conn: Connection, table_name: String, prop: Properties) = {

    var columns_str = ""
    var values_str = ""
    val column_value_types = ArrayBuffer[(String, String)]()

    // 拼接columns和values字符串，并得到value和数据类型的数组
    for (column <- columns.asScala) {
      columns_str = columns_str + s"${column.getName},"
      values_str = values_str + "?,"

      column_value_types += ((column.getValue, column.getMysqlType))
    }

    columns_str = columns_str.dropRight(1)
    values_str = values_str.dropRight(1)

    val insert_sql = s"insert into ${prop.getProperty("target_db_schema")}.${table_name}(${columns_str}) values(${values_str})"
    val postgres_pst = postgres_conn.prepareStatement(insert_sql)

    set_jdbc_preparestatement_value(postgres_pst, column_value_types, 0)

    postgres_pst.executeUpdate()

    postgres_pst.close()

  }


  // 删除数据同步
  def delete_data(columns: java.util.List[CanalEntry.Column], postgres_conn: Connection, table_name: String, prop: Properties) = {

    var column_values_str = ""
    val column_value_types = ArrayBuffer[(String, String)]()

    // 拼接where条件字符串，并得到value和数据类型的数组
    for (column <- columns.asScala) {
      // 只根据主键进行删除
      if (column.getIsKey) {
        column_values_str = column_values_str + s"${column.getName} = ? and "
        column_value_types += ((column.getValue, column.getMysqlType))
      }
    }

    column_values_str = column_values_str.dropRight(5)

    val delete_sql = s"delete from ${prop.getProperty("target_db_schema")}.${table_name} where ${column_values_str}"
    val postgres_pst = postgres_conn.prepareStatement(delete_sql)

    set_jdbc_preparestatement_value(postgres_pst, column_value_types, 0)

    postgres_pst.executeUpdate()
    postgres_pst.close()
  }


  // 更新数据同步
  def update_data(columns: java.util.List[CanalEntry.Column], postgres_conn: Connection, table_name: String, prop: Properties) = {

    var set_columns_str = ""
    val set_value_types = ArrayBuffer[(String, String)]()
    var condition_columns_str = ""
    val condition_value_types = ArrayBuffer[(String, String)]()
    // 拼接set和where字符串，并获得set值数组和where值数组
    for (column <- columns.asScala) {
      if (column.getUpdated()) {
        set_columns_str = set_columns_str + s"${column.getName} = ?,"
        set_value_types += ((column.getValue, column.getMysqlType))
      } else {
        condition_columns_str = condition_columns_str + s"${column.getName()} = ? and "
        condition_value_types += ((column.getValue, column.getMysqlType))
      }
    }

    val set_value_type_size = set_value_types.size

    set_columns_str = set_columns_str.dropRight(1)
    condition_columns_str = condition_columns_str.dropRight(5)

    val update_sql = s"update ${prop.getProperty("target_db_schema")}.${table_name} set ${set_columns_str} where ${condition_columns_str}"
    val postgres_pst = postgres_conn.prepareStatement(update_sql)

    set_jdbc_preparestatement_value(postgres_pst, set_value_types, 0)
    set_jdbc_preparestatement_value(postgres_pst, condition_value_types, set_value_type_size)


    postgres_pst.executeUpdate()

    postgres_pst.close()

  }


  def get_required_tables(prop: Properties) = {

    val input_stream = new FileInputStream(s"${System.getProperty("user.dir")}/conf/${prop.getProperty("tables_filename")}")
    val require_tables = IOUtils.readLines(input_stream, Charsets.toCharset("UTF-8"))
      .asScala.toSeq

    require_tables
  }


  def deal_entrys(entries: java.util.List[CanalEntry.Entry], postgres_stmt: Statement, prop: Properties, postgres_conn: Connection) = {
    val fdf = FastDateFormat.getInstance("yyyy-MM-dd HH:mm:ss")
    val required_tables = get_required_tables(prop)

    // 循环处理事务
    for (entry <- entries.asScala) {
      val table_name = entry.getHeader().getTableName()

      // breakable位于for循环里面,break代表continue
      breakable {
        // 不是txt文件中的表，不处理
        if (!(required_tables.exists(_ == table_name)) || entry.getEntryType() == CanalEntry.EntryType.TRANSACTIONBEGIN || entry.getEntryType() == CanalEntry.EntryType.TRANSACTIONEND) {
          break
        }

        val schema_name = entry.getHeader().getSchemaName()
        val event_type = entry.getHeader().getEventType
        if (schema_name != "" || table_name != "") { // 不打印没有db_tb的记录
          println(">>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>一条SQL语句处理>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>")
          println(s"canal_server_id: ${entry.getHeader().getServerId()}, binlog_file[${entry.getHeader().getLogfileName()}:${entry.getHeader().getLogfileOffset()}], db_tb[${schema_name}.${table_name}], event_type: ${event_type}, execute_time: ${fdf.format(entry.getHeader().getExecuteTime)}")

        }

        val row_change = CanalEntry.RowChange.parseFrom(entry.getStoreValue())

        try {
          // 表结构更改的同步
          if (event_type == CanalEntry.EventType.ALTER) {
            alter_operate(row_change, postgres_stmt, schema_name, prop)
          } else if (event_type == CanalEntry.EventType.CREATE) {
            create_operate(row_change, postgres_stmt)
          } else if (event_type == CanalEntry.EventType.RENAME) {
            rename_operate(row_change, postgres_stmt)
          } else if (event_type == CanalEntry.EventType.TRUNCATE) {
            truncate_operate(row_change, postgres_stmt)
          } else if (event_type == CanalEntry.EventType.ERASE) {
            erase_operate(row_change, postgres_stmt)
          }




          // 循环处理每条数据；比如一个insert命令，可以插入多条数据
          for (row_data <- row_change.getRowDatasList().asScala) {
            println(">>>>>>>>>>>>>>>>>>>>>>>>>一个更新处理>>>>>>>>>>>>>>>>>>>")
            if (event_type == CanalEntry.EventType.INSERT) {
              print_column(row_data.getAfterColumnsList())
              insert_data(row_data.getAfterColumnsList(), postgres_conn, table_name, prop)
            } else if (event_type == CanalEntry.EventType.DELETE) {
              print_column(row_data.getBeforeColumnsList())
              delete_data(row_data.getBeforeColumnsList(), postgres_conn, table_name, prop)

            } else if (event_type == CanalEntry.EventType.UPDATE) {
              println("===========update before===========")
              print_column(row_data.getBeforeColumnsList())
              println("===========update after===========")
              print_column(row_data.getAfterColumnsList())
              update_data(row_data.getAfterColumnsList(), postgres_conn, table_name, prop)
            }
          }
        } catch {
          case e: Exception => {
            // SQL解析和数据插入的异常，直接忽略
            e.printStackTrace()
          }
        }

      }

    }
  }


  def main(args: Array[String]): Unit = {
    var connector: CanalConnector = null


    try {
      val prop = load_launch_properties()
      val postgresConnectPool = new PostgresConnectPool(s"${System.getProperty("user.dir")}/conf/launch.properties")

      connector = get_entries(prop, postgresConnectPool)


    } catch {
      case e: Exception => {
        e.printStackTrace()
        throw e
      }
    } finally {
      connector.disconnect()

    }


  }

}

3.3 代码启动顺序

执行Postgres_etl.scala
运行example_db_repeat_test.sh
执行Sync_launch.scala
输出如下

......省略部分......
>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>一条SQL语句处理>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>
canal_server_id: 2, binlog_file[mysql-bin.000026:370], db_tb[db1.tb1_1], event_type: INSERT, execute_time: 2021-07-28 15:50:28
>>>>>>>>>>>>>>>>>>>>>>>>>一个更新处理>>>>>>>>>>>>>>>>>>>
column[idA:int:4], is_key: false, is_null: false, update: true
column[nameA:varchar(32):4], is_key: false, is_null: false, update: true
column[scoreA:decimal(5,2):4.40], is_key: false, is_null: false, update: true
insert into db1.public.tb1_1 (idA, nameA, scoreA) values(4, '4', 4.40)
>>>>>>>>>>>>>>>>>>>>>>>>>一个更新处理>>>>>>>>>>>>>>>>>>>
column[idA:int:5], is_key: false, is_null: false, update: true
column[nameA:varchar(32):5], is_key: false, is_null: false, update: true
column[scoreA:decimal(5,2):5.50], is_key: false, is_null: false, update: true
insert into db1.public.tb1_1 (idA, nameA, scoreA) values(5, '5', 5.50)
>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>一条SQL语句处理>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>
canal_server_id: 2, binlog_file[mysql-bin.000026:668], db_tb[db1.tb1_2], event_type: DELETE, execute_time: 2021-07-28 15:51:14
>>>>>>>>>>>>>>>>>>>>>>>>>一个更新处理>>>>>>>>>>>>>>>>>>>
column[idA:int:2], is_key: false, is_null: false, update: false
column[nameA:varchar(32):2], is_key: false, is_null: false, update: false
column[ageA:int:2], is_key: false, is_null: false, update: false
delete from db1.public.tb1_2 where idA = 2 and nameA = '2' and ageA = 2
>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>一条SQL语句处理>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>
canal_server_id: 2, binlog_file[mysql-bin.000026:957], db_tb[db1.tb1_2], event_type: DELETE, execute_time: 2021-07-28 15:51:19
>>>>>>>>>>>>>>>>>>>>>>>>>一个更新处理>>>>>>>>>>>>>>>>>>>
column[idA:int:3], is_key: false, is_null: false, update: false
column[nameA:varchar(32):3], is_key: false, is_null: false, update: false
column[ageA:int:3], is_key: false, is_null: false, update: false
delete from db1.public.tb1_2 where idA = 3 and nameA = '3' and ageA = 3
......省略部分......

3.4 postgresql数据库结果

postgres=#
postgres=# \c db1
You are now connected to database "db1" as user "postgres".
db1=#
db1=# select * from tb1_1;
 ida | namea | scorea
-----+-------+--------
   1 | 1     |   1.10
   2 | 2     |   2.20
   3 | 3     |   3.30
   4 | 4     |   4.40
   5 | 5     |   5.50
(5 rows)

db1=#
db1=# select * from tb1_2;
 ida | namea | agea
-----+-------+------
   1 | 1     |    1
(1 row)

db1=#

Bulut0907

关注

1
点赞
踩
1

收藏

觉得还不错? 一键收藏
0
评论
canal同步mysql到PostgreSQL数据库自己编写代码的客户端实战

目录1. 准备工作1.1 active mysql查看1.2 mysql数据情况2. canal.deploy配置修改2.2 删除conf/example，建立新的example实例3. 同步代码的开发3.1 3.3 重复测试的脚本canal高可用和mysql节点自动切换的部署，可以参考我的这篇文章1. 准备工作1.1 active mysql查看因为我们部署了mysql节点自动切换，我们需要查看现在同步的是哪一台mysql服务器先查看example_db实例运行的服务器[zk: can
复制链接

扫一扫
