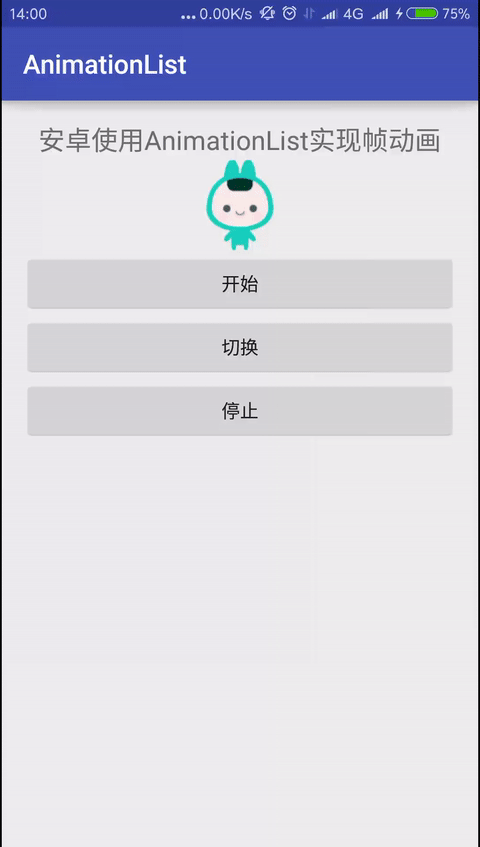

有图有真相
使用如下:
- 准备好图片素材:
- 右键res创建资源文件
- File name自定义
- Resource type选择Drawable
- Root element填写animation-list
- 其余默认,点击OK即可。
创建完成,上代码
<?xml version="1.0" encoding="utf-8"?>
<animation-list xmlns:android="http://schemas.android.com/apk/res/android"
android:oneshot="true">
<item
android:drawable="@mipmap/refresh_01"
android:duration="100" />
<item
android:drawable="@mipmap/refresh_02"
android:duration="100" />
<item
android:drawable="@mipmap/refresh_03"
android:duration="100" />
<item
android:drawable="@mipmap/refresh_04"
android:duration="100" />
<item
android:drawable="@mipmap/refresh_05"
android:duration="100" />
</animation-list>
然后是activity_main.xml的代码
<?xml version="1.0" encoding="utf-8"?>
<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
xmlns:tools="http://schemas.android.com/tools"
android:layout_width="match_parent"
android:layout_height="match_parent"
android:gravity="center_horizontal"
android:orientation="vertical"
tools:context="com.zmj.animationlist.MainActivity">
<TextView
android:layout_width="wrap_content"
android:layout_height="wrap_content"
android:text="安卓使用AnimationList实现帧动画"
android:textSize="20sp" />
<ImageView
android:id="@+id/animationTop"
android:layout_width="wrap_content"
android:layout_height="wrap_content"
android:src="@drawable/animation2" />
<Button
android:id="@+id/main_bt_start"
android:layout_width="match_parent"
android:layout_height="wrap_content"
android:text="开始" />
<Button
android:id="@+id/main_bt_change"
android:layout_width="match_parent"
android:layout_height="wrap_content"
android:text="切换" />
<Button
android:id="@+id/main_bt_stop"
android:layout_width="match_parent"
android:layout_height="wrap_content"
android:text="停止" />
</LinearLayout>
开始动画
//设置动画
refreshTop.setImageResource(R.drawable.animation2)
//获取 AnimationDrawable
animationDrawable = (AnimationDrawable) refreshTop.getDrawable()
//开始动画
animationDrawable.start()
停止动画
if (animationDrawable != null) {
animationDrawable.stop();
}
