转换阶段

原始解析树经过函数parse_analyze得到查询树部分调用栈如下：

transformStmt analyze.c:299
transformOptionalSelectInto analyze.c:268
transformTopLevelStmt analyze.c:218
parse_analyze analyze.c:127
pg_analyze_and_rewrite postgres.c:656
exec_simple_query postgres.c:1129
PostgresMain postgres.c:4508
BackendRun postmaster.c:4537
BackendStartup postmaster.c:4259
ServerLoop postmaster.c:1745
PostmasterMain postmaster.c:1417
main main.c:209

transformStmt 递归转换解析树为查询树，根据Node类型调用不同的函数

• T_InsertStmt： transformInsertStmt
• T_DeleteStmt： transformDeleteStmt
• T_UpdateStmt： transformUpdateStmt
• T_SelectStmt： 如果valuesLists有值transformValuesClause; 如果op为SETNOP_NODE transformSelectStmt; 否则调用transformSetOperationStmt
• T_ReturnStmt：transformReturnStmt
• T_PLAssignStmt：transformPLAssignStmt
• T_DeclareCursorStmt：transformDeclareCursorStmt
• T_ExplainStmt：transformExplainStmt
• T_CreateTableAsStmt：transformCreateTableAsStmt
• T_CallStmt：transformCallStmt

涉及结构体

typedef struct Query
{
	NodeTag		type;

	CmdType		commandType;	/* select|insert|update|delete|utility */

	QuerySource querySource;	/* where did I come from? */

	uint64		queryId;		/* query identifier (can be set by plugins) */

	bool		canSetTag;		/* do I set the command result tag? */

	Node	   *utilityStmt;	/* non-null if commandType == CMD_UTILITY */

	int			resultRelation; /* rtable index of target relation for
								 * INSERT/UPDATE/DELETE; 0 for SELECT */

	bool		hasAggs;		/* has aggregates in tlist or havingQual */
	bool		hasWindowFuncs; /* has window functions in tlist */
	bool		hasTargetSRFs;	/* has set-returning functions in tlist */
	bool		hasSubLinks;	/* has subquery SubLink */
	bool		hasDistinctOn;	/* distinctClause is from DISTINCT ON */
	bool		hasRecursive;	/* WITH RECURSIVE was specified */
	bool		hasModifyingCTE;	/* has INSERT/UPDATE/DELETE in WITH */
	bool		hasForUpdate;	/* FOR [KEY] UPDATE/SHARE was specified */
	bool		hasRowSecurity; /* rewriter has applied some RLS policy */

	bool		isReturn;		/* is a RETURN statement */

	List	   *cteList;		/* WITH list (of CommonTableExpr's) */

	List	   *rtable;			/* list of range table entries */
	FromExpr   *jointree;		/* table join tree (FROM and WHERE clauses) */

	List	   *targetList;		/* target list (of TargetEntry) */

	OverridingKind override;	/* OVERRIDING clause */

	OnConflictExpr *onConflict; /* ON CONFLICT DO [NOTHING | UPDATE] */

	List	   *returningList;	/* return-values list (of TargetEntry) */

	List	   *groupClause;	/* a list of SortGroupClause's */
	bool		groupDistinct;	/* is the group by clause distinct? */

	List	   *groupingSets;	/* a list of GroupingSet's if present */

	Node	   *havingQual;		/* qualifications applied to groups */

	List	   *windowClause;	/* a list of WindowClause's */

	List	   *distinctClause; /* a list of SortGroupClause's */

	List	   *sortClause;		/* a list of SortGroupClause's */

	Node	   *limitOffset;	/* # of result tuples to skip (int8 expr) */
	Node	   *limitCount;		/* # of result tuples to return (int8 expr) */
	LimitOption limitOption;	/* limit type */

	List	   *rowMarks;		/* a list of RowMarkClause's */

	Node	   *setOperations;	/* set-operation tree if this is top level of
								 * a UNION/INTERSECT/EXCEPT query */

	List	   *constraintDeps; /* a list of pg_constraint OIDs that the query
								 * depends on to be semantically valid */

	List	   *withCheckOptions;	/* a list of WithCheckOption's (added
									 * during rewrite) */

	/*
	 * The following two fields identify the portion of the source text string
	 * containing this query.  They are typically only populated in top-level
	 * Queries, not in sub-queries.  When not set, they might both be zero, or
	 * both be -1 meaning "unknown".
	 */
	int			stmt_location;	/* start location, or -1 if unknown */
	int			stmt_len;		/* length in bytes; 0 means "rest of string" */
} Query;

typedef enum RTEKind
{
	RTE_RELATION,				/* ordinary relation reference */
	RTE_SUBQUERY,				/* subquery in FROM */
	RTE_JOIN,					/* join */
	RTE_FUNCTION,				/* function in FROM */
	RTE_TABLEFUNC,				/* TableFunc(.., column list) */
	RTE_VALUES,					/* VALUES (<exprlist>), (<exprlist>), ... */
	RTE_CTE,					/* common table expr (WITH list element) */
	RTE_NAMEDTUPLESTORE,		/* tuplestore, e.g. for AFTER triggers */
	RTE_RESULT					/* RTE represents an empty FROM clause; such
								 * RTEs are added by the planner, they're not
								 * present during parsing or rewriting */
} RTEKind;

/*
* 范围表是RangeTblEntry节点的列表
*
* 一个范围表条目可以表示一个普通关系，一个子选择
* 来自JOIN子句或JOIN子句的结果。(只有显式连接语法
* 产生一个RTE，而不是多个from产生的隐式连接
* 物品。这是因为我们只需要RTE来处理SQL特性
* 比如外连接和连接输出列别名。)其他特殊
* RTE类型也存在，如RTEKind所示。
*
* 请注意，我们认为RTE_RELATION涵盖了所有具有pg_class的对象
* 条目。Relkind区分了子情形。
*
* alias是一个别名节点，表示附加到的AS别名子句
* FROM表达式，如果没有子句，则为NULL。
*
* eref 是表名和列名
/
typedef struct RangeTblEntry
{
	NodeTag		type;

	RTEKind		rtekind;		/* see above */

	/*
	 * XXX the fields applicable to only some rte kinds should be merged into
	 * a union.  I didn't do this yet because the diffs would impact a lot of
	 * code that is being actively worked on.  FIXME someday.
	 */

	/*
	 * Fields valid for a plain relation RTE (else zero):
	 *
	 * As a special case, RTE_NAMEDTUPLESTORE can also set relid to indicate
	 * that the tuple format of the tuplestore is the same as the referenced
	 * relation.  This allows plans referencing AFTER trigger transition
	 * tables to be invalidated if the underlying table is altered.
	 *
	 * rellockmode is really LOCKMODE, but it's declared int to avoid having
	 * to include lock-related headers here.  It must be RowExclusiveLock if
	 * the RTE is an INSERT/UPDATE/DELETE target, else RowShareLock if the RTE
	 * is a SELECT FOR UPDATE/FOR SHARE target, else AccessShareLock.
	 *
	 * Note: in some cases, rule expansion may result in RTEs that are marked
	 * with RowExclusiveLock even though they are not the target of the
	 * current query; this happens if a DO ALSO rule simply scans the original
	 * target table.  We leave such RTEs with their original lockmode so as to
	 * avoid getting an additional, lesser lock.
	 */
	Oid			relid;			/* OID of the relation */
	char		relkind;		/* relation kind (see pg_class.relkind) */
	int			rellockmode;	/* lock level that query requires on the rel */
	struct TableSampleClause *tablesample;	/* sampling info, or NULL */

	/*
	 * Fields valid for a subquery RTE (else NULL):
	 */
	Query	   *subquery;		/* the sub-query */
	bool		security_barrier;	/* is from security_barrier view? */

	/*
	 * Fields valid for a join RTE (else NULL/zero):
	 *
	 * joinaliasvars is a list of (usually) Vars corresponding to the columns
	 * of the join result.  An alias Var referencing column K of the join
	 * result can be replaced by the K'th element of joinaliasvars --- but to
	 * simplify the task of reverse-listing aliases correctly, we do not do
	 * that until planning time.  In detail: an element of joinaliasvars can
	 * be a Var of one of the join's input relations, or such a Var with an
	 * implicit coercion to the join's output column type, or a COALESCE
	 * expression containing the two input column Vars (possibly coerced).
	 * Elements beyond the first joinmergedcols entries are always just Vars,
	 * and are never referenced from elsewhere in the query (that is, join
	 * alias Vars are generated only for merged columns).  We keep these
	 * entries only because they're needed in expandRTE() and similar code.
	 *
	 * Within a Query loaded from a stored rule, it is possible for non-merged
	 * joinaliasvars items to be null pointers, which are placeholders for
	 * (necessarily unreferenced) columns dropped since the rule was made.
	 * Also, once planning begins, joinaliasvars items can be almost anything,
	 * as a result of subquery-flattening substitutions.
	 *
	 * joinleftcols is an integer list of physical column numbers of the left
	 * join input rel that are included in the join; likewise joinrighttcols
	 * for the right join input rel.  (Which rels those are can be determined
	 * from the associated JoinExpr.)  If the join is USING/NATURAL, then the
	 * first joinmergedcols entries in each list identify the merged columns.
	 * The merged columns come first in the join output, then remaining
	 * columns of the left input, then remaining columns of the right.
	 *
	 * Note that input columns could have been dropped after creation of a
	 * stored rule, if they are not referenced in the query (in particular,
	 * merged columns could not be dropped); this is not accounted for in
	 * joinleftcols/joinrighttcols.
	 */
	JoinType	jointype;		/* type of join */
	int			joinmergedcols; /* number of merged (JOIN USING) columns */
	List	   *joinaliasvars;	/* list of alias-var expansions */
	List	   *joinleftcols;	/* left-side input column numbers */
	List	   *joinrightcols;	/* right-side input column numbers */

	/*
	 * join_using_alias is an alias clause attached directly to JOIN/USING. It
	 * is different from the alias field (below) in that it does not hide the
	 * range variables of the tables being joined.
	 */
	Alias	   *join_using_alias;

	/*
	 * Fields valid for a function RTE (else NIL/zero):
	 *
	 * When funcordinality is true, the eref->colnames list includes an alias
	 * for the ordinality column.  The ordinality column is otherwise
	 * implicit, and must be accounted for "by hand" in places such as
	 * expandRTE().
	 */
	List	   *functions;		/* list of RangeTblFunction nodes */
	bool		funcordinality; /* is this called WITH ORDINALITY? */

	/*
	 * Fields valid for a TableFunc RTE (else NULL):
	 */
	TableFunc  *tablefunc;

	/*
	 * Fields valid for a values RTE (else NIL):
	 */
	List	   *values_lists;	/* list of expression lists */

	/*
	 * Fields valid for a CTE RTE (else NULL/zero):
	 */
	char	   *ctename;		/* name of the WITH list item */
	Index		ctelevelsup;	/* number of query levels up */
	bool		self_reference; /* is this a recursive self-reference? */

	/*
	 * Fields valid for CTE, VALUES, ENR, and TableFunc RTEs (else NIL):
	 *
	 * We need these for CTE RTEs so that the types of self-referential
	 * columns are well-defined.  For VALUES RTEs, storing these explicitly
	 * saves having to re-determine the info by scanning the values_lists. For
	 * ENRs, we store the types explicitly here (we could get the information
	 * from the catalogs if 'relid' was supplied, but we'd still need these
	 * for TupleDesc-based ENRs, so we might as well always store the type
	 * info here).  For TableFuncs, these fields are redundant with data in
	 * the TableFunc node, but keeping them here allows some code sharing with
	 * the other cases.
	 *
	 * For ENRs only, we have to consider the possibility of dropped columns.
	 * A dropped column is included in these lists, but it will have zeroes in
	 * all three lists (as well as an empty-string entry in eref).  Testing
	 * for zero coltype is the standard way to detect a dropped column.
	 */
	List	   *coltypes;		/* OID list of column type OIDs */
	List	   *coltypmods;		/* integer list of column typmods */
	List	   *colcollations;	/* OID list of column collation OIDs */

	/*
	 * Fields valid for ENR RTEs (else NULL/zero):
	 */
	char	   *enrname;		/* name of ephemeral named relation */
	double		enrtuples;		/* estimated or actual from caller */

	/*
	 * Fields valid in all RTEs:
	 */
	Alias	   *alias;			/* user-written alias clause, if any */
	Alias	   *eref;			/* expanded reference names */
	bool		lateral;		/* subquery, function, or values is LATERAL? */
	bool		inh;			/* inheritance requested? */
	bool		inFromCl;		/* present in FROM clause? */
	AclMode		requiredPerms;	/* bitmask of required access permissions */
	Oid			checkAsUser;	/* if valid, check access as this role */
	Bitmapset  *selectedCols;	/* columns needing SELECT permission */
	Bitmapset  *insertedCols;	/* columns needing INSERT permission */
	Bitmapset  *updatedCols;	/* columns needing UPDATE permission */
	Bitmapset  *extraUpdatedCols;	/* generated columns being updated */
	List	   *securityQuals;	/* security barrier quals to apply, if any */
} RangeTblEntry;

typedef struct FromExpr
{
	NodeTag		type;
	List	   *fromlist;		/* List of join subtrees */
	Node	   *quals;			/* qualifiers on join, if any */
} FromExpr;

typedef struct TargetEntry
{
	Expr		xpr;
	Expr	   *expr;			/* expression to evaluate */
	AttrNumber	resno;			/* attribute number (see notes above) */
	char	   *resname;		/* name of the column (could be NULL) */
	Index		ressortgroupref;	/* nonzero if referenced by a sort/group
									 * clause */
	Oid			resorigtbl;		/* OID of column's source table */
	AttrNumber	resorigcol;		/* column's number in source table */
	bool		resjunk;		/* set to true to eliminate the attribute from
								 * final target list */
} TargetEntry;

typedef struct Var
{
	Expr		xpr;
	Index		varno;			/* index of this var's relation in the range
								 * table, or INNER_VAR/OUTER_VAR/INDEX_VAR */
	AttrNumber	varattno;		/* attribute number of this var, or zero for
								 * all attrs ("whole-row Var") */
	Oid			vartype;		/* pg_type OID for the type of this var */
	int32		vartypmod;		/* pg_attribute typmod value */
	Oid			varcollid;		/* OID of collation, or InvalidOid if none */
	Index		varlevelsup;	/* for subquery variables referencing outer
								 * relations; 0 in a normal var, >0 means N
								 * levels up */
	Index		varnosyn;		/* syntactic relation index (0 if unknown) */
	AttrNumber	varattnosyn;	/* syntactic attribute number */
	int			location;		/* token location, or -1 if unknown */
} Var;

typedef struct RangeTblRef
{
	NodeTag		type;
	int			rtindex;
} RangeTblRef;

typedef struct OpExpr
{
	Expr		xpr;
	Oid			opno;			/* PG_OPERATOR OID of the operator */
	Oid			opfuncid;		/* PG_PROC OID of underlying function */
	Oid			opresulttype;	/* PG_TYPE OID of result value */
	bool		opretset;		/* true if operator returns set */
	Oid			opcollid;		/* OID of collation of result */
	Oid			inputcollid;	/* OID of collation that operator should use */
	List	   *args;			/* arguments to the operator (1 or 2) */
	int			location;		/* token location, or -1 if unknown */
} OpExpr;

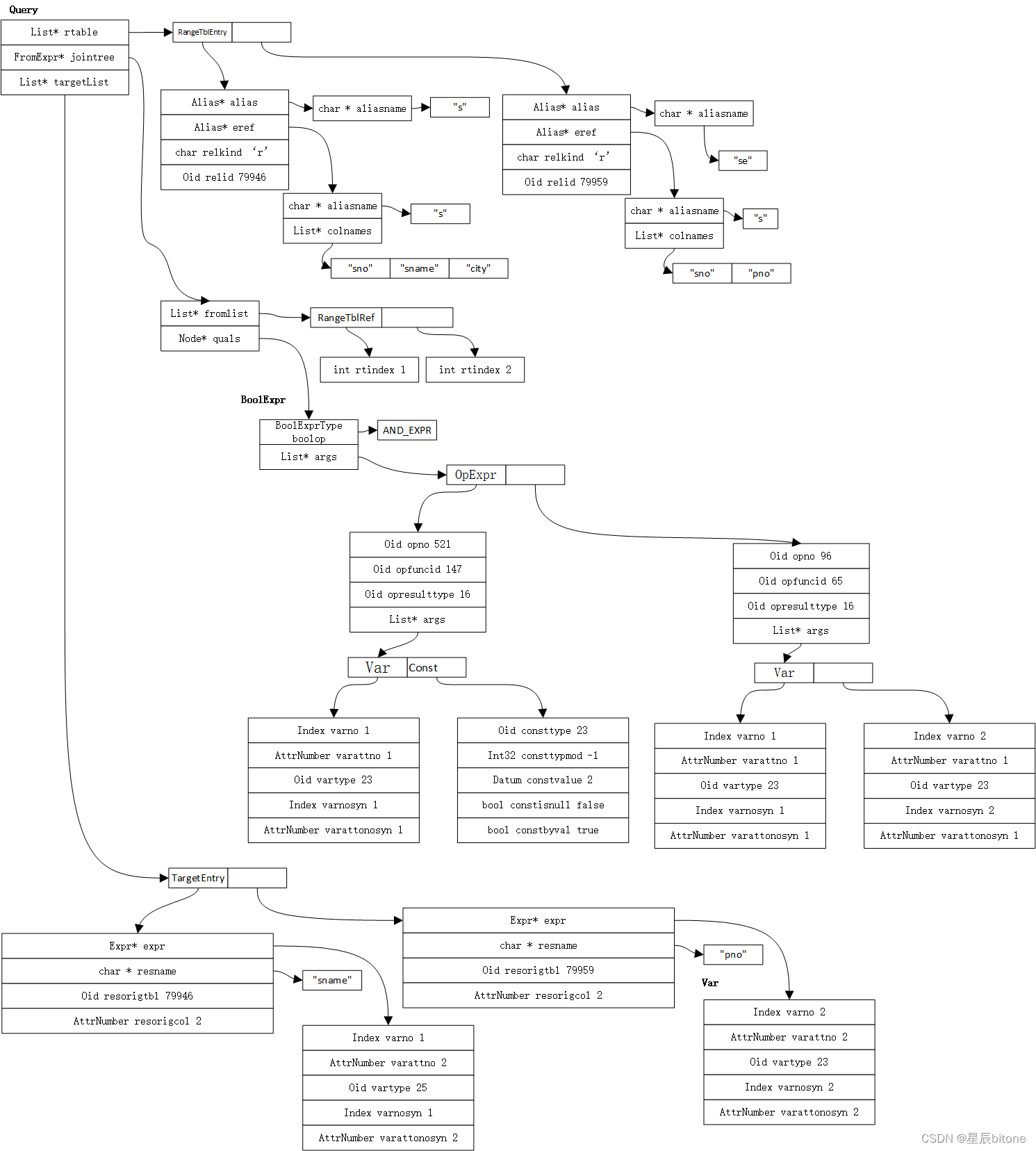

查询树
