第七章-Broker-创建topic

概念就不讲了，直接上操作和源码，这里就用rocketmq自带的dashboard来创建topic，如下图：

clusterName：Broker的集群，可以选择多个

BROKER_NAME：Broker 名字，可以选择多个

topicName：topic 名字

writeQueueNums：写队列数

readQueueNums：读队列数

perm：设置topic的读写模式

最终创建topic的方法，由DefaultMQAdminExt.createAndUpdateTopicConfig实现，那么我们顺着这个调用链走下去

DefaultMQAdminExt.createAndUpdateTopicConfig

->DefaultMQAdminExtImpl.createAndUpdateTopicConfig

->MQClientAPIImpl.createTopic

MQClientAPIImpl.createTopic

/**
* 先讲下各个参数代表什么
* addr：选择的单个broker的地址，注意这里是单个，当选择多个broker时，会遍历一个一个的调用创建
* defaultTopic：默认topic => TBW102
* topicConfig：读写队列数、权限等信息
* timeoutMillis：超过毫秒，默认20000
*/
public void createTopic(final String addr, final String defaultTopic, final TopicConfig topicConfig,
                        final long timeoutMillis)
    throws RemotingException, MQBrokerException, InterruptedException, MQClientException {
    // 组装请求头
    CreateTopicRequestHeader requestHeader = new CreateTopicRequestHeader();
    requestHeader.setTopic(topicConfig.getTopicName());
    requestHeader.setDefaultTopic(defaultTopic);
    requestHeader.setReadQueueNums(topicConfig.getReadQueueNums());
    requestHeader.setWriteQueueNums(topicConfig.getWriteQueueNums());
    requestHeader.setPerm(topicConfig.getPerm());
    requestHeader.setTopicFilterType(topicConfig.getTopicFilterType().name());
    requestHeader.setTopicSysFlag(topicConfig.getTopicSysFlag());
    requestHeader.setOrder(topicConfig.isOrder());
    // 主要就看这一行，将请求组装成远程命令对象，请求码为 RequestCode.UPDATE_AND_CREATE_TOPIC，在RocketMQ中，所有的网络请求最终都会转化成对应的请求码，所以我们找到处理该请求码的代码就行，翻看源码得知，这里就得转到broker模块，并由AdminBrokerProcessor.processRequest中处理，且该方法中对应 RequestCode.UPDATE_AND_CREATE_TOPIC 请求码的方法是 updateAndCreateTopic(ctx, request)，好了，这下我们直接进入该方法就行。
    RemotingCommand request = RemotingCommand.createRequestCommand(RequestCode.UPDATE_AND_CREATE_TOPIC, requestHeader);

    RemotingCommand response = this.remotingClient.invokeSync(MixAll.brokerVIPChannel(this.clientConfig.isVipChannelEnabled(), addr),
                                                              request, timeoutMillis);
    assert response != null;
    switch (response.getCode()) {
        case ResponseCode.SUCCESS: {
            return;
        }
        default:
            break;
    }

    throw new MQClientException(response.getCode(), response.getRemark());
}

AdminBrokerProcessor.updateAndCreateTopic

private synchronized RemotingCommand updateAndCreateTopic(ChannelHandlerContext ctx,
                                                          RemotingCommand request) throws RemotingCommandException {
    // 先创建响应命令对象
    final RemotingCommand response = RemotingCommand.createResponseCommand(null);
    // 这里就是转换成当前能识别的，有兴趣的可以进去看看
    final CreateTopicRequestHeader requestHeader =
        (CreateTopicRequestHeader) request.decodeCommandCustomHeader(CreateTopicRequestHeader.class);
    log.info("updateAndCreateTopic called by {}", RemotingHelper.parseChannelRemoteAddr(ctx.channel()));
   // 检查 topic 名是否与 broker 集群名字冲突，有冲突就要返回错误
    if (requestHeader.getTopic().equals(this.brokerController.getBrokerConfig().getBrokerClusterName())) {
        String errorMsg = "the topic[" + requestHeader.getTopic() + "] is conflict with system reserved words.";
        log.warn(errorMsg);
        response.setCode(ResponseCode.SYSTEM_ERROR);
        response.setRemark(errorMsg);
        return response;
    }

    try {
        // 上面检查通过了，设置返回码为成功
        response.setCode(ResponseCode.SUCCESS);
        // 唯一标识当前请求的id
        response.setOpaque(request.getOpaque());
        response.markResponseType();
        response.setRemark(null);
        ctx.writeAndFlush(response);// 将响应信息通过netty写回客户端
    } catch (Exception e) {
        log.error("Failed to produce a proper response", e);
    }

    // 设置topicConfig
    TopicConfig topicConfig = new TopicConfig(requestHeader.getTopic());
    topicConfig.setReadQueueNums(requestHeader.getReadQueueNums());
    topicConfig.setWriteQueueNums(requestHeader.getWriteQueueNums());
    topicConfig.setTopicFilterType(requestHeader.getTopicFilterTypeEnum());
    topicConfig.setPerm(requestHeader.getPerm());
    topicConfig.setTopicSysFlag(requestHeader.getTopicSysFlag() == null ? 0 : requestHeader.getTopicSysFlag());
    // 正式存放 topic的操作在这里，看 TopicConfigManager.updateTopicConfig
    this.brokerController.getTopicConfigManager().updateTopicConfig(topicConfig);
// 将 broker 的信息再注册到 namesrv
    this.brokerController.registerIncrementBrokerData(topicConfig,this.brokerController.getTopicConfigManager().getDataVersion());

    return null;
}

TopicConfigManager.updateTopicConfig

public void updateTopicConfig(final TopicConfig topicConfig) {
    // 先在缓存 map中设置 topic的配置
    TopicConfig old = this.topicConfigTable.put(topicConfig.getTopicName(), topicConfig);
    if (old != null) {
        log.info("update topic config, old:[{}] new:[{}]", old, topicConfig);
    } else {
        log.info("create new topic [{}]", topicConfig);
    }
	// 记录操作版本，其实就是id自增
    this.dataVersion.nextVersion();
    // 将topic配置信息持久化到文件
    this.persist();
}

将topic配置信息持续化到文件

持久化操作在ConfigManager类中执行

public synchronized void persist() {
    // encode是一个模板方法，由子类实现，在这里指的是 TopicConfigManager
    String jsonString = this.encode(true);
    if (jsonString != null) {
        // 拿到topic文件存放目录，默认情况下是：{user.home}/store/config/topics.json
        String fileName = this.configFilePath();
        try {
            // 将 json 字符串写入 topic 配置文件中，格式如`图7-1`
            MixAll.string2File(jsonString, fileName);
        } catch (IOException e) {
            log.error("persist file " + fileName + " exception", e);
        }
    }
}

public abstract String encode(final boolean prettyFormat);

TopicConfigManager.encode

public String encode(final boolean prettyFormat) {
    // 这个方法挺简单，就是把刚才在 updateTopicConfig 方法中存放在本地缓存 map中的值设置到 topicConfigSerializeWrapper对象，同时，将 dataVersion 也设置进去，然后再将对象序列化成 json 字符串
    TopicConfigSerializeWrapper topicConfigSerializeWrapper = new TopicConfigSerializeWrapper();
    topicConfigSerializeWrapper.setTopicConfigTable(this.topicConfigTable);
    topicConfigSerializeWrapper.setDataVersion(this.dataVersion);
    // 生成 json，格式如`图7-1`
    return topicConfigSerializeWrapper.toJson(prettyFormat);
}

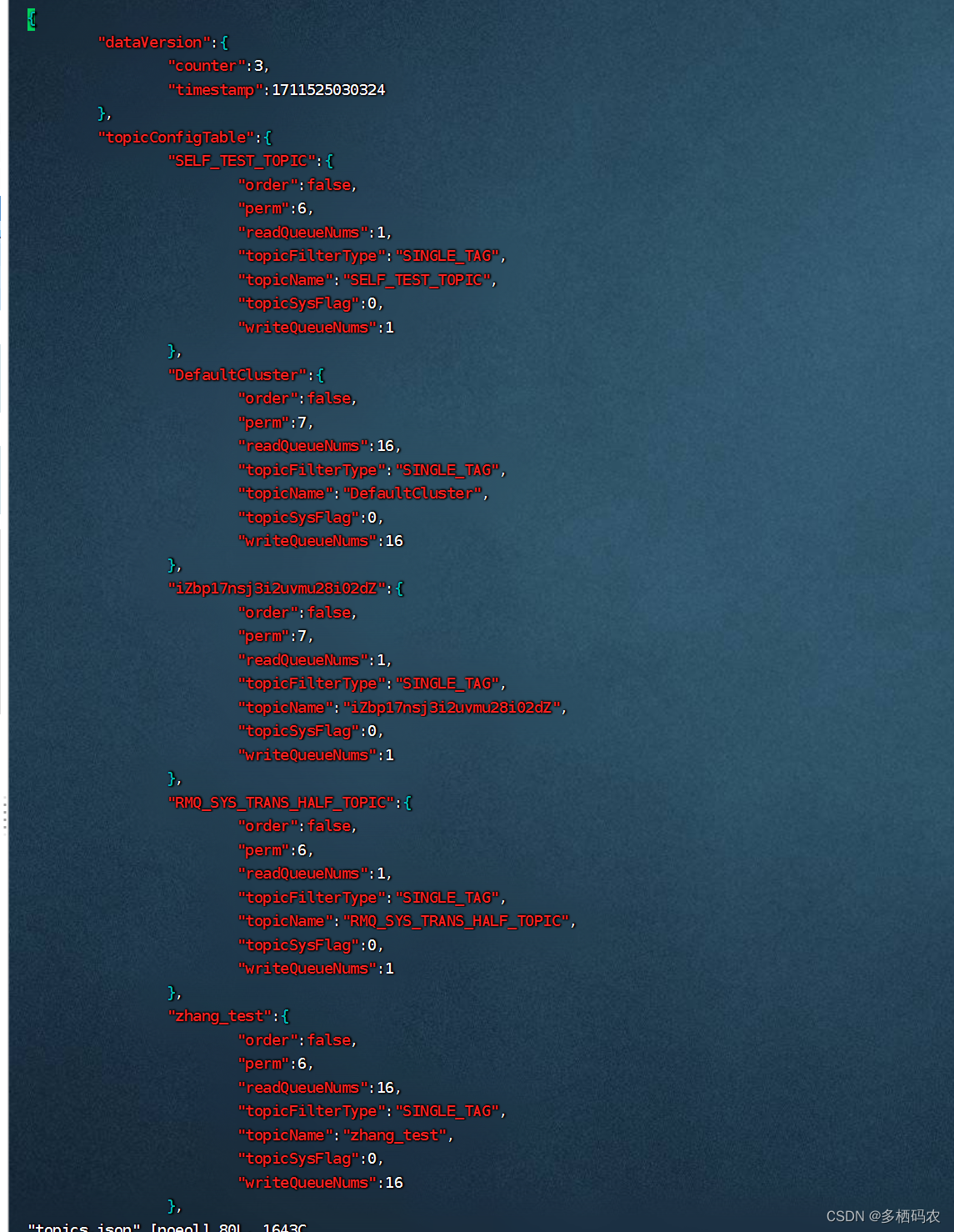

图7-1
