android studio实现Jni(C/C++)单步调试方法步骤-标准配置教程

本文主要介绍在android studio下实现jni单步调试时，所需要的配置及其步骤，这些也是本人经过几天折腾慢慢实现的，先提供给大家做参考：

1，配置是在mac下android studio实现的，主要是gradle版本以及build.gradle文件内容设置。

记住：NDK需要事先配置好，我是另外下载的NDK包(Ndk-r10e)，配置教程请自己寻找,可以通过android studio的sdk管理工具中下载最新版。

1）主程序app下的build.gradle配置：

apply plugin: 'com.android.model.application'

model {
    def signconf // <-- 重要
    android {
        compilesdkversion = 23
        buildtoolsversion = "23.0.2"

        defaultconfig.with {
            applicationid = "这里写程序包名"
            minsdkversion.apilevel = 10
            targetsdkversion.apilevel = 23
            versioncode = 5
            versionname = "1.0"
        }
    }

    android.signingconfigs { // <-- 重要
        create("signrelease") { // <-- 重要
            keyalias = '密匙文件名'
            keypassword = '签名密码1'
            storefile = file('签名文件名.key')
            storepassword = '签名密码2'
            storetype = "jks"  // <-- 重要
            signconf = it // <-- 重要
        }
    }

    android.sources {
        main {
            jni {
                source {
                    srcdir 'libs'  //<--so文件目录
                }
            }
        }
    }

    compileoptions.with {
        sourcecompatibility = javaversion.version_1_7
        targetcompatibility = javaversion.version_1_7
    }

    //配置so支持
         android.ndk {
        modulename = "allfree-jni"
        ldlibs += "log"
        abifilters += "armeabi"
        abifilters += "armeabi-v7a"
        abifilters += "x86"
        abifilters += "arm64-v8a"
        abifilters += "x86_64"
        abifilters += "mips"
        abifilters += "mips64"
    }

    android.buildtypes {
        release {
            minifyenabled = false
            proguardfiles += file('proguard-rules.pro')
            signingconfig = signconf
        }
        debug {
            minifyenabled = false
            proguardfiles += file('proguard-rules.pro')
            signingconfig = signconf //--重要
        }
    }

}

repositories {
    jcenter()
    mavenCentral()
    maven {
        url "https://raw.githubusercontent.com/umeng/mvn-repo-umeng/master/repository" //这里引用友盟的sdk，可不加
    }
    maven {
        url "http://repo1.maven.org/maven2/"
    }
}
//依赖库
dependencies {
    compile fileTree(include: ['*.jar'], dir: 'libs')
    compile 'com.alibaba:fastjson:1.2.4'
    compile 'com.android.support:support-v13:23.1.0'
    compile 'com.android.support:recyclerview-v7:23.1.0'
    compile project(':um_update')
    compile 'com.loopj.android:android-async-http:1.4.9'
    compile 'com.makeramen:roundedimageview:2.1.0'
    compile project(':weiboSDK')
    compile project(':android-ViewPagerIndicator')
}

2）gradle-wrapper.properties配置：

#Wed Dec 23 10:49:59 CST 2015
distributionBase=GRADLE_USER_HOME
distributionPath=wrapper/dists
zipStoreBase=GRADLE_USER_HOME
zipStorePath=wrapper/dists
distributionUrl=https\://services.gradle.org/distributions/gradle-2.5-all.zip

3）全局build.gradle配置：

buildscript {
    repositories {
        jcenter()
    }
    dependencies {
        //for jni
        classpath 'com.android.tools.build:gradle:1.3.0'//可忽略
        classpath 'com.android.tools.build:gradle-experimental:0.2.0'
    }
}

allprojects {
    repositories {
        jcenter()
    }
}

4）gradle.properties文件

# Project-wide Gradle settings.

# IDE (e.g. Android Studio) users:
# Gradle settings configured through the IDE *will override*
# any settings specified in this file.

# For more details on how to configure your build environment visit
# http://www.gradle.org/docs/current/userguide/build_environment.html

# Specifies the JVM arguments used for the daemon process.
# The setting is particularly useful for tweaking memory settings.
# Default value: -Xmx10248m -XX:MaxPermSize=256m
# org.gradle.jvmargs=-Xmx2048m -XX:MaxPermSize=512m -XX:+HeapDumpOnOutOfMemoryError -Dfile.encoding=UTF-8

# When configured, Gradle will run in incubating parallel mode.
# This option should only be used with decoupled projects. More details, visit
# http://www.gradle.org/docs/current/userguide/multi_project_builds.html#sec:decoupled_projects
# org.gradle.parallel=true

android.useDeprecatedNdk=true//必须

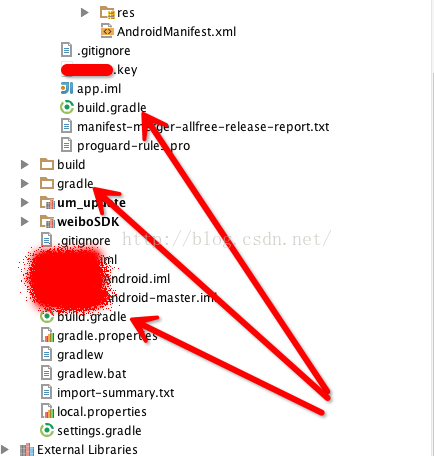

图1：

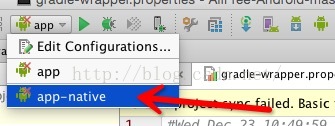

图2：

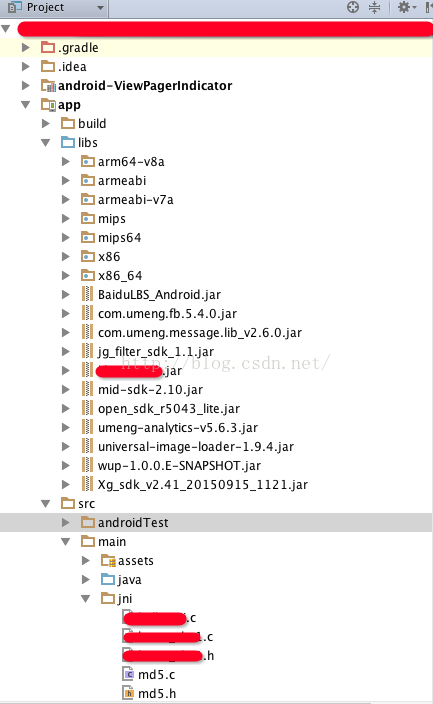

OK，配置完成，然后选择app-native后，debug-》app-native; 接下来就可以在C或C++文件中打断点开启Jni单步调试模式了，下面是我的项目截图：

图3：

图4：

其他可以参见Android NDK示例：https://github.com/googlesamples/android-ndk
