本文详细介绍了T5557卡的配置块设置、读取数据、写入数据以及修改密码等功能的实现，涉及到DLL函数调用和一系列的控制字参数，展示了如何通过特定函数进行卡片操作。

摘要生成于 C知道，由 DeepSeek-R1 满血版支持，前往体验 >

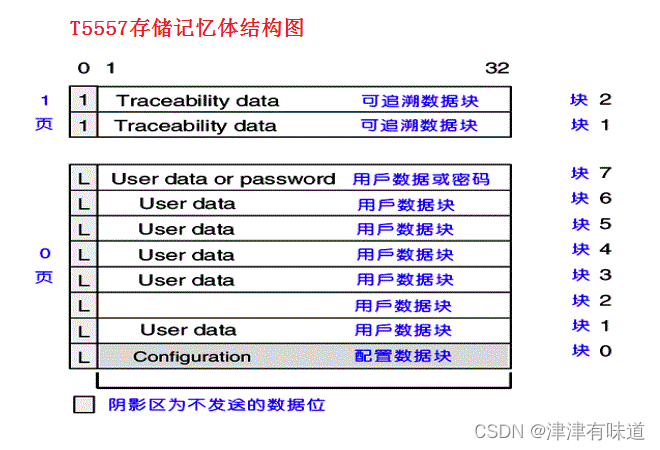

T5557卡是美国Atmel公司生产的多功能非接触式射频卡芯片，属于125KHz的低频卡，在国内有广大的应用市场。该芯片共有330bit(比特)的EPROM(分布为10个区块, 每个区块33bit)。0页的块0是被保留用于设置T5557操作模式的参数配置块。第0页第7块可以作用户数据块使用，也可以作为保护全部数据的密码（假如在配置块中启用密码功能的话），防止非法改写数据。第1页的1、2块保存了出厂商信息及唯一出厂ID，只能读取不可更改，我们的读写器取出其中的6个字节做为物理卡号，以实现与13.56等高频卡相同的应用场景。

T5567、T5577是T5557的升级版。

本示例使用的读写器介绍：T5557 T5567 T5577低频RFID读写器 EM4100 HID卡复制器酒店门卡-淘宝网 (taobao.com)

01、初始配置块取值：00 08 80 E8，表示AOR请求应答模式=0、PWD密码有效=0、MAXBLK自动发送最大块=7，无需密码可读卡，自动发送0页的1-7块；

02、配置块取值：00 08 82 F8，表示AOR应答模式=1、PWD密码有效=1，卡片为密码保护模式，需要认证密码才能读、写卡；

03、配置块取值：00 08 80 F8，表示AOR应答模式=0、PWD密码有效=1，读卡（自动发送）不需要密码，写卡要带密码操作。

函数声明：

&&读卡函数声明
declare integer idr_read in 'OUR_IDR.dll' string @pserial

&&驱动蜂鸣器函数声明
declare integer idr_beep in 'OUR_IDR.dll' integer xms

&&读出设备序列编号函数声明
declare integer pcdgetdevicenumber in 'OUR_IDR.dll' string @pdevicenumber

&&读t5557卡块内数据
declare integer t5557_read  in 'OUR_IDR.dll' integer ctrlword,string @mypiccserial,string @mypicckey,string @blockflag,string @mypiccdata

&&写t5557卡块数据
declare integer t5557_write  in 'OUR_IDR.dll' integer ctrlword,string @mypiccserial,string @mypicckey,string @blockflag,string @mypiccdata

&&写t5557卡配置块
declare integer t5557_init  in 'OUR_IDR.dll' integer ctrlword,string @mypiccserial,string @mypicckey,string @configdata,string @newkey

&&修改t5557卡密码
declare integer t5557_changekey  in 'OUR_IDR.dll' integer ctrlword,string @mypiccserial,string @mypicckey,string @newkey

&&读兼容EM4100的ID卡
declare integer idr_read in 'OUR_IDR.dll' string @mypiccserial

&&将t5557卡制作成ID卡
declare integer t5557_to4100  in 'OUR_IDR.dll' integer ctrlword,string @mypiccserial,string @mypicckey,string @newkey,string @mypiccdata

&&读HID卡
declare integer hid_read in 'OUR_IDR.dll' string @mypiccserial

&&将t5557卡制作成HID卡
declare integer t5557_tohid  in 'OUR_IDR.dll' integer ctrlword,string @mypiccserial,string @mypicckey,string @newkey,string @mypiccdata

修改配置块数据

NEEDSERIAL=1	&&需要只对指定系列号的卡操作
NEEDKEY=2		&&需要用密码认证
LOCKBIT=4		&&锁定配置块或数据块，仅对   t5557_init，t5557_write ，t5557_changekey函数有效
KEYENABLE=8		&&启用本卡的密码功能
RESETCARD=16	&&操作成功后重启卡片

myctrlword=0

IF thisform.check1.Value >0		&&卡片已启用密码保护功能，本次操作需先认证卡密码
	myctrlword=myctrlword+ NEEDKEY
	oldkey = ALLTRIM(thisform.oldkey.Value)
	IF LEN(oldkey)<>8 OR thisform.checkinput(oldkey)=.f.
		messagebox('密码输入错误，请输入8位16进制密码！',0+16+0,'提示')
		RETURN
	ENDIF
	oldpicckey  =CHR(thisform.hextodec1b(SUBSTR(oldkey,1,2)))+CHR(thisform.hextodec1b(SUBSTR(oldkey,3,2)))+CHR(thisform.hextodec1b(SUBSTR(oldkey,5,2)))+CHR(thisform.hextodec1b(SUBSTR(oldkey,7,2)))
ELSE
	oldpicckey  =CHR(0)+CHR(0)+CHR(0)+CHR(0)
ENDIF

mypiccserial=CHR(0)+CHR(0)+CHR(0)+CHR(0)+CHR(0)+CHR(0)

IF thisform.check12.Value >0		&&卡片启用密码保护功能
	myctrlword=myctrlword+ KEYENABLE
	newkey = ALLTRIM(thisform.cardkey.Value)
	IF LEN(newkey)<>8 OR thisform.checkinput(newkey)=.f.
		messagebox('卡片保护密码输入错误，请输入8位16进制卡片保护密码！',0+16+0,'提示')
		RETURN
	ENDIF
	newpicckey=CHR(thisform.hextodec1b(SUBSTR(newkey,1,2)))+CHR(thisform.hextodec1b(SUBSTR(newkey,3,2)))+CHR(thisform.hextodec1b(SUBSTR(newkey,5,2)))+CHR(thisform.hextodec1b(SUBSTR(newkey,7,2)))
ELSE
	newpicckey=CHR(0)+CHR(0)+CHR(0)+CHR(0)
ENDIF

cardconfig= ALLTRIM(thisform.cardconfig.Value)
IF LEN(cardconfig)<>8 OR thisform.checkinput(cardconfig)=.f.
	messagebox('卡片配置值输入错误，请输入8位16进制卡片配置值！',0+16+0,'提示')
	RETURN
ENDIF
mypiccdata=CHR(thisform.hextodec1b(SUBSTR(cardconfig,1,2)))+CHR(thisform.hextodec1b(SUBSTR(cardconfig,3,2)))+CHR(thisform.hextodec1b(SUBSTR(cardconfig,5,2)))+CHR(thisform.hextodec1b(SUBSTR(cardconfig,7,2)))

status = t5557_init(myctrlword,@mypiccserial,@oldpicckey,@mypiccdata,@newpicckey)
IF status =0
	=idr_beep(50)
	seriaStr=''
	FOR i=1 TO 6
		seriaStr=seriaStr+thisform.dectohex(ASC(SUBSTR(mypiccserial,i,1)))
	ENDFOR
	MESSAGEBOX("更改T5557卡配置值成功，卡号："+seriaStr ,0+64,"提示")
ELSE
	thisform.disperrinf (status )
ENDIF

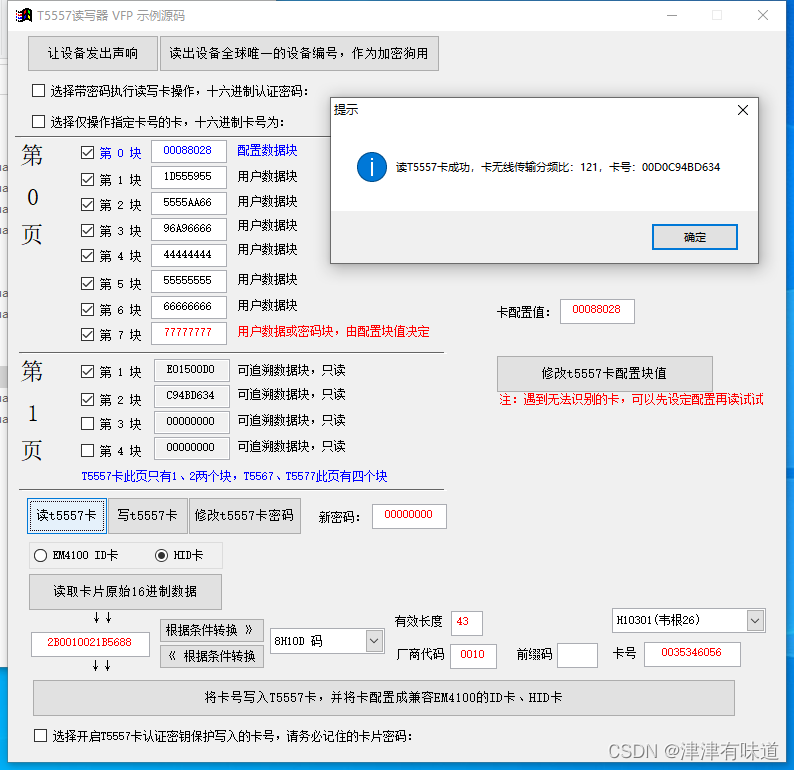

读取块内数据

NEEDSERIAL=1	&&需要只对指定系列号的卡操作
NEEDKEY=2		&&需要用密码认证
LOCKBIT=4		&&锁定配置块或数据块，仅对   t5557_init，t5557_write ，t5557_changekey函数有效
KEYENABLE=8		&&启用本卡的密码功能
RESETCARD=16	&&操作成功后重启卡片

myctrlword=0

IF thisform.check1.Value >0		&&卡片已启用密码保护功能，本次操作需先认证卡密码
	myctrlword=myctrlword+ NEEDKEY
	oldkey = ALLTRIM(thisform.oldkey.Value)
	IF LEN(oldkey)<>8 OR thisform.checkinput(oldkey)=.f.
		messagebox('密码输入错误，请输入8位16进制密码！',0+16+0,'提示')
		RETURN
	ENDIF
	oldpicckey  =CHR(thisform.hextodec1b(SUBSTR(oldkey,1,2)))+CHR(thisform.hextodec1b(SUBSTR(oldkey,3,2)))+CHR(thisform.hextodec1b(SUBSTR(oldkey,5,2)))+CHR(thisform.hextodec1b(SUBSTR(oldkey,7,2)))
ELSE
	oldpicckey  =CHR(0)+CHR(0)+CHR(0)+CHR(0)
ENDIF

IF thisform.check2.Value >0		&&本次操作只对指定ID的卡片
	myctrlword=myctrlword+ NEEDSERIAL
	serial=ALLTRIM(thisform.cardid.Value)
	IF LEN(serial)<>12 OR thisform.checkinput(serial)=.f.
		messagebox('卡号输入错误，请输入12位16进制密码！',0+16+0,'提示')
		RETURN
	ENDIF
	mypiccserial=CHR(thisform.hextodec1b(SUBSTR(serial,1,2)))+CHR(thisform.hextodec1b(SUBSTR(serial,3,2)))+CHR(thisform.hextodec1b(SUBSTR(serial,5,2)))+CHR(thisform.hextodec1b(SUBSTR(serial,7,2)))+CHR(thisform.hextodec1b(SUBSTR(serial,9,2)))+CHR(thisform.hextodec1b(SUBSTR(serial,11,2)))
ELSE
	mypiccserial=CHR(0)+CHR(0)+CHR(0)+CHR(0)+CHR(0)+CHR(0)  &&本次操作可对任意卡片
ENDIF

seleblock=''	 &&本次操作 第0页的块选
FOR i=0 TO 7
	t='block'+ALLTRIM(STR(i))+'.value'
	IF thisform.&t>0
		seleblock="1"+seleblock
	ELSE
		seleblock="0"+seleblock
	ENDIF
ENDFOR
mypiccblockflag=CHR(thisform.bintodec(seleblock) )

seleblock='0' 	&&本次操作 第1页的块选
FOR i=8 TO 11
	t='block'+ALLTRIM(STR(i))+'.value'
	IF thisform.&t>0
		seleblock="1"+seleblock
	ELSE
		seleblock="0"+seleblock
	ENDIF
ENDFOR
mypiccblockflag=mypiccblockflag+CHR(thisform.bintodec(seleblock))	&&块选参数

mypiccdata=space(50)
blockdata=""
status = t5557_read(myctrlword,@mypiccserial,@oldpicckey,@mypiccblockflag,@mypiccdata)
IF status =0
	=idr_beep(50)
	FOR i=1 TO ASC(SUBSTR(mypiccdata,2,1))
		blockdata=blockdata+thisform.dectohex(ASC(SUBSTR(mypiccdata,2+i,1)))
	ENDFOR

	j=1
	FOR i=0 TO 11
		c='block'+ALLTRIM(STR(i))+'.value'
		t='Text_block'+ALLTRIM(STR(i))+'.value'
		IF thisform.&c>0
			thisform.&t=SUBSTR(blockdata,j,8)
			j=j+8
		ENDIF
	ENDFOR

	seriaStr=''
	FOR i=1 TO 6
		seriaStr=seriaStr+thisform.dectohex(ASC(SUBSTR(mypiccserial,i,1)))
	ENDFOR
	MESSAGEBOX("读T5557卡成功，卡无线传输分频比："+ALLTRIM(STR(ASC(SUBSTR(mypiccdata,1,1))))+"，卡号："+seriaStr ,0+64,"提示")
ELSE
	thisform.disperrinf (status )
ENDIF

改写块内数据

NEEDSERIAL=1	&&需要只对指定系列号的卡操作
NEEDKEY=2		&&需要用密码认证
LOCKBIT=4		&&锁定配置块或数据块，仅对   t5557_init，t5557_write ，t5557_changekey函数有效
KEYENABLE=8		&&启用本卡的密码功能
RESETCARD=16	&&操作成功后重启卡片

myctrlword=0

IF thisform.check1.Value >0		&&卡片已启用密码保护功能，本次操作需先认证卡密码
	myctrlword=myctrlword+ NEEDKEY
	oldkey = ALLTRIM(thisform.oldkey.Value)
	IF LEN(oldkey)<>8 OR thisform.checkinput(oldkey)=.f.
		messagebox('密码输入错误，请输入8位16进制密码！',0+16+0,'提示')
		RETURN
	ENDIF
	oldpicckey  =CHR(thisform.hextodec1b(SUBSTR(oldkey,1,2)))+CHR(thisform.hextodec1b(SUBSTR(oldkey,3,2)))+CHR(thisform.hextodec1b(SUBSTR(oldkey,5,2)))+CHR(thisform.hextodec1b(SUBSTR(oldkey,7,2)))
ELSE
	oldpicckey  =CHR(0)+CHR(0)+CHR(0)+CHR(0)
ENDIF

IF thisform.check2.Value >0		&&本次操作只对指定ID的卡片
	myctrlword=myctrlword+ NEEDSERIAL
	serial=ALLTRIM(thisform.cardid.Value)
	IF LEN(serial)<>12 OR thisform.checkinput(serial)=.f.
		messagebox('卡号输入错误，请输入12位16进制密码！',0+16+0,'提示')
		RETURN
	ENDIF
	mypiccserial=CHR(thisform.hextodec1b(SUBSTR(serial,1,2)))+CHR(thisform.hextodec1b(SUBSTR(serial,3,2)))+CHR(thisform.hextodec1b(SUBSTR(serial,5,2)))+CHR(thisform.hextodec1b(SUBSTR(serial,7,2)))+CHR(thisform.hextodec1b(SUBSTR(serial,9,2)))+CHR(thisform.hextodec1b(SUBSTR(serial,11,2)))
ELSE
	mypiccserial=CHR(0)+CHR(0)+CHR(0)+CHR(0)+CHR(0)+CHR(0)  &&本次操作可对任意卡片
ENDIF

seleblock=''	 &&本次操作 第0页的块选
FOR i=0 TO 7
	t='block'+ALLTRIM(STR(i))+'.value'
	IF thisform.&t>0
		seleblock="1"+seleblock
	ELSE
		seleblock="0"+seleblock
	ENDIF
ENDFOR
mypiccblockflag=CHR(thisform.bintodec(seleblock) )

seleblock='0' 	&&本次操作 第1页的块选
FOR i=8 TO 11
	t='block'+ALLTRIM(STR(i))+'.value'
	IF thisform.&t>0
		seleblock="1"+seleblock
	ELSE
		seleblock="0"+seleblock
	ENDIF
ENDFOR
mypiccblockflag=mypiccblockflag+CHR(thisform.bintodec(seleblock))	&&块选参数

mypiccdata=''
FOR i=0 TO 11
	c='block'+ALLTRIM(STR(i))+'.value'
	t='Text_block'+ALLTRIM(STR(i))+'.value'
	IF thisform.&c>0
		writestr=thisform.&t
		IF LEN(writestr)<>8 OR thisform.checkinput(writestr)=.f.
			messagebox('第 '+ALLTRIM(STR(i))+' 块数据输入错误，请输入8位16进制数据！',0+16+0,'提示')
			RETURN
		ENDIF
		mypiccdata=mypiccdata+CHR(thisform.hextodec1b(SUBSTR(writestr,1,2)))+CHR(thisform.hextodec1b(SUBSTR(writestr,3,2)))+CHR(thisform.hextodec1b(SUBSTR(writestr,5,2)))+CHR(thisform.hextodec1b(SUBSTR(writestr,7,2)))
	ENDIF
ENDFOR

status = t5557_write(myctrlword,@mypiccserial,@oldpicckey,@mypiccblockflag,@mypiccdata)
IF status =0
	=idr_beep(50)
	seriaStr=''
	FOR i=1 TO 6
		seriaStr=seriaStr+thisform.dectohex(ASC(SUBSTR(mypiccserial,i,1)))
	ENDFOR
	MESSAGEBOX("写T5557卡成功，卡号："+seriaStr ,0+64,"提示")
ELSE
	thisform.disperrinf (status )
ENDIF

将T555卡制做成ID、HID卡

NEEDSERIAL=1	&&需要只对指定系列号的卡操作
NEEDKEY=2		&&需要用密码认证
LOCKBIT=4		&&锁定配置块或数据块，仅对   t5557_init，t5557_write ，t5557_changekey函数有效
KEYENABLE=8		&&启用本卡的密码功能
RESETCARD=16	&&操作成功后重启卡片


myctrlword=0

IF thisform.check1.Value >0		&&卡片已启用密码保护功能，本次操作需先认证卡密码
	myctrlword=myctrlword+ NEEDKEY
	oldkey = ALLTRIM(thisform.oldkey.Value)
	IF LEN(oldkey)<>8 OR thisform.checkinput(oldkey)=.f.
		messagebox('密码输入错误，请输入8位16进制密码！',0+16+0,'提示')
		RETURN
	ENDIF
	oldpicckey  =CHR(thisform.hextodec1b(SUBSTR(oldkey,1,2)))+CHR(thisform.hextodec1b(SUBSTR(oldkey,3,2)))+CHR(thisform.hextodec1b(SUBSTR(oldkey,5,2)))+CHR(thisform.hextodec1b(SUBSTR(oldkey,7,2)))
ELSE
	oldpicckey  =CHR(0)+CHR(0)+CHR(0)+CHR(0)
ENDIF

IF thisform.check2.Value >0		&&本次操作只对指定ID的卡片
	myctrlword=myctrlword+ NEEDSERIAL
	serial=ALLTRIM(thisform.cardid.Value)
	IF LEN(serial)<>12 OR thisform.checkinput(serial)=.f.
		messagebox('卡号输入错误，请输入12位16进制密码！',0+16+0,'提示')
		RETURN
	ENDIF
	mypiccserial=CHR(thisform.hextodec1b(SUBSTR(serial,1,2)))+CHR(thisform.hextodec1b(SUBSTR(serial,3,2)))+CHR(thisform.hextodec1b(SUBSTR(serial,5,2)))+CHR(thisform.hextodec1b(SUBSTR(serial,7,2)))+CHR(thisform.hextodec1b(SUBSTR(serial,9,2)))+CHR(thisform.hextodec1b(SUBSTR(serial,11,2)))
ELSE
	mypiccserial=CHR(0)+CHR(0)+CHR(0)+CHR(0)+CHR(0)+CHR(0)  &&本次操作可对任意卡片
ENDIF

IF thisform.check13.Value >0
	newkey = ALLTRIM(thisform.addkey .Value)
	IF LEN(newkey)<>8 OR thisform.checkinput(newkey)=.f.
		messagebox('新密码输入错误，请输入8位16进制新密码！',0+16+0,'提示')
		RETURN
	ENDIF
	myctrlword=myctrlword+ KEYENABLE
	newpicckey=CHR(thisform.hextodec1b(SUBSTR(newkey,1,2)))+CHR(thisform.hextodec1b(SUBSTR(newkey,3,2)))+CHR(thisform.hextodec1b(SUBSTR(newkey,5,2)))+CHR(thisform.hextodec1b(SUBSTR(newkey,7,2)))
ELSE
	newpicckey=CHR(0)+CHR(0)+CHR(0)+CHR(0)
ENDIF

myctrlword=myctrlword+ RESETCARD		&&操作后重启卡片，否则在制卡后，需要拿开卡片重放才能成功读ID卡

IF thisform.opg.ID.Value =1
		uidstr=thisform.hexcardno.Value
		IF LEN(uidstr)<>10 OR thisform.checkinput(uidstr)=.f.
			messagebox('写入卡号错误，请输入10位16进制卡号！',0+16+0,'提示')
			RETURN
		ENDIF
		myuid=CHR(thisform.hextodec1b(SUBSTR(uidstr,1,2)))+CHR(thisform.hextodec1b(SUBSTR(uidstr,3,2)))+CHR(thisform.hextodec1b(SUBSTR(uidstr,5,2)))+CHR(thisform.hextodec1b(SUBSTR(uidstr,7,2)))+CHR(thisform.hextodec1b(SUBSTR(uidstr,9,2)))

		status = t5557_to4100(myctrlword,@mypiccserial,@oldpicckey,@newpicckey,@myuid)
		IF status =0
			=idr_beep(50)
			seriaStr=''
			FOR i=1 TO 6
				seriaStr=seriaStr+thisform.dectohex(ASC(SUBSTR(mypiccserial,i,1)))
			ENDFOR
			MESSAGEBOX("ID卡号写入成功，卡片变成ID卡！不能再用t5557的指令读写此卡，可重新设置配置块恢复t5557卡功能。" ,0+64,"提示")
		ELSE
			thisform.disperrinf (status )
		ENDIF
ELSE
		uidstr=thisform.hexcardno.Value
		IF LEN(uidstr)<>14 OR thisform.checkinput(uidstr)=.f.
			messagebox('写入卡号错误，请输入14位16进制卡号！',0+16+0,'提示')
			RETURN
		ENDIF
		myuid=CHR(thisform.hextodec1b(SUBSTR(uidstr,1,2)))+CHR(thisform.hextodec1b(SUBSTR(uidstr,3,2)))+CHR(thisform.hextodec1b(SUBSTR(uidstr,5,2)))+CHR(thisform.hextodec1b(SUBSTR(uidstr,7,2)))+CHR(thisform.hextodec1b(SUBSTR(uidstr,9,2)))+CHR(thisform.hextodec1b(SUBSTR(uidstr,11,2)))+CHR(thisform.hextodec1b(SUBSTR(uidstr,13,2)))

		status = t5557_tohid(myctrlword,@mypiccserial,@oldpicckey,@newpicckey,@myuid)
		IF status =0
			=idr_beep(50)
			seriaStr=''
			FOR i=1 TO 6
				seriaStr=seriaStr+thisform.dectohex(ASC(SUBSTR(mypiccserial,i,1)))
			ENDFOR
			MESSAGEBOX("HID卡号写入成功，卡片变成HID卡！不能再用t5557的指令读写此卡，可重新设置配置块恢复t5557卡功能。" ,0+64,"提示")
		ELSE
			thisform.disperrinf (status )
		ENDIF

ENDIF

读取ID、HID原始卡号

thisform.hexcardno.Value=""

IF thisform.opg.ID.Value =1
    pserial=spac(5)
    recu=idr_read(@pserial)
    if recu=0
        thisform.hexcardno.Value =  thisform.dectohex(ASC(SUBSTR(pserial,1,1)))+thisform.dectohex(ASC(SUBSTR(pserial,2,1)))+thisform.dectohex(ASC(SUBSTR(pserial,3,1)))+thisform.dectohex(ASC(SUBSTR(pserial,4,1)))+thisform.dectohex(ASC(SUBSTR(pserial,5,1)))
        thisform.command4.Click
    else
        thisform.disperrinf(recu)
    endif
ELSE
    pserial=spac(7)
    recu=hid_read(@pserial)
    if recu=0
        &&//pserial[0]为返回的bit数量，pserial[6-1]为HID卡号缓冲，当pserial[0]为1时，仅pserial[6]的bit0位有效。当pserial[0]为2时，仅pserial[6]的bit0，bit2位有效，以此类推
        thisform.hexcardno.Value =  thisform.dectohex(ASC(SUBSTR(pserial,1,1)))+thisform.dectohex(ASC(SUBSTR(pserial,2,1)))+thisform.dectohex(ASC(SUBSTR(pserial,3,1)))+thisform.dectohex(ASC(SUBSTR(pserial,4,1)))+thisform.dectohex(ASC(SUBSTR(pserial,5,1)))+thisform.dectohex(ASC(SUBSTR(pserial,6,1)))+thisform.dectohex(ASC(SUBSTR(pserial,7,1)))
        thisform.command4.Click
    else
        thisform.disperrinf(recu)
    endif
ENDIF

修改t5557卡密码

NEEDSERIAL=1    &&需要只对指定系列号的卡操作
NEEDKEY=2        &&需要用密码认证
LOCKBIT=4        &&锁定配置块或数据块，仅对   t5557_init，t5557_write ，t5557_changekey函数有效
KEYENABLE=8        &&启用本卡的密码功能
RESETCARD=16    &&操作成功后重启卡片

myctrlword=0

IF thisform.check1.Value >0        &&卡片已启用密码保护功能，本次操作需先认证卡密码
    myctrlword=myctrlword+ NEEDKEY
    oldkey = ALLTRIM(thisform.oldkey.Value)
    IF LEN(oldkey)<>8 OR thisform.checkinput(oldkey)=.f.
        messagebox('密码输入错误，请输入8位16进制密码！',0+16+0,'提示')
        RETURN
    ENDIF
    oldpicckey  =CHR(thisform.hextodec1b(SUBSTR(oldkey,1,2)))+CHR(thisform.hextodec1b(SUBSTR(oldkey,3,2)))+CHR(thisform.hextodec1b(SUBSTR(oldkey,5,2)))+CHR(thisform.hextodec1b(SUBSTR(oldkey,7,2)))
ELSE
    oldpicckey  =CHR(0)+CHR(0)+CHR(0)+CHR(0)
ENDIF

IF thisform.check2.Value >0        &&本次操作只对指定ID的卡片
    myctrlword=myctrlword+ NEEDSERIAL
    serial=ALLTRIM(thisform.cardid.Value)
    IF LEN(serial)<>12 OR thisform.checkinput(serial)=.f.
        messagebox('卡号输入错误，请输入12位16进制密码！',0+16+0,'提示')
        RETURN
    ENDIF
    mypiccserial=CHR(thisform.hextodec1b(SUBSTR(serial,1,2)))+CHR(thisform.hextodec1b(SUBSTR(serial,3,2)))+CHR(thisform.hextodec1b(SUBSTR(serial,5,2)))+CHR(thisform.hextodec1b(SUBSTR(serial,7,2)))+CHR(thisform.hextodec1b(SUBSTR(serial,9,2)))+CHR(thisform.hextodec1b(SUBSTR(serial,11,2)))
ELSE
    mypiccserial=CHR(0)+CHR(0)+CHR(0)+CHR(0)+CHR(0)+CHR(0)  &&本次操作可对任意卡片
ENDIF

newkey = ALLTRIM(thisform.newkey.Value)
IF LEN(newkey)<>8 OR thisform.checkinput(newkey)=.f.
    messagebox('新密码输入错误，请输入8位16进制新密码！',0+16+0,'提示')
    RETURN
ENDIF
newpicckey=CHR(thisform.hextodec1b(SUBSTR(newkey,1,2)))+CHR(thisform.hextodec1b(SUBSTR(newkey,3,2)))+CHR(thisform.hextodec1b(SUBSTR(newkey,5,2)))+CHR(thisform.hextodec1b(SUBSTR(newkey,7,2)))

status = t5557_changekey(myctrlword,@mypiccserial,@oldpicckey,@newpicckey)
IF status =0
    =idr_beep(50)
    seriaStr=''
    FOR i=1 TO 6
        seriaStr=seriaStr+thisform.dectohex(ASC(SUBSTR(mypiccserial,i,1)))
    ENDFOR
    MESSAGEBOX("更改T5557卡密码成功，卡号："+seriaStr ,0+64,"提示")
ELSE
    thisform.disperrinf (status )
ENDIF
