Zygote进程【1】——Zygote的诞生

欢迎转载，转载请注明：http://blog.csdn.net/zhgxhuaa

在Android中存在着C和Java两个完全不同的世界，前者直接建立在Linux的基础上，后者直接建立在JVM的基础上。zygote的中文名字为“受精卵”，这个名字很好的诠释了zygote进程的作用。作为java世界的孵化者，zygote本身是一个native程序，是由init根据init.rc文件中的配置项创建的。

@/system/core/rootdir/init.rc

service zygote /system/bin/app_process -Xzygote /system/bin --zygote --start-system-server
    class main
    socket zygote stream 660 root system
    onrestart write /sys/android_power/request_state wake
    onrestart write /sys/power/state on
    onrestart restart media
    onrestart restart netd

关于init是如何解析和创建zygote进程的，这里不再赘述，不明的同学可以参考 init进程【2】——解析配置文件一文。这里解析一下上面的第一行：service是rc脚本中的一种SECTION，zygote表示service的名字，/system/bin/app_process表示service的路径，-Xzygote /system/bin --zygote --start-system-server则表示传入的参数。

zygote的实现在app_main.cpp中：

@frameworks/base/cmds/app_process/app_main.cpp

int main(int argc, char* const argv[])
{
//针对ARM平台的特殊逻辑
#ifdef __arm__
    /*
     * b/7188322 - Temporarily revert to the compat memory layout
     * to avoid breaking third party apps.
     *
     * THIS WILL GO AWAY IN A FUTURE ANDROID RELEASE.
     *
     * http://git.kernel.org/?p=linux/kernel/git/torvalds/linux-2.6.git;a=commitdiff;h=7dbaa466
     * changes the kernel mapping from bottom up to top-down.
     * This breaks some programs which improperly embed
     * an out of date copy of Android's linker.
     */
    char value[PROPERTY_VALUE_MAX];
    property_get("ro.kernel.qemu", value, "");
    bool is_qemu = (strcmp(value, "1") == 0);
    if ((getenv("NO_ADDR_COMPAT_LAYOUT_FIXUP") == NULL) && !is_qemu) {
        int current = personality(0xFFFFFFFF);
        if ((current & ADDR_COMPAT_LAYOUT) == 0) {
            personality(current | ADDR_COMPAT_LAYOUT);
            setenv("NO_ADDR_COMPAT_LAYOUT_FIXUP", "1", 1);
            execv("/system/bin/app_process", argv);
            return -1;
        }
    }
    unsetenv("NO_ADDR_COMPAT_LAYOUT_FIXUP");
#endif

    // These are global variables in ProcessState.cpp
    mArgC = argc;
    mArgV = argv;

    mArgLen = 0;
    for (int i=0; i<argc; i++) {
        mArgLen += strlen(argv[i]) + 1;
    }
    mArgLen--;

    AppRuntime runtime;
    const char* argv0 = argv[0];

    // Process command line arguments
    // ignore argv[0]
    argc--;
    argv++;

    // Everything up to '--' or first non '-' arg goes to the vm

    int i = runtime.addVmArguments(argc, argv);

    // Parse runtime arguments.  Stop at first unrecognized option.
    bool zygote = false;
    bool startSystemServer = false;
    bool application = false;
    const char* parentDir = NULL;
    const char* niceName = NULL;
    const char* className = NULL;
    while (i < argc) {//根据传入的参数，初始化启动zygote所需的参数
        const char* arg = argv[i++];
        if (!parentDir) {
            parentDir = arg;
        } else if (strcmp(arg, "--zygote") == 0) {
            zygote = true;
            niceName = "zygote";
        } else if (strcmp(arg, "--start-system-server") == 0) {
            startSystemServer = true;
        } else if (strcmp(arg, "--application") == 0) {
            application = true;
        } else if (strncmp(arg, "--nice-name=", 12) == 0) {
            niceName = arg + 12;
        } else {
            className = arg;
            break;
        }
    }

    if (niceName && *niceName) {
        setArgv0(argv0, niceName);
        set_process_name(niceName);//设置本进程的名称为zygote，至此进程有app_process变为了zygote
    }

    runtime.mParentDir = parentDir;

    if (zygote) {//根据我们传入的参考，这里的zygote值为TRUE
        runtime.start("com.android.internal.os.ZygoteInit",
                startSystemServer ? "start-system-server" : "");
    } else if (className) {//可以看出除了zygote，RuntimeInit也是在这里启动的
        // Remainder of args get passed to startup class main()
        runtime.mClassName = className;
        runtime.mArgC = argc - i;
        runtime.mArgV = argv + i;
        runtime.start("com.android.internal.os.RuntimeInit",
                application ? "application" : "tool");
    } else {
        fprintf(stderr, "Error: no class name or --zygote supplied.\n");
        app_usage();
        LOG_ALWAYS_FATAL("app_process: no class name or --zygote supplied.");
        return 10;
    }
}

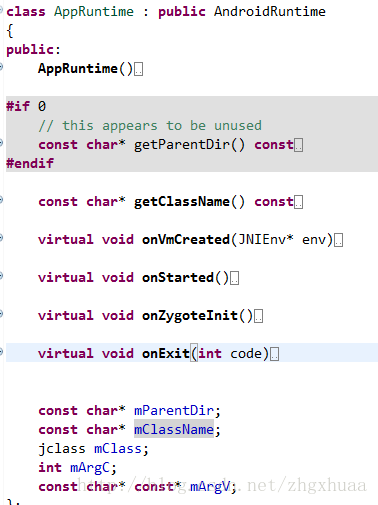

通过对main()函数的分析，可以看出main()主要根据传入的参数初始化启动参数，具体的启动过程是由AppRuntime完成的。AppRuntime的声明和实现都在app_main.cpp中，它继承自AndroidRuntime，AppRuntime的实现如下：

可以看出start是AndroidRuntime中的方法。通过start函数前面的注释我们了解到它的主要作用是：启动Android运行时环境，包括启动虚拟机和调用className参数所指定的类的main()方法（即：Java中的main方法）。

/*
 * Start the Android runtime.  This involves starting the virtual machine
 * and calling the "static void main(String[] args)" method in the class
 * named by "className".
 *
 * Passes the main function two arguments, the class name and the specified
 * options string.
 */
void AndroidRuntime::start(const char* className, const char* options)
{
    ALOGD("\n>>>>>> AndroidRuntime START %s <<<<<<\n",
            className != NULL ? className : "(unknown)");

    /*
     * 'startSystemServer == true' means runtime is obsolete and not run from
     * init.rc anymore, so we print out the boot start event here.
     */
    if (strcmp(options, "start-system-server") == 0) {
        /* track our progress through the boot sequence */
        const int LOG_BOOT_PROGRESS_START = 3000;
        LOG_EVENT_LONG(LOG_BOOT_PROGRESS_START,
                       ns2ms(systemTime(SYSTEM_TIME_MONOTONIC)));
    }

    //环境变量ANDROID_ROOT是否已经设置，如果未设置，则设置其值为"/system"
    const char* rootDir = getenv("ANDROID_ROOT");
    if (rootDir == NULL) {
        rootDir = "/system";
        if (!hasDir("/system")) {
            LOG_FATAL("No root directory specified, and /android does not exist.");
            return;
        }
        setenv("ANDROID_ROOT", rootDir, 1);
    }

    //const char* kernelHack = getenv("LD_ASSUME_KERNEL");
    //ALOGD("Found LD_ASSUME_KERNEL='%s'\n", kernelHack);

    /* start the virtual machine */
    JniInvocation jni_invocation;
    jni_invocation.Init(NULL);
    JNIEnv* env;
    if (startVm(&mJavaVM, &env) != 0) {//启动Java虚拟机
        return;
    }
    onVmCreated(env);//空函数

    /*
     * Register android functions.
     */
    if (startReg(env) < 0) {//注册Android JNI函数
        ALOGE("Unable to register all android natives\n");
        return;
    }

    /*
     * We want to call main() with a String array with arguments in it.
     * At present we have two arguments, the class name and an option string.
     * Create an array to hold them.
     */
    jclass stringClass;
    jobjectArray strArray;
    jstring classNameStr;
    jstring optionsStr;

    stringClass = env->FindClass("java/lang/String");//JNI中调用java中的String类
    assert(stringClass != NULL);
    //创建包含2个元素的String数组，这里相当于Java中的String strArray[] = new String[2]
    strArray = env->NewObjectArray(2, stringClass, NULL);
    assert(strArray != NULL);
    classNameStr = env->NewStringUTF(className);//classNameStr的值为"com.android.internal.os.ZygoteInit"
    assert(classNameStr != NULL);
    env->SetObjectArrayElement(strArray, 0, classNameStr);
    optionsStr = env->NewStringUTF(options);//optionsStr的值为"start-system-server"
    env->SetObjectArrayElement(strArray, 1, optionsStr);

    /*
     * Start VM.  This thread becomes the main thread of the VM, and will
     * not return until the VM exits.
     */
    char* slashClassName = toSlashClassName(className);//将"com.android.internal.os.ZygoteInit"中的"."替换成"/"供JNI调用
    jclass startClass = env->FindClass(slashClassName);
    if (startClass == NULL) {
        ALOGE("JavaVM unable to locate class '%s'\n", slashClassName);
        /* keep going */
    } else {
        jmethodID startMeth = env->GetStaticMethodID(startClass, "main",
            "([Ljava/lang/String;)V");//ZygoteInit类中的main()方法
        if (startMeth == NULL) {
            ALOGE("JavaVM unable to find main() in '%s'\n", className);
            /* keep going */
        } else {
            env->CallStaticVoidMethod(startClass, startMeth, strArray);//通过JNI调用main()方法

#if 0
            if (env->ExceptionCheck())
                threadExitUncaughtException(env);
#endif
        }
    }
    free(slashClassName);

    //如果JVM退出。这两句代码一般来说执行不到
    ALOGD("Shutting down VM\n");
    if (mJavaVM->DetachCurrentThread() != JNI_OK)
        ALOGW("Warning: unable to detach main thread\n");
    if (mJavaVM->DestroyJavaVM() != 0)
        ALOGW("Warning: VM did not shut down cleanly\n");
}

通过上面对start()函数的分析可以发现，在start()中主要完成了如下三项工作：

1. 启动JVM。
2. 注册Android JNI函数。
3. 调用ZygoteInit的main()方法。

创建Java虚拟机

start()中与创建虚拟机相关的代码如下：

    /* start the virtual machine */
    JniInvocation jni_invocation;
    jni_invocation.Init(NULL);
    JNIEnv* env;
    if (startVm(&mJavaVM, &env) != 0) {//启动Java虚拟机
        return;
    }
    onVmCreated(env);//空函数

这里代码中  创建一个JniInvocation实例，并且调用它的成员函数init来初始化JNI环境：

@/libnativehelper/jniInvocation.cpp

bool JniInvocation::Init(const char* library) {
#ifdef HAVE_ANDROID_OS
  char default_library[PROPERTY_VALUE_MAX];
  property_get("persist.sys.dalvik.vm.lib", default_library, "libdvm.so");
#else
  const char* default_library = "libdvm.so";
#endif
  if (library == NULL) {
    library = default_library;
  }

  handle_ = dlopen(library, RTLD_NOW);
  if (handle_ == NULL) {
    ALOGE("Failed to dlopen %s: %s", library, dlerror());
    return false;
  }
  if (!FindSymbol(reinterpret_cast<void**>(&JNI_GetDefaultJavaVMInitArgs_),
                  "JNI_GetDefaultJavaVMInitArgs")) {
    return false;
  }
  if (!FindSymbol(reinterpret_cast<void**>(&JNI_CreateJavaVM_),
                  "JNI_CreateJavaVM")) {
    return false;
  }
  if (!FindSymbol(reinterpret_cast<void**>(&JNI_GetCreatedJavaVMs_),
                  "JNI_GetCreatedJavaVMs")) {
    return false;
  }
  return true;
}

JniInvocation类的成员函数init所做的事情很简单。它首先是读取系统属性persist.sys.dalvik.vm.lib的值。系统属性persist.sys.dalvik.vm.lib的值要么等于libdvm.so，要么等于libart.so，这两个so库分别对应着Dalvik虚拟机和ART虚拟机环境。
在初始化完虚拟机环境后，接下来调用startVm()来创建虚拟机。

@/frameworks/base/core/jni/AndroidRuntime.cpp

/*
 * Start the Dalvik Virtual Machine.
 *
 * Various arguments, most determined by system properties, are passed in.
 * The "mOptions" vector is updated.
 *
 * Returns 0 on success.
 */
int AndroidRuntime::startVm(JavaVM** pJavaVM, JNIEnv** pEnv)
{
    int result = -1;
    JavaVMInitArgs initArgs;
    JavaVMOption opt;
    char propBuf[PROPERTY_VALUE_MAX];
    char stackTraceFileBuf[PROPERTY_VALUE_MAX];
    char dexoptFlagsBuf[PROPERTY_VALUE_MAX];
    char enableAssertBuf[siz
