Android实现 Eq的频响曲线，可以调节峰值，高低通。曲线为算法实现。

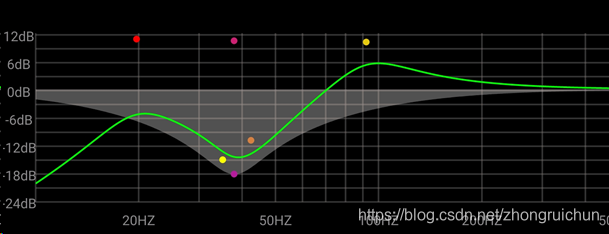

做过音频相关的应该见过这种Eq曲线，每一个点都有一个影响范围，并对整体曲线有影响。

图片为前半部分。之前做的时候在网上并没有找到，Eq曲线的计算和画法。这里拿出来分享一下。这里只提供画图的方法，曲线的算法不在这里提供（公司资产）。如有需要请私聊。（本人也是翻译mathlib获取的）



import android.content.Context;
import android.graphics.Canvas;
import android.graphics.Color;
import android.graphics.Paint;
import android.graphics.Path;
import android.graphics.Point;
import android.graphics.RectF;
import android.util.AttributeSet;
import android.util.Log;
import android.util.TypedValue;
import android.view.SurfaceHolder;
import android.view.SurfaceView;

import com.iszcc.x5audio.bean.CarAudioConfig;
import com.iszcc.x5audio.bean.param.base.EQ;
import com.iszcc.x5audio.bean.param.base.FILTER;
import com.iszcc.x5audio.constans.Constants;
import com.iszcc.x5audio.eqcalc.CalcEqueal;
import com.iszcc.x5audio.eqcalc.EqParam;
import com.iszcc.x5audio.uitl.DataUtil;

import java.math.BigDecimal;
import java.util.ArrayList;

import static com.iszcc.x5audio.constans.Constants.EQ_freq;
import static com.iszcc.x5audio.constans.Constants.pointColor;

/**
 * Created by DB on 2017/6/9.
 */

public class EQSurfaceView extends SurfaceView implements SurfaceHolder.Callback, Runnable {
    private static final String TAG = "SurfaceView";
    //SurfaceHolder
    private SurfaceHolder mHolder;

    private byte passByte = 0;

    //用于绘图的Canvas
    private Canvas canvas;
    //子线程标志位
    private boolean mIsDrawing;
    private Context mContext;

    private Paint paintXy;//xy轴画笔

    private Paint paintText;//文字画笔

    private Paint mWrapPaint;//曲线笔

    private Paint mPaintPoint;//

    private Paint mPaintCurve;//主曲线笔

    private Paint mPaintPass;// 显示EQ旁路的画笔


    // 坐标轴上描述性文字的空间大小
    private int mTopUnitHeight;// 顶部Y轴单位高度
    private int mBottomTextHeight;//X轴底部字体的高度
    private int mLeftTextWidth;
    // 网格尺寸
    private int mGridWidth, mGridHeight;

    private int yHeight, xWeith;//x y 轴的长度

    private ArrayList<Point> pointsList = new ArrayList<>();//点的集合
    private Point hPFPoint = new Point();//高通点
    private Point lPFPoint = new Point();//低通点


    private boolean isDrawWrap = false;//是否画阴影的曲线

    private boolean isDrawHLPF = false;//高低通

    private CalcEqueal calcEqueal = CalcEqueal.getInstance();

    //频响曲线
    private double[] freqX = new double[1024];
    private double[] freqY = new double[1024];

    //x y 轴坐标值
    private String[] xLineStr = new String[]{"-24dB", "-18dB", "-12dB", "-6dB", "0dB", "6dB", "12dB"};
    private String[] yLineStr = new String[]{"20HZ", "50HZ", "100HZ", "200HZ", "500HZ", "1kHZ", "2kHZ", "5kHZ", "10kHZ", "20kHZ"};
    //x轴什么所有线对应的频率值，对这些数取对数，在比上宽度值就是x坐标。
    private float[] yLin = new float[]{
            10,
            20.0f, 30.0f, 40.0f,
            50.0f, 60.0f, 70.0f, 80.0f, 90.0f,
            100.0f,
            200.0f, 300.0f, 400.0f,
            500.0f, 600.0f, 700.0f, 800.0f, 900.0f,
            1000.0f,
            2000.0f, 3000.0f, 4000.0f,
            5000.0f, 6000.0f, 7000.0f, 8000.0f, 9000.0f,
            10000.0f,
            20000.0f, 24000.0f};

    public EQSurfaceView(Context context) {
        super(context);
        mContext = context;
        initView();
    }


    public EQSurfaceView(Context context, AttributeSet attrs) {
        super(context, attrs);
        mContext = context;
        initView();
    }

    public EQSurfaceView(Context context, AttributeSet attrs, int defStyleAttr) {
        super(context, attrs, defStyleAttr);
        mContext = context;
        initView();
    }

    private void initView() {
        mHolder = getHolder();
        //添加回调
        mHolder.addCallback(this);

        {
            mBottomTextHeight = dp2px(20);// X轴底部字体的高度
            mLeftTextWidth = mBottomTextHeight;// Y轴左边字体的宽度
            mTopUnitHeight = dp2px(20);// 顶部Y轴的单位

            // 初始化坐标轴Paint
            paintXy = new Paint(Paint.ANTI_ALIAS_FLAG | Paint.DITHER_FLAG);
            paintXy.setStrokeWidth(dp2px(1));
            paintXy.setColor(Color.parseColor("#71737171"));
            // 初始化文本Paint
            paintText = new Paint(Paint.ANTI_ALIAS_FLAG | Paint.DITHER_FLAG);
            paintText.setColor(Color.GRAY);
            paintText.setTextSize(sp2px(8));

            //Eq 旁路的画笔

            mPaintPass = new Paint(Paint.ANTI_ALIAS_FLAG | Paint.DITHER_FLAG);
            mPaintPass.setColor(Color.GRAY);
            mPaintPass.setTextSize(sp2px(40));

            // 初始化曲线Paint
            mWrapPaint = new Paint(Paint.ANTI_ALIAS_FLAG | Paint.DITHER_FLAG);
            // mWrapPaint.setPathEffect(new CornerPathEffect(50f));//设置转角度数

            //初始化主曲线笔
            mPaintCurve = new Paint(Paint.ANTI_ALIAS_FLAG | Paint.DITHER_FLAG);

            //画点
            mPaintPoint = new Paint(Paint.ANTI_ALIAS_FLAG | Paint.DITHER_FLAG);
            mPaintPoint.setColor(Color.RED);
            mPaintPoint.setStrokeWidth(dp2px(2));
            mPaintPoint.setStyle(Paint.Style.FILL);

        }

        setFocusable(true);
        setFocusableInTouchMode(true);
        this.setKeepScreenOn(true);
    }

    //Surface的生命周期
    @Override
    public void surfaceCreated(SurfaceHolder holder) {

        mIsDrawing = true;
        new Thread(this).start();
        isFristDraw = true;
    }

    @Override
    public void surfaceChanged(SurfaceHolder holder, int forma
