第十一章 热力图

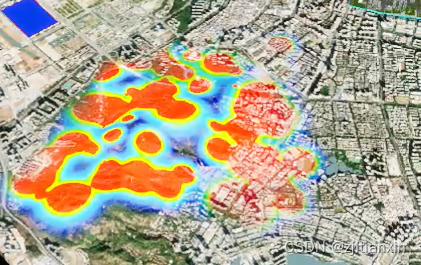

效果

代码

async function test_heatmap_add() {

    await __g.heatmap.clear();

    let bbox = [488670.75, 2488165, 5.7, 491659.59375, 2490987.5, 344.58];
    let range = [0, 100];
    let data = [];
    let tagData = [];
    for (let i = 0; i < 100; i++) {
        let x = getRandNumBetween(bbox[0], bbox[3]);    //minX ~ maxX
        let y = getRandNumBetween(bbox[1], bbox[4]);    //minY ~ maxY
        data.push({
            id: i.toString(),
            coordinate: [x, y, 0],                 //热力点的坐标
            radius: Math.random() * 400,           //热力点影像半径范围
            heatValue: Math.random() * 100        //热力值
        });
    }

    await __g.heatmap.add('heatmap1', bbox, range, data);
    __g.heatmap.focus('heatmap1');
}

清除热力图

function test_heatmap_clear() {
    clearInterval(__tidUpdateHeatMap);
    __g.tag.clear();
    __g.heatmap.clear();
}
