最近参与公司接口编写,Android和IOS端都要调用这些接口,需要对接调试,如果没有一个接口文档,管理接口,别人用了接口,也不知道接口怎么用,接口上有什么参数,哪些是必须参数,哪些是非必须参数,于是研究了Swagger框架应用到项目中去,Swagger与Spring项目结合,Spring必须是4.0以上版本,下面是研究的小小demo:
1、引入Swagger的jar包,由于我的是Maven项目,所以在pom.xml中(注意Spring是4.0以上版本)
<dependency>
<groupId>io.springfox</groupId>
<artifactId>springfox-swagger2</artifactId>
<version>2.0.2</version>
</dependency>
<dependency>
<groupId>com.fasterxml.jackson.core</groupId>
<artifactId>jackson-annotations</artifactId>
<version>2.4.4</version>
</dependency>
<dependency>
<groupId>com.fasterxml.jackson.core</groupId>
<artifactId>jackson-databind</artifactId>
<version>2.4.4</version>
</dependency>
<dependency>
<groupId>com.fasterxml.jackson.core</groupId>
<artifactId>jackson-core</artifactId>
<version>2.4.4</version>
</dependency>
2、 新增Swagger配置代码
package cn.;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;
import org.springframework.context.annotation.ComponentScan;
import org.springframework.web.servlet.config.annotation.EnableWebMvc;
import springfox.documentation.spi.DocumentationType;
import springfox.documentation.spring.web.plugins.Docket;
import springfox.documentation.swagger2.annotations.EnableSwagger2;
@Configuration
@EnableWebMvc
@EnableSwagger2
@ComponentScan(basePackages ={"com.test.api"})
/**
*
* @author xiaozhou
*/
public class SwaggerConfig {
/**
* Every Docket bean is picked up by the swagger-mvc framework - allowing for multiple
* swagger groups i.e. same code base multiple swagger resource listings.
*/
@Bean
public Docket customDocket(){
return new Docket(DocumentationType.SWAGGER_2);
}
}
3、修改 applicationContext.xml
<bean class="cn.conf.SwaggerConfig"/>
4、增加一个测试的ContactController
@Api(value = "contacts-api", description = "有关于用户的CURD操作", position = 5)
@Controller
@RequestMapping("/contacts")
public class ContactController {
@Autowired ContactService contactService;
@ResponseBody
@RequestMapping(value="/1.0/contact/get.do/{id}",method=RequestMethod.GET)
public Contact get(@PathVariable Long id) {
return contactService.find(id);
}
@ApiOperation(value = "创建用户", notes = "返回用户实体对象", response = Contact.class, position = 2)
@RequestMapping(value = "/1.0/contact/add.do", method=RequestMethod.POST)
public void add(@RequestBody Contact contact,HttpServletResponse response) {
contactService.create(contact);
String location = ServletUriComponentsBuilder.fromCurrentRequest()
.pathSegment("{id}").buildAndExpand(contact.getId())
.toUriString();
response.setHeader("Location",location);
}
@RequestMapping(value="/1.0/contact/update.do/{id}",method=RequestMethod.POST)
@ApiResponses(value = {
@ApiResponse(code = 200, message = "更新成功", response = Contact.class),
@ApiResponse(code = 404, message = "找不到页面"),
@ApiResponse(code = 500, message = "内部报错")}
)
public void update(@ApiParam(name="id", value="编号", required=true)@PathVariable Integer id,@RequestBody Contact contact) {
contact.setId(id);;
contactService.update(contact);
}
}
5、 添加Swagger UI配置
从网上下载SwaggerUI项目,将dist下所有内容拷贝到本地项目webapp下面如下图
6、修改index修改index.html
将index.html中http://petstore.swagger.wordnik.com/v2/swagger.json修改为http://localhost:8080/v2/api-docs

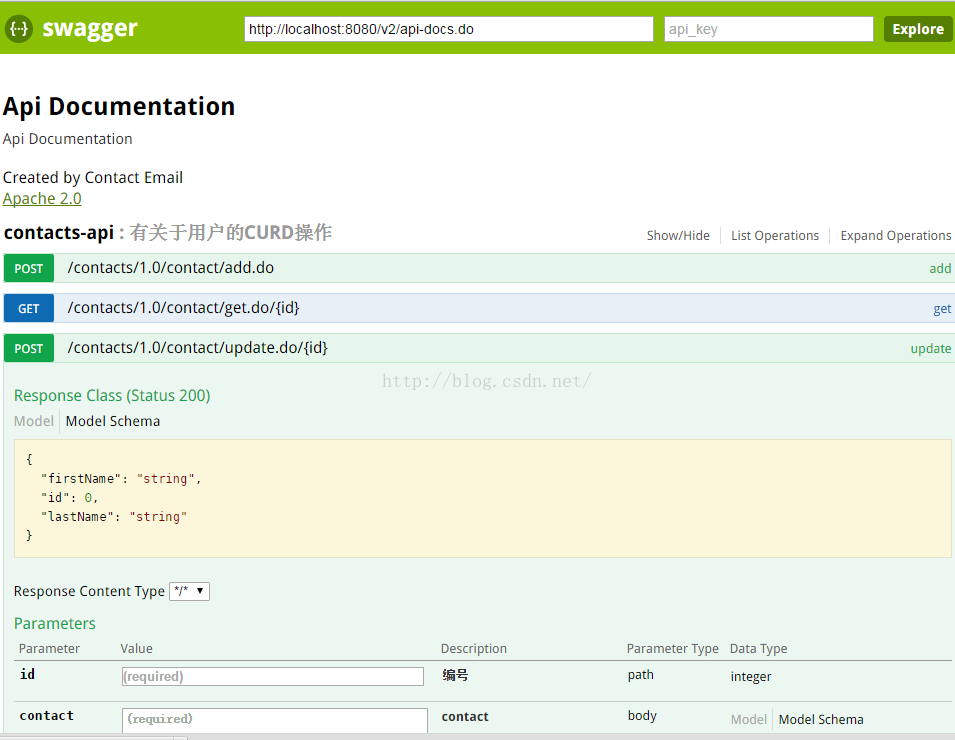

7、启动项目,访问http://localhost:8080/v2/index.html即可看到如下所示页面:
参考资料:
https://raibledesigns.com/rd/entry/documenting_your_spring_api_with
http://www.2cto.com/kf/201502/376959.html
http://www.3pillarglobal.com/insights/restful-api-documentation-using-swagger-and-spring-mvc
