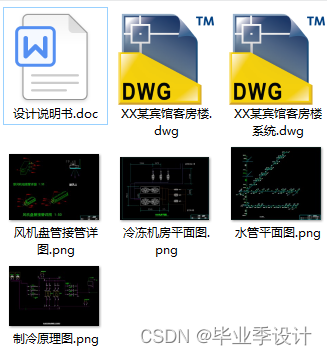

XX市某宾馆空调系统设计【设计说明书+CAD图纸】

摘要

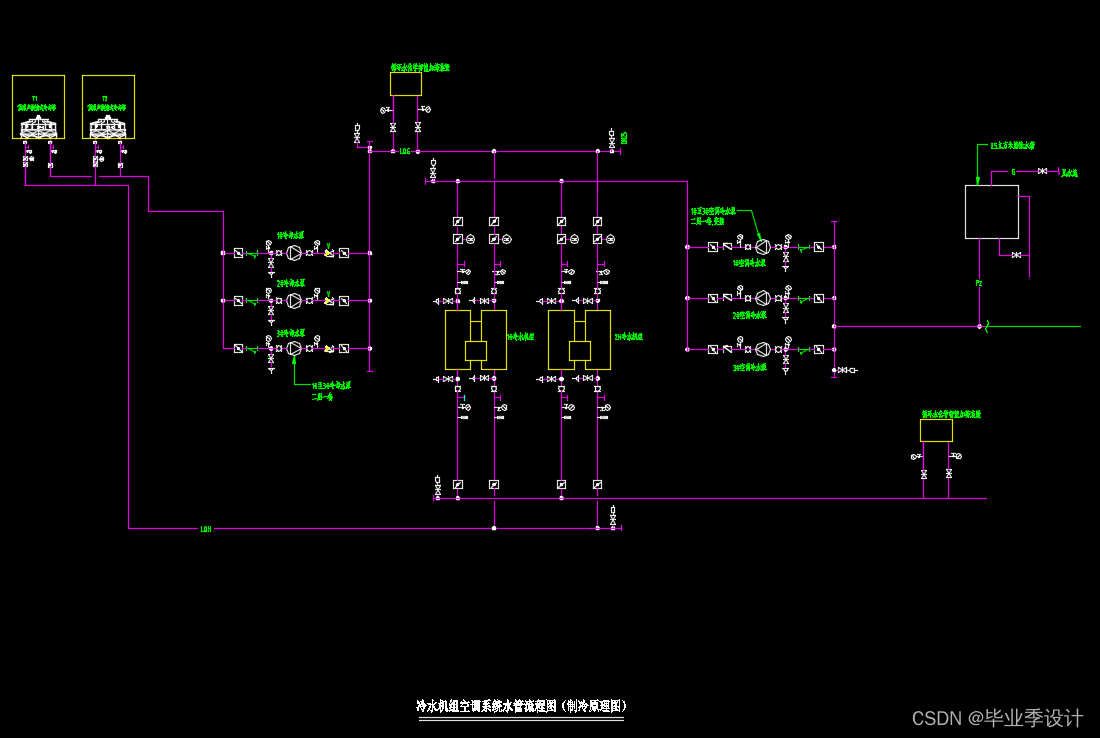

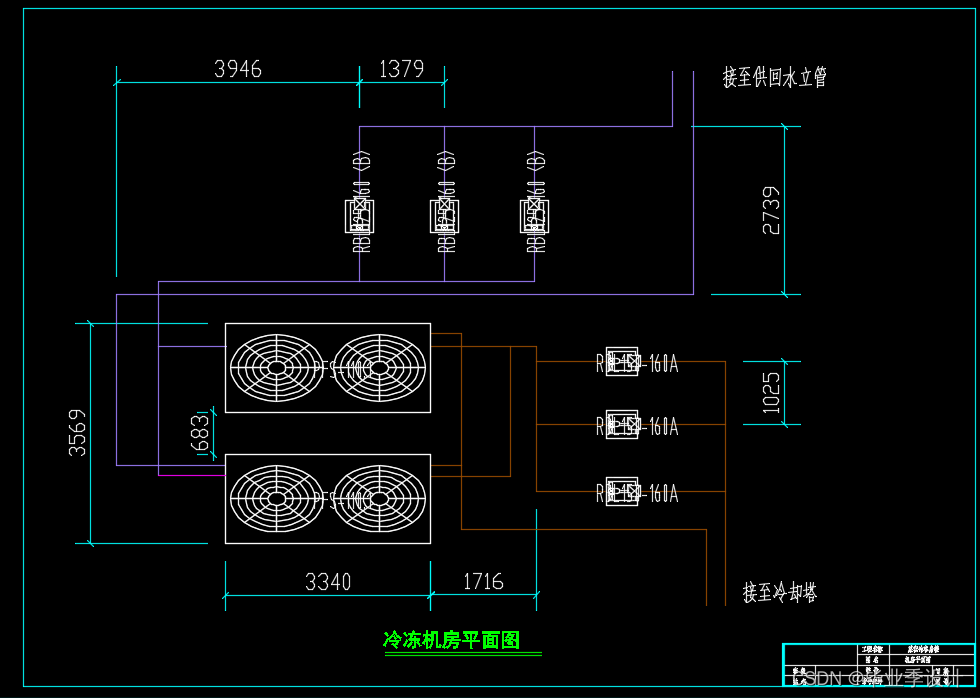

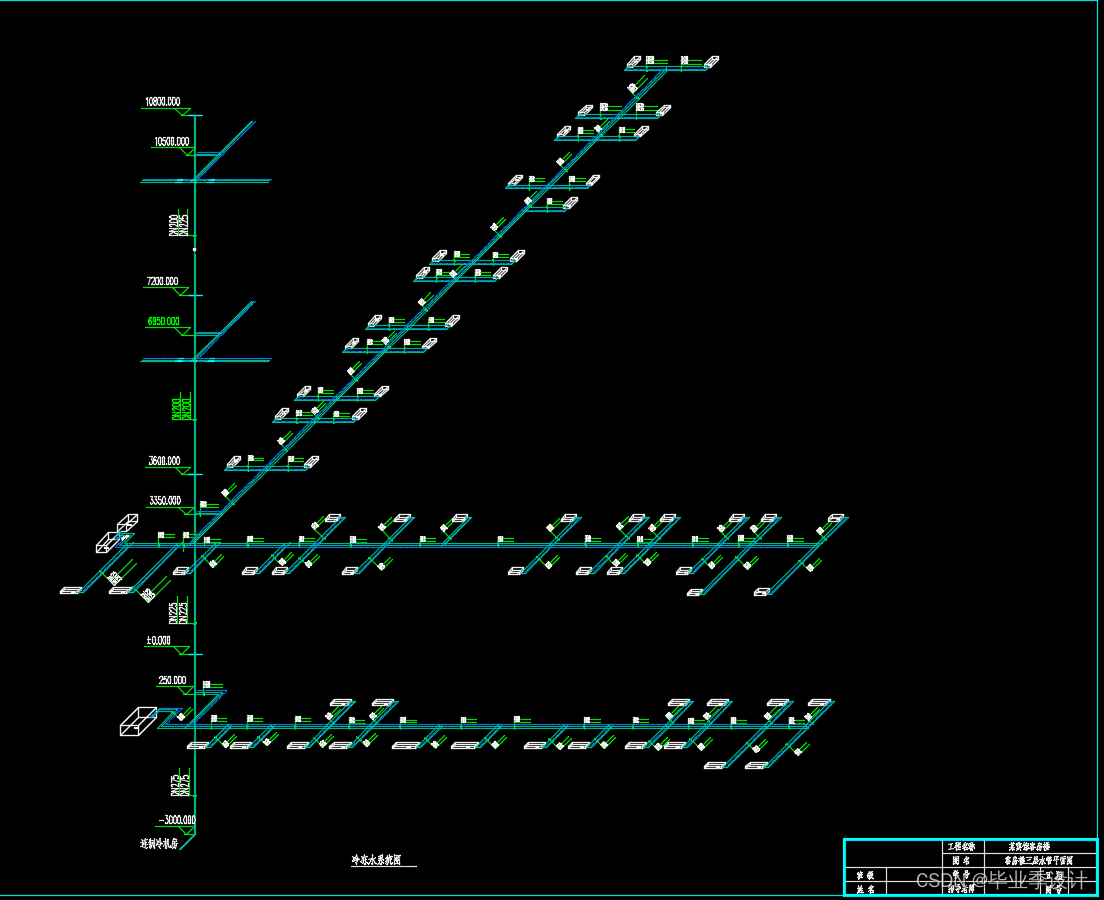

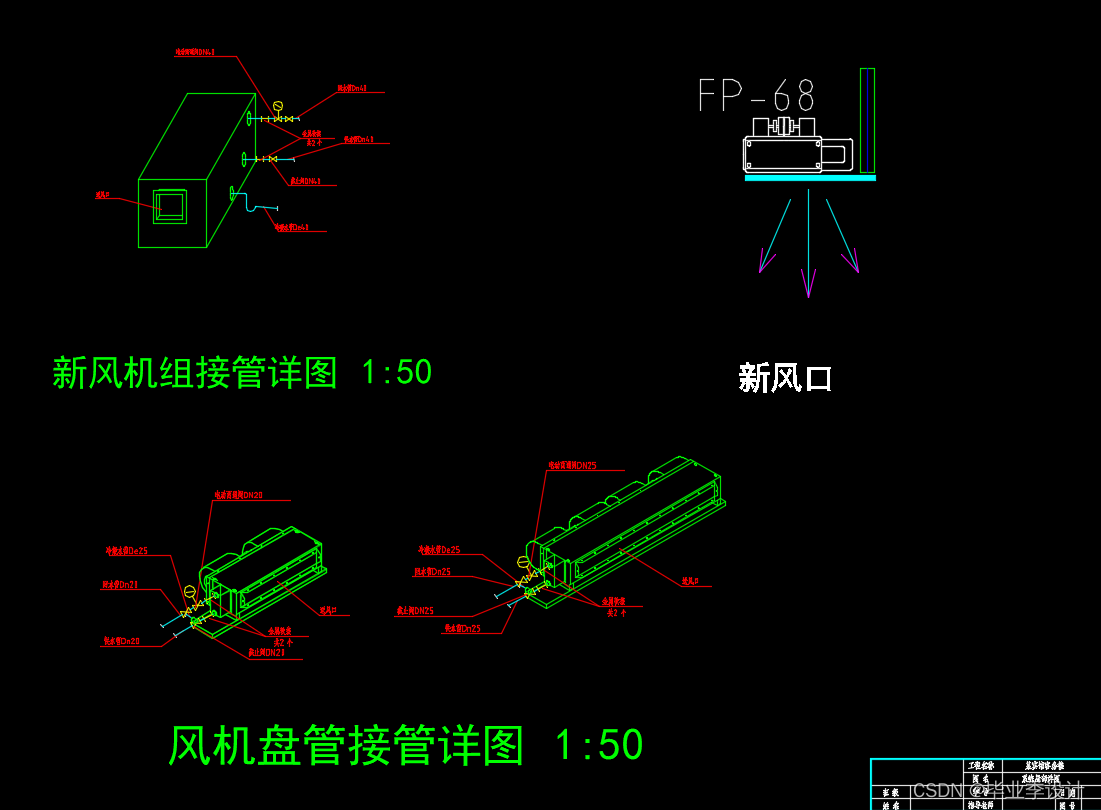

本课题题目为XX市某宾馆空调系统设计。所设计的建筑是重庆一幢三层高的宾馆,地下室为职工活动室,层高为3.6米;其余三层为客房,层高为3.6米;建筑物总高度约为14.4米,总建筑面积约为3900平方米。此次设计的主要内容包括:对建筑功能的划分和使用要求,对储藏室、客房的通风设计。由概算结果确定各建筑功能房间的设计标准和设计方案,查找当地各种设计参数和设计标准,通过计算分析,咨询讨论,综合经济、性能、施工难度等等因素,确定最优方案。本设计计算部分从整栋楼的冷负荷计算开始, 在了解建筑物概况及设计参数、冷负荷的情况下,对系统方案进行初步确定:由于该宾馆层数较少,使用人员不多,制冷负荷较低,我选择半集中式中央空调系统。为了更好,更经济的对房间承担冷负荷及湿负荷,选取空气水系统的设计方案。具体设计按送风参数的数量,送风量恒定与否,所使用空气来源和房间的控制要求设定。通过计算,系统总的制冷量为350kw,制冷机组采用风冷式单螺杆冷水制冷机两台,型号PFS-110.1,制冷量为377.1kW,根据房间的功能,全楼采用一次回风系统和风机盘管加独立新风系统,房间的排风采用自然排风方式,特别是风机盘管加独立新风系统的新风处理到室内状态点的等焓线上,直接送到室内,不承担室内负荷。在水系统设计上,我参考了国内外多个实例,根据本宾馆建筑冷负荷较小,面积中等以及当地气候条件等决定采用异程闭式系统,并在系统最高点设置膨胀水箱。根据设计的过程及计算结果运用CAD绘制标准层空调系统平面图,水系统图,风系统图,轴测图。

关键字:宾馆空调系统;单螺杆冷水制冷机;风机盘管;新风系统。

Abstract

Abstract this project is a hotel air conditioning system design in Chongqing City. The building designed in Congaing is a seven-stores hotel. The basement for the worker function room,the height of witch is 3.6 m. The remaining there are the guestrooms, the height of witch is 3.6 m. Buildings total approximately 14.4 meters in height, with a total floor area of approximately 3900 square meters. The main contents of the design include: requirements of the building function. The ventilation design of the storage room, and guestroom .Budget for the results to determine design criteria and design of the building function rooms, Find a local variety of design parameters and design standards, determine the optimum solution through calculation and analysis, consultation and discussion, The computational part of this design begins from the whole building cooling load calculation. In order to be able to have a comprehensive understanding of the cooling load, the design uses the method of calculation. In order to arrive at a reasonable cooling load we start from a systematic and rational selection of appropriate energy loss, and analysis the hotel room of every type. Initially identify the system program after understanding the building profile and design parameters and

the cooling load: For the reason of the hotel's low-rise, the use of the cooling load is low, we chose a semi-centralized central air conditioning system. In order to be more economical commitment to the room cooling load and the moisture load, select the design of the air-water system. Specific design of air the number of parameters, the air flow constant, the use of air source and room control requirements set. By calculating, the total cooling capacity is 350KW, apply a refrigeration unit with cold water chillers, air-cooled one-screw Model PFS-110.1, whose cooling capacity of 377.1kW,According to the function of the room, the whole building and a return air system and fan coil plus an independent air system. Room ventilation is natural ventilation, especially the new air handling coil unit plus an independent air system to the indoor state point enthrall online, directly to the indoors, do not bear the indoor load. Water system design: we refer to multiple instances of domestic and foreign, according to the present hotel building cooling load is smaller, the area of secondary and local climatic conditions decided to adopt a closed system with the process, and set the highest point in the system expansion tank. After the completion of the program is determined, the calculation of resistance of the air system and water system should be started. In the calculation process, the comprehensive economic factors, quality factors to determine the pipe to determine the path of the duct hose pipe to draw the most unfavorable path of resistance, combined with the cooling load, air supply, select the corresponding end of the air-conditioning products as well as auxiliary equipment. According to the design
