android蓝牙打印标签

客户需求手机通过蓝牙连接打印机打印标签

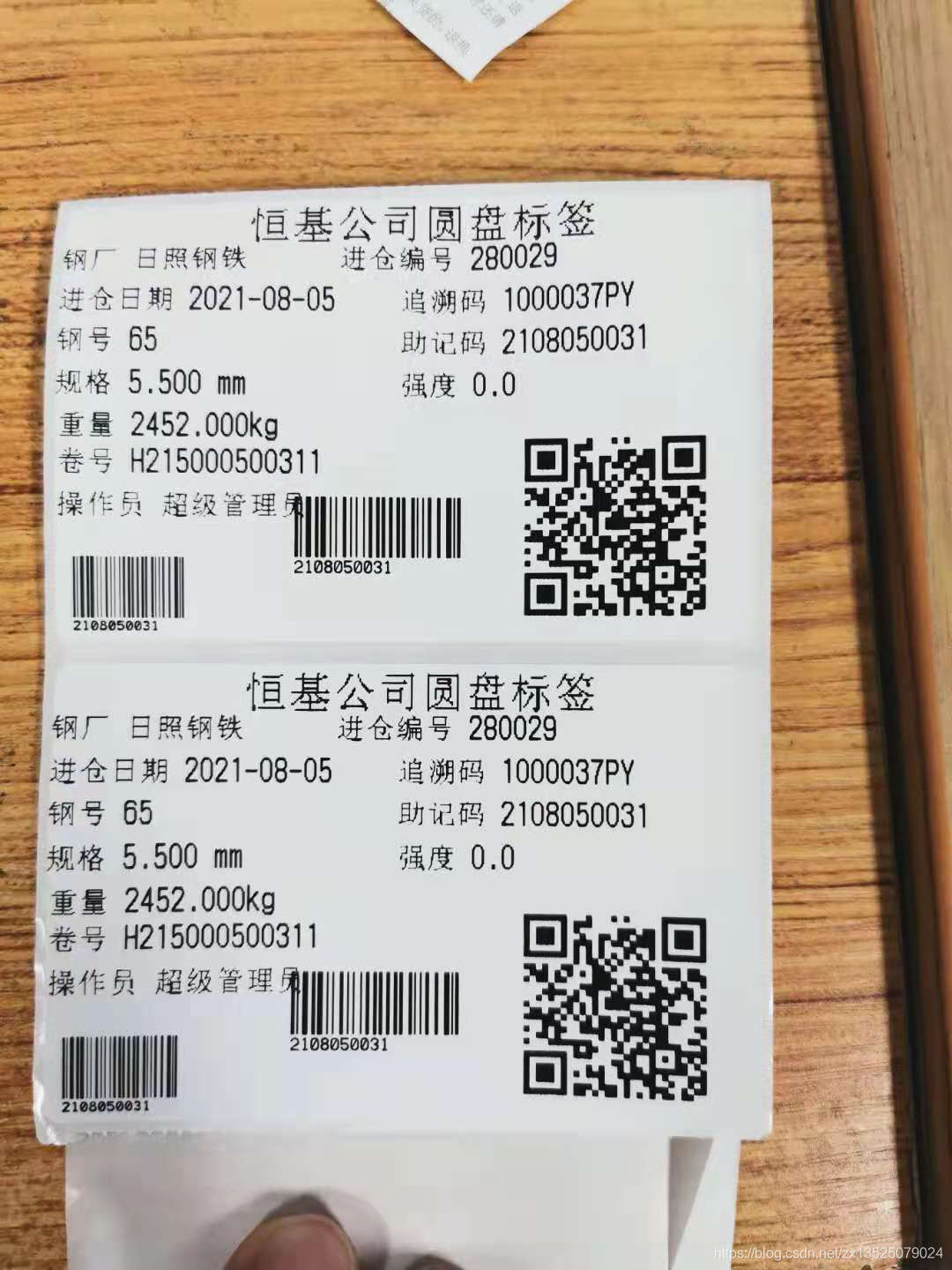

效果图

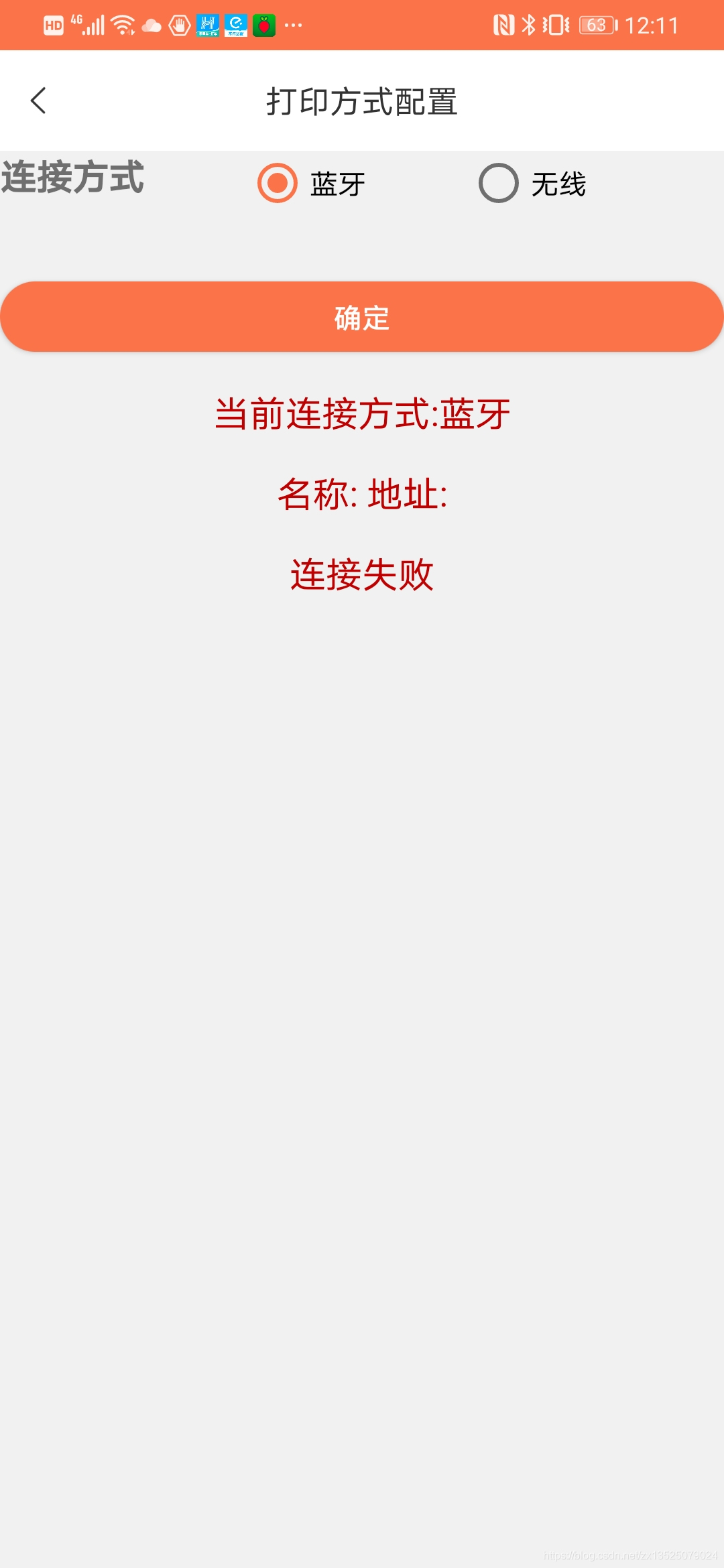

打印方式选择界面





   @Override
    public void init() {

        String connectSet=sharedPreferencesUtil.getString("0","connect-set");
        if (connectSet.equals("0"))
        {
            rbBlue.setChecked(true);
            etConncetType.setText("当前连接方式:蓝牙");
            String info="名称:"+sharedPreferencesUtil.getString("",SharedPreferencesUtil.blueName);
            info=info+" 地址:"+sharedPreferencesUtil.getString("",SharedPreferencesUtil.address);
            etInfo.setText(info);
        }
        else
        {
            rbWifi.setChecked(true);
            etConncetType.setText("当前连接方式:无线");
            etInfo.setText("");
            String info="ip:"+sharedPreferencesUtil.getString("",SharedPreferencesUtil.ip);
            info=info+" 端口:"+sharedPreferencesUtil.getString("",SharedPreferencesUtil.port);
            etInfo.setText(info);
        }

        if (threadPool==null)
        {
            threadPool = ThreadPool.getInstantiation();
        }
        threadPool.addSerialTask(new Runnable() {
            @Override
            public void run() {
                if (DeviceConnFactoryManager.getDeviceConnFactoryManagers()[id] == null ||
                        !DeviceConnFactoryManager.getDeviceConnFactoryManagers()[id].getConnState()) {
                   // etState.setText("连接失败");
                    Message message = new Message();
                    message.what=1;
                    message.obj = "连接失败";
                    handler.sendMessage(message);

                    return;
                }
                if (DeviceConnFactoryManager.getDeviceConnFactoryManagers()[id].getCurrentPrinterCommand() == PrinterCommand.TSC) {
                   // etState.setText("连接状态:成功");
                    Message message = new Message();
                    message.what=1;
                    message.obj = "连接状态:成功";
                    handler.sendMessage(message);
                } else {
                    Message message = new Message();
                    message.what=1;
                    message.obj = "连接状态:失败";
                    handler.sendMessage(message);
                   // etState.setText("连接状态:失败");
                }
            }
        });
    }









package com.qizi.app.ui;

import android.Manifest;
import android.app.PendingIntent;
import android.content.BroadcastReceiver;
import android.content.Context;
import android.content.Intent;
import android.content.IntentFilter;
import android.content.pm.PackageManager;
import android.hardware.usb.UsbDevice;
import android.hardware.usb.UsbManager;
import android.os.Build;
import android.os.Bundle;
import android.os.Handler;
import android.os.Message;
import android.support.v4.app.ActivityCompat;
import android.support.v4.content.ContextCompat;
import android.support.v7.app.AppCompatActivity;
import android.text.TextUtils;
import android.util.Log;
import android.view.View;
import android.widget.AdapterView;
import android.widget.Button;
import android.widget.EditText;
import android.widget.ListView;
import android.widget.Spinner;
import android.widget.TextView;


import com.qizi.app.R;
import com.qizi.app.ui.bt.Constant;
import com.qizi.app.ui.bt.DeviceConnFactoryManager;
import com.qizi.app.ui.bt.PrintContent;
import com.qizi.app.ui.bt.PrinterCommand;
import com.qizi.app.ui.bt.ThreadFactoryBuilder;
import com.qizi.app.ui.bt.ThreadPool;
import com.qizi.app.ui.bt.Utils;
import com.qizi.app.util.SharedPreferencesUtil;

import java.util.ArrayList;
import java.util.concurrent.ScheduledExecutorService;
import java.util.concurrent.ScheduledThreadPoolExecutor;
import java.util.concurrent.TimeUnit;

import static android.hardware.usb.UsbManager.ACTION_USB_DEVICE_ATTACHED;
import static android.hardware.usb.UsbManager.ACTION_USB_DEVICE_DETACHED;
import static com.qizi.app.ui.bt.Constant.ACTION_USB_PERMISSION;
import static com.qizi.app.ui.bt.Constant.MESSAGE_UPDATE_PARAMETER;
import static com.qizi.app.ui.bt.DeviceConnFactoryManager.ACTION_QUERY_PRINTER_STATE;
import static com.qizi.app.ui.bt.DeviceConnFactoryManager.CONN_STATE_FAILED;


public class BlueConfigSearchActivity extends AppCompatActivity

            implements
            AdapterView.OnItemClickListener,
        View.OnClickListener
{
    //返回
    private View backView;

    private ListView lv_searchblt;


    private SharedPreferencesUtil sharedPreferencesUtil;



    private Button btnPrint,btnSearch;

    TextView tv_bluename;


    int PERMISSION_REQUEST_COARSE_LOCATION=2;

    private static final String TAG = BlueConfigSearchActivity.class.getSimpleName();
    ArrayList<String> per = new ArrayList<>();
    private UsbManager usbManager;
    private int counts;
    private static final int REQUEST_CODE = 0x004;
    /**
     * 连接状态断开
     */
    private static final int CONN_STATE_DISCONN = 0x007;
    /**
     * 使用打印机指令错误
     */
    private static final int PRINTER_COMMAND_ERROR = 0x008;


    /**
     * ESC查询打印机实时状态指令
     */
    private byte[] esc = {0x10, 0x04, 0x02};
    /**
     * CPCL查询打印机实时状态指令
     */
    private byte[] cpcl={0x1b,0x68};
    /**
     * TSC查询打印机状态指令
     */
    private byte[] tsc = {0x1b, '!', '?'};

    private static final int CONN_MOST_DEVICES = 0x11;
    private static final int CONN_PRINTER = 0x12;
    private PendingIntent mPermissionIntent;
    private String[] permissions = {
            Manifest.permission.ACCESS_FINE_LOCATION,
            Manifest.permission.ACCESS_COARSE_LOCATION,
            Manifest.permission.BLUETOOTH
    };
    private String usbName;
    private TextView tvConnState;
    private ThreadPool threadPool;
    /**
     * 判断打印机所使用指令是否是ESC指令
     */
    private int id = 0;
    private EditText etPrintCounts;
    private Spinner mode_sp;
    private int printcount=0;
    private boolean continuityprint=false;
   // private CheckWifiConnThread checkWifiConnThread;//wifi连接线程监听

    @Override
    public void onCreate(Bundle savedInstanceState ) {

        super.onCreate(savedInstanceState);
        setContentView(R.layout.activity_blueconfig_search);
        lv_searchblt = (ListView) findViewById(R.id.lv_searchblt);
        tvConnState = (TextView) findViewById(R.id.tv_title);
       // tv_summary = (TextView) findViewById(R.id.tv_summary);

        checkPermission();
        requestPermission();
        tv_bluename =findViewById(R.id.tv_bluename);
        btnPrint=findViewById(R.id.btn_print);
        btnSearch=findViewById(R.id.btn_search);
        backView=findViewById(R.id.back);
        lv_searchblt.setOnItemClickListener(this);
        //tv_title.setOnClickListener(this);
       // tv_summary.setOnClickListener(this);

        if (Build.VERSION.SDK_INT >= Build.VERSION_CODES.M) {
            requestPermissions(new String[]{Manifest.permission.ACCESS_COARSE_LOCATION}, PERMISSION_REQUEST_COARSE_LOCATION);
        }
        btnSearch.setOnClickListener(this);
         backView.setOnClickListener(this);
        btnPrint.setOnClickListener(this);
        String connStr=getConnDeviceInfo();
        if (!connStr.isEmpty())
        {
            tv_bluename.setText("当前蓝牙信息" + "\n" + connStr);
        }
        sharedPreferencesUtil = SharedPreferencesUtil.getInstantiation(getApplicationContext());
        initBroadcast();
    }

    private void checkPermission() {
        for (String permission : permissions) {
            if (PackageManager.PERMISSION_GRANTED != ContextCompat.checkSelfPermission(this, permission)) {
                per.add(permission);
            }
        }
    }

    private void requestPermission() {
        if (per.size() > 0) {
            String[] p = new String[per.size()];
            ActivityCompat.requestPermissions(this, per.toArray(p), REQUEST_CODE);
        }
    }

    /**
     *注册广播
     * Registration broadcast
     */
    private void initBroadcast() {
        IntentFilter filter = new IntentFilter(ACTION_USB_PERMISSION);//USB访问权限广播
        filter.addAction(ACTION_USB_DEVICE_DETACHED);//USB线拔出
        filter.addAction(ACTION_QUERY_PRINTER_STATE);//查询打印机缓冲区状态广播，用于一票一控
        filter.addAction(DeviceConnFactoryManager.ACTION_CONN_STATE);//与打印机连接状态
        filter.addAction(ACTION_USB_DEVICE_ATTACHED);//USB线插入
        registerReceiver(receiver, filter);
    }

    private BroadcastReceiver receiver = new BroadcastReceiver() {
        @Override
        public void onReceive(Context context, Intent intent) {
            String action = intent.getAction();
            switch (action) {
                //USB请求访问权限
                case ACTION_USB_PERMISSION:
                    synchronized (this) {
                        UsbDevice device = intent.getParcelableExtra(UsbManager.EXTRA_DEVICE);
                        if (intent.getBooleanExtra(UsbManager.EXTRA_PERMISSION_GRANTED, false)) {
                            if (device != null) {//用户点击授权
                                //usbConn(device);
                            }
                        } else {//用户点击不授权,则无权限访问USB
                            Log.e(TAG,"No access to USB");
                        }
                    }
                    break;
                //Usb连接断开广播
                case ACTION_USB_DEVICE_DETACHED:
                    UsbDevice usbDevice = (UsbDevice)intent.getParcelableExtra(UsbManager.EXTRA_DEVICE);
                    if (usbDevice.equals( DeviceConnFactoryManager.getDeviceConnFactoryManagers()[id].usbDevice())){
                        mHandler.obtainMessage(CONN_STATE_DISCONN).sendToTarget();
                    }
                    break;
                //连接状态
                case DeviceConnFactoryManager.ACTION_CONN_STATE:
                    int state = intent.getIntExtra(DeviceConnFactoryManager.STATE, -1);
                    int deviceId = intent.getIntExtra(DeviceConnFactoryManager.DEVICE_ID, -1);
                    switch (state) {
                        case DeviceConnFactoryManager.CONN_STATE_DISCONNECT:
                            if (id == deviceId) {
                                Log.e(TAG,"connection is lost");
                                tvConnState.setText(getString(R.string.str_conn_state_disconnect));
                            }
                            break;
                        case DeviceConnFactoryManager.CONN_STATE_CONNECTING:
                            tvConnState.setText(getString(R.string.str_conn_state_connecting));
                            break;
                        case DeviceConnFactoryManager.CONN_STATE_CONNECTED:
                            tvConnState.setText(getString(R.string.str_conn_state_connected) + "\n" + getConnDeviceInfo());
                            break;
                        case CONN_STATE_FAILED:
                            Utils.toast(BlueConfigSearchActivity.this, getString(R.string.str_conn_fail));
                            //wificonn=false;
                            tvConnState.setText(getString(R.string.str_conn_state_disconnect));
                            break;
                        default:
                            break;
                    }
                    break;
                //连续打印，一票一控，防止打印机乱码
                case ACTION_QUERY_PRINTER_STATE:
                    if (counts >=0) {
                        if(continuityprint) {
                            printcount++;
                            Utils.toast(BlueConfigSearchActivity.this, getString(R.string.str_continuityprinter) + " " + printcount);
                        }
                        if(counts!=0) {
                            sendContinuityPrint();
                        }else {
                            continuityprint=false;
                        }
                    }
                    break;
                default:
                    break;
            }
        }
    };

    private Handler mHandler = new Handler() {
        @Override
        public void handleMessage(Message msg) {
            switch (msg.what) {
                case CONN_STATE_DISCONN://断开连接
                    DeviceConnFactoryManager deviceConnFactoryManager=DeviceConnFactoryManager.getDeviceConnFactoryManagers()[id];
                    if (deviceConnFactoryManager!= null&&deviceConnFactoryManager.getConnState()) {
                        DeviceConnFactoryManager.getDeviceConnFactoryManagers()[id].closePort(id);
                        Utils.toast(BlueConfigSearchActivity.this,getString(R.string.str_disconnect_success));
                    }
                    break;
                case PRINTER_COMMAND_ERROR://打印机指令错误
                    Utils.toast(BlueConfigSearchActivity.this, getString(R.string.str_choice_printer_command));
                    break;
                case CONN_PRINTER://未连接打印机
                    Utils.toast(BlueConfigSearchActivity.this, getString(R.string.str_cann_printer));
                    break;
                case MESSAGE_UPDATE_PARAMETER:
                    String strIp = msg.getData().getString("Ip");
                    String strPort = msg.getData().getString("Port");
                    //初始化端口信息
                    new DeviceConnFactoryManager.Build()
                            //设置端口连接方式
                            .setConnMethod(DeviceConnFactoryManager.CONN_METHOD.WIFI)
                            //设置端口IP地址
                            .setIp(strIp)
                            //设置端口ID（主要用于连接多设备）
                            .setId(id)
                            //设置连接的热点端口号
                            .setPort(Integer.parseInt(strPort))
                            .build();
                    threadPool = ThreadPool.getInstantiation();
                    threadPool.addSerialTask(new Runnable() {
                        @Override
                        public void run() {
                            DeviceConnFactoryManager.getDeviceConnFactoryManagers()[id].openPort();
                        }
                    });
                    break;
                case Constant.tip:
                    String str=(String) msg.obj;
                    Utils.toast(BlueConfigSearchActivity.this,str);
                    break;
                default:
                    new DeviceConnFactoryManager.Build()
                            //设置端口连接方式
                            .setConnMethod(DeviceConnFactoryManager.CONN_METHOD.WIFI)
                            //设置端口IP地址
                            .setIp("192.168.2.227")
                            //设置端口ID（主要用于连接多设备）
                            .setId(id)
                            //设置连接的热点端口号
                            .setPort(9100)
                            .build();
                    threadPool.addSerialTask(new Runnable() {
                        @Override
                        public void run() {
                            DeviceConnFactoryManager.getDeviceConnFactoryManagers()[id].openPort();
                        }
                    });
                    break;
            }
        }
    };


    /**
     * 获取当前连接设备信息
     * @return
     */
    private String getConnDeviceInfo() {
        String str = "";
        DeviceConnFactoryManager deviceConnFactoryManager = DeviceConnFactoryManager.getDeviceConnFactoryManagers()[id];
        if (deviceConnFactoryManager != null
                && deviceConnFactoryManager.getConnState()) {
            if ("USB".equals(deviceConnFactoryManager.getConnMethod().toString())) {
                str += "USB\n";
                str += "USB Name: " + deviceConnFactoryManager.usbDevice().getDeviceName();
            } else if ("WIFI".equals(deviceConnFactoryManager.getConnMethod().toString())) {
                str += "WIFI\n";
                str += "IP: " + deviceConnFactoryManager.getIp() + "\t";
                str += "Port: " + deviceConnFactoryManager.getPort();

            } else if ("BLUETOOTH".equals(deviceConnFactoryManager.getConnMethod().toString())) {
                str += "蓝牙：已连接\n";
                str += "地址: " + deviceConnFactoryManager.getMacAddress();
            } else if ("SERIAL_PORT".equals(deviceConnFactoryManager.getConnMethod().toString())) {
                str += "SERIAL_PORT\n";
                str += "Path: " + deviceConnFactoryManager.getSerialPortPath() + "\t";
                str += "Baudrate: " + deviceConnFactoryManager.getBaudrate();
            }
        }
        return str;
    }




    private void sendContinuityPrint() {
        ThreadPool.getInstantiation().addSerialTask(new Runnable() {
            @Override
            public void run() {
                if (DeviceConnFactoryManager.getDeviceConnFactoryManagers()[id] != null
                        && DeviceConnFactoryManager.getDeviceConnFactoryManagers()[id].getConnState()) {
                    ThreadFactoryBuilder threadFactoryBuilder = new ThreadFactoryBuilder("MainActivity_sendContinuity_Timer");
                    ScheduledExecutorService scheduledExecutorService = new ScheduledThreadPoolExecutor(1, threadFactoryBuilder);
                    scheduledExecutorService.schedule(threadFactoryBuilder.newThread(new Runnable() {
                        @Override
                        public void run() {
                            counts--;
                            if (DeviceConnFactoryManager.getDeviceConnFactoryManagers()[id].getCurrentPrinterCommand() == PrinterCommand.ESC) {
                                DeviceConnFactoryManager.getDeviceConnFactoryManagers()[id].sendDataImmediately(PrintContent.getReceipt());
                            } else if(DeviceConnFactoryManager.getDeviceConnFactoryManagers()[id].getCurrentPrinterCommand() == PrinterCommand.TSC) {
                                DeviceConnFactoryManager.getDeviceConnFactoryManagers()[id].sendDataImmediately(PrintContent.getLabel());
                            }else {
                                DeviceConnFactoryManager.getDeviceConnFactoryManagers()[id].sendDataImmediately(PrintContent.getCPCL());
                            }
                        }
                    }), 1000, TimeUnit.MILLISECONDS);
                }
            }
        });
    }




    @Override
    public void onItemClick(AdapterView<?> adapterView, View view, int position, long l) {



    }

    @Override
    protected void onActivityResult(int requestCode, int resultCode, Intent data) {
        super.onActivityResult(requestCode, resultCode, data);
        if (resultCode == RESULT_OK) {
            switch (requestCode) {
                /*蓝牙连接*/
                case Constant.BLUETOOTH_REQUEST_CODE: {
                    closeport();
                    /*获取蓝牙mac地址*/
                    String macAddress = data.getStringExtra(BluetoothDeviceList.EXTRA_DEVICE_ADDRESS);
                    //初始化话DeviceConnFactoryManager
                    new DeviceConnFactoryManager.Build()
                            .setId(id)
                            //设置连接方式
                            .setConnMethod(DeviceConnFactoryManager.CONN_METHOD.BLUETOOTH)
                            //设置连接的蓝牙mac地址
                            .setMacAddress(macAddress)
                            .build();
                    tv_bluename.setText("当前蓝牙:"+macAddress);
                    //打开端口
                    threadPool = ThreadPool.getInstantiation();
                    threadPool.addSerialTask(new Runnable() {
                        @Override
                        public void run() {
                            DeviceConnFactoryManager.getDeviceConnFactoryManagers()[id].openPort();
                        }
                    });

                    break;
                }
                /*USB连接*/
                case Constant.USB_REQUEST_CODE: {
                    closeport();

                    break;
                }
                /*串口连接*/
                case Constant.SERIALPORT_REQUEST_CODE:
                    closeport();
                    //获取波特率
                    int baudrate = data.getIntExtra(Constant.SERIALPORTBAUDRATE, 0);
                    //获取串口号
                    String path = data.getStringExtra(Constant.SERIALPORTPATH);
                    if (baudrate != 0 && !TextUtils.isEmpty(path)) {
                        //初始化DeviceConnFactoryManager
                        new DeviceConnFactoryManager.Build()
                                //设置连接方式
                                .setConnMethod(DeviceConnFactoryManager.CONN_METHOD.SERIAL_PORT)
                                .setId(id)
                                //设置波特率
                                .setBaudrate(baudrate)
                                //设置串口号
                                .setSerialPort(path)
                                .build();
                        //打开端口
                        //打开端口
                        threadPool = ThreadPool.getInstantiation();
                        threadPool.addSerialTask(new Runnable() {
                            @Override
                            public void run() {
                                DeviceConnFactoryManager.getDeviceConnFactoryManagers()[id].openPort();
                            }
                        });
                    }
                    break;
                /*多设备*/
                case CONN_MOST_DEVICES:
                    initBroadcast();//注册广播监听
                    id = data.getIntExtra("id", -1);
                    if (DeviceConnFactoryManager.getDeviceConnFactoryManagers()[id] != null &&
                            DeviceConnFactoryManager.getDeviceConnFactoryManagers()[id].getConnState()) {
                        tvConnState.setText(getString(R.string.str_conn_state_connected) + "\n" + getConnDeviceInfo());
                    } else {
                        tvConnState.setText(getString(R.string.str_conn_state_disconnect));
                    }
                    break;
                default:
                    break;
            }
        }
    }

    /**
     * 重新连接回收上次连接的对象，避免内存泄漏
     */
    private void closeport(){
        if(DeviceConnFactoryManager.getDeviceConnFactoryManagers()[id]!=null&&DeviceConnFactoryManager.getDeviceConnFactoryManagers()[id].mPort!=null) {
           //DeviceConnFactoryManager.getDeviceConnFactoryManagers()[id].reader.cancel();
            DeviceConnFactoryManager.getDeviceConnFactoryManagers()[id].mPort.closePort();
            DeviceConnFactoryManager.getDeviceConnFactoryManagers()[id].mPort=null;
        }
    }

    @Override
    public void onClick(View view) {
        switch (view.getId()){
            case R.id.back:
                 finish();
                break;
            case R.id.btn_print:
                printTest();
                break;
            case R.id.btn_search:

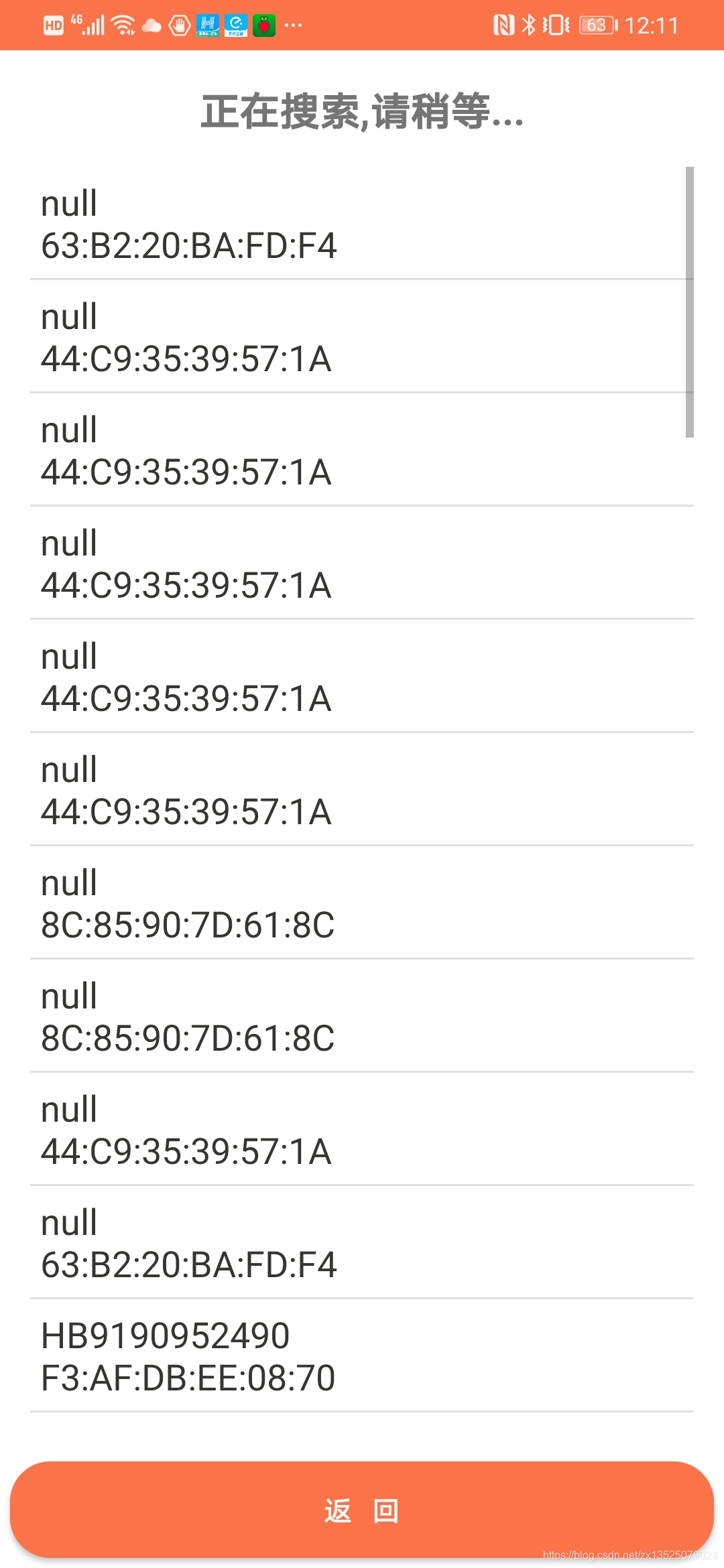

                startActivityForResult(new Intent(this, BluetoothDeviceList.class), Constant.BLUETOOTH_REQUEST_CODE);
                break;
        }
    }


    private void printTest()
    {
        threadPool = ThreadPool.getInstantiation();
        threadPool.addSerialTask(new Runnable() {
            @Override
            public void run() {
                if (DeviceConnFactoryManager.getDeviceConnFactoryManagers()[id] == null ||
                        !DeviceConnFactoryManager.getDeviceConnFactoryManagers()[id].getConnState()) {
                    mHandler.obtainMessage(CONN_PRINTER).sendToTarget();
                    return;
                }
                if (DeviceConnFactoryManager.getDeviceConnFactoryManagers()[id].getCurrentPrinterCommand() == PrinterCommand.TSC) {
                    DeviceConnFactoryManager.getDeviceConnFactoryManagers()[id].sendDataImmediately(PrintContent.getSuitTestLabel());
                } else {
                    mHandler.obtainMessage(PRINTER_COMMAND_ERROR).sendToTarget();
                }
            }
        });
    }


}
