介绍TableView非常不错的一篇文章:
http://www.cocoawithlove.com/2009/04/easy-custom-uitableview-drawing.html
官方给出的cell的讲解:
https://developer.apple.com/library/ios/documentation/UserExperience/Conceptual/TableView_iPhone/TableViewCells/TableViewCells.html
误区:
if(cell ==nil)
{
cell = [[[UITableViewCellalloc] initWithStyle:UITableViewCellStyleDefaultreuseIdentifier:cellId] autorelease];
cell.backgroundColor = [UIColorgreenColor];
}
return cell;
这样设置cell的背景通常是不起作用的,纳尼?!淡定,需要了解一下cell的组成。
backgroundView
— the entire background of the row (including what looks like theUITableView
's background inUITableViewStyleGrouped
style tables 整个的行的背景视图selectedBackgroundView
— replaces thebackgroundView
when the row is selected. 选中cell后的背景视图,替换原有的背景视图image
— a customizable image (not actually a subview) at the left of the cell.一个定制的image位于cell的左侧accessoryView
— a customizable view at the right of the cell. 一个定制的view位于cell的右侧contentView
— a customizable view between theimage
and theaccessoryView
(technically, it extends behind theimage
).
contentView是cell的一个子View,要明确这一点!!
(PS:值得注意的是tableView除了可以自定义背景颜色之外,不可以自定义北京,像自定义背景必须把tableView的背景色置为clear,然后定义tableView上一层的view的背景)
A cell object has various parts, which can change depending on the mode of the table view.
官方给的解释说:cell对象有多重组成部分,可以根据tableView的模式而变化.
只有cell位于UITableViewCellStyleSubtitle模式下。下面的detailTextLabel才会起作用.
-
detailTextLabel
—A label for the subtitle if there is additional detail (aUILabel
object) -
imageView
—An image view for an image (aUIImageView
object)
cell = [[[UITableViewCellalloc] initWithStyle:UITableViewCellStyleSubtitlereuseIdentifier:cellId] autorelease];
cell.accessoryType =UITableViewCellAccessoryDetailDisclosureButton;
cell.textLabel.text =@"1";
cell.detailTextLabel.text =@"2";
cell.imageView.image = [UIImageimageNamed:@"1"];
cell = [[[UITableViewCellalloc] initWithStyle:UITableViewCellStyleSubtitlereuseIdentifier:cellId] autorelease];
cell.accessoryType =UITableViewCellAccessoryDetailDisclosureButton;
cell.textLabel.text =@"1";
cell.detailTextLabel.text =@"2";
// cell.imageView.image = [UIImage imageNamed:@"1"];

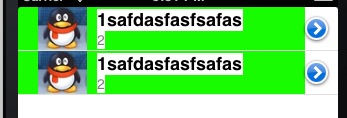

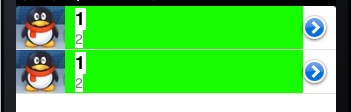

文字是顶边的。
不过可以改变indentationLevel去使得文字不再顶边
cell.accessoryType =UITableViewCellAccessoryDisclosureIndicator;
cell.accessoryType =UITableViewCellAccessoryDetailDisclosureButton;
cell.textLabel.text =@"1safdasfasfsafas";
cell.detailTextLabel.text =@"2";
cell.indentationLevel =2;
cell.indentationWidth =5; //缩进距离为2*5=10 默认的宽度为10...
cell.imageView.image = [UIImageimageNamed:@"1"];
自定义cell的两种方式:(具体的定制方式,官方都有给出,很详细还有具体代码可以看)
-
Add subviews to a cell’s content view.注意是加view时加到了contentView上面.
- 1、可以使用tag的方式,放到xib里面加
- 2、也可以直接采用程序实现,用tag获取到cell里的东西
-
Create a custom subclass of
UITableViewCell
.
注意:使用xib自定义的时候要 Enter a reuse identifier in the Identifier text field!!!
关于tableView的性能问题(官方给出三点建议):
-
Reuse cells. Object allocation has a performance cost, especially if the allocation has to happen repeatedly over a short period—say, when the user scrolls a table view. If you reuse cells instead of allocating new ones, you greatly enhance table view performance.
-
Avoid relayout of content. When reusing cells with custom subviews, refrain from laying out those subviews each time the table view requests a cell. Lay out the subviews once, when the cell is created.
-
Use opaque subviews. When customizing table view cells, make the subviews of the cell opaque, not transparent.
