Android WiFi Toggle ON/OFF流程分析

WiFi toggled on流程分析

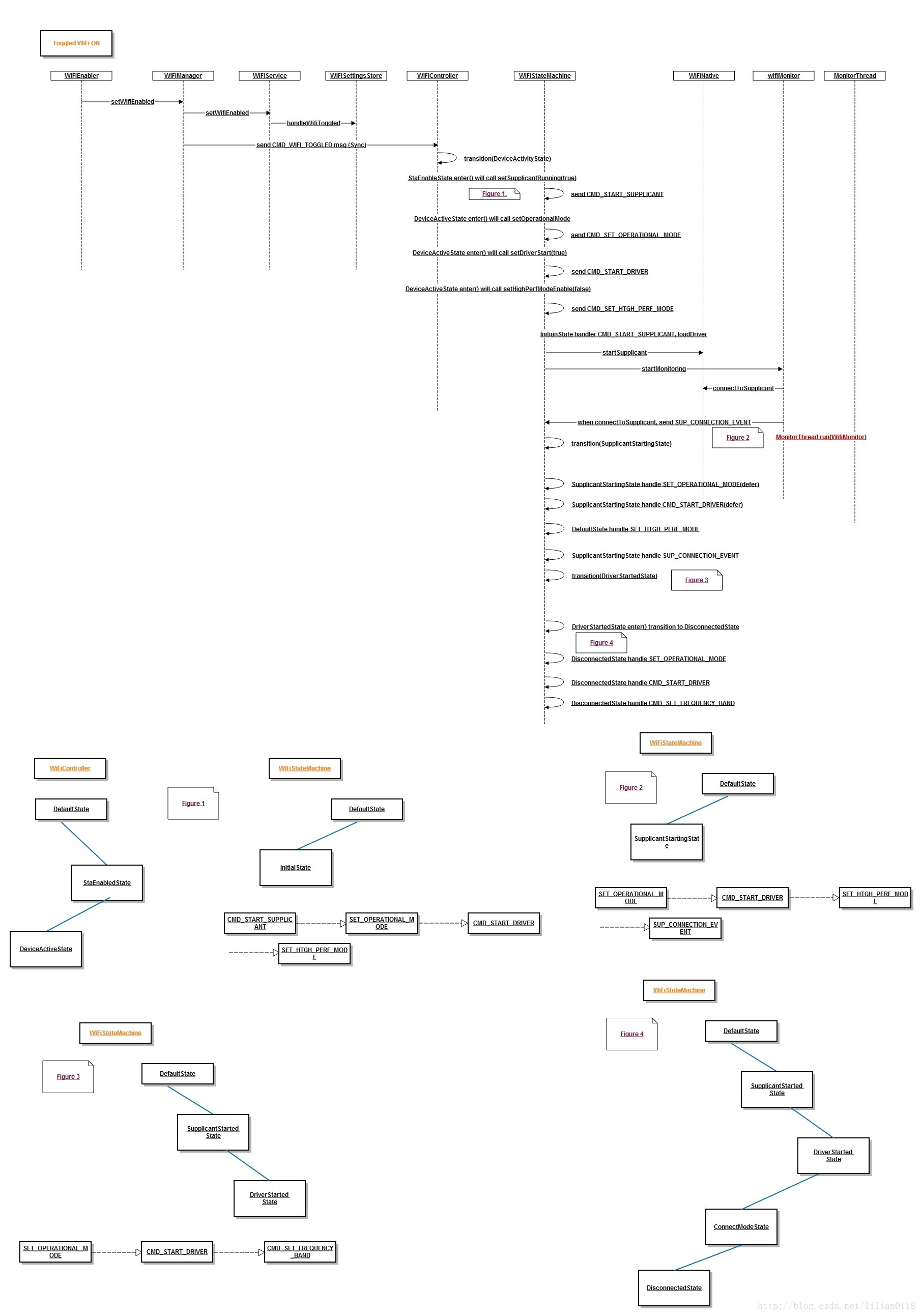

这一章来分析一下从Settings打开wifi后，framework所有的流程以及状态转换，调用的主要函数就是WiFiMananger的setWifiEnabled(boolean enabled)，这个函数在前面介绍的WifiService启动流程中也有提到，当SystemServer 创建了个WifiService后，就会调用它的checkAndStartWifi，在这个函数里面，也同样会调用到setWifiEnabled(boolean enabled)，这是为了恢复用户在开机之前的wifi状态。下面来详细分析WifiMananger的setWifiEnabled函数。先来看看总体的流程图

对照上面的流程图，我们从WifiMananger的setWifiEnabled来分析一下代码：

    public boolean setWifiEnabled(boolean enabled) {
        try {
            return mService.setWifiEnabled(enabled);
        } catch (RemoteException e) {
            return false;
        }
    }

WifiService.java
    public synchronized boolean setWifiEnabled(boolean enable) {
        enforceChangePermission();
        Slog.d(TAG, "setWifiEnabled: " + enable + " pid=" + Binder.getCallingPid()
                    + ", uid=" + Binder.getCallingUid());
        if (DBG) {
            Slog.e(TAG, "Invoking mWifiStateMachine.setWifiEnabled\n");
        }

        /*
        * Caller might not have WRITE_SECURE_SETTINGS,
        * only CHANGE_WIFI_STATE is enforced
        */

        long ident = Binder.clearCallingIdentity();
        try {
            if (! mSettingsStore.handleWifiToggled(enable)) {
                // Nothing to do if wifi cannot be toggled
                return true;
            }
        } finally {
            Binder.restoreCallingIdentity(ident);
        }

        mWifiController.sendMessage(CMD_WIFI_TOGGLED);
        return true;
    }

在WifiService里面，先把传进来的参数写到WifiSettingsStore里面，WifiSettingsStore调用Settings提供的ContentProviders写到Sqlite的DB里面，所以我们看到mWifiController.sendMessage(CMD_WIFI_TOGGLED)是没有把这个参数传递过去的。接着去看WifiController里面如何处理CMD_WIFI_TOGGLED，由前面的WifiService启动流程分析，我们知道CMD_WIFI_TOGGLED将由WifiController的ApStaDisabledState来处理：

    class ApStaDisabledState extends State {
        private int mDeferredEnableSerialNumber = 0;
        private boolean mHaveDeferredEnable = false;
        private long mDisabledTimestamp;

        @Override
        public void enter() {
            mWifiStateMachine.setSupplicantRunning(false);
            // Supplicant can't restart right away, so not the time we switched off
            mDisabledTimestamp = SystemClock.elapsedRealtime();
            mDeferredEnableSerialNumber++;
            mHaveDeferredEnable = false;
        }
        @Override
        public boolean processMessage(Message msg) {
            switch (msg.what) {
                case CMD_WIFI_TOGGLED:
                case CMD_AIRPLANE_TOGGLED:
                    if (mSettingsStore.isWifiToggleEnabled()) {
                        if (doDeferEnable(msg)) {
                            if (mHaveDeferredEnable) {
                                //  have 2 toggles now, inc serial number an ignore both
                                mDeferredEnableSerialNumber++;
                            }
                            mHaveDeferredEnable = !mHaveDeferredEnable;
                            break;
                        }
                        if (mDeviceIdle == false) {
                            transitionTo(mDeviceActiveState);
                        } else {
                            checkLocksAndTransitionWhenDeviceIdle();
                        }
                    }
                    break;

WifiController的ApStaDisabledState的处理很简单，只是简单的transition到DeviceActiveState，因为DeviceActiveState的父State是StaEnabledState，由StateMachine的知识，我们先到StaEnabledState和DeviceActiveState的enter()函数来看看：

    class StaEnabledState ex
