本文介绍如何使用Arduino和OLED屏幕通过IIC接口显示BMP图片。首先需要准备一张BMP格式的图片，并利用字模提取软件进行点阵取模。随后将取模后的数组应用于Arduino程序中，实现图片的绘制。

摘要生成于 C知道，由 DeepSeek-R1 满血版支持，前往体验 >

用OLED实现图片的显示的具体实现方法

接线方法使用IIC方式，具体请参考入门篇

Arduino 驱动OLED屏幕IIC接线方式简单入门

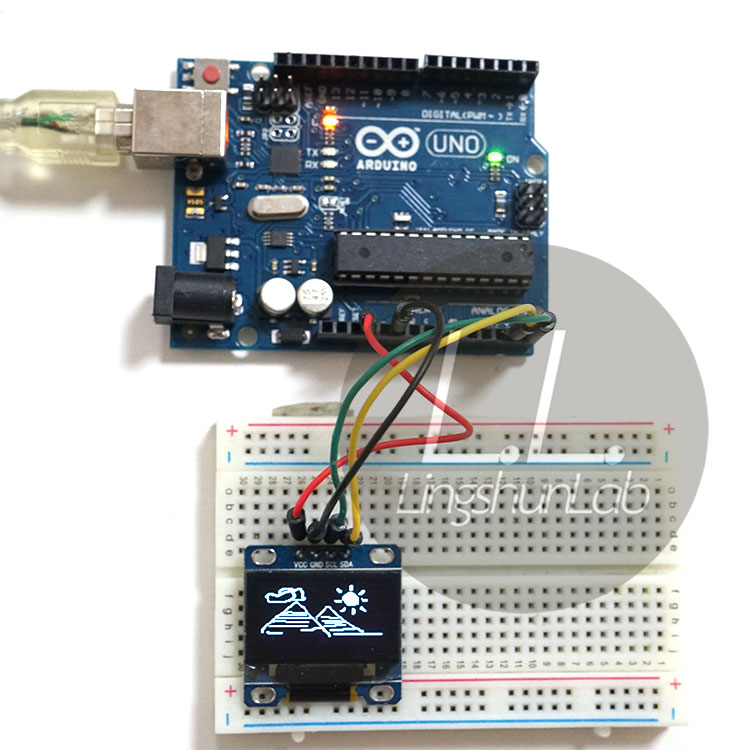

看看示例实现效果哈

制作一张BMP图片

首先要有一张BMP图片

自己用windows自带的画版画了一张大气的晴朗大山浮云图，保存为BMP格式。各位看官可自行创作

PS：我用的PS另存为的BMP图片无法在取模软件上读取，不解。

图片点阵取模

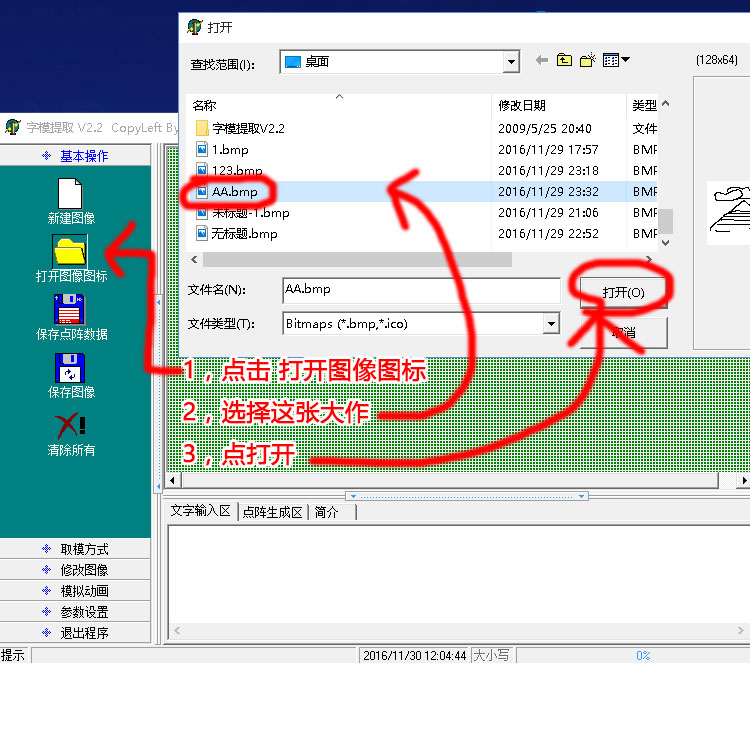

打开字模提取V2.2 软件

字模提取V2.2

分享地址：http://pan.baidu.com/s/1i50UmxB

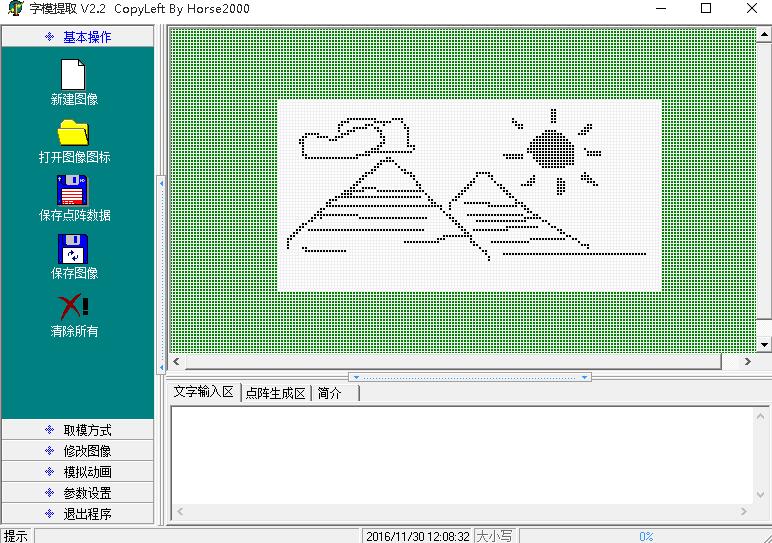

经过以上步骤，图片正确打开，会看到以下界面

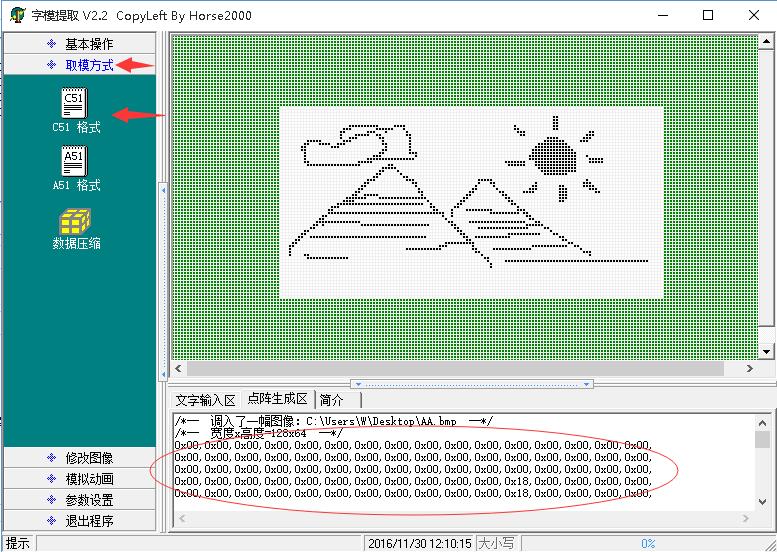

接着点开取模方式，点击C51格式，就会看到点阵数组

在这里，注意宽度与高度，还有把点阵数组都复制了。

开源程序代码：

//显示图片程序

#include <SPI.h>
#include <Wire.h>
#include <Adafruit_GFX.h>
#include <Adafruit_SSD1306.h>

#define OLED_RESET 4
Adafruit_SSD1306 display(OLED_RESET);

static const unsigned char PROGMEM logo[] =
{
    0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
    0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
    0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
    0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x18,0x00,0x00,0x00,0x00,
    0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x18,0x00,0x00,0x00,0x00,
    0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x18,0x00,0x00,0x00,0x00,
    0x00,0x00,0x01,0xFF,0x83,0xC0,0x00,0x00,0x00,0x02,0x00,0x18,0x00,0x00,0x00,0x00,
    0x00,0x00,0x07,0x00,0xFC,0x40,0x00,0x00,0x00,0x03,0x00,0x18,0x00,0x00,0x00,0x00,
    0x00,0x00,0x0C,0x07,0x10,0x20,0x00,0x00,0x00,0x01,0xC0,0x00,0x01,0x80,0x00,0x00,
    0x00,0x00,0x08,0x7C,0xC0,0x30,0x00,0x00,0x00,0x00,0xC0,0x00,0x03,0x80,0x00,0x00,
    0x00,0x00,0x09,0xC0,0x60,0x10,0x00,0x00,0x00,0x00,0x00,0x78,0x07,0x00,0x00,0x00,
    0x00,0x7C,0x07,0x00,0x20,0x10,0x00,0x00,0x00,0x00,0x00,0xFE,0x0E,0x00,0x00,0x00,
    0x00,0xC7,0x9C,0x00,0x30,0x10,0x00,0x00,0x00,0x00,0x03,0xFF,0x00,0x00,0x00,0x00,
    0x01,0x80,0x70,0x00,0x10,0x10,0x00,0x00,0x00,0x00,0x07,0xFF,0x80,0x00,0x00,0x00,
    0x01,0x80,0x00,0x00,0x30,0x10,0x00,0x00,0x00,0x00,0x0F,0xFF,0xC0,0x00,0x00,0x00,
    0x00,0x80,0x00,0x00,0x60,0x1C,0x00,0x00,0x00,0x00,0x0F,0xFF,0xE0,0x00,0x00,0x00,
    0x00,0x80,0x00,0x01,0xC0,0x04,0x00,0x00,0x00,0x00,0x1F,0xFF,0xE2,0x00,0x00,0x00,
    0x00,0x80,0x00,0x07,0xFF,0xF8,0x00,0x00,0x00,0x00,0x1F,0xFF,0xE1,0xF0,0x00,0x00,
    0x00,0xC0,0x00,0x3E,0x00,0x00,0x00,0x00,0x00,0x1F,0xC7,0xFF,0xE1,0xF0,0x00,0x00,
    0x00,0x7F,0xFF,0xE0,0x0C,0x00,0x00,0x00,0x00,0x0F,0xC7,0xFF,0xE0,0x00,0x00,0x00,
    0x00,0x00,0x00,0x00,0x3E,0x00,0x00,0x00,0x00,0x00,0x03,0xFF,0xE0,0x00,0x00,0x00,
    0x00,0x00,0x00,0x00,0x61,0x00,0x00,0x00,0x00,0x00,0x01,0xFF,0xE0,0x00,0x00,0x00,
    0x00,0x00,0x00,0x00,0xC0,0x80,0x00,0x00,0x00,0x00,0x00,0xFF,0x00,0x00,0x00,0x00,
    0x00,0x00,0x00,0x01,0x80,0x60,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
    0x00,0x00,0x00,0x07,0x00,0x38,0x00,0x00,0x3E,0x00,0x00,0x00,0x02,0x00,0x00,0x00,
    0x00,0x00,0x00,0x0C,0x00,0x0C,0x00,0x00,0x23,0x00,0x04,0x00,0x07,0x00,0x00,0x00,
    0x00,0x00,0x00,0x18,0x00,0x04,0x00,0x00,0x41,0x00,0x0C,0x06,0x07,0x80,0x00,0x00,
    0x00,0x00,0x00,0x30,0x00,0x02,0x00,0x00,0xC0,0x80,0x1C,0x07,0x01,0xC0,0x00,0x00,
    0x00,0x00,0x00,0x60,0x00,0x03,0x00,0x01,0x80,0x60,0x78,0x07,0x00,0x60,0x00,0x00,
    0x00,0x00,0x00,0xCF,0x80,0x01,0x00,0x03,0x00,0x30,0x00,0x07,0x00,0x00,0x00,0x00,
    0x00,0x00,0x03,0xF8,0x7F,0xFF,0x80,0x06,0x00,0x18,0x00,0x07,0x00,0x00,0x00,0x00,
    0x00,0x00,0x07,0x80,0x00,0x00,0x40,0x0C,0x00,0x0C,0x00,0x06,0x00,0x00,0x00,0x00,
    0x00,0x00,0x1F,0xFF,0xFF,0xFF,0x20,0x18,0x00,0x06,0x00,0x00,0x00,0x00,0x00,0x00,
    0x00,0x00,0x70,0x00,0x00,0x00,0x30,0x30,0x00,0x01,0x00,0x00,0x00,0x00,0x00,0x00,
    0x00,0x00,0xC0,0x00,0x00,0x00,0x18,0x43,0xFE,0x01,0xC0,0x00,0x00,0x00,0x00,0x00,
    0x00,0x00,0xFF,0xFF,0xFF,0xFF,0xFE,0x40,0x03,0xFF,0x60,0x00,0x00,0x00,0x00,0x00,
    0x00,0x03,0x00,0x00,0x00,0x00,0x02,0x40,0x00,0x00,0x30,0x00,0x00,0x00,0x00,0x00,
    0x00,0x06,0x00,0x00,0x00,0x00,0x01,0x00,0x00,0x00,0x18,0x00,0x00,0x00,0x00,0x00,
    0x00,0x0F,0xFF,0xE0,0x00,0x00,0x00,0xC1,0xFF,0xFF,0xC6,0x00,0x00,0x00,0x00,0x00,
    0x00,0x1A,0x00,0x1F,0xFF,0xFF,0xC0,0x60,0x00,0x00,0x3F,0x00,0x00,0x00,0x00,0x00,
    0x00,0x30,0x00,0x00,0x00,0x00,0x00,0x30,0x3F,0xFF,0xE0,0xC0,0x00,0x00,0x00,0x00,
    0x00,0xC0,0x00,0x00,0x00,0x00,0x00,0x18,0x00,0x00,0x00,0x20,0x00,0x00,0x00,0x00,
    0x01,0x80,0x00,0x00,0x00,0x00,0x00,0x0C,0x00,0x0F,0xFE,0x18,0x00,0x00,0x00,0x00,
    0x03,0x3F,0xFF,0xFF,0xFF,0xFF,0x80,0x06,0x7F,0xF8,0x00,0x06,0x00,0x00,0x00,0x00,
    0x06,0x00,0x00,0x00,0x00,0x00,0x00,0x03,0x00,0x00,0x00,0x03,0x00,0x00,0x00,0x00,
    0x0C,0x00,0x00,0x00,0x00,0x00,0x01,0xFF,0x80,0x00,0x00,0x00,0xC0,0x00,0x00,0x00,
    0x18,0x00,0x00,0x00,0x00,0x00,0x07,0x00,0x80,0x00,0x0F,0xFF,0x30,0x00,0x00,0x00,
    0x10,0x00,0x00,0x00,0x00,0x3F,0xFC,0x00,0xC1,0xFF,0xF0,0x00,0x08,0x00,0x00,0x00,
    0x10,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x60,0x00,0x00,0x00,0x07,0x00,0x00,0x00,
    0x10,0xC0,0x00,0x00,0x00,0x00,0x00,0x00,0x10,0x00,0x00,0x00,0x01,0x00,0x00,0x00,
    0x00,0x7F,0xFE,0x00,0x00,0x00,0x00,0x00,0x0C,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
    0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x04,0x1F,0xFF,0xFF,0xFF,0xFF,0xFF,0xE0,
    0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x02,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
    0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x02,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
    0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
    0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
    0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
    0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
    0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
    0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
    0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
    0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
    0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
    0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00
};

#if (SSD1306_LCDHEIGHT != 64)
#error("Height incorrect, please fix Adafruit_SSD1306.h!");
#endif

void setup()   {
  Serial.begin(9600);
  display.begin(SSD1306_SWITCHCAPVCC, 0x3C);
  display.clearDisplay();
}

void loop() {
  display.drawBitmap(0, 0, logo, 128, 64, 1);  //在坐标X0，Y0的位置开始显示图片
                                               //128是取模软件显示的宽度
                                               //64是取模软件显示的高度
  display.display();                           //把缓存的都显示
  delay(1);

  display.clearDisplay();     //清除屏幕
}
