本文介绍了一个基于STM32实现的USB设备枚举过程，详细解析了从设备上电到最终配置完成的各个阶段，并展示了如何通过寄存器操作实现设备与主机的交互。文章还提供了一个具体的实验案例，包括电路连接、代码实现及运行结果分析。

摘要生成于 C知道，由 DeepSeek-R1 满血版支持，前往体验 >

本程序实现了主机枚举USB设备的完整过程，设备状态由Powered状态转变为最终的Configured状态，全部由STM32寄存器实现，不涉及复杂的库函数。

设备的枚举类型是USB大容量存储（Bulk Only型）。端点0为控制端点，端点1为同时用于数据发送和接收的Bulk型端点（这部分代码还没写）。

配置描述符里面interface->bNumEndpoints要写2，因为EP1_IN和EP1_OUT分别算一个端点，共两个端点（ENDP0不能写进配置描述符的端点描述符里面）。实验证明两个不同传输方向的Bulk型端点使用同一个端点号是可行的（1+31 1-36 1-13，端点1先收到CBW，再发送数据和CSW）。

Keil工程文件下载地址：https://pan.baidu.com/s/1c2yIKzY

参考文档：usb_20_081017/usb_20.pdf，请认真阅读其中的第八章，理清Bulk transfer和Control transfer的完整过程。设备描述符等数据结构请参阅第九章的表格。

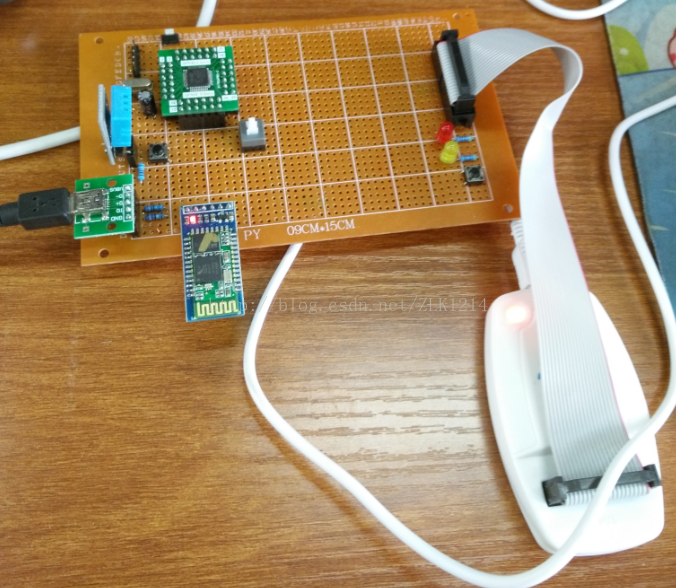

电路连接：

USB接口最左侧的VBUS接+5V，通过AMS1117降压到3.3V给STM32F103C8单片机供电。D-通过22Ω的电阻接PA11，D+通过22Ω的电阻接PA12，D+还通过一个1.5kΩ的电阻接PB3，GND引脚接到单片机的GND上。

单片机晶振为8MHz，所用的串口是USART3，波特率为115200。

注意，程序中要慎用printf函数打印字符串，最好不要打印大量的字符串内容，否则由于设备响应主机不及时，USB将无法正常工作。

【勘误】

2018年9月15日：USB.h中，USB_BufDesc应该定义为：

#define USB_BufDesc ((USB_BufferDescriptor *)(USB_PMAADDR + 2 * USB->BTABLE))

否则当USB->BTABLE不等于0时会出问题。

【main.c】

#include <stdio.h>
#include <stm32f10x.h>
#include "USB.h"

void USB_Init(void);

void dump_data(const void *data, uint16_t len)
{
  const uint8_t *p = data;
  while (len--)
    printf("%02X", *p++);
  printf("\n");
}

int fputc(int ch, FILE *fp)
{
  if (fp == stdout)
  {
    if (ch == '\n')
    {
      while ((USART3->SR & USART_SR_TXE) == 0);
      USART3->DR = '\r';
    }
    while ((USART3->SR & USART_SR_TXE) == 0);
    USART3->DR = ch;
  }
  return ch;
}

int main(void)
{
  uint8_t data;

  RCC->APB1ENR = RCC_APB1ENR_USART3EN | RCC_APB1ENR_USBEN;
  RCC->APB2ENR = RCC_APB2ENR_AFIOEN | RCC_APB2ENR_IOPAEN | RCC_APB2ENR_IOPBEN;

  AFIO->MAPR = AFIO_MAPR_SWJ_CFG_JTAGDISABLE; // 使用SWD调试接口, 禁用JTAG

  // USB引脚PA11~12无需配置

  GPIOB->BSRR = GPIO_BSRR_BS3; // PB3设为高电平
  GPIOB->CRH = 0x44444b44; // 串口发送引脚PB10设为复用推挽输出
  GPIOB->CRL = 0x44483444; // PB3为USB_DP上的上拉电阻, 高电平表明设备插入主机
  // USB_DP上的上拉电阻最好不要直接接高电平, 而是接到某个I/O口上(这里是PB3), 方便查看调试信息, 避免USB线拔来拔去

  USART3->BRR = 312; // 波特率: 115200
  USART3->CR1 = USART_CR1_UE | USART_CR1_TE | USART_CR1_RE;
  printf("STM32F103C8 USB\n");

  USB_Init();

  while (1)
  {
    if (USART3->SR & USART_SR_RXNE)
    {
      data = USART3->DR;
      if (data == 'u')
        printf("USB->EP0R=0x%04x, USB->EP1R=0x%04x, USB->ISTR=0x%04x, USB->CNTR=0x%04x\n", USB->EP0R, USB->EP1R, USB->ISTR, USB->CNTR);
    }
  }
}

【USB.h】

// STM32 CubeMX头文件中复制过来的USB寄存器定义
typedef struct
{
  __IO uint16_t EP0R;                 /*!< USB Endpoint 0 register,                   Address offset: 0x00 */
  __IO uint16_t RESERVED0;            /*!< Reserved */
  __IO uint16_t EP1R;                 /*!< USB Endpoint 1 register,                   Address offset: 0x04 */
  __IO uint16_t RESERVED1;            /*!< Reserved */
  __IO uint16_t EP2R;                 /*!< USB Endpoint 2 register,                   Address offset: 0x08 */
  __IO uint16_t RESERVED2;            /*!< Reserved */
  __IO uint16_t EP3R;                 /*!< USB Endpoint 3 register,                   Address offset: 0x0C */
  __IO uint16_t RESERVED3;            /*!< Reserved */
  __IO uint16_t EP4R;                 /*!< USB Endpoint 4 register,                   Address offset: 0x10 */
  __IO uint16_t RESERVED4;            /*!< Reserved */
  __IO uint16_t EP5R;                 /*!< USB Endpoint 5 register,                   Address offset: 0x14 */
  __IO uint16_t RESERVED5;            /*!< Reserved */
  __IO uint16_t EP6R;                 /*!< USB Endpoint 6 register,                   Address offset: 0x18 */
  __IO uint16_t RESERVED6;            /*!< Reserved */
  __IO uint16_t EP7R;                 /*!< USB Endpoint 7 register,                   Address offset: 0x1C */
  __IO uint16_t RESERVED7[17];        /*!< Reserved */
  __IO uint16_t CNTR;                 /*!< Control register,                          Address offset: 0x40 */
  __IO uint16_t RESERVED8;            /*!< Reserved */
  __IO uint16_t ISTR;                 /*!< Interrupt status register,                 Address offset: 0x44 */
  __IO uint16_t RESERVED9;            /*!< Reserved */
  __IO uint16_t FNR;                  /*!< Frame number register,                     Address offset: 0x48 */
  __IO uint16_t RESERVEDA;            /*!< Reserved */
  __IO uint16_t DADDR;                /*!< Device address register,                   Address offset: 0x4C */
  __IO uint16_t RESERVEDB;            /*!< Reserved */
  __IO uint16_t BTABLE;               /*!< Buffer Table address register,             Address offset: 0x50 */
  __IO uint16_t RESERVEDC;            /*!< Reserved */
} USB_TypeDef;

/* USB device FS */
#define USB_BASE              (APB1PERIPH_BASE + 0x00005C00U) /*!< USB_IP Peripheral Registers base address */
#define USB_PMAADDR           (APB1PERIPH_BASE + 0x00006000U) /*!< USB_IP Packet Memory Area base address */

#define USB                 ((USB_TypeDef *)USB_BASE)

// 对于单向双缓冲型的发送端点, 寄存器名称后缀都是TX; 单向双缓冲接收端点则都是RX
typedef struct
{
  __IO uint16_t ADDR_TX;
  __IO uint16_t RESERVED0;
  __IO uint16_t COUNT_TX;
  __IO uint16_t RESERVED1;
  __IO uint16_t ADDR_RX;
  __IO uint16_t RESERVED2;
  __IO uint16_t COUNT_RX;
  __IO uint16_t RESERVED3;
} USB_BufferDescriptor;

#define USB_BufDesc ((USB_BufferDescriptor *)(USB_PMAADDR + USB->BTABLE))

#define USB_ISTR_MASK 0x7f00

#define USB_EPnR_MASK_T 0x8f8f // 防止翻转位发生翻转用的掩码
#define USB_EPnR_MASK_CW0 0x8080 // 防止rc_w0型的位被清零
#define USB_EPnR(reg) ((reg & USB_EPnR_MASK_T) | USB_EPnR_MASK_CW0)

typedef __packed struct
{
  uint8_t bmRequestType;
  uint8_t bRequest;
  uint16_t wValue;
  uint16_t wIndex;
  uint16_t wLength;
} USB_DeviceRequest;

typedef __packed struct
{
  uint8_t bLength;
  uint8_t bDescriptorType;
  uint16_t bcdUSB;
  uint8_t bDeviceClass;
  uint8_t bDeviceSubClass;
  uint8_t bDeviceProtocol;
  uint8_t bMaxPacketSize0;
  uint16_t idVendor;
  uint16_t idProduct;
  uint16_t bcdDevice;
  uint8_t iManufacturer;
  uint8_t iProduct;
  uint8_t iSerialNumber;
  uint8_t bNumConfigurations;
} USB_DeviceDescriptor;

typedef __packed struct
{
  uint8_t bLength;
  uint8_t bDescriptorType;
  uint16_t wTotalLength;
  uint8_t bNumInterfaces;
  uint8_t bConfigurationValue;
  uint8_t iConfiguration;
  uint8_t bmAttributes;
  uint8_t bMaxPower;
} USB_ConfigurationDescriptor;

typedef __packed struct
{
  uint8_t bLength;
  uint8_t bDescriptorType;
  uint8_t bInterfaceNumber;
  uint8_t bAlternateSetting;
  uint8_t bNumEndpoints;
  uint8_t bInterfaceClass;
  uint8_t bInterfaceSubClass;
  uint8_t bInterfaceProtocol;
  uint8_t iInterface;
} USB_InterfaceDescriptor;

typedef __packed struct
{
  uint8_t bLength;
  uint8_t bDescriptorType;
  uint8_t bEndpointAddress;
  uint8_t bmAttributes;
  uint16_t wMaxPacketSize;
  uint8_t bInterval;
} USB_EndpointDescriptor;

typedef __packed struct
{
  uint8_t bLength;
  uint8_t bDescriptorType;
  uint16_t wData[1];
} USB_StringDescriptor;

【usb_def.h】

/**
  ******************************************************************************
  * @file    usb_def.h
  * @author  MCD Application Team
  * @version V4.1.0
  * @date    26-May-2017
  * @brief   Definitions related to USB Core
  ******************************************************************************
  * @attention
  *
  * <h2><center>&copy; COPYRIGHT(c) 2017 STMicroelectronics</center></h2>
  *
  * Redistribution and use in source and binary forms, with or without modification,
  * are permitted provided that the following conditions are met:
  *   1. Redistributions of source code must retain the above copyright notice,
  *      this list of conditions and the following disclaimer.
  *   2. Redistributions in binary form must reproduce the above copyright notice,
  *      this list of conditions and the following disclaimer in the documentation
  *      and/or other materials provided with the distribution.
  *   3. Neither the name of STMicroelectronics nor the names of its contributors
  *      may be used to endorse or promote products derived from this software
  *      without specific prior written permission.
  *
  * THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS "AS IS"
  * AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE
  * IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE
  * DISCLAIMED. IN NO EVENT SHALL THE COPYRIGHT HOLDER OR CONTRIBUTORS BE LIABLE
  * FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL
  * DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR
  * SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER
  * CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY,
  * OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE
  * OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.
  *
  ******************************************************************************
  */

/* Define to prevent recursive inclusion -------------------------------------*/
#ifndef __USB_DEF_H
#define __USB_DEF_H

/* Includes ------------------------------------------------------------------*/
/* Exported types ------------------------------------------------------------*/
typedef enum _RECIPIENT_TYPE
{
  DEVICE_RECIPIENT,     /* Recipient device */
  INTERFACE_RECIPIENT,  /* Recipient interface */
  ENDPOINT_RECIPIENT,   /* Recipient endpoint */
  OTHER_RECIPIENT
} RECIPIENT_TYPE;


typedef enum _STANDARD_REQUESTS
{
  GET_STATUS = 0,
  CLEAR_FEATURE,
  RESERVED1,
  SET_FEATURE,
  RESERVED2,
  SET_ADDRESS,
  GET_DESCRIPTOR,
  SET_DESCRIPTOR,
  GET_CONFIGURATION,
  SET_CONFIGURATION,
  GET_INTERFACE,
  SET_INTERFACE,
  TOTAL_sREQUEST,  /* Total number of Standard request */
  SYNCH_FRAME = 12
} STANDARD_REQUESTS;

/* Definition of "USBwValue" */
typedef enum _DESCRIPTOR_TYPE
{
  DEVICE_DESCRIPTOR = 1,
  CONFIG_DESCRIPTOR,
  STRING_DESCRIPTOR,
  INTERFACE_DESCRIPTOR,
  ENDPOINT_DESCRIPTOR,
  DEVICE_BOS_DESCRIPTOR = 0xF
} DESCRIPTOR_TYPE;

/* Feature selector of a SET_FEATURE or CLEAR_FEATURE */
typedef enum _FEATURE_SELECTOR
{
  ENDPOINT_STALL,
  DEVICE_REMOTE_WAKEUP
} FEATURE_SELECTOR;

/* Exported constants --------------------------------------------------------*/
/* Definition of "USBbmRequestType" */
#define REQUEST_TYPE      0x60  /* Mask to get request type */
#define STANDARD_REQUEST  0x00  /* Standard request */
#define CLASS_REQUEST     0x20  /* Class request */
#define VENDOR_REQUEST    0x40  /* Vendor request */

#define RECIPIENT         0x1F  /* Mask to get recipient */

/* Exported macro ------------------------------------------------------------*/
/* Exported functions ------------------------------------------------------- */

#endif /* __USB_DEF_H */

/************************ (C) COPYRIGHT STMicroelectronics *****END OF FILE****/

【usb_test.c】

#include <stdio.h>
#include <stm32f10x.h>
#include <wchar.h>
#include "USB.h"
#include "usb_def.h"

void dump_data(const void *data, uint16_t len);
void USB_ReadPMA(uint16_t offset, void *buffer, uint16_t len);
void USB_WritePMA(uint16_t usbaddr, const void *buffer, uint16_t len);

static void USB_GetDescriptor(const USB_DeviceRequest *devreq);

// Keil MDK使用微库时, 下面两个函数必须自己实现
wchar_t *wcscpy(wchar_t *s1, const wchar_t *s2) // 复制UTF-16字符串
{
  wchar_t *r = s1;
  while ((*r++ = *s2++) != 0);
  return s1;
}

size_t wcslen(const wchar_t *s) // 求UTF-16字符串的长度
{
  size_t n = 0;
  while (*s++)
    n++;
  return n;
}

void USB_CorrectTransfer(void)
{
  static uint8_t pending_addr = 0;
  uint8_t buffer[64];
  uint8_t ep_id;
  uint16_t len;
  USB_DeviceRequest *devreq = (USB_DeviceRequest *)buffer;

  ep_id = USB->ISTR & USB_ISTR_EP_ID; // 端点号
  if (ep_id == 0)
  {
    if (USB->ISTR & USB_ISTR_DIR)
    {
      // 端点0接收成功
      //if (USB->EP0R & USB_EP0R_SETUP)
      //  printf("[SETUP]\n");
      USB->EP0R = USB_EPnR(USB->EP0R) & ~USB_EP0R_CTR_RX; // 清除中断标志位

      len = USB_BufDesc[0].COUNT_RX & USB_COUNT0_RX_COUNT0_RX; // 收到的字节数
      printf("0+%d\n", len);
      if (len > 0)
      {
        USB_ReadPMA(USB_BufDesc[0].ADDR_RX, buffer, len);
        dump_data(buffer, len);

        if ((devreq->bmRequestType & REQUEST_TYPE) == STANDARD_REQUEST && (devreq->bmRequestType & RECIPIENT) == DEVICE_RECIPIENT) // 标准设备请求
        {
          switch (devreq->bRequest)
          {
            case GET_DESCRIPTOR:
              USB_GetDescriptor(devreq);
              break;
            case SET_ADDRESS:
              pending_addr = devreq->wValue; // 先暂存USB设备地址, 必须等到Status stage结束后才能写入USB->DADDR寄存器中
              USB_BufDesc[0].COUNT_TX = 0;
              USB->EP0R = USB_EPnR(USB->EP0R) | ((USB->EP0R & USB_EP0R_STAT_TX) ^ USB_EP0R_STAT_TX); // TX=VALID
              break;
            case SET_CONFIGURATION:
              printf("CFG%hd\n", devreq->wValue);
              USB_BufDesc[0].COUNT_TX = 0;
              USB->EP0R = USB_EPnR(USB->EP0R) | ((USB->EP0R & USB_EP0R_STAT_TX) ^ USB_EP0R_STAT_TX); // TX=VALID
              break;
            default:
              dump_data(buffer, len);
          }
        }
        else
          dump_data(buffer, len);
      }
      else
      {
        // 收到一个空包

        // RX=VALID, TX=NAK, STATUS_OUT=0
        USB->EP0R = (USB_EPnR(USB->EP0R) & ~USB_EP0R_EP_KIND) | ((USB->EP0R & (USB_EP0R_STAT_RX | USB_EP0R_STAT_TX)) ^ (USB_EP0R_STAT_RX | USB_EP0R_STAT_TX_1));
      }
    }
    else
    {
      // 端点0发送成功
      USB->EP0R = USB_EPnR(USB->EP0R) & ~USB_EP0R_CTR_TX;

      // 当data stage的最后一个transaction为IN token时(在本程序中所有的control transfer的data stage都最多只有一个transaction), 应将STATUS_OUT置位
      // 这样在接下来的status stage的data phase中如果主机发送的数据长度不为0, 则设备不会回应ACK, 而是报告错误
      len = USB_BufDesc[0].COUNT_TX;
      if (len != 0)
        USB->EP0R = USB_EPnR(USB->EP0R) | USB_EP0R_EP_KIND; // STATUS_OUT=1

      USB->EP0R = USB_EPnR(USB->EP0R) | ((USB->EP0R & USB_EP0R_STAT_RX) ^ USB_EP0R_STAT_RX); // RX=VALID

      if (pending_addr != 0)
      {
        // 主机在某个control transfer的data stage期间将分配的设备地址发送给设备
        // 但设备必须在status stage完成后才将地址写入寄存器
        USB->DADDR = USB_DADDR_EF | pending_addr;
        printf("DADDR_%02X\n", pending_addr);
        pending_addr = 0;
      }

      printf("0-%d\n", len);
    }
  }
  else if (ep_id == 1)
  {
    if (USB->ISTR & USB_ISTR_DIR)
    {
      // 端点1接收成功
      USB->EP1R = USB_EPnR(USB->EP1R) & ~USB_EP1R_CTR_RX;

      len = USB_BufDesc[1].COUNT_RX & USB_COUNT1_RX_COUNT1_RX; // 收到的字节数
      printf("1+%d\n", len);
      if (len > 0)
      {
        USB_ReadPMA(USB_BufDesc[1].ADDR_RX, buffer, len);
        dump_data(buffer, len);
      }

      USB->EP1R = USB_EPnR(USB->EP1R) | ((USB->EP1R & USB_EP1R_STAT_RX) ^ USB_EP1R_STAT_RX);
    }
    else
    {
      // 端点1发送成功
    }
  }
}

static void USB_GetDescriptor(const USB_DeviceRequest *devreq)
{
  uint8_t buffer[64];
  uint8_t type = devreq->wValue >> 8; // 高8位为请求的描述符类型
  USB_ConfigurationDescriptor *config = (USB_ConfigurationDescriptor *)buffer;
  USB_DeviceDescriptor *device = (USB_DeviceDescriptor *)buffer;
  USB_EndpointDescriptor *endpoints;
  USB_InterfaceDescriptor *interface;
  USB_StringDescriptor *str = (USB_StringDescriptor *)buffer;

  switch (type)
  {
    case DEVICE_DESCRIPTOR:
      device->bLength = sizeof(USB_DeviceDescriptor);
      device->bDescriptorType = DEVICE_DESCRIPTOR;
      device->bcdUSB = 0x200; // USB 2.0
      device->bDeviceClass = 0;
      device->bDeviceSubClass = 0;
      device->bDeviceProtocol = 0;
      device->bMaxPacketSize0 = 64;
      device->idVendor = 0x483; // STMicroelectronics (http://www.linux-usb.org/usb.ids)
      device->idProduct = 0x5720; // STM microSD Flash Device
      device->bcdDevice = 0x200;
      device->iManufacturer = 1; // 制造商名称字符串序号
      device->iProduct = 2; // 产品名字符串序号
      device->iSerialNumber = 3; // 产品序列号字符串序号
      device->bNumConfigurations = 1; // 配置数
      USB_BufDesc[0].COUNT_TX = device->bLength;
      break;
    case CONFIG_DESCRIPTOR:
      config->bLength = sizeof(USB_ConfigurationDescriptor);
      config->bDescriptorType = CONFIG_DESCRIPTOR;
      config->wTotalLength = sizeof(USB_ConfigurationDescriptor) + sizeof(USB_InterfaceDescriptor) + 2 * sizeof(USB_EndpointDescriptor);
      config->bNumInterfaces = 1; // 接口数
      config->bConfigurationValue = 1; // 此配置的编号
      config->iConfiguration = 0; // 配置名字符串序号(0表示没有)
      config->bmAttributes = 0xc0; // self-powered
      config->bMaxPower = 50; // 最大电流: 100mA

      interface = (USB_InterfaceDescriptor *)(config + 1);
      interface->bLength = sizeof(USB_InterfaceDescriptor);
      interface->bDescriptorType = INTERFACE_DESCRIPTOR;
      interface->bInterfaceNumber = 0; // 此接口的编号
      interface->bAlternateSetting = 0; // 可用的备用接口编号
      interface->bNumEndpoints = 2; // 除了端点0外, 此接口还需要的端点数
      interface->bInterfaceClass = 0x08; // Mass Storage devices
      interface->bInterfaceSubClass = 0x06; // SCSI transparent command set
      interface->bInterfaceProtocol = 0x50; // USB Mass Storage Class Bulk-Only (BBB) Transport
      interface->iInterface = 4; // 接口名称字符串序号

      endpoints = (USB_EndpointDescriptor *)(interface + 1);
      endpoints[0].bLength = sizeof(USB_EndpointDescriptor);
      endpoints[0].bDescriptorType = ENDPOINT_DESCRIPTOR;
      endpoints[0].bEndpointAddress = 0x81; // IN, address 1
      endpoints[0].bmAttributes = 0x02; // Bulk
      endpoints[0].wMaxPacketSize = 64;
      endpoints[0].bInterval = 0; // Does not apply to Bulk endpoints

      endpoints[1].bLength = sizeof(USB_EndpointDescriptor);
      endpoints[1].bDescriptorType = ENDPOINT_DESCRIPTOR;
      endpoints[1].bEndpointAddress = 0x01; // OUT, address 1
      endpoints[1].bmAttributes = 0x02; // Bulk
      endpoints[1].wMaxPacketSize = 64;
      endpoints[1].bInterval = 0;

      USB_BufDesc[0].COUNT_TX = config->wTotalLength;
      break;
    case STRING_DESCRIPTOR:
      str->bDescriptorType = STRING_DESCRIPTOR;
      if (devreq->wIndex == 0x409) // 字符串英文内容
      {
        // 字符串的编码为UTF-16
        switch (devreq->wValue & 0xff) // 低8位为字符串序号
        {
          case 1:
            wcscpy((wchar_t *)str->wData, L"Hello Manufacturer!");
            break;
          case 2:
            wcscpy((wchar_t *)str->wData, L"Hello Product!");
            break;
          case 3:
            wcscpy((wchar_t *)str->wData, L"Hello SerialNumber!");
            break;
          case 4:
            wcscpy((wchar_t *)str->wData, L"Hello Interface!");
            break;
          default:
            printf("STR_%d\n", devreq->wValue & 0xff);
            wcscpy((wchar_t *)str->wData, L"???");
        }
        str->bLength = 2 + wcslen((wchar_t *)str->wData) * 2;
      }
      else if (devreq->wIndex == 0) // 字符串语言列表
      {
        str->bLength = 4;
        str->wData[0] = 0x0409; // English (United States)
      }
      else
      {
        printf("IND%hd\n", devreq->wIndex);
        return;
      }
      USB_BufDesc[0].COUNT_TX = str->bLength;
      break;
    default:
      // 包括Device qualifier (full-speed设备不支持)
      USB->EP0R = USB_EPnR(USB->EP0R) | ((USB->EP0R & USB_EP0R_STAT_TX) ^ USB_EP0R_STAT_TX_0); // STAT_TX设为STALL
      return;
  }

  // 发送的字节数不能超过主机要求的最大长度
  if (USB_BufDesc[0].COUNT_TX > devreq->wLength)
    USB_BufDesc[0].COUNT_TX = devreq->wLength; // 只修改发送长度, 内容原封不动, 切记!!!!
  // 比如在请求字符串语言列表时, 待发送的数据量是str->bLength=4
  // 如果主机要求最大只能发送devreq->wLength=2字节, 则数据内容str->bLength应该仍为4, 不能改成2

  USB_WritePMA(USB_BufDesc[0].ADDR_TX, buffer, USB_BufDesc[0].COUNT_TX);
  USB->EP0R = USB_EPnR(USB->EP0R) | ((USB->EP0R & USB_EP0R_STAT_TX) ^ USB_EP0R_STAT_TX); // STAT_TX设为VALID, 允许发送; STAT_RX保持NAK
}

void USB_Init(void)
{
  USB->CNTR |= USB_CNTR_ERRM; // 打开错误提示中断
  NVIC_EnableIRQ(USB_LP_CAN1_RX0_IRQn);

  USB->CNTR &= ~USB_CNTR_PDWN; // 先打开USB外设 (需要一定的启动时间)
  USB->CNTR &= ~USB_CNTR_FRES; // 撤销USB外设的复位信号

  // 初始化端点0和端点1的缓冲区
  USB_BufDesc[0].ADDR_TX = 112;
  USB_BufDesc[0].COUNT_TX = 0;
  USB_BufDesc[0].ADDR_RX = 176;
  USB_BufDesc[0].COUNT_RX = USB_COUNT0_RX_BLSIZE | USB_COUNT0_RX_NUM_BLOCK_0; // 64 bytes (See Table 177. Definition of allocated buffer memory)

  USB_BufDesc[1].ADDR_TX = 240;
  USB_BufDesc[1].COUNT_TX = 0;
  USB_BufDesc[1].ADDR_RX = 304;
  USB_BufDesc[1].COUNT_RX = USB_COUNT1_RX_BLSIZE | USB_COUNT1_RX_NUM_BLOCK_0;

  USB->CNTR |= USB_CNTR_RESETM; // 打开复位中断, 开始处理复位请求
}

void USB_ReadPMA(uint16_t usbaddr, void *buffer, uint16_t len)
{
  const uint16_t *ppma;
  uint16_t *pbuf;

  // USBPMA地址范围: 0~511, 对应的APB绝对地址范围为0x40006000~0x400063fd
  // 0对应0x40006000, 1对应0x40006001; 但2对应0x40006004, 3对应0x40006005, 4对应0x40006008, 5对应0x40006009
  if (usbaddr % 2 == 1)
  {
    *(uint8_t *)buffer = *(uint8_t *)(USB_PMAADDR + 2 * usbaddr - 1);
    pbuf = (uint16_t *)((uint8_t *)buffer + 1);
    usbaddr++;
    len--;
  }
  else
    pbuf = (uint16_t *)buffer;

  ppma = (const uint16_t *)(USB_PMAADDR + usbaddr * 2); // 将USB地址转换为APB绝对地址
  while (len >= 2)
  {
    *pbuf = *ppma;
    pbuf++; // 缓冲区地址前进2个地址
    ppma += 2; // APB绝对地址前进2个地址
    len -= 2;
  }

  if (len == 1)
    *(uint8_t *)pbuf = *(uint8_t *)ppma;
}

void USB_WritePMA(uint16_t usbaddr, const void *buffer, uint16_t len)
{
  const uint16_t *pbuf;
  uint16_t *ppma;

  if (usbaddr % 2 == 1)
  {
    *(uint8_t *)(USB_PMAADDR + 2 * usbaddr - 1) = *(uint8_t *)buffer;
    pbuf = (uint16_t *)((uint8_t *)buffer + 1);
    usbaddr++;
    len--;
  }
  else
    pbuf = (uint16_t *)buffer;

  ppma = (uint16_t *)(USB_PMAADDR + usbaddr * 2);
  while (len >= 2)
  {
    *ppma = *pbuf;
    pbuf++;
    ppma += 2;
    len -= 2;
  }

  if (len == 1)
    *(uint8_t *)ppma = *(uint8_t *)pbuf;
}

void USB_LP_CAN1_RX0_IRQHandler(void)
{
  if (USB->ISTR & USB_ISTR_ERR)
  {
    USB->ISTR = USB_ISTR_MASK & ~USB_ISTR_ERR;
    printf("USB error!\n"); // CRC校验错误会产生这个中断, 但系统会自动重传数据, 软件无需理会
  }
  if (USB->ISTR & USB_ISTR_RESET)
  {
    // USB复位会使DADDR和EPnR寄存器清零
    USB->ISTR = USB_ISTR_MASK & ~USB_ISTR_RESET;
    USB->DADDR = USB_DADDR_EF; // 启动USB外设的功能
    USB->EP0R = USB_EP0R_STAT_RX | USB_EP0R_EP_TYPE_0 | USB_EP0R_STAT_TX_1; // STAT_RX=VALID, EP_TYPE=CONTROL, STAT_TX=NAK
    USB->EP1R = USB_EP1R_STAT_RX | USB_EP1R_STAT_TX_1 | 1;
    printf("USB reset!\n");
  }
  if (USB->ISTR & USB_ISTR_CTR) // 虽然CTR中断在寄存器中并没有使能, 但是仍能触发, 所以这个中断是关不掉的
    USB_CorrectTransfer();
}

【程序运行结果】

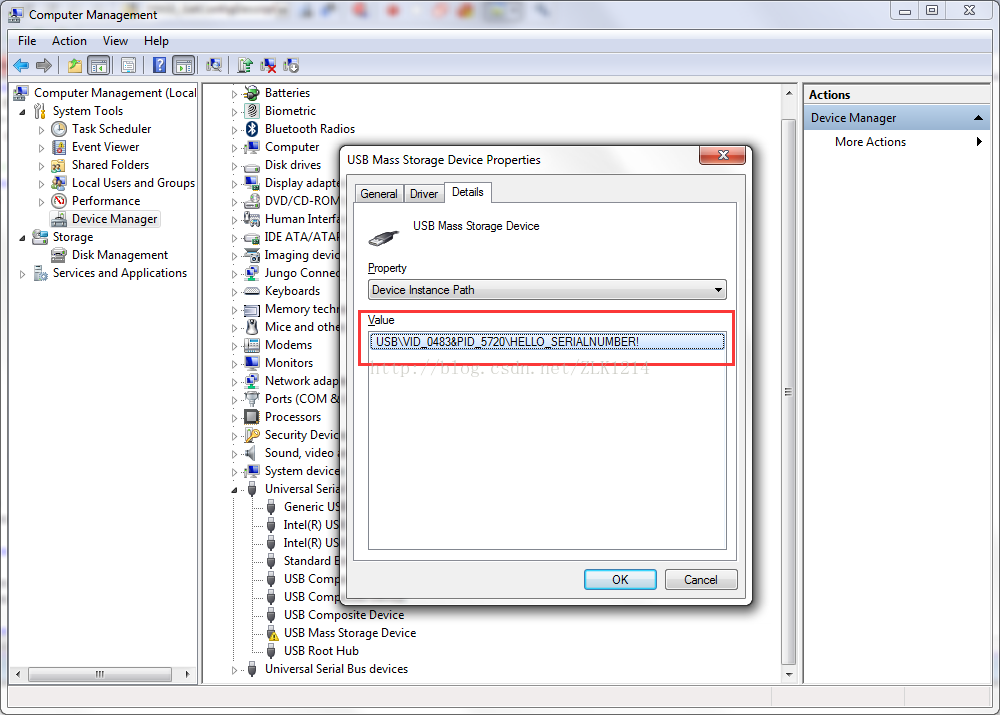

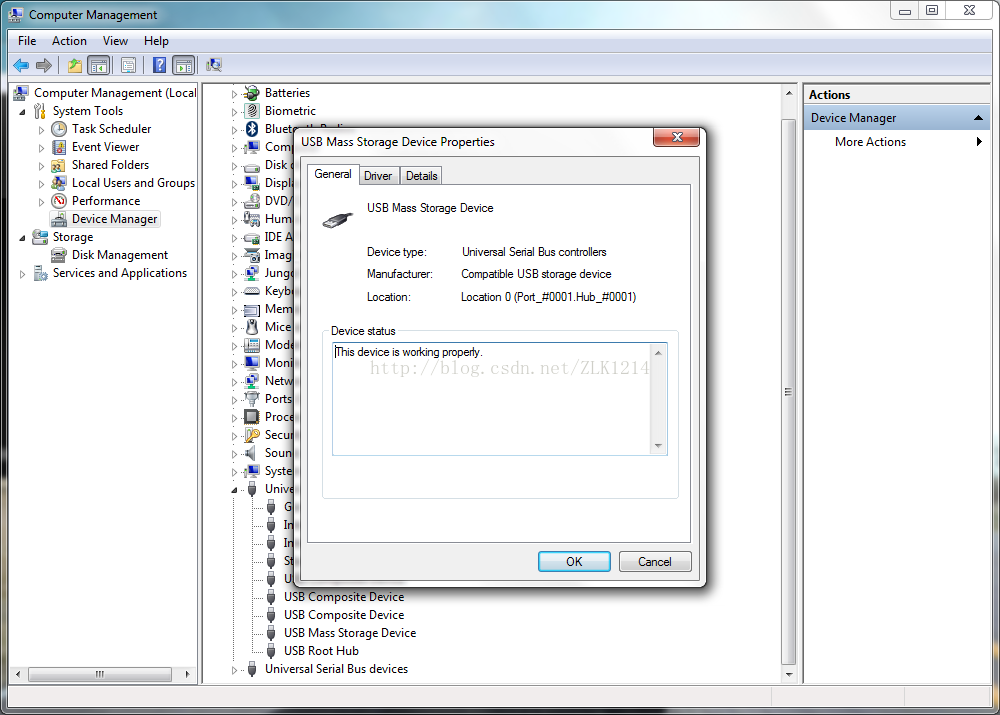

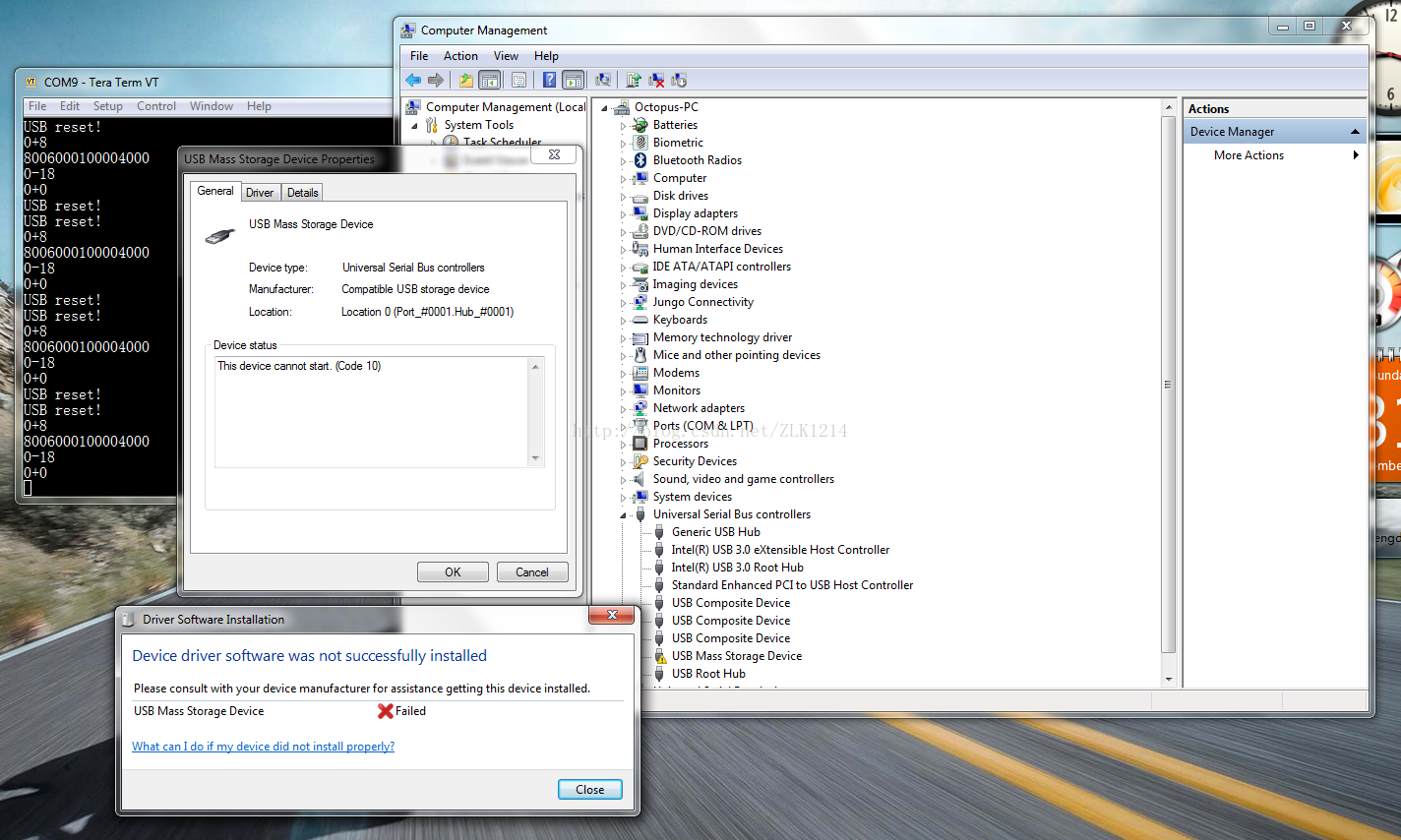

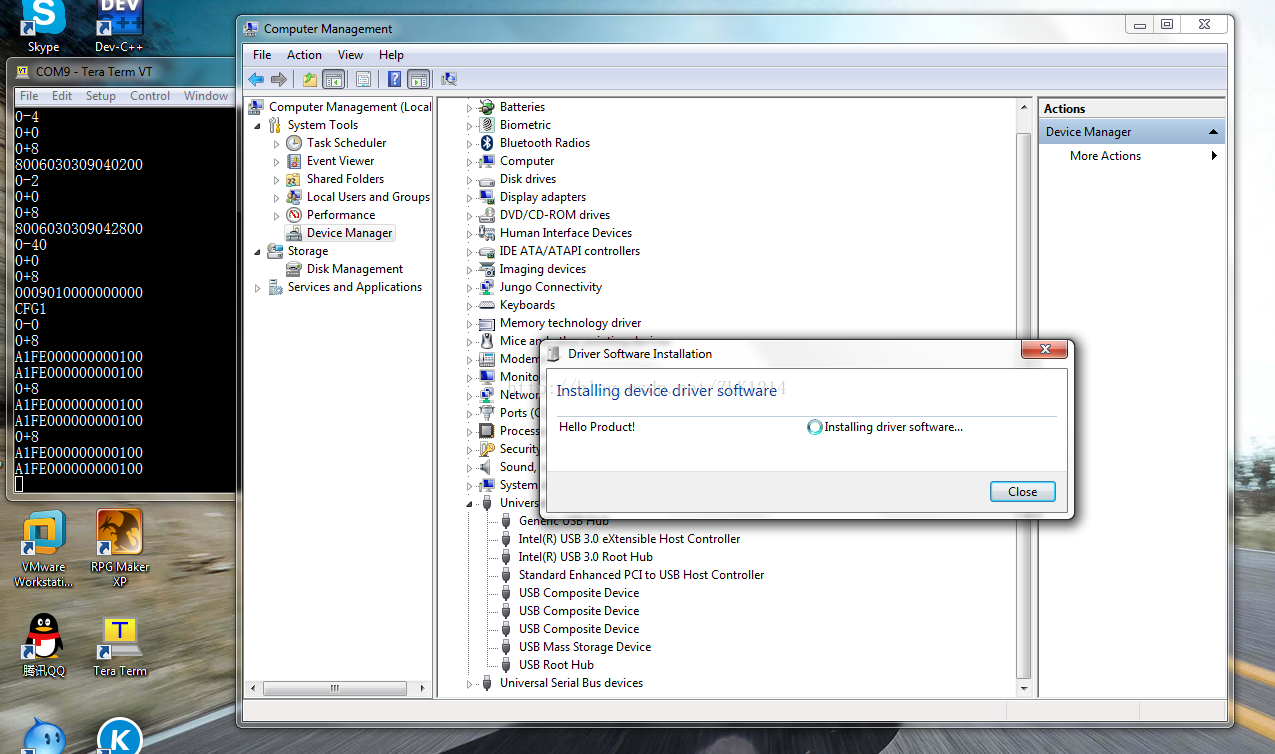

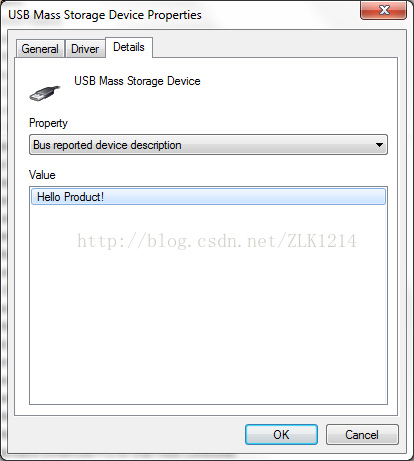

USB线插到电脑上后，电脑先给一个名叫“Hello Product!”的设备安装驱动，设备的状态最开始是正常的，但最后提示驱动安装失败，设备无法启动。

串口输出结果分析：

STM32F103C8 USB
USB reset! // STM32 USB外设本身的复位 (先清除PDWN位, 再清除FRES位), 此时设备为Powered状态
USB reset! // 主机让USB设备复位, 设备由Powered状态转变为Default状态
0+8 // 端点0收到8字节数据 (Setup stage: hostOUT+hostData+deviceACK)
8006000100004000 // 主机请求设备描述符, 请求的最大数据长度为0x40=64字节
0-18 // 端点0发出18字节的设备描述符数据 (Data stage: hIN+dData+hACK)
0+0 // 主机确认收到数据 (Status stage: hOUT+hDATA+dACK)
USB reset! // 主机再次让USB设备复位
0+8
0005130000000000 // 主机给USB设备分配设备地址0x13, 不请求数据 (Setup stage: hOUT+hData+dACK)
DADDR_13
0-0 // 设备确认收到数据, 并修改设备地址为0x13 (Status stage: hIN+dData+hACK), 设备由Default状态转变为Address状态
0+8
8006000100001200 // 主机再次请求设备描述符, 最大数据长度为0x12=18字节
0-18 // 设备通过端点0发送18字节的设备描述符
0+0 // 主机确认收到数据
0+8
800600020000FF00 // 主机请求配置描述符
0-32 // 设备发送32字节的配置描述符，顺带将接口描述符和端点描述符也发送给主机（USB规范要求）
0+0 // 主机确认
0+8
800600030000FF00 // 主机请求字符串的语言列表
0-4 // 设备告诉主机, 设备只支持0x0409 English (United States)这一种语言
0+0
0+8
800603030904FF00 // 主机请求3号字符串用0x0409这个语言(英语)写的内容
0-40 // 设备发送字符串内容
0+0
0+8
8006000600000A00 // 主机请求Device qualifier描述符, 但由于USB规范规定USB全速设备不支持这个描述符, 所以直接STALL, 向主机报告错误
0+8
8006000100001200 // 主机再次请求18字节的设备描述符
0-18
0+0
0+8
8006000200000900 // 主机请求配置描述符, 但这次只允许设备发送9字节的内容
0-9 // 配置描述符共有32字节, 设备只发送前9字节给主机, 发送的内容不作任何修改(wTotalLength=32, 绝对不允许改成9)
0+0 // 主机确认收到数据
0+8
8006000200002000 // 主机再次请求配置描述符, 最大长度改成了0x20=32字节
0-32 // 设备发送了完整的配置描述符
0+0
0+8
8006000300000200 // 主机请求字符串语言列表, 但只允许设备发送2字节的内容 (实际上就是要获取语言列表的长度)
0-2 // 语言列表共有4字节, 设备只发送前两字节, 内容中的bLength=4保持不变
0+0
0+8
8006000300000400 // 主机请求字符串语言列表, 最大长度改成了4字节
0-4 // 设备发送了完整的语言列表
0+0
0+8
8006030309040200 // 主机请求3号字符串的英语内容的长度
0-2
0+0
0+8
8006030309042800 // 主机请求3号字符串的英语内容
0-40
0+0
0+8
0009010000000000 // 应用1号配置, 设备现在由Address状态转变为最终的Configured状态
CFG1
0-0
0+8
A1FE000000000100 // 后面的代码还没写, 因为调用了两次dump_data, 所以数据内容输出了两次
A1FE000000000100 // A1表示: 方向为从设备到主机, 获取大容量存储Class的接口(Interface)信息
0+8
A1FE000000000100
A1FE000000000100
0+8
A1FE000000000100
A1FE000000000100
1+31 // 端点1收到了31字节的数据
5553424310109C112400000080000612000000240000000000000000000000
USB reset! // 端点没有回应, 所以主机认为出错了, 因此就发送了复位请求
USB reset!
0+8
8006000100004000
0-18
0+0
0+8
0005140000000000
DADDR_14
0-0
0+8
8006000100001200
0-18
0+0
USB reset!
USB reset!
0+8
8006000100004000
0-18
0+0
USB reset!
USB reset!
0+8
8006000100004000
0-18
0+0
0+8
0005160000000000
DADDR_16
0-0
0+8
8006000100001200
0-18
0+0
USB reset!
USB reset!
0+8
8006000100004000
0-18
0+0
0+8
0005170000000000
DADDR_17
0-0
0+8
8006000100001200
0-18
0+0
0+8
800600020000FF00
0-32
0+0
0+8
0009010000000000
CFG1
0-0
1+31
555342431010AF0D2400000080000612000000240000000000000000000000
USB reset!
USB reset!
0+8
8006000100004000
0-18
0+0
0+8
0005180000000000
DADDR_18
0-0
0+8
8006000100001200
0-18
0+0
USB reset!
USB reset!
0+8
8006000100004000
0-18
0+0
USB reset!
USB reset!
0+8
8006000100004000
0-18
0+0
0+8
00051A0000000000
DADDR_1A
0-0
0+8
8006000100001200
0-18
0+0
0+8
800600020000FF00
0-32
0+0
